T1 Switched Power Source

2019_Silverado_HC
 Share

Recommended Posts

2019_Silverado_HC Enthusiast

2019_Silverado_HC

Posted
Posted

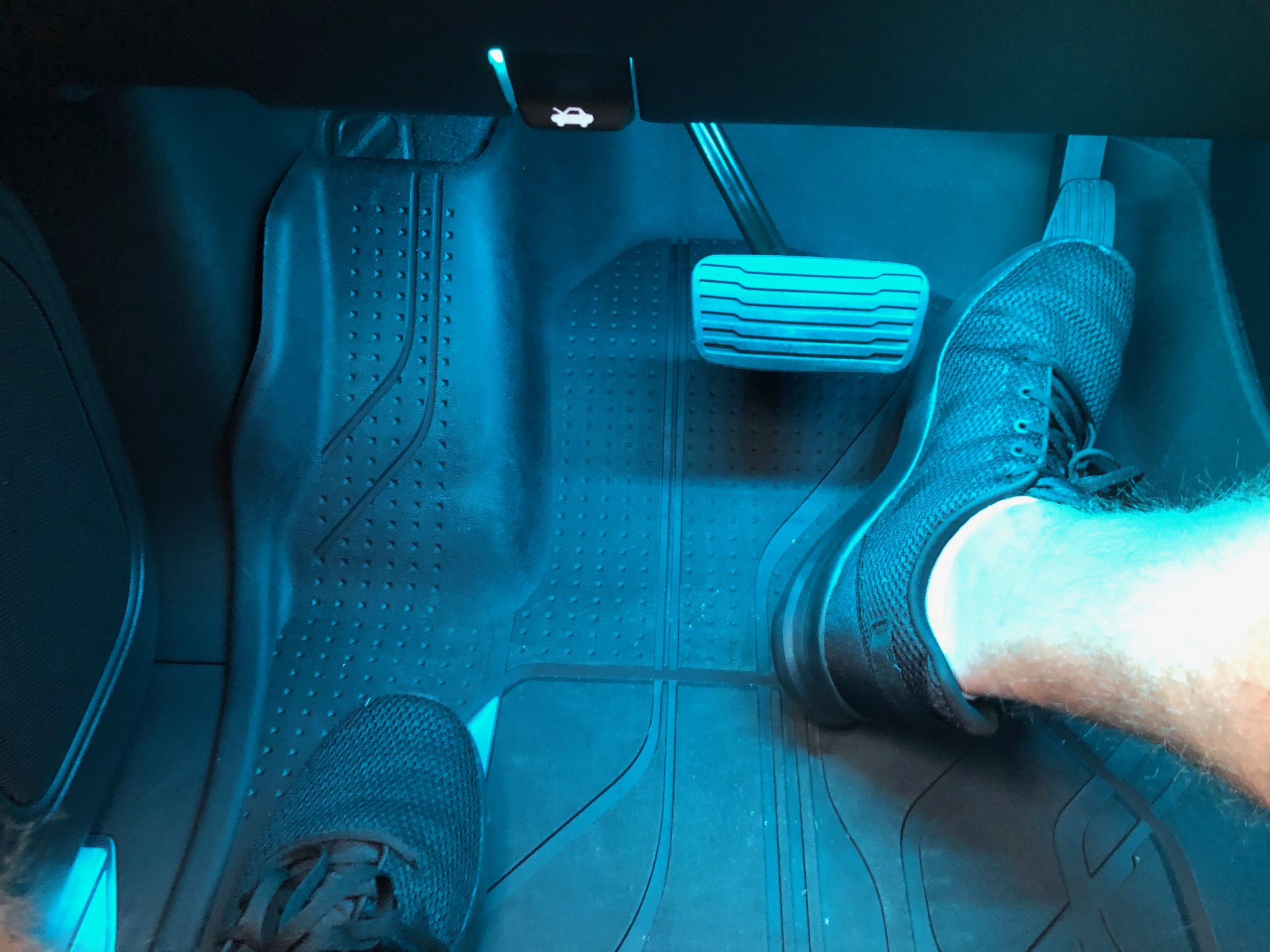

I installed some RGB footwell lights this weekend (picture forthcoming) and part of the project involved locating a switched power source and preferably one with retained accessory power.  In the right fuse panel (passenger side) by fuse F27 which is a square shaped fuse, there is an additional prong next to it that will accept a spade connector which you can then run a wire to a separate fuse for whatever you are installing.  I hope this helps someone else since wiring diagrams are not readily available on the net yet.  Enjoy!

  • Like 2
  • Thanks 1
  • Replies 52
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

2019_Silverado_HC
2019_Silverado_HC

I installed some RGB footwell lights this weekend (picture forthcoming) and part of the project involved locating a switched power source and preferably one with retained accessory power.  In the righ

Smoothbassman
Smoothbassman

Yes There is only one slot that is switched. It's the spade to the left of the 50 amp circuit breaker. Top right of this picture. You have to use a spade connection to grab it and split it off

Zeker
Zeker

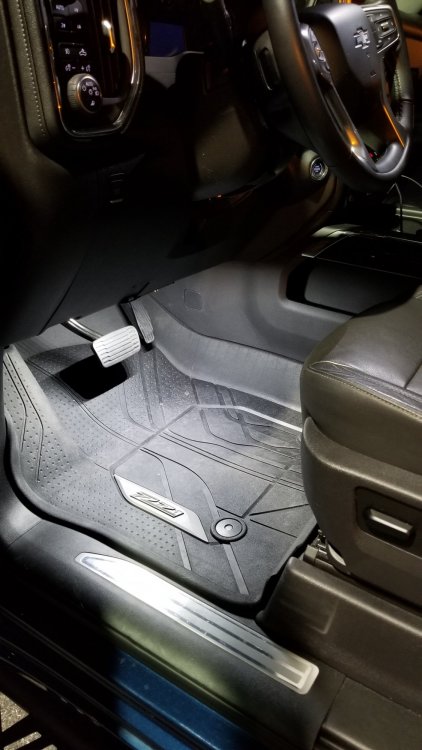

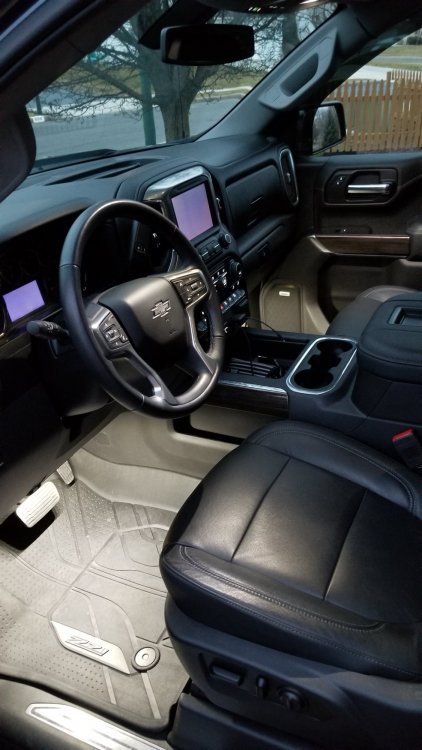

Hooked mine up last night. Wired them into the dome lights. Thanks Smoothbassman!

Posted Images

Black02Silverado Senior Enthusiast

Black02Silverado

Posted
Posted

Good info, thanks.  I will be adding foot-well lighting  as well.  Hate getting in and not having it.  It is standard on my 2002.  Can't believe they got rid of it.

  • 1 month later...
1FUNC5 Enthusiast

1FUNC5

Posted
Posted

 Has anyone had the issue of this power source cutting off and back on when the truck cranks from auto stop start ??????

  • 1 month later...
Black02Silverado Senior Enthusiast

Black02Silverado

Posted
Posted

I take it this power source works with the interior lights?  As when you open the door they come on and then go out?

destrada127 Enthusiast

destrada127

Posted
Posted
On 12/5/2018 at 11:50 AM, 2019_Silverado_HC said:

No issues on my truck.

If this connection has retained accessory power, are your lights always on?

destrada127 Enthusiast

destrada127

Posted
Posted
RAP only stays on until the driver door is opened.
Yeah I figured that out after I wired it up lol. I was just concerned because my car charger stays on with the truck off and thought that was the "retained" accessory power

Sent from my SM-G965U using Tapatalk

Black02Silverado Senior Enthusiast

Black02Silverado

Posted
Posted (edited)
On 10/22/2018 at 10:54 AM, 2019_Silverado_HC said:

I installed some RGB footwell lights this weekend (picture forthcoming) and part of the project involved locating a switched power source and preferably one with retained accessory power.  In the right fuse panel (passenger side) by fuse F27 which is a square shaped fuse, there is an additional prong next to it that will accept a spade connector which you can then run a wire to a separate fuse for whatever you are installing.  I hope this helps someone else since wiring diagrams are not readily available on the net yet.  Enjoy!

OK on my 2019 that connection is always hot.  Anyone have any more suggestions.  What is an easy way to test it to go off when the dome lights go off?  It's just me so no other help to turn on and off things while I probe with a test light.  I tried the one by the 50amp fuse and it was always on as well.


Edited by Black02Silverado
destrada127 Enthusiast

destrada127

Posted
Posted
OK on my 2019 that connection is always hot.  Anyone have any more suggestions.  What is an easy way to test it to go off when the dome lights go off?  It's just me so no other help to turn on and off things while I probe with a test light.  I tried the one by the 50amp fuse and it was always on as well.
I hooked up to the one by the 50 amp and my lights will only come on once the truck is running, not with dome lightsd824b4c227ce77ce0cb3591799ae7f27.jpg

Sent from my SM-G965U using Tapatalk

  • Like 1
Black02Silverado Senior Enthusiast

Black02Silverado

Posted
Posted
Just now, destrada127 said:

I hooked up to the one by the 50 amp and my lights will only come on once the truck is running, not with dome lightsd824b4c227ce77ce0cb3591799ae7f27.jpg

Sent from my SM-G965U using Tapatalk


Yep, problem is, mine are just LED's.  No controller so they stay on all the time while driving.  Not sure How I will like that at night.  Would rather have a switched source that is connected to the  dome lights.  I just need to find the wire to tap into.

destrada127 Enthusiast

destrada127

Posted
Posted
Yep, problem is, mine are just LED's.  No controller so they stay on all the time while driving.  Not sure How I will like that at night.  Would rather have a switched source that is connected to the  dome lights.  I just need to find the wire to tap into.
That's what I did on my Tacoma. I had the foot lights and rock lights on with my done lights. If you find that wire, please let me know

Sent from my SM-G965U using Tapatalk

  • 2 weeks later...
MadCaddie Enthusiast

MadCaddie

Posted
Posted (edited)

I'm looking for the same thing (dome Light control) I am definitely missing footwell lights (as well as puddle lights.)



I don't believe it's something we're gonna find in the fuse box.  It's more than likely gonna be a bcm plug.  I think it was grey on the last gen trucks.



Im not a fan of splicing into those wires so I'm thinking of making a pass through plug with a tap of the dome light wire.



Same with my high beams to aux lights.



I'll do some digging when I get a free weekend and let you know.

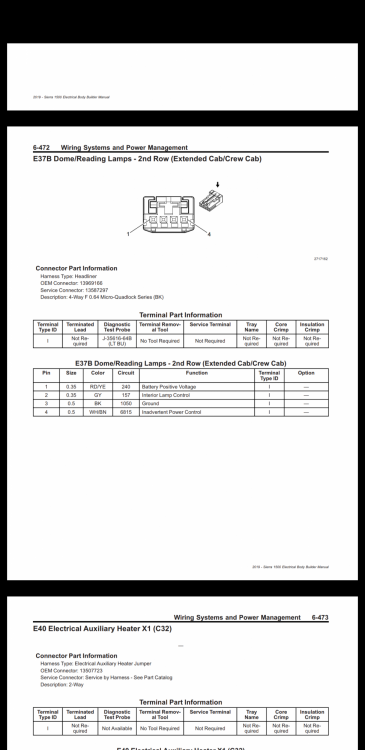

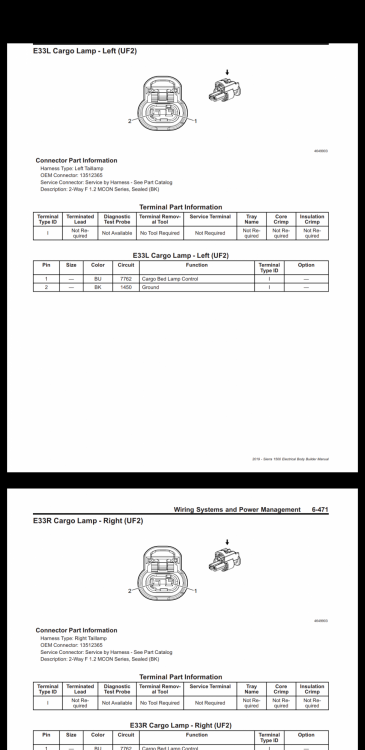

Below is what I've found so far.





Edited by MadCaddie
  • 2 months later...
dj13990 Enthusiast

dj13990

Posted
Posted

Anyone figure out if this is possible yet?  I know on the previous years you could tap into the BCM plug.  But wondering if anyone has done it on the 2019's yet?  I would love for the LED's to go on and off with the interior lights.

  • Like 1
