Just got a set of the OEM lights 20979073 for my 2014 Silverado.



My truck came with a set from the factory , but I wanted to add the extra 2 like everyone else has done .



I don't see the place to mount the extra 2 in the bed .



There are no spots to screw them in , unless I make spots



Any ideas ?

  • Replies 399
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

block8head
block8head

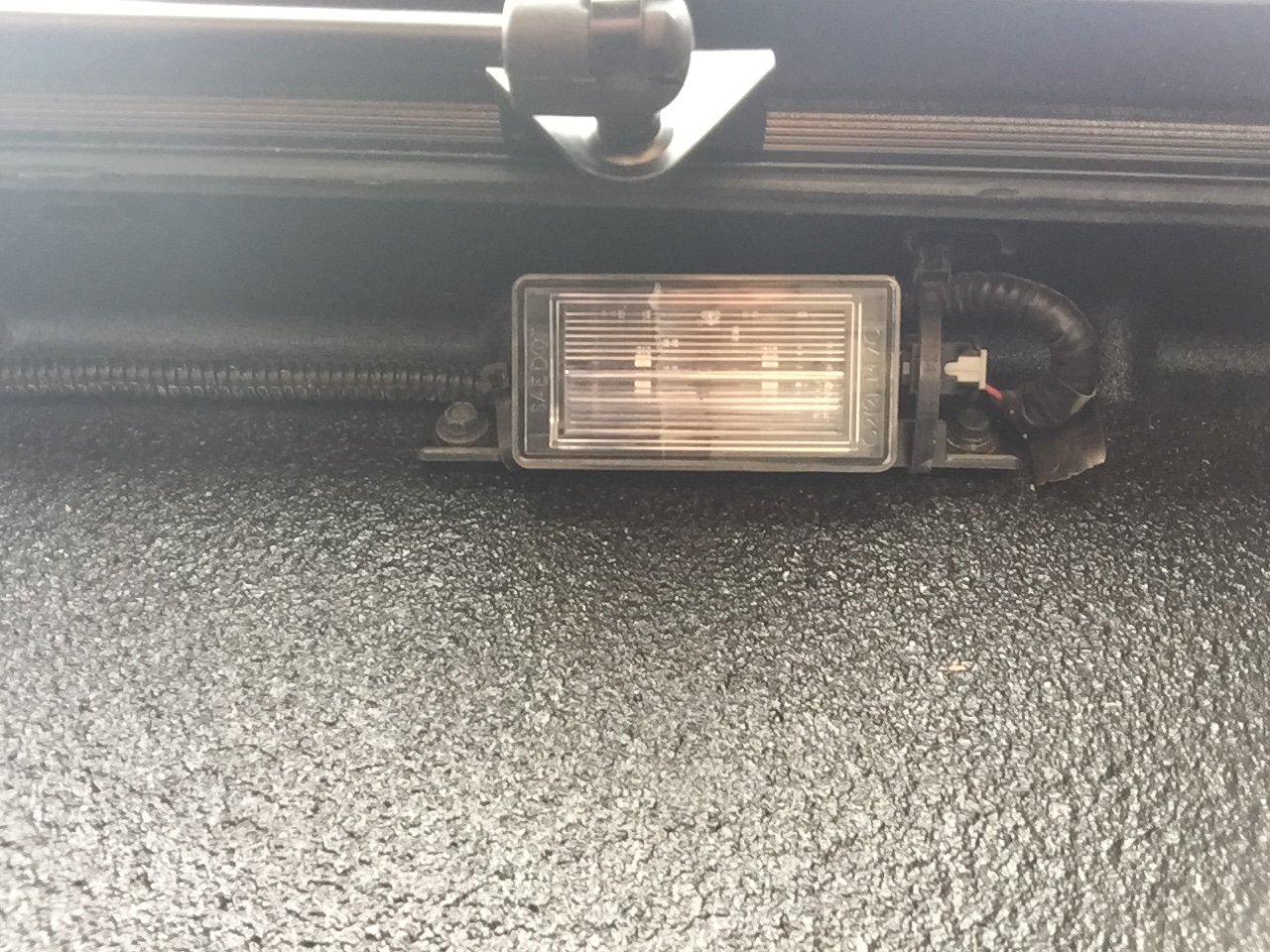

Here you go...

electricchiken7
electricchiken7

I installed the after market ones. I tied them into my cargo lights. Great mod!!     Sent from my Galaxy Nexus using Tapatalk

corwest
corwest

Just as a heads up: The junction box comes with a cover for the plug that these plug into. So I made my own plug out of the cover with a couple parts from other plugs i had laying around and sealed

Posted Images

Codman67 Enthusiast

Codman67

Posted
Posted (edited)
32 minutes ago, Todd1982 said:

Just got a set of the OEM lights 20979073 for my 2014 Silverado.



My truck came with a set from the factory , but I wanted to add the extra 2 like everyone else has done .



I don't see the place to mount the extra 2 in the bed .



There are no spots to screw them in , unless I make spots



Any ideas ?

When I put a second set in I just measured a good distance between the two drilled some holes put some plastic clips for the screws bolted them up


Edited by Codman67
Codman67 Enthusiast

Codman67

Posted
Posted
9 minutes ago, Todd1982 said:

Any pictures of the clips you used or what you did ?



Thanks

Sorry don’t have any pics did this a few yrs ago now but your new set of lights came with screws I just took one into my local auto place match the screw to a clip route the wire loom under the rails with clips so everything looked factory

9 minutes ago, Todd1982 said:

Any pictures of the clips you used or what you did ?



Thanks



Todd1982 Enthusiast

Todd1982

Posted
Posted

My kit came with the clips for the wires .



I am mostly concerned with how to attach the lights to the bed .



Drill holes ?

Racindave Enthusiast

Racindave

Posted
Posted
28 minutes ago, Codman67 said:

Sorry don’t have any pics did this a few yrs ago now but your new set of lights came with screws I just took one into my local auto place match the screw to a clip route the wire loom under the rails with clips so everything looked factory



I used the square plastic license plate screw holders.

Codman67 Enthusiast

Codman67

Posted
Posted
4 minutes ago, Todd1982 said:

My kit came with the clips for the wires .



I am mostly concerned with how to attach the lights to the bed .



Drill holes ?

Mark where you wanna drill into the box just make your you don’t drill thru the outer box their is a bit of a gap between the two just careful

sk Senior Enthusiast

sk

Posted
Posted
On 8/10/2019 at 8:10 PM, Todd1982 said:

My kit came with the clips for the wires .



I am mostly concerned with how to attach the lights to the bed .



Drill holes ?

There are no other factory locations for the lights if you have the "short" or "standard" bed (they are only supposed to have 2 lights).  The kit should have come with self-tapping screws.  I just held the new lights where I wanted them up under the rail and used a cordless drill with a nut driver to run the screws in (stop before they go all the way then finish the tightening by hand or you will crack the plastic tangs on the housing).  After that just run the wire loom from each light back toward the existing lights and splice the wires together.

  • 1 year later...
  • 1 year later...
mtushmoo Enthusiast

mtushmoo

Posted
Posted
On 1/19/2021 at 9:50 PM, G Cumbest said:

Does anybody on here have an 8 PIN connector left over they would like to sell? I got the 6 PIN with the kit I purchased and I need an 8.

The six pin for the '16 and up harness with both Stop Light and Cargo light wires is back in stock on Amazon: https://www.amazon.com/dp/B07C488SBN



The 8 pin harness is available on ebay.  User mtushmoo
