Adding GM factory trailer brake controller

McClain210

By McClain210
in Modifications & Accessories

 Share

Recommended Posts

DrNick Enthusiast

DrNick

Posted
Posted
On 7/27/2020 at 11:01 AM, rallysport096 said:

@pgamboa Phil, did you ever get it figured out? Thanks!

In for this.  I know this has got to be a major PITA to develop a solution for, but consider me one of the first in line if it can be made to work.

  • Like 1
  • 1 month later...
  • Replies 52
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

pgamboa
pgamboa

I’ll be adding the factory TBS to mine. Once I have the time. Lol. I’ve got the modules ready to go (to get programming done) along with my cluster. There are 2-3 modules, programming, and wiring

aseibel
aseibel

From what I've heard, the factory controller can't be added later. Need to look at aftermarket controllers.

pgamboa
pgamboa

Nope. Not yet. Module still with WAMS. No free time Sent from my iPhone using Tapatalk

Posted Images

truckmann Enthusiast

truckmann

Posted
Posted (edited)

I know this is kind of old, but I just added a Redarc to my 2014 and figured I'd share my control mounting location since I've not seen anyone else put it where I did and yes I know my truck is filthy right now.




Edited by truckmann
Image Edit
  • 2 months later...
JonMS Enthusiast

JonMS

Posted
Posted
On 10/23/2020 at 5:19 PM, truckmann said:

I know this is kind of old, but I just added a Redarc to my 2014 and figured I'd share my control mounting location since I've not seen anyone else put it where I did and yes I know my truck is filthy right now.



HP3CzRy3SyZbtBwGJL7Z6tZu-uIypXoOsnVJj4UJywjzkt2N6okS4rgCRLWHKxmHWK5UwMu9F4yFfmTx29QMZWrW1iNgrmuieGK0XQOiWcFhQxuidrAjckSqc7vxWA90fAiBA6utWbftfvVGKD5Naw3tt9dTFSxEdt5VtMDVSNEK4nWNkz6qVGyJIdBlloFA4EyitrEnuyzgas58Yv4vpgubahYePGtWYqczhKnNIiwM0MSZHVcWOqRbKo172LYTcZbWjJ1qkwgnWcOeLehLwte1_KUHqltN_rpEo7QoT60Tldp6JeieUSIpqucBtXgluzlrGc3XcN5i639KxwigH7gFVc3C1NXAipXt-m9V5L_LpRJaK928mp0AnmAyVWXMSYobgownFOlgEnYMs7qOCXsGxO_awmzzV9Gt5U_qlt7UFC5s5kk1pvfyPy-D4GLBSCbInUnqDRzLxeXq_gTLakGnxt8_C6lDt8Y8WwCewr_v16afxHpzVBZgA2NGKp_f08pBM8bRBtk6GsrvvxUzot7Ms4DkP8FXZUYlaMJRrWZDb9J9bUNkd0IZi-2meCwtTmuYR9v5pB6RNrTCWZrQ8VRcghy584efs0tSOLg-67xYF2XnFn-qWQC9NSCbKuW8Xi8ePT-J4bslKYyjtdsj6XMJm0f_lX5byV0NaxhveaEY5vxUtf0tQk90MOD2lA=w689-h918-no?authuser=0

Can you re-add the picture? I just got my redarc and trying to figure out where I want to put it. Thanks

truckmann Enthusiast

truckmann

Posted
Posted
32 minutes ago, JonMS said:

Can you re-add the picture? I just got my redarc and trying to figure out where I want to put it. Thanks

I'm assuming you can't see my picture so I just edited my original post to change how the image is attached. Let me know if that works for you.

  • 3 years later...
jakey0318 New Member

jakey0318

Posted
Posted

I have a 2017 Chevy Silverado crew cab LT model and it didn’t come with the trailer brake control module on the dash but I added it and it was a plug-in play and it’s not working. Everything else is working the brake lights do and the blinkers does computer need to be flashed or turned on or I have no idea someone please help. I have checked the harness. It’s in good shape. Everything looks right and all of the fuses are in the right places.

newdude Senior Enthusiast

newdude

Posted
Posted (edited)
6 hours ago, jakey0318 said:

I have a 2017 Chevy Silverado crew cab LT model and it didn’t come with the trailer brake control module on the dash but I added it and it was a plug-in play and it’s not working. Everything else is working the brake lights do and the blinkers does computer need to be flashed or turned on or I have no idea someone please help. I have checked the harness. It’s in good shape. Everything looks right and all of the fuses are in the right places.





You...can NOT...add...the...factory GM integrated controller...



Here's the defacto no straight from GM - PIT5241E Adding Integrated Trailer Brake Controller RPO JL1 (nhtsa.gov)



Take the factory switch out of the dash, sell it and get any brand aftermarket brake controller and install it.





Edited by newdude
  • Like 2
sk Senior Enthusiast

sk

Posted
Posted

What newdude said.



If you use the search feature on these forums you will find lots of thread discussing this, but like the bulletin above says it can't be done.

  • Like 1
  • 5 months later...
2018 Sonny New Member

2018 Sonny

Posted
Posted

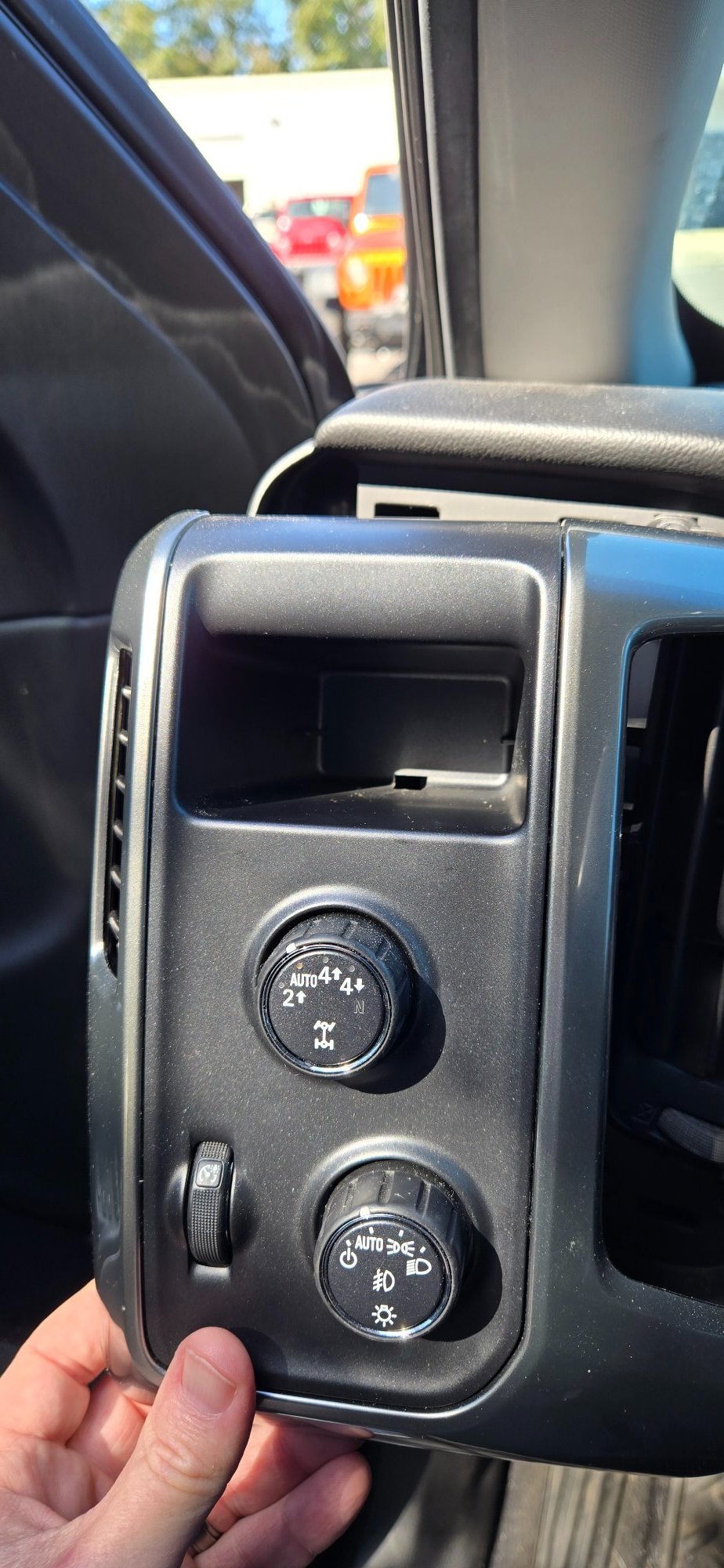

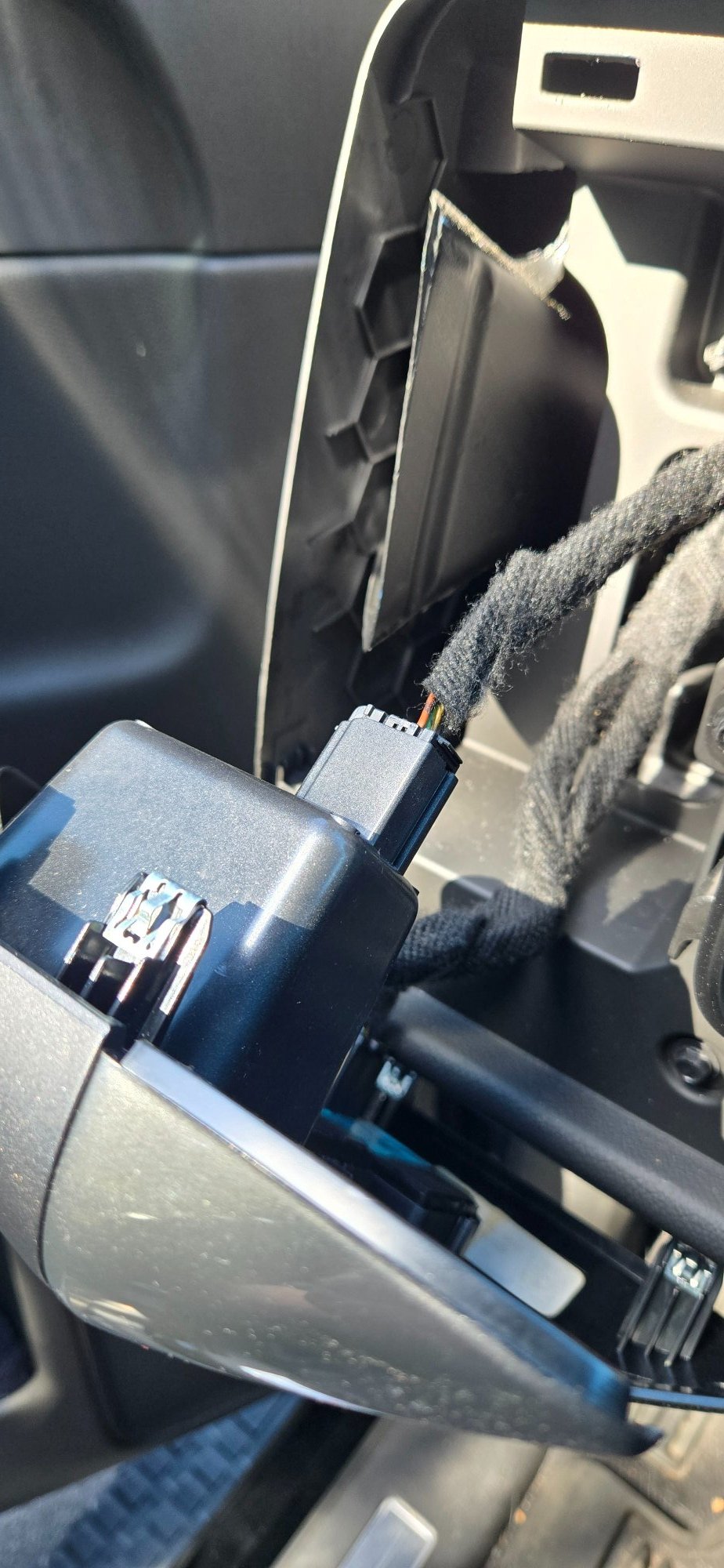

I have a 2018 Silverado 1500 Z71 4wd and I don't have the trailer brake switch on the panel ( small storage pocket). I pulled the trim panel and plugged into the back of the pocket to a dummy plug is a harness. Is that not for being able to add the factory switch by changing out the trim panel that has the switch? Confused on this subject

Thanks

JimCost2014 Senior Enthusiast

JimCost2014

Posted
Posted
13 minutes ago, 2018 Sonny said:

I have a 2018 Silverado 1500 Z71 4wd and I don't have the trailer brake switch on the panel ( small storage pocket). I pulled the trim panel and plugged into the back of the pocket to a dummy plug is a harness. Is that not for being able to add the factory switch by changing out the trim panel that has the switch? Confused on this subject

Thanks

If your truck does not have the RPO code, JL1, you can not add the factory controller.



PIT5241E Adding Integrated Trailer Brake Controller RPO JL1 Models Brand: Cadillac Chevrolet Chevrolet Chevrolet Chevrolet GMC GMC GMC Model: Escalade Silverado 1500 Silverado Suburban Tahoe Sierra 1500 VIN: Model Years: 2015 - 2018 2014 2015 - 2018 2015 - 2018 from All All Engine: to All All All Transmissions: All All All All 2015 - 2018 2014 Sierra Yukon Supersession Statement 2015 - 2018 2015 - 2018 All All All All This PI was superseded to update Models section. Please discard PIT5241D. Condition / Concern All All All All All All All All All All All All All All All All All All All Some customers may request the factory Integrated Trailer Brake Controller (RPO JL1) be installed on their Full-Size Pickup or SUV when the vehicle was not ordered with the option. This is to advise you that, if the vehicle does not have the option (RPO JL1), it cannot be added to the vehicle. Note: Reference the latest version of PI1105 - which advises how to install an aftermarket trailer brake controller



2018 Sonny New Member

2018 Sonny

Posted
Posted

So if I don't have the that RPO, does that mean no module and or just would need reprogramming if I switch it out.

Also why would it be there if I couldn't use it?

Thanks.



JimCost2014 Senior Enthusiast

JimCost2014

Posted
Posted
19 minutes ago, 2018 Sonny said:

So if I don't have the that RPO, does that mean no module and or just would need reprogramming if I switch it out.

Also why would it be there if I couldn't use it?

Thanks.



Cheaper to put multiple plugs in the truck, even if they are not used, rather than tearing everything apart later to add it. I have the E85 plug and wiring under my truck, it is not set up for that type of fuel. The controller is the switch, all of the functions and settings are embedded in the BCM, straight from the factory, system is more than just the switch. Even dealers can not get into the program to add to the truck.

newdude Senior Enthusiast

newdude

Posted
Posted
23 minutes ago, 2018 Sonny said:

So if I don't have the that RPO, does that mean no module and or just would need reprogramming if I switch it out.

Also why would it be there if I couldn't use it?

Thanks.









No.  Read it again.  It means you can't add it.  Get an aftermarket controller and be done with it.



PIT5241G: Adding Integrated Trailer Brake Controller RPO JL1 - (Mar 30, 2020)



Condition/Concern

Some customers may request the factory Integrated Trailer Brake Controller (RPO JL1) be installed on their Full-Size Pickup or SUV when the vehicle was not ordered with the option.

This is to advise you that, if the vehicle does not have the option (RPO JL1), it cannot be added to the vehicle.
