ISO Service Parts Identification Help

[Grubbworm]

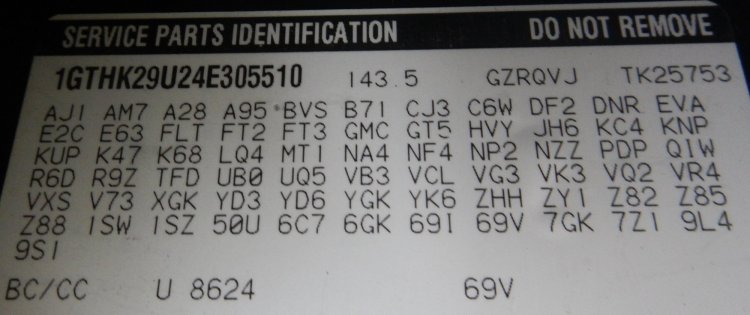

I am in need of some Service Parts Identification Help. This is the sticker in the glove-box. Where can I find something to de-code all the information in it? Any help at all would be appreciated.

[Loco Diablo]

I am in need of some Service Parts Identification Help. This is the sticker in the glove-box. Where can I find something to de-code all the information in it? Any help at all would be appreciated.

Send an email to [email protected] and request the build sheet. It has all the codes and what they are.
They sent me mine within 24 hours.


Sent from my iPhone using Tapatalk

[dsr611]

https://www.marshu.com/images-website/car/gm-firebird-camaro-rpo-car-door-manufacturer-codes/gm-firebird-camaro-GM-RPO-car-codes.pdf

[redwngr]

Any dealer can use the serial number and print the sheet(s) for you.







Is there a specific thing you are wondering about?

There may users on the forum that can answer some questions about your extended cab standard box.





Edited August 15, 2018 by redwngr

[newdude]

2 hours ago, Grubbworm said:

I am in need of some Service Parts Identification Help. This is the sticker in the glove-box. Where can I find something to de-code all the information in it? Any help at all would be appreciated.



Important ones:



TK25753:  GMC 4x4 2500 extended cab standard box.



MT1:  4L80E transmission



HVY:  2 inch body raise, indicates being an HD labeled truck.



LQ4:  Vortec 6000, aka the LQ4 6.0.  300hp 365 torque on that generation.



NP2:  Manual shift transfer case.



GT5:  4.10:1 gearing.



50U:  Olympic White exterior.  Code is the U8624 at the bottom.



C6W:  9200lbs GVWR.



JH6:  9900lbs brakes.



K47:  High capacity air cleaner



NZZ:  Skid plates



Z88:  GMC



KC4:  Engine oil cooler



KNP:  Transmission heavy cooling



This is going mostly off of memory other than the paint.





[aseibel]

1 minute ago, newdude said:

This is going mostly off of memory

wow!

[Grubbworm]

Thank you all so far. I have sent an email for the build sheet - awaiting response. From the link that dsr611 provided, and the ones that newdude supplied, this is what I have so far.

2004 GMC Sierra HD 4X4 Service Parts Identification (Sticker in Glovebox)

TK25753 : GMC 4x4 2500 extended cab standard box

AJ1 : WINDOW TINTED, DEEP, ALL EXCEPT W/S AND DRS

AM7 : SEAT, RR, FLDG

A28 : WINDOW, RR, FULL WIDTH, SLIDING

A95 : SEAT, FRT BUCKET, HIGH BACK, PASS & DRIVER RECL

BVS

B71 : MOLDING WHL OPENING, COLORED

CJ3 : HVAC SYSTEM AIR CONDITIONER FRT, MAN TEMP CONT

C6W : GVW RATING, 9200 LBS

DF2 : MIRROR O/S, CAMPER TYPE, SST

DNR

EVA : TEST DVT, EVAP EMISSION REQUIREMENT

E2C

E63 : BODY EQUIPMENT, FLEETSIDE, PUBX

FLT

FT2 : ARM, LH, TORSION BAR SPRING ADJ (FT2)

FT3 : ARM, RH, TORSION BAR SPRING ADJ (FT3)

GMC : PLANT CODE PONTIAC, MI, USA

GT5 : AXLE REAR, 4.10 RATIO (DUP WITH GT8)

HVY : 2 inch body raise, indicates being an HD labeled truck

JH6 : BRAKE, HYD POWER, 4-WHEEL DISC, 9900 LBS

KC4 : COOLING SYSTEM, HEAVY DUTY ENGINE OIL

KNP : COOLING SYSTEM TRANS, HD

KUP : THROTTLE CONTROL ELECTRONIC

K47 : AIR CLEANER HIGH CAPACITY

K68 : GENERATOR,105 AMP

LQ4 : ENGINE, GAS, 8 CYL, 6.0L, MFI, IRON, GM

MT1 : TRANSMISSION, 4 SPD, AUTO W/ELECT CONTROLS H.D. (HYDRA-MATIC

4L80-E)

NA4 : EMISSION SYSTEM, GVW, ABOVE 8500 LB

NF4 : EMISSION SYSTEM CLEAN FUEL FLEET

NP2 : TRANSFER CASE – (MANUAL) – FULL RANGE

NZZ : SKID PLATE OFF-ROAD

PDP

QIW : TIRE ALL, LT245/75R16/E BL R/PE ST TL OOR BL

R6D

R9Z

TFD

UBO : CLUSTER, INST, OIL, TEMP,TACH ,TURBO BOOST

UQ5 : SPEAKER SYSTEM, 4, DUAL FRT DR MTD, DUAL EXTD RGE

VB3 : BUMPER, RR, STEP, CHROME, IMPACT STRIP

VCL

VG3 : BUMPER FRT, IMPACT STRIP

VK3 : LICENSE PLATE, FRT MOUNTING PKG

VQ2

VR4 : TRAILER HITCH, WEIGHT DISTRIBUTING PLATFORM

VXS : VEHICLE COMPLETE

V73 : VEHICLE STATEMENT, USA/CANADA

XGK : TIRE FRONT, LT245/75R16/E BW R/PE ST TL OOR 120Q

YD3 : FRONT AXLE, BASE EQUIPMENT FOR SCHEDULING, GVW PLATE

YD6 : REAR SPRING, BASE EQUIPMENT

YGK : TIRE REAR LT245/75R16/E BW R/PE ST TL OOR 120Q

YK6

ZHH

ZY1 : COLOR COMBINATION, SOLID

Z82 : TRAILER PROVISIONS, SPECIAL EQUIPMENT, H.0.

Z85 : CHASSIS PACKAGE, HIGH PAYLOAD FIRM RIDE

Z88 : CONVERSION, NAME PLT GMC

1SW

1SZ

50U : PRIMARY COLOR, OLYMPIC WHITE (U8624)

6C7 : LAMP, DOME PASSENGER

6GK

69I

69V : TRIM COMBINATION, VINYL,

7GK

7Z1 : HORN, DUAL, HIGH NOTE

9L4

9S1





And in answer to redwngr, nothing specific. I just like to have all the information that I can about my rides. I would love to have a Shop Manual for this vehicle.

Edited August 15, 2018 by Grubbworm

[newdude]

1 hour ago, Grubbworm said:

Thank you all so far. I have sent an email for the build sheet - awaiting response. From the link that dsr611 provided, and the ones that newdude supplied, this is what I have so far.

2004 GMC Sierra HD 4X4 Service Parts Identification (Sticker in Glovebox)

TK25753 : GMC 4x4 2500 extended cab standard box

AJ1 : WINDOW TINTED, DEEP, ALL EXCEPT W/S AND DRS

AM7 : SEAT, RR, FLDG

A28 : WINDOW, RR, FULL WIDTH, SLIDING

A95 : SEAT, FRT BUCKET, HIGH BACK, PASS & DRIVER RECL

BVS : STEPS RUNNINGBOARD, SIDE, COLOR

B71 : MOLDING WHL OPENING, COLORED

CJ3 : HVAC SYSTEM AIR CONDITIONER FRT, MAN TEMP CONT

C6W : GVW RATING, 9200 LBS

DF2 : MIRROR O/S, CAMPER TYPE, SST

DNR : EQUIPMENT DEALER INSTALLED

EVA : TEST DVT, EVAP EMISSION REQUIREMENT

E2C : RAPID DELIVERY SYS CUSTOM ORDERS (E/K-TRK CKST)

E63 : BODY EQUIPMENT, FLEETSIDE, PUBX

FLT : FLEET PROCESSING OPTION

FT2 : ARM, LH, TORSION BAR SPRING ADJ (FT2)

FT3 : ARM, RH, TORSION BAR SPRING ADJ (FT3)

GMC : PLANT CODE PONTIAC, MI, USA

GT5 : AXLE REAR, 4.10 RATIO (DUP WITH GT8)

HVY : IDENTIFICATION 2 INCH BODY RAISE, H.D. MODEL

JH6 : BRAKE, HYD POWER, 4-WHEEL DISC, 9900 LBS

KC4 : COOLING SYSTEM, HEAVY DUTY ENGINE OIL

KNP : COOLING SYSTEM TRANS, HD

KUP : THROTTLE CONTROL ELECTRONIC

K47 : AIR CLEANER HIGH CAPACITY

K68 : GENERATOR,105 AMP

LQ4 : ENGINE, GAS, 8 CYL, 6.0L, MFI, IRON, GM

MT1 : TRANSMISSION, 4 SPD, AUTO W/ELECT CONTROLS H.D. (HYDRA-MATIC

4L80-E)

NA4 : EMISSION SYSTEM, GVW, ABOVE 8500 LB

NF4 : EMISSION SYSTEM CLEAN FUEL FLEET

NP2 : TRANSFER CASE – (MANUAL) – FULL RANGE

NZZ : SKID PLATE OFF-ROAD

PDP : CONTROL SALES ITEM NO. 133

QIW : TIRE ALL, LT245/75R16/E BL R/PE ST TL OOR BL

R6D : CONTROL SALES ITEM NO. 4

R9Z : CONTROL - SALES ITEM NO. 100

TFD : SALES INCENTIVE

UBO : CLUSTER, INST, OIL, TEMP,TACH ,TURBO BOOST

UQ5 : SPEAKER SYSTEM, 4, DUAL FRT DR MTD, DUAL EXTD RGE

VB3 : BUMPER, RR, STEP, CHROME, IMPACT STRIP

VCL : CERTIFICATION EMISSION, CLEAN FUEL VEHICLE, FLEET

VG3 : BUMPER FRT, IMPACT STRIP

VK3 : LICENSE PLATE, FRT MOUNTING PKG

VQ2 : FLEET PROGRAM - DEALER ASSISTANCE, HOLDBACK NOT APPLICABLE

VR4 : TRAILER HITCH, WEIGHT DISTRIBUTING PLATFORM

VXS : VEHICLE COMPLETE

V73 : VEHICLE STATEMENT, USA/CANADA

XGK : TIRE FRONT, LT245/75R16/E BW R/PE ST TL OOR 120Q

YD3 : FRONT AXLE, BASE EQUIPMENT FOR SCHEDULING, GVW PLATE

YD6 : REAR SPRING, BASE EQUIPMENT

YGK : TIRE REAR LT245/75R16/E BW R/PE ST TL OOR 120Q

YK6 :IDENTIFICATION (SEO)

ZHH : TIRE SPARE LT245/75R16/E BL R/PE ST ALS

ZY1 : COLOR COMBINATION, SOLID

Z82 : TRAILER PROVISIONS, SPECIAL EQUIPMENT, H.0.

Z85 : CHASSIS PACKAGE, HIGH PAYLOAD FIRM RIDE

Z88 : CONVERSION, NAME PLT GMC

1SW : PACKAGE- OPTION 21

1SZ : PACKAGE OPTION-

50U : PRIMARY COLOR, OLYMPIC WHITE (U8624)

6C7 : LAMP, DOME PASSENGER

6GK : SPRING COMPTR SELECT FRT LH

69I : INTERIOR TRIM COLOR,MEDIUM BEIGE/VERY DARK PEWTERINTERIOR TRIM COLOR,VERY DARK PEWTER

69V : TRIM COMBINATION, VINYL,

7GK : SPRING COMPTR SELECT FRT RH

7Z1 : HORN, DUAL, HIGH NOTE

9L4 : WIRING PROVISIONS 12 VOLT POWER SUPPLY

9S1 : TRIM OVERRIDE VINYL COVERING, SEAT





And in answer to redwngr, nothing specific. I just like to have all the information that I can about my rides. I would love to have a Shop Manual for this vehicle.



Did some digging and filled the blanks in red, also fixed my crappy HVY description.

[Grubbworm]

This is the vehicle build sheet that I just received.

Vehicle Build Sheet - 1GTHK29U24E305510.PDF

2004 GMC Sierra HD 4X4 Service Parts Identification (Sticker in Glovebox)

Vehicle Build Option Codes:

TK25753 : GMC 4X4 2500 EXTENDED CAB STANDARD BOX

AJ1 : WINDOW TINTED, DEEP, ALL EXCEPT W/S AND DRS

AM7 : FOLDING REAR SEAT

A28 : SLIDING REAR WINDOW SLIDING REAR WINDOW

A95 : FRONT RECLINING BUCKET SEAT W/ POWER DRIVER SEAT ADJUSTER FRONT RECLINING BUCKET SEAT W/POWER DRIVER SEAT ADJUSTER

BVS : BLACK TUBULAR ASSIST STEPS ***DEALER INSTALLED***

B71 : MOLDING WHL OPENING, COLORED

CJ3 : AIR COND., DUAL ZONE MANUAL (REPLACES AIR COND. IN PKG)

C6W : GVW RATING, 9200 LBS

DF2 : MIRROR O/S, CAMPER TYPE, SST

DNR : DEALER INSTALLED EQUIPMENT DEALER INSTALLED

EVA : TEST DVT, EVAP EMISSION REQUIREMENT

E2C : ORDER TO DELIVERY –EXPEDITE

E63 : BODY EQUIPMENT, FLEETSIDE, PUBX

FLT : FLEET PROCESSING

FT2 : ARM, LH, TORSION BAR SPRING ADJ (FT2)

FT3 : ARM, RH, TORSION BAR SPRING ADJ (FT3)

GMC : PLANT CODE PONTIAC, MI, USA

GT5 : AXLE REAR, 4.10 RATIO

HVY : IDEN 2 INCH BODY RAISE HD MODEL

JH6 : BRAKE, HYD POWER, 4-WHEEL DISC, 9900 LBS

KC4 : COOLING SYSTEM, HEAVY DUTY ENGINE OIL

KNP : COOLING SYSTEM TRANS, HD

KUP : THROTTLE CONTROL ELECTRONIC

K47 : AIR CLEANER HIGH CAPACITY

K68 : GENERATOR,105 AMP

LQ4 : ENGINE, GAS, 8 CYL, 6.0L, MFI, IRON, GM

MT1 : TRANSMISSION, 4 SPD, AUTO W/ELECT CONTROLS H.D. (HYDRA-MATIC

4L80-E)

NA4 : EMISSION SYSTEM, GVW, ABOVE 8500 LB

NF4 : EMISSION SYSTEM CLEAN FUEL FLEET

NP2 : TRANSFER CASE – (MANUAL) – FULL RANGE

NZZ : SKID PLATE OFF-ROAD

PDP : FULL FLOOR RUBBER COVERING

QIW : TIRE ALL, LT245/75R16/E BL R/PE ST TL OOR BL

R6D : BID ASSISTANCE/CE BID ASSISTANCE/CE

R9Z : POMS EXPEDITE-SOLD ORDERS POMS EXPEDITE-SOLD ORDERS/TSE

TFD : RETAIL AMENITY DELETE

UBO : CLUSTER, INST, OIL, TEMP,TACH ,TURBO BOOST

UQ5 : SPEAKER SYSTEM, 4, DUAL FRT DR MTD, DUAL EXTD RGE

VB3 : BUMPER, RR, STEP, CHROME, IMPACT STRIP

VCL : FEDERAL EMISSIONS -CFF LEV 50-STATE EMISSIONS -CFF LEV

VG3 : BUMPER FRT, IMPACT STRIP

VK3 : LICENSE PLATE, FRT MOUNTING PKG

VQ2 : FLEET ORDERING & ASSISTANCE

VR4 : TRAILER HITCH, WEIGHT DISTRIBUTING PLATFORM

VXS : VEHICLE COMPLETE

V73 : VEHICLE STATEMENT, USA/CANADA

XGK : TIRE FRONT, LT245/75R16/E BW R/PE ST TL OOR 120Q

YD3 : FRONT AXLE, BASE EQUIPMENT FOR SCHEDULING, GVW PLATE

YD6 : REAR SPRING, BASE EQUIPMENT

YGK : TIRE REAR LT245/75R16/E BW R/PE ST TL OOR 120Q

YK6 : SEO IDENTIFIER

ZHH : LT245/75R16/E ALS BW TIRE-SPR

ZY1 : COLOR COMBINATION, SOLID

Z82 : TRAILER PROVISIONS, SPECIAL EQUIPMENT, H.0.

Z85 : CHASSIS PACKAGE, HIGH PAYLOAD FIRM RIDE

Z88 : CONVERSION, NAME PLT GMC

1SW : WORK TRUCK PACKAGE INCLUDES: WIDESIDE BODY *AIR COND., DUAL ZONE MANUAL *CHROME FRONT BUMPER *AM/FM STEREO

1SZ : OPTION PACKAGE DISCOUNT

50U : PRIMARY COLOR, OLYMPIC WHITE (U8624)

6C7 : LAMP, DOME PASSENGER

6GK : SPRING COMPTR SELECT FRT LH

69I : DARK PEWTER INTERIOR TRIM

69V : TRIM COMBINATION, VINYL,

7GK : SPRING COMPTR SELECT FRT RH

7Z1 : HORN, DUAL, HIGH NOTE

9L4 : 12 VOLT POWER SUPPLY

9S1 : VINYL TRIMMED FRONT SEATS

Model: 2004 SIERRA 2500 EXT 4WD

VIN: 1GTHK29U24E305510

Build Date: 03/23/2004

Build Plant: E

Edited August 16, 2018 by Grubbworm
