9 hours ago, Jon Kruse said:

Here is a picture of mine this morning. My wife has a 2015 Edge and her camera quality is 10x better than my 2015 Silverado. I've heard some people at the beginning of this thread or some other thread say they swapped out cameras with a new oem one. I might bite the bullet here soon and get an oem 2016 or 17 one off of ebay if I can find a good deal.


Looks good to me

  • Replies 322
  • Created
  • Last Reply
Jon Kruse Enthusiast

Jon Kruse

Posted
Posted

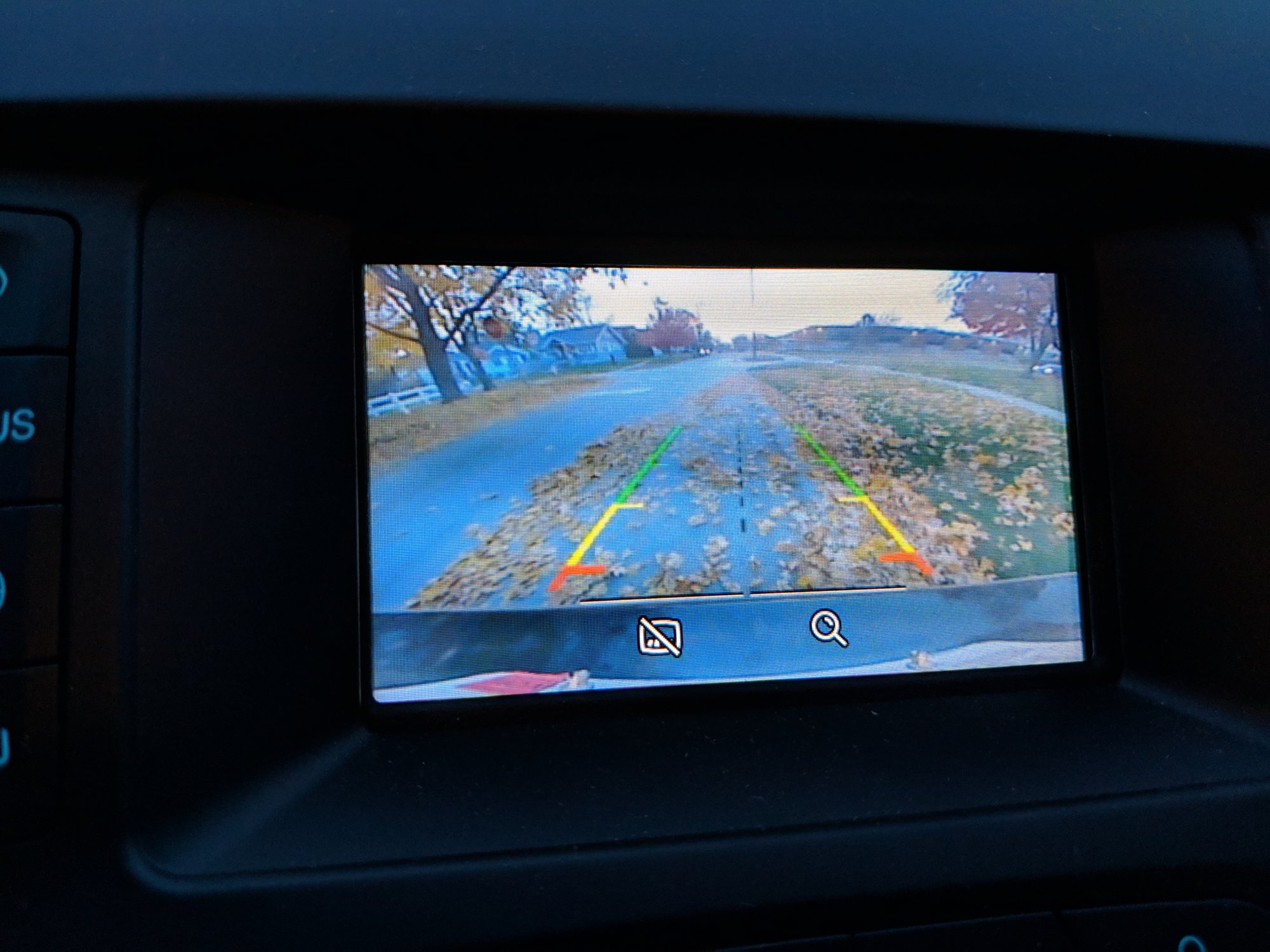

Here is my wife's 2015 edge. She has a small 4 inch screen but it's much clearer. You can't really tell that from the pictures because I think my Pixel camera is doing some smoothing on my truck picture.




rusty503 Enthusiast

rusty503

Posted
Posted

Wrong picture? Sure looks like the previous ones posted. Definitely not the Edge dash.





Jon Kruse Enthusiast

Jon Kruse

Posted
Posted
On 11/2/2018 at 6:52 AM, rusty503 said:

Wrong picture? Sure looks like the previous ones posted. Definitely not the Edge dash.





Thanks for noticing that. Just switched the picture.

t76turbo Enthusiast

t76turbo

Posted
Posted

Have the camera and handle assembly coming.  I did get under the truck and looked at the plugs to try and confirm the same wires back there were present at the HMI.



I seemed to read some conflicting info on which plug the camera will plug into.  And I didnt see any labeling or letters around any of the existing plugs.  BUT, I do have the locking tail gate and I followed the wires from the tailgate to the junction so I know where it plugs in now.



I assume it is safe to say that the camera will plug into the same plug as the existing locking tailgate handle?????

Nasty Senior Enthusiast

Nasty

Posted
Posted
2 hours ago, t76turbo said:

Have the camera and handle assembly coming.  I did get under the truck and looked at the plugs to try and confirm the same wires back there were present at the HMI.



I seemed to read some conflicting info on which plug the camera will plug into.  And I didnt see any labeling or letters around any of the existing plugs.  BUT, I do have the locking tail gate and I followed the wires from the tailgate to the junction so I know where it plugs in now.



I assume it is safe to say that the camera will plug into the same plug as the existing locking tailgate handle?????

The camera must have a second plug connected to it on the camera side of the harness to pkug into the power lock for the handle. I went theough this already. My first camera didnt have it so i had to buy one with auto lock



Nasty Senior Enthusiast

Nasty

Posted
Posted

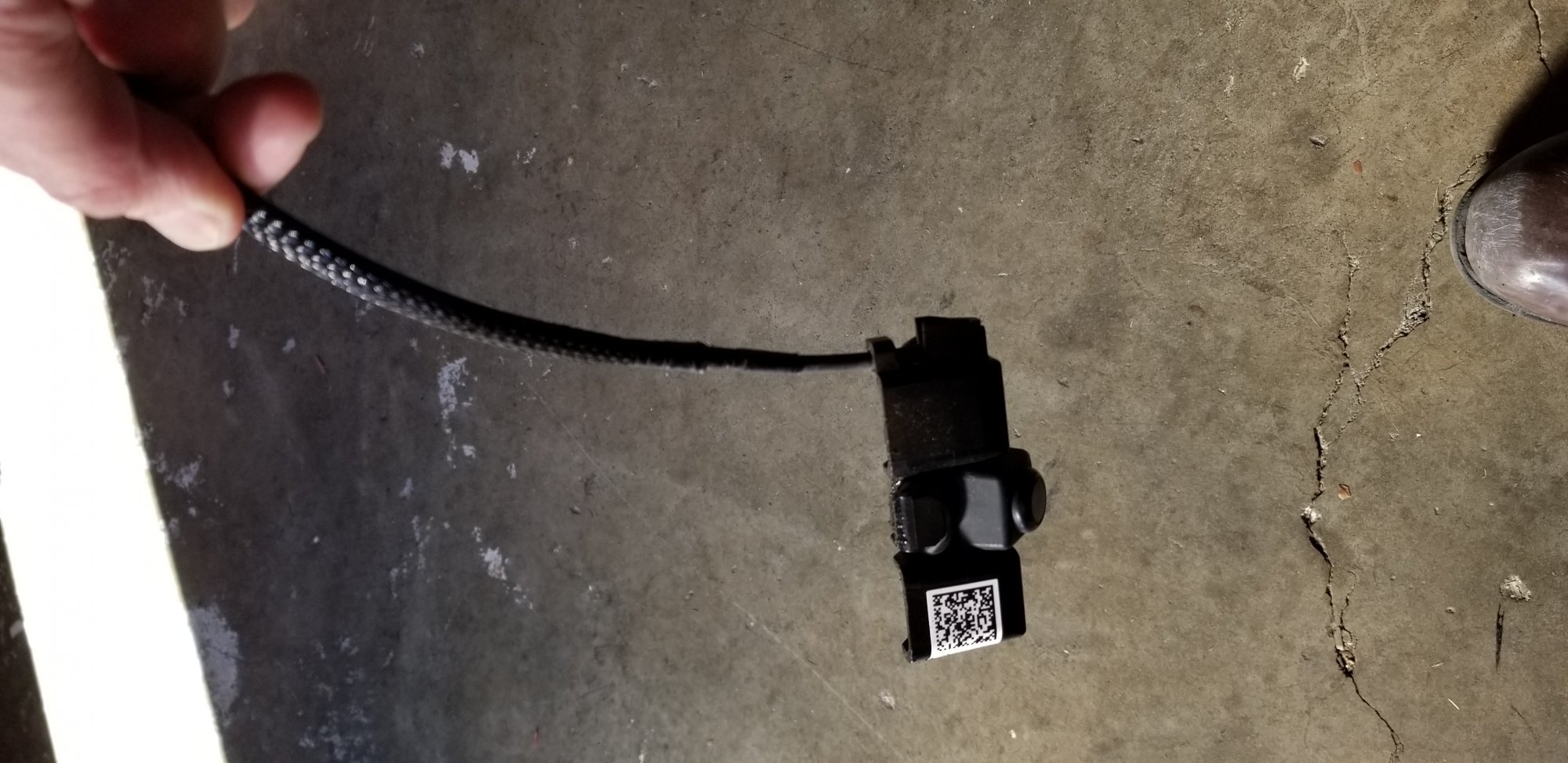

If your camera looks like this and you have powerlock,its the wrong one


t76turbo Enthusiast

t76turbo

Posted
Posted

I haven’t gotten the camera yet. But, stop scaring me!!!



What is that camera for versus what were you trying to put it on?



You remember the correct part number????   With power lock.



I ordered 84062896.

Nasty Senior Enthusiast

Nasty

Posted
Posted
3 minutes ago, t76turbo said:

I haven’t gotten the camera yet. But, stop scaring me!!!



Whatnis is that camera for versus what were you trying to put it on?

Thats a camera from a 14-15. With no power lock tailgate.  Ihave a 16 that came with powerlock tailgate so i got a camera (since the powerlong and cam wires are in the same harness) i got one with the power lock plug

t76turbo Enthusiast

t76turbo

Posted
Posted
6 minutes ago, Nasty said:

Thats a camera from a 14-15. With no power lock tailgate.  Ihave a 16 that came with powerlock tailgate so i got a camera (since the powerlong and cam wires are in the same harness) i got one with the power lock plug

I edited my post and you missed it. I ordered part number 84062896. GM partsdirect labels this as ‘Sierra, silverado. 6.6 ft box, with remote tailgate.’



you know your part number?   The right one.

Nasty Senior Enthusiast

Nasty

Posted
Posted
8 minutes ago, t76turbo said:

I edited my post and you missed it. I ordered part number 84062896. GM partsdirect labels this as ‘Sierra, silverado. 6.6 ft box, with remote tailgate.’



you know your part number?   The right one.

I can find it but you also need the correct handle with the right unlocking arm

t76turbo Enthusiast

t76turbo

Posted
Posted
8 minutes ago, Nasty said:

I can find it but you also need the correct handle with the right unlocking arm



I only see 2 handles for our year trucks (2016). With camera and without.



I ordered 84016231 which is supposed to be with camera.

Nasty Senior Enthusiast

Nasty

Posted
Posted
8 minutes ago, t76turbo said:



I only see 2 handles for our year trucks (2016). With camera and without.



I ordered 84016231 which is supposed to be with camera.

Should be good. To make sureid like to seea picture
