My custom Onboard Air install

[FirstAscent]

Hey everyone,



I wanted to share my version of a custom onboard air compressor install with full custom wiring harnesses too!. There's of course many ways to do this so maybe this will help some of you if you're considering something similar.



I first want to specifically thank @Limelight and @mkeddie as I've taken some of my ideas from them. I used a similar mounting location as @Limelight, and @mkeddie had a great upfitter post that gave me the perfect solution for running an air line from inside the cab to the bed of the truck in a clean fashion. So, thank you guys!



I've always wanted onboard air for various reasons, but now I "needed" a solution because I just installed airbags for the first time but I didn't want a compressor that was only dedicated to the air bags, I wanted to be able to use it for whatever I want whether filling up truck tires, or mountain bike tires, or float tubes, or whatever!



I opted for the ARB Twin Compressor (Part # CKMTA12) because it will give me good output and let's be honest, it looks pretty cool too! I spent quite a bit of time determining the best location, for me, to mount it. I considered just about everywhere including under the body/bed, in the engine bay, in the truck bed and finally settled on mounting it in the larger factory GM rear underseat storage.



Now to decide on the wiring and general function/control that I want since it will all play together differently depending on how I wire things. I also wanted room for change and/or additions in the future so I knew I wanted a fuse box.



I knew I wanted the to use a solenoid that would enable the new fuse box entirely with Accessory (ACC) power instead of having individual relays for anything connected to the fuse box. Going this route also means I need a solenoid that can handle larger loads. I found a Stinger SGP32 200amp solenoid, and the just about PERFECT place to mount it.

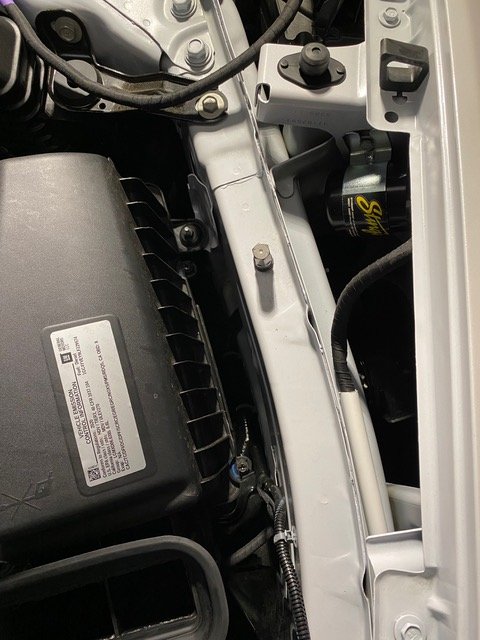

These two bolts are almost perfectly spaced to mount the solenoid, this in is in the engine bay kind of on the inside of the front passenger fender.

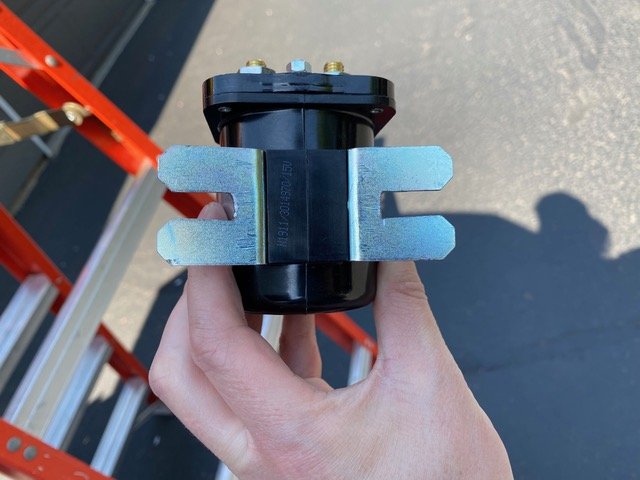

The tabs on the Stinger solenoid were already cut out for mounting bolts in them but I had to slightly cut them out a little deeper so that the spacing would fit the existing bolts shown above.



The factory body panel bolts have permanent washers, but there was just enough play in them to slide the mounting tabs in between the bolt head and washer, PERFECT. You can see the body panel is somewhat indented at the mounting point as well, to fill that space to the bolt can be tightened down properly I just added a couple washers beneath it.

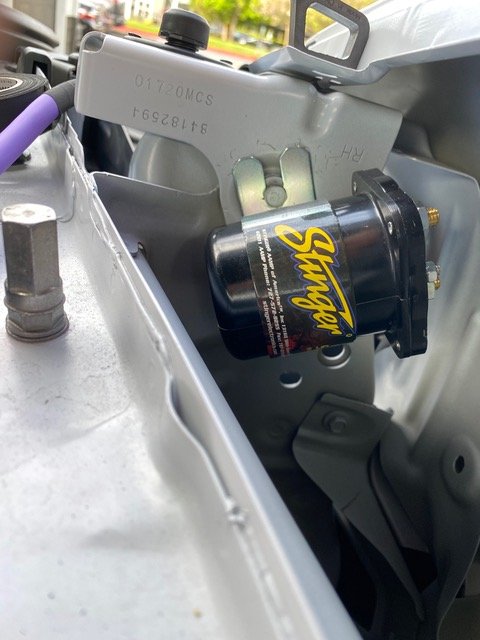

Here it is wired up, 4 wires total.

1 wire to the ground lug you can see in this photo

The smaller black wrapped wire is my ACC power wire to enable it that runs across the engine bay to the driver side and through a rubber nipple in the firewall to the BCM

The large red power wire is fused to the secondary battery (I have dual batteries)

Then there is one more wire that runs through the firewall and back to the rear seat where my fuse box is.

btw: I hand wrapped these wires with tape for wire harnesses, took forever! haha



This larger black wire connected to the MEGA 125A fuse (with green text) is coming from the solenoid. This spot is meant for the factory snow plow power, but I won't ever have a snow plow, so perfect use of good space!

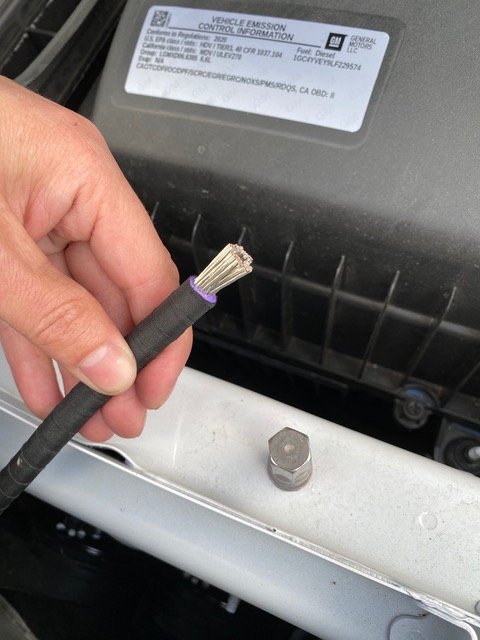

This is me prepping the power wire before connecting it to the solenoid

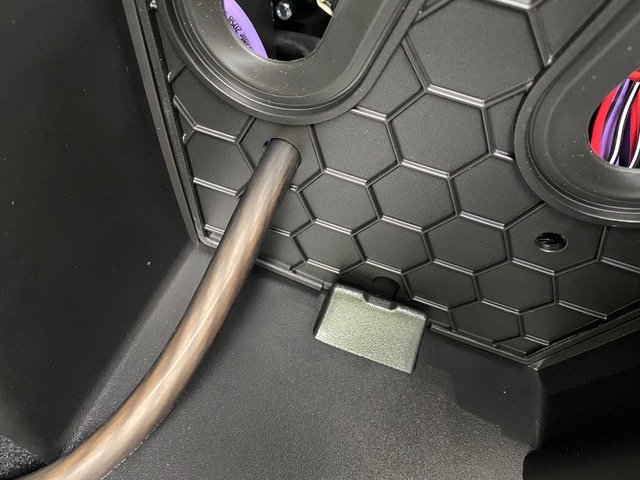

This is the other end of the positive wire from the solenoid that went through the firewall, along the door sills, and then I cut a little bit out for the wire to come out of the rear passenger door seal to under the rear seat.



Clean routing of the power wire from the solenoid to the battery

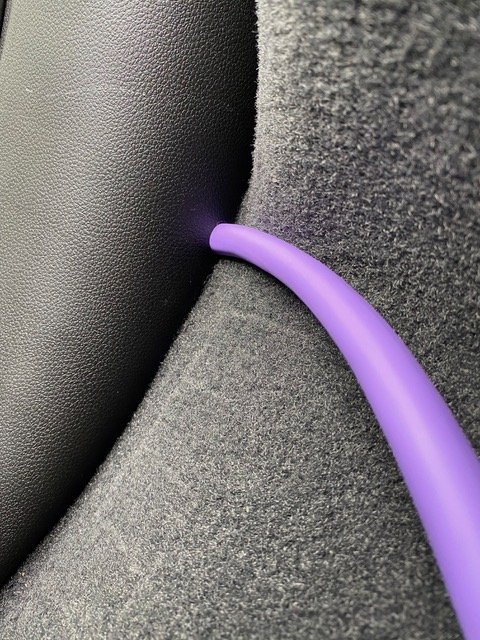

Here you can see it start to come together. The purple wire is the power wire from the solenoid to my fuse box

Remember this entire fuse box will be enabled by ACC power.

On the top right of the fuse box you can see the main ground wire, it is grounded to the body near the factory jack.

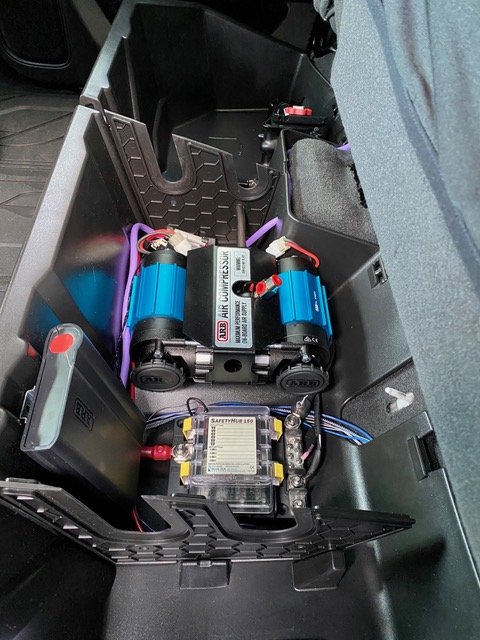

The black box on the left mounted vertically is an ARB Linx, I'm using this for control of my compressor, air bags, and future I/O expansion.

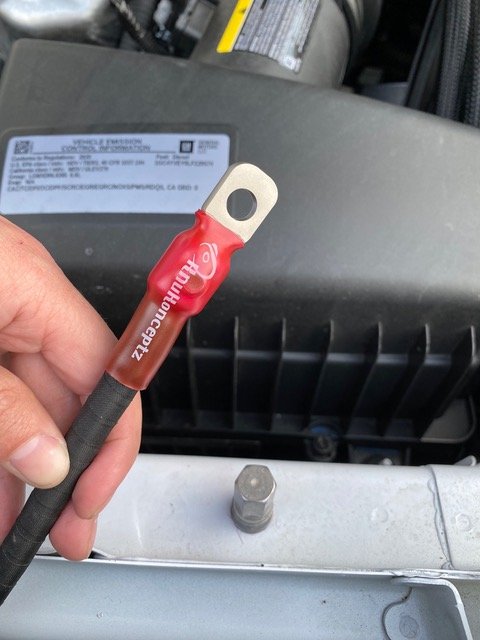

This is that ground wire, I had to slightly drill out the whole that was already existing to fit the 1/0 AWG wire

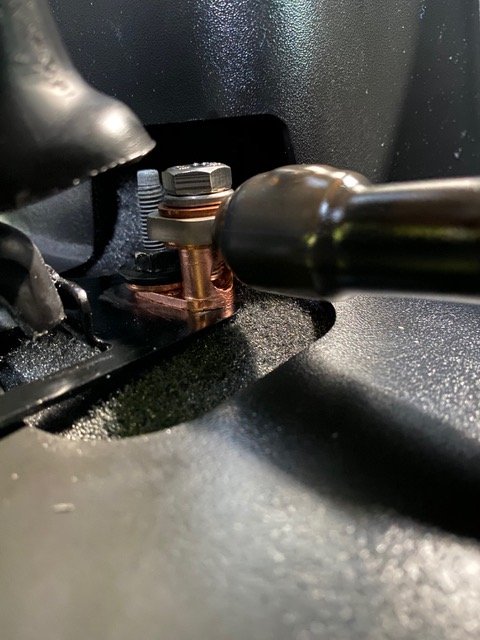

Here is how I'm going to connect it to the factory threaded stud that secures the jack



I got the Dremel out to take the black paint off the surface of where the ground point would be.









[FirstAscent]

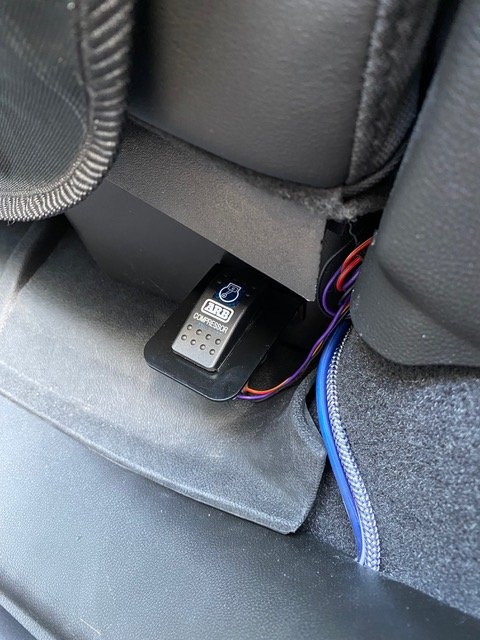

The compressor can be controlled wirelessly from a dedicated display on the ARB Linx the I have mounted near the steering wheel. But just in case anything were to happen, I can also manually activate the compressor with a hard switch



The door closes with just enough room to spare!



This is my air solenoids that control my air bags. Again, this is wirelessly controlled from the dedicated display to any PSI I want

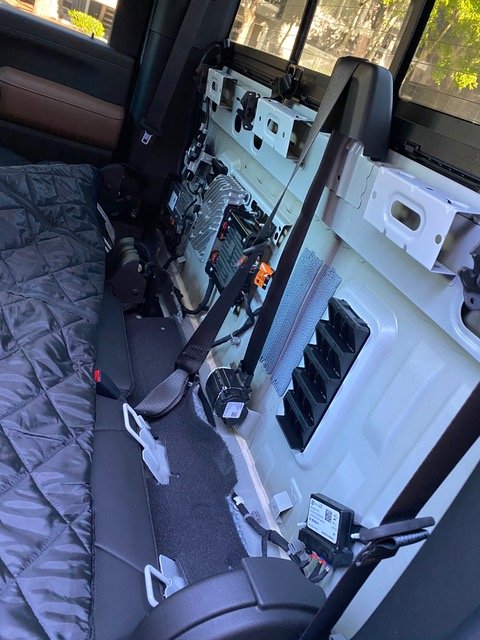

Backseat removed prepping for running two air lines from the compressor to the exterior

1 air line the splits into two for the rear air bags

1 air line that will run to the rear foot step in the rear bumper for standard compressor use with a quick connect female fitting

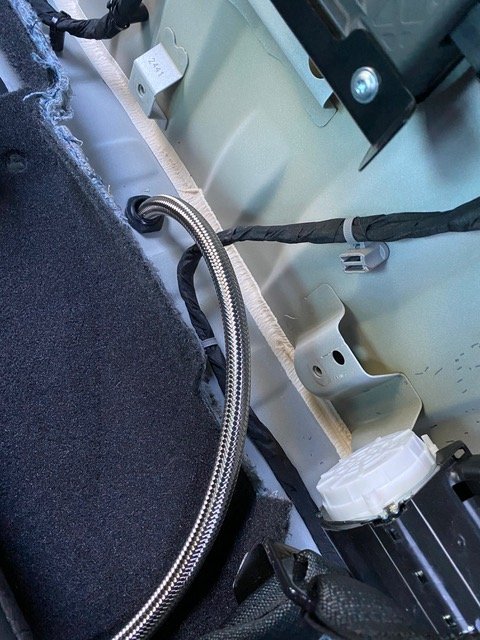

I didn't get a photo of it but there are now two air lines running through the floor just like this one.



The air line from the solenoid goes to my airbags

The airline with the blue/red fitting goes to the rear bumper

BTW, this fusebox is the SafetyHub 150, it supports both ATC and Midi fuses! I needed both and this does it all, it's super solid and well built too!

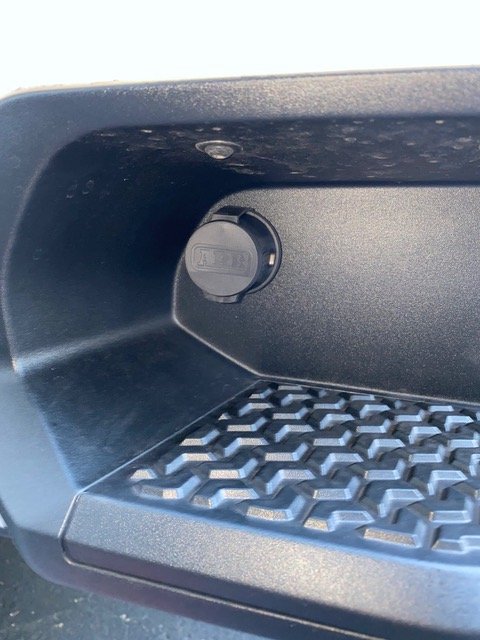

This is a female quick connect fitting for connecting any male quick connect fittings to for filling up tires, toys, whatever.



This is what the dedicated display from the ARB Linx looks like.

Notice all the ARB wiring in the background, I got rid of all of this and made my own harness that only included what I needed and the exact lengths!



From this screen I can turn the compressor on or set my PSI for my air bags and create different settings as well (unloaded, towing trailers, hauling various loads etc)



If anyone has any questions, let me know. I had a lot of fun with this project!



Edited June 13, 2020 by FirstAscent
