30” RC Dual Light Bar behind grill

[EXSlider400]





Going on tip and needed bar. I searched but could only find the Putco brackets and light bar for 2019+ Sierra, or use the 3.0 lower grill with a 20” bar. I liked the way the 3.0 grill looked and ease of install so may do that next.  Here is a link of another’s install:

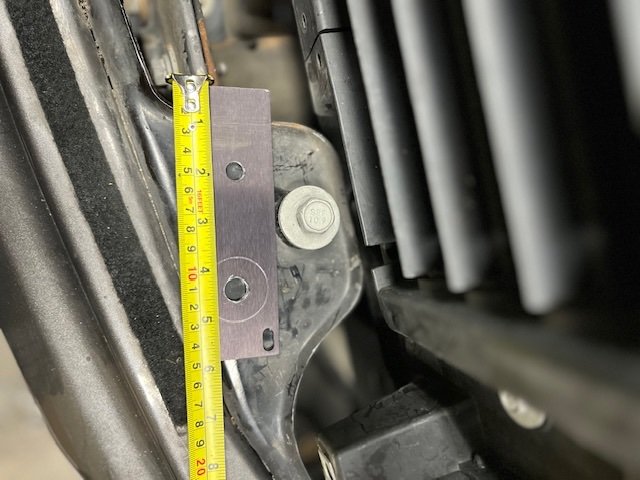

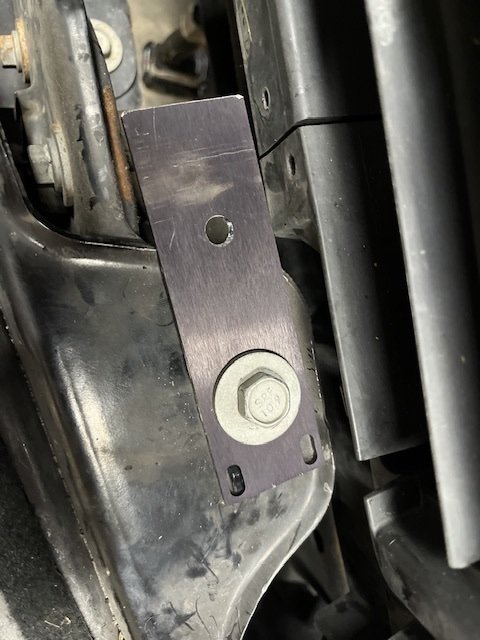

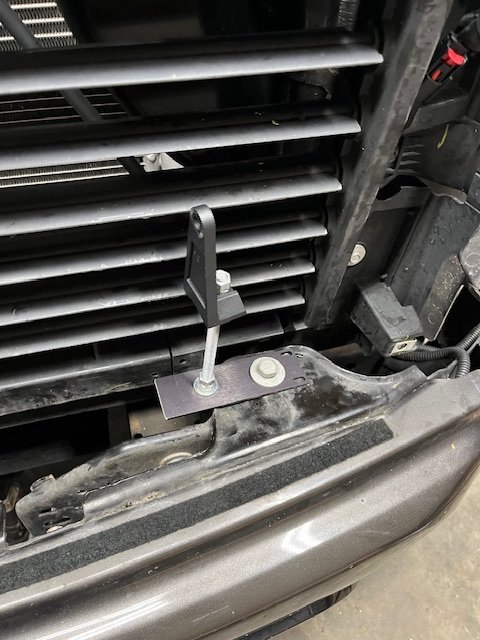

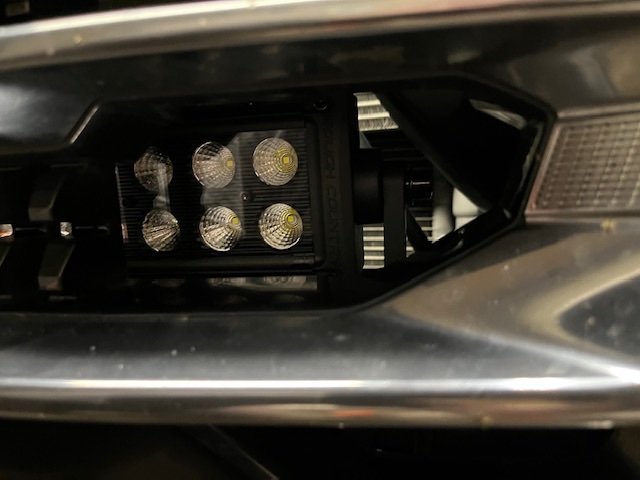

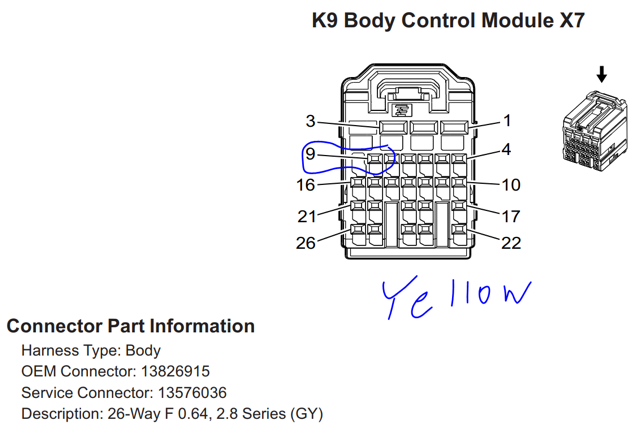

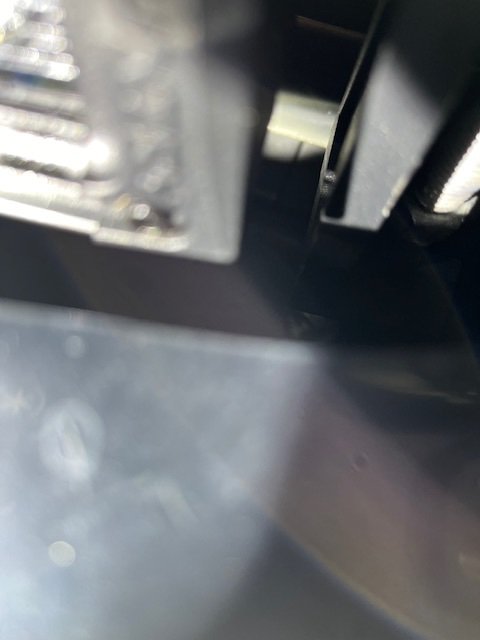

After Reading were others were able to install 30” I ordered the RC 30” dual row (spot and flood) black series. After YouTubing how to remove front grill, I noticed the bumper mount bolts seemed like a good and sturdy mount point. I was able to make my own mounts out of some flat aluminum I had laying around and some galvanized bolts (used factory bumper bolts as base mounts). Removed 2 rows of air shutter slats to make room (do not cut…just bend and they pop out and save for later incase need them). Grill is about 1/2 inch from the light bar and grill (the close up picture shows that).  The RC switch had an LED red light that stayed on all the time so I also used a 4-wire push button from Amazon and wired it into the dash where AUX switches usually go. I connected the switches back light wire to the BCM X7 #9 so it will dim with dash settings.

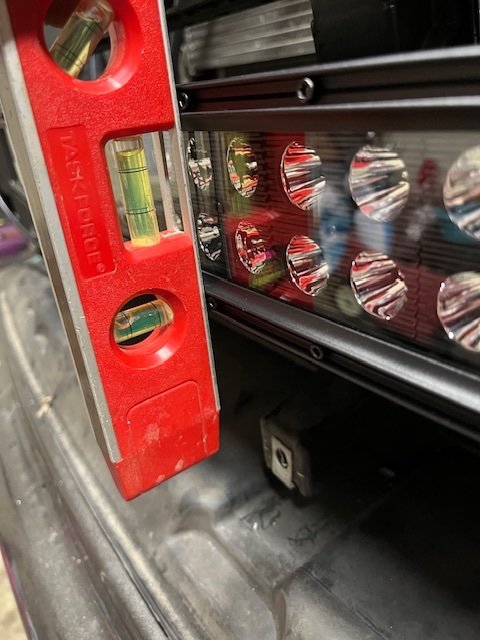

I will be replacing the adjuster allen bolts with regular hex heads… making adjustments to the light bar aim is about impossible through the grill with allen bolts. If I just have regular hex bolts, I can use a wrench or a quarter inch ratchet super easy. So now have Bambi mode (all lights) and the light bar all covert.  Pics below. Hopes this helps someone.

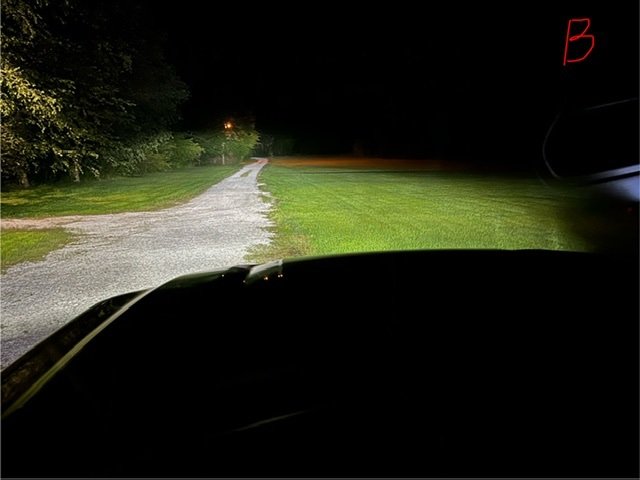

pics are Brights (all lights on high), Brights and Light Bar, only Light Bar
