Great progress today...



I was able to locate a complete front dashboard to experiment on the HUD install, and it came with great rewards. I should be getting my Denali cluster sometime tomorrow and start on this install as soon as I can.

Special thanks to[mention=191422]jadscoop[/mention] for his amazing work on bringing the Tahoe/yukon visor cluster and the Silverado/Sierra visor hood cluster.



Here a few pictures of what I worked on today.


The dashboard will need to be cut. There is no other way around the HUD itself is pretty big and there’s not enough room to fit without cutting into the dashboard once cut it will fit like it was meant to be there.


Here’s a better picture from above.


The HUD has 3 locations where it needs to be attached or screwed into. 1 on the tabs is already there at the main metal bracket support. From the picture above you can see where the one of the screws is solid screwed into. The second one will need a spacer in between to mount it properly but it will be enough to support the HUD (picture below)


We will loose the driver mirror defroster vent. There’s no way around. (Not a big deal for me)



The cluster hood visor will complete attach to our Silverado/Sierra cluster trim with the difference of adding the Tahoe/Yukon to cover where the dashboard was cut and it fully matches where the HUD location is.


Now the next challenge is to make a cast of the the 2 cluster visor hood together and make a one solid piece and leather it to match as close as possible to our dashboard finish. Visited a few local shop in Dallas area and I’m confident it can be done. Stay tune for the retrofit.



thanks to[mention=159655]pgamboa[/mention] for getting the harness covered and[mention=191422]jadscoop[/mention] for his work done on the cluster visor. It’s coming closer to reality.





Sent from my iPhone using Tapatalk



  • Like 3
Posted

Great to see progress being made! Keep up the good work! ?

  • Like 1
  • 3 weeks later...
  • 2 weeks later...
Posted

HUD retrofit completed.
Thanks to@jadscoop@pgamboa and whiteautoandmedia.com

Just finished installing the HUD on my 15 Silverado. I’ll take some pictures at night.
Windshield will be replaced with a HUD ready one.
1099adc701cfa2906278c4d4edb113a5.jpgfb2f1906b8b3fd53eaae58b9cf4ee0c1.jpg45afa703729e523b3f9e52119f6161d8.jpgd29015153c6db32f64903399ce976814.jpg


Sent from my iPhone using Tapatalk

  • Like 1
Posted

Dam that looks good. Nicely done. Could you use a piece of the HUD film instead of replacing the glass?

Posted
Dam that looks good. Nicely done. Could you use a piece of the HUD film instead of replacing the glass?

Not to worried about for now, looks better in person but I will be doing the windshield. Buddy of mine has windshield company.


Sent from my iPhone using Tapatalk
Posted

@Viktorrocks15

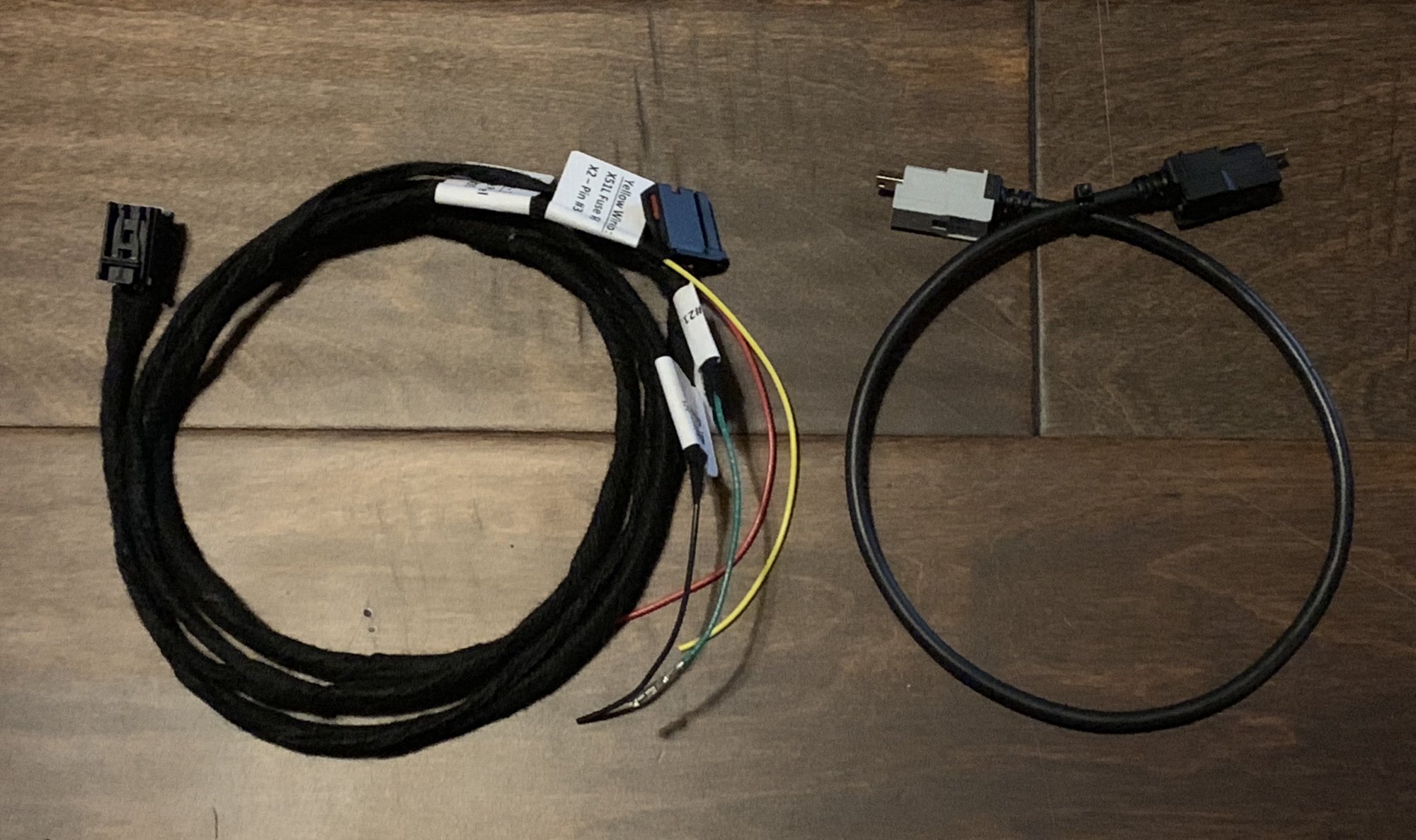

Nice Work!  For anyone that is looking at doing this MOD, I have am now offering the harnessing for this upgrade.  It is $150 shipped, Canada +$10.  It will also include the USB Cable needed to go from the Cluster to the HUD Switch, and full instructions on how to land the wiring.



Please PM me for ordering this harness.  Thanks!





Viktorrocks15


  • Like 5
Posted
@Viktorrocks15

Nice Work!  For anyone that is looking at doing this MOD, I have am now offering the harnessing for this upgrade.  It is $150 shipped, Canada +$10.  It will also include the USB Cable needed to go from the Cluster to the HUD Switch, and full instructions on how to land the wiring.

Please PM me for ordering this harness.  Thanks!



Viktorrocks15


6b3228910ca99c13d94905908dc312d8.jpg6cc84ae32f71077542eadb88c923086b.jpgf7fc8ecee91f2594ac25695f8f814c0c.jpg





Sent from my iPhone using Tapatalk
Posted

My HUD wire harness just arrived in the mail. It has easy to follow instructions. The pictures along with the instructions makes easy enough to install.

Thanks to Viktorrocks15 and pgamboara

  • Like 2
Posted

Not to worried about for now, looks better in person but I will be doing the windshield. Buddy of mine has windshield company.


Sent from my iPhone using Tapatalk
Looking great! Do you have the part number for your denali cluster in blue?

Sent from my SM-N950U using Tapatalk

  • Like 1
Posted
Nice job guys. [mention=154140]viktorrocks15[/mention] the HUD windshield made more of a difference than I expected in my Yukon. You’ll be happy you swapped one in.


Sent from my iPad using Tapatalk


I will replace it, now that it working and working flawlessly the HUD windshield it going to be the cherry on top..[emoji41]


Sent from my iPhone using Tapatalk
