Brake Controller Install locations

A_Ninja_Racer
 Share

Recommended Posts

SkippyG4 Enthusiast

SkippyG4

Posted
Posted
On 11/4/2017 at 10:39 PM, HoosierZ said:

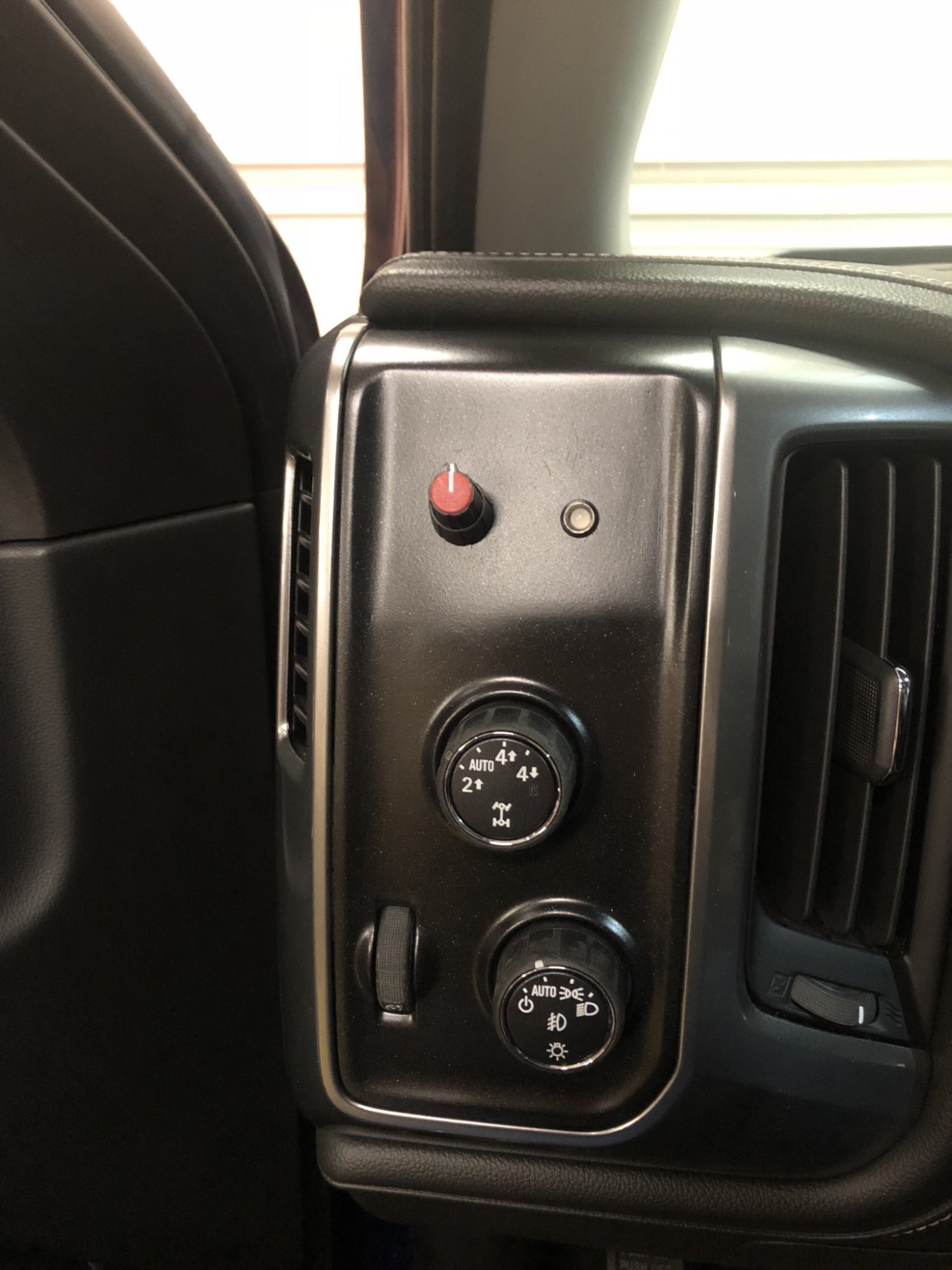

Yesterday, I installed a Reese Compact IQ controller in my truck. The controller is mounted behind the dash near the parking brake pedal and I mounted the adjuster dial and indicator LED in a panel over the pocket above the 4wd selector dial.



Would you mind posting a pic of where you mounted the controller?

  • Replies 51
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

Lgetz
Lgetz

Another user mounted his P3 inside the cubby as shown.   If I were to mount mine again this is where I would do it.  Hated banging my knee on controllers with other trucks previously.  The 2014 All Te

Posted Images

HoosierZ Enthusiast

HoosierZ

Posted
Posted

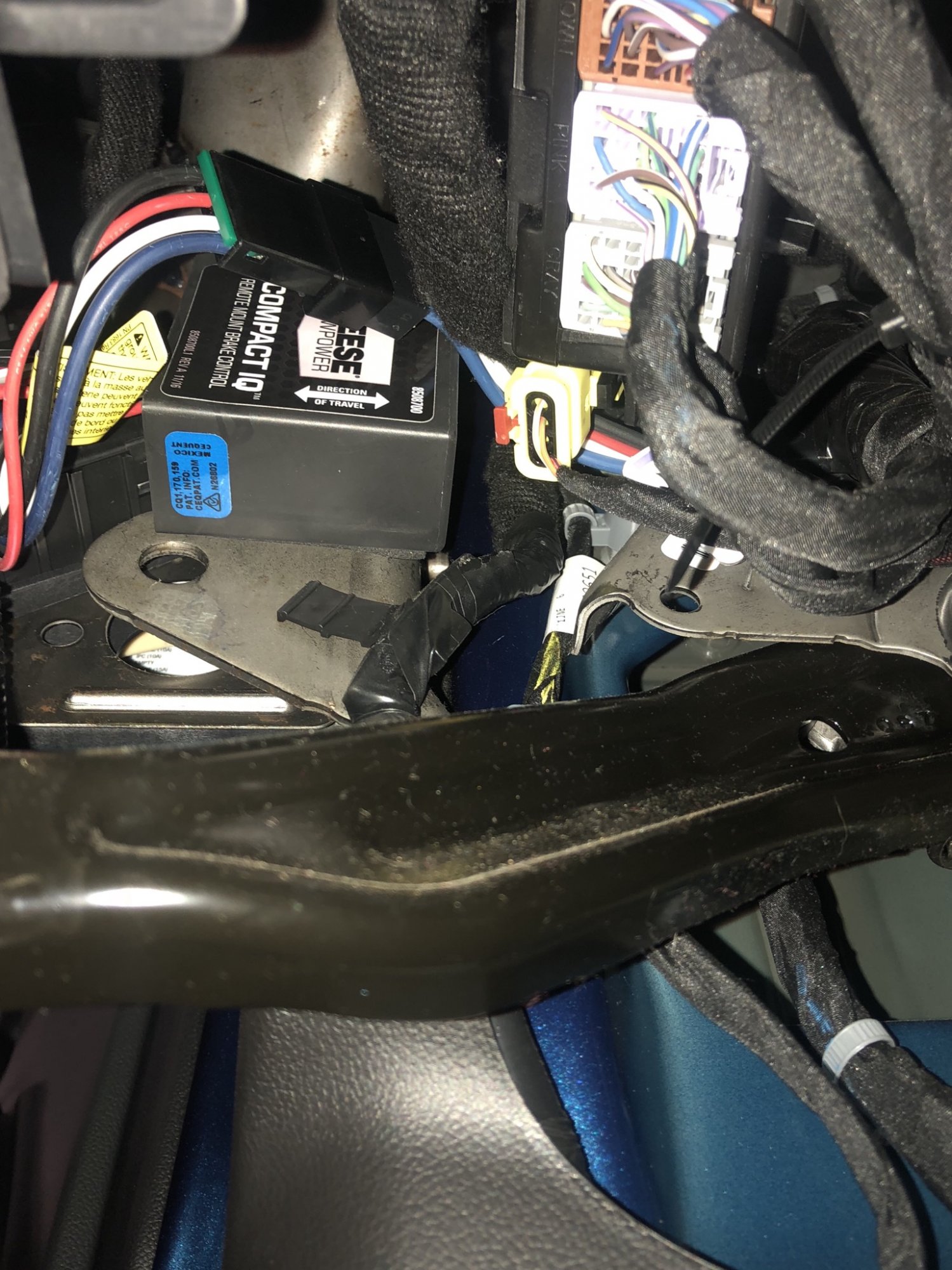

It’s mounted to the metal support above the parking brake pedal using the double sided foam tape that came with the controller. The wires to the LED and dial were barely long enough to reach up to the pocket. The wires are ran along the bottom of the dash and across the fuse panel. I’ve since molded in a panel over the pocket.


mammut Enthusiast

mammut

Posted
Posted (edited)

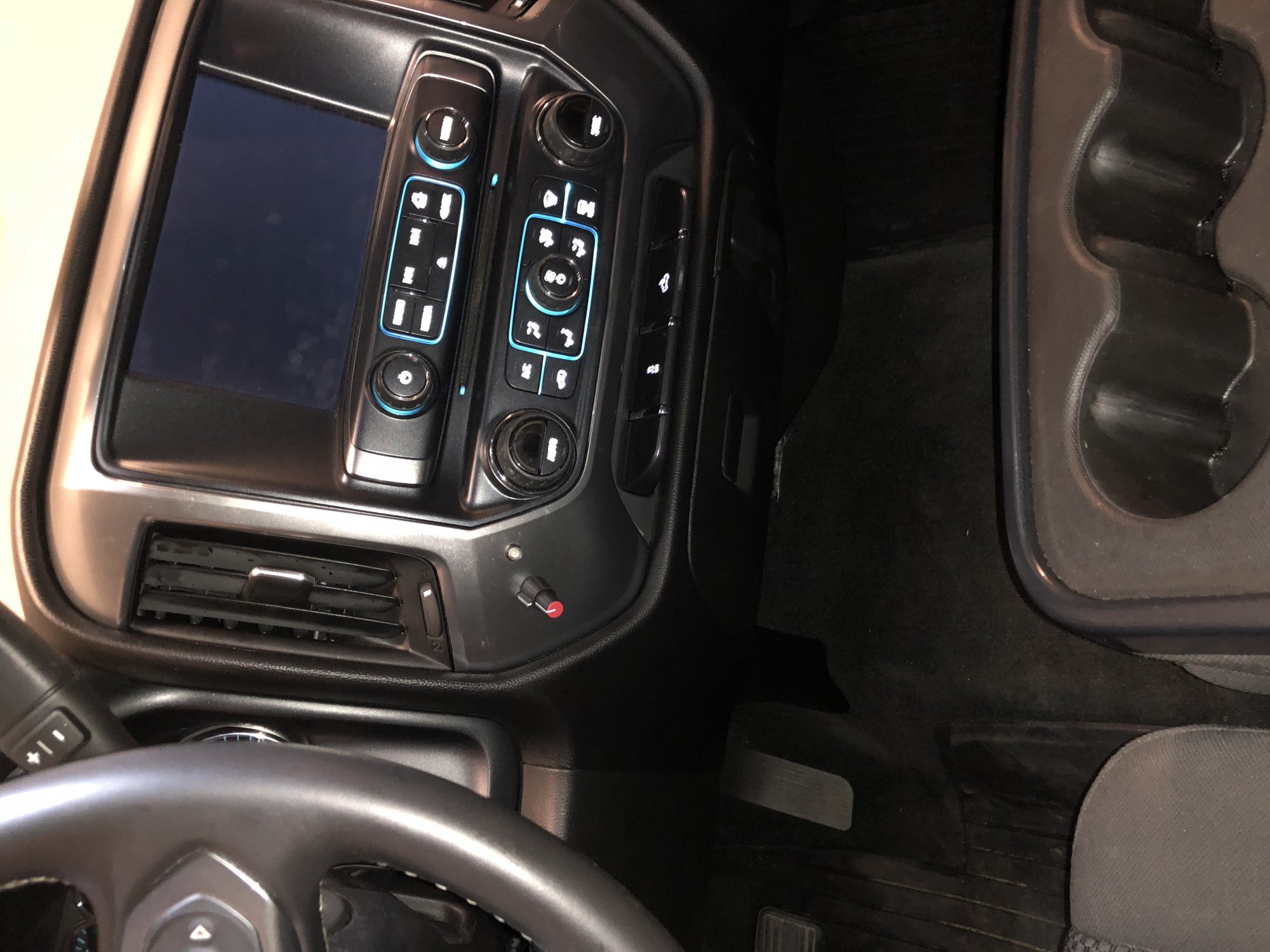

I had the Redarc in my Silverado 1500 LT.  Worked great with my trailer and install wasn't too bad.  I put it under the screen where the heated seats button would be in the higher trim trucks.



Traded off the 1500 for a 2500 HD and didnt grab any picks of the install.

Edited by mammut
SkippyG4 Enthusiast

SkippyG4

Posted
Posted
On 6/19/2018 at 9:09 PM, HoosierZ said:

Wire loom hides the wires hanging below the dash.


Thank you for the Pics!  being that it has to be mounted in a very specific way i was struggling to find a location.

SkippyG4 Enthusiast

SkippyG4

Posted
Posted

Got my compact iq installed.


Sent from my SM-G965U using Tapatalk

  • 4 weeks later...
squeak93 Enthusiast

squeak93

Posted
Posted

Did my install a few weekends ago. I mounted my box on the metal bracket below the steering wheel, behind the lower panel.  I didn’t take a pic of it though.


VT_Z71 Enthusiast

VT_Z71

Posted
Posted

ce7HMMStNgjkzKaucM96xdej0ohnGVPa6UhOJDEV



This is the only thing visible on mine (systems status via backlit led)....control box is hidden up under the dash.

  • 11 months later...
jrob56 Enthusiast

jrob56

Posted
Posted

Looking to add a controller and leaning toward P3. Anyone tried to mount in center console under the removable cup holders vertically? For trucks with captains seats with fixed center console. From what I read vertical is okay. Not sure if wiring long enough though.

  • 2 months later...
Mcoop New Member

Mcoop

Posted
Posted
On 11/4/2017 at 10:39 PM, HoosierZ said:

Yesterday, I installed a Reese Compact IQ controller in my truck. The controller is mounted behind the dash near the parking brake pedal and I mounted the adjuster dial and indicator LED in a panel over the pocket above the 4wd selector dial.



Where did you get the plate to cover the hole? Is it something I can buy somewhere or did you make it?

  • 8 months later...
Mike Brewer New Member

Mike Brewer

Posted
Posted
On 11/4/2017 at 9:39 PM, HoosierZ said:

Yesterday, I installed a Reese Compact IQ controller in my truck. The controller is mounted behind the dash near the parking brake pedal and I mounted the adjuster dial and indicator LED in a panel over the pocket above the 4wd selector dial.



Where did you get the panel?  My 2016 has a cubby...

HoosierZ Enthusiast

HoosierZ

Posted
Posted

I made the panel. It had angle brackets behind it that were attached inside the cubby with emblem tape and the panel was attached to the brackets with velcro.
