Has anyone installed auxiliary reverse lights on their 19 yet? I usually wire some pods to the trailer wiring but I would like to utilize the cargo lamp button, not sure if this is possible so any input is greatly appreciated.

  • Replies 35
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

NHAT4
NHAT4

no worries... Just some rattle can black gloss... used a self ect primer first...

Mash2k10
Mash2k10

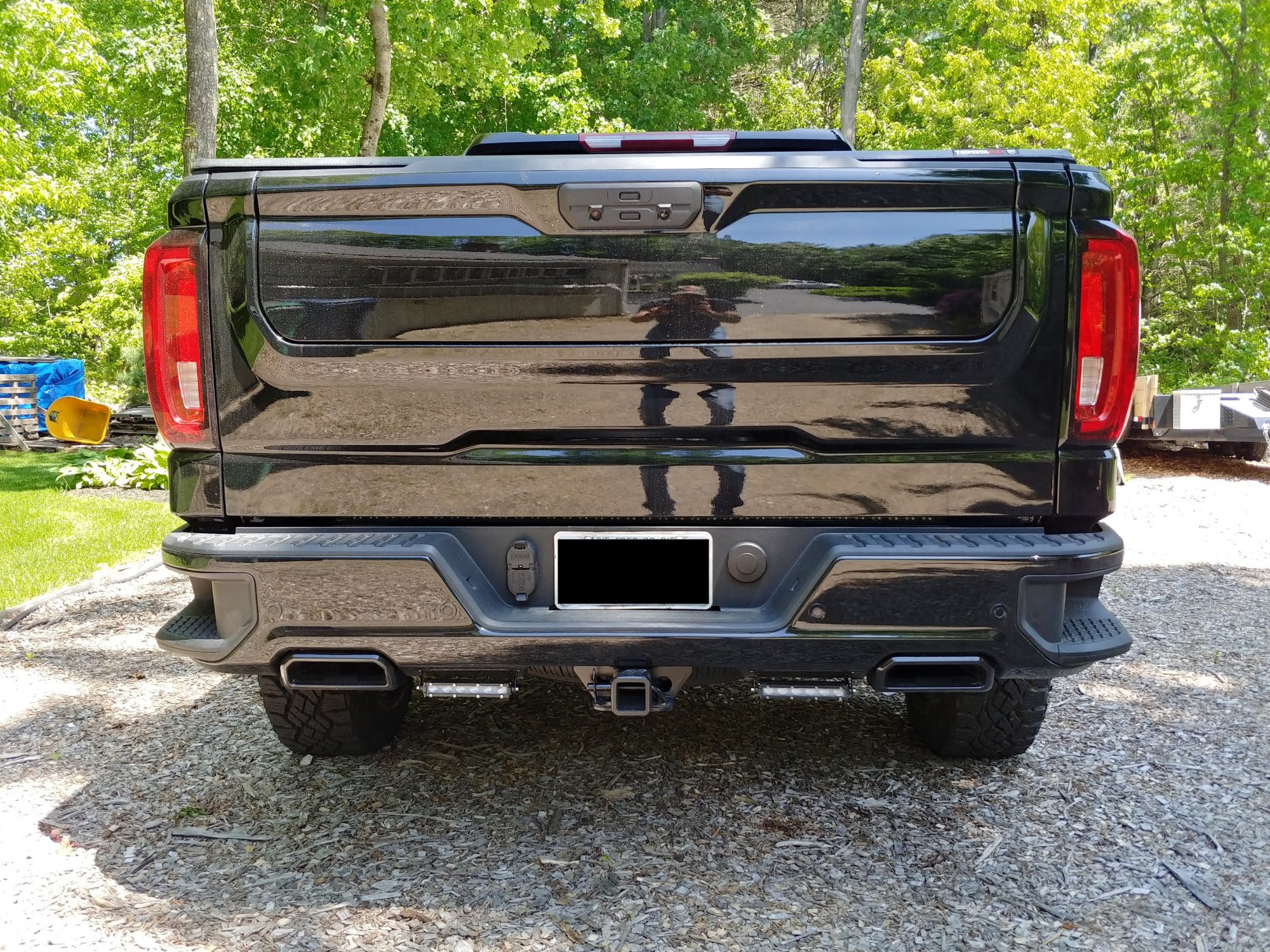

Rigid Ignites finally wired.

EJCarter
EJCarter

I'm not sure if this will work for the T1, but a clean look is mounting Rigid Ignite Back-Up Lights in the rear bumper step. I did this on my 2016. If they don't fit inside the step, maybe they'll fit

Posted Images

1SLOW1500 Senior Enthusiast

1SLOW1500

Posted
Posted

All I will say is it would be best if you set it off a relay to a seperate power. You can wire up a relay or buy a rewired on or even buy a relay power harness. But so many wires and circuits are monitored by the bcm. And throw soft codes.

Sent from my SM-N960U using Tapatalk

NHAT4 Enthusiast

NHAT4

Posted
Posted

LEDS draw such low amps, and I yes the BCM is finicky , but i wired back up LEDS and additional bed lighting, into the respective lamps direct... No issues...

1SLOW1500 Senior Enthusiast

1SLOW1500

Posted
Posted
LEDS draw such low amps, and I yes the BCM is finicky , but i wired back up LEDS and additional bed lighting, into the respective lamps direct... No issues...
I'm not 100% sure there is a problem on that circuit but my dome light wire I tapped into for floor mat lights and there is a soft code in the record. Also in my report was subwoofer open and light sensor high voltage.
These are soft codes they do not set of the dash light. But when all the codes are pulled you can see it listed.

Sent from my SM-N960U using Tapatalk

NHAT4 Enthusiast

NHAT4

Posted
Posted

Agreed there maybe hidden soft codes, but they don't affect vehicle operation...

1SLOW1500 Senior Enthusiast

1SLOW1500

Posted
Posted
Agreed there maybe hidden soft codes, but they don't affect vehicle operation...
You are absolutely right. I didn't even know I had them till I read the 2 page report of soft codes.

Sent from my SM-N960U using Tapatalk

aseibel Senior Enthusiast

aseibel

Posted
Posted

I did what you are describing on my 2015. Used the cargo light circuit to power two KC Cyclone led lights. No issues with it, I'm very happy with the results. If it worked on the K2, why wouldn't it work on a T1?

Mash2k10 Enthusiast

Mash2k10

Posted
  • Author
Posted

Thanks guys, I will most likely be adding rigid ignite diffused reverse lights under the rear bumper. I believe they draw under 1 amp.

Mash2k10 Enthusiast

Mash2k10

Posted
  • Author
Posted

Does anyone know the wire color of the 7 pin reverse/auxillary? It appears green with white stripe, black and a red with green stripe come from the center of the rear on harness.

Mash2k10 Enthusiast

Mash2k10

Posted
  • Author
Posted

Reverse on my truck is green with white tracer being a Z85 trailering package. Unfortunately this was not a good power source for auxiliary lighting because the truck has to sense(electrically) a trailer in tow to work. Next step I tied into the blue positive / black negative on the cargo lamps. This would allow the aux lights to flash 3 times then shut off all cargo lamps. My little project is much harder on this new truck then the last ones I have had.

NHAT4 Enthusiast

NHAT4

Posted
Posted
1 hour ago, Mash2k10 said:

Reverse on my truck is green with white tracer being a Z85 trailering package. Unfortunately this was not a good power source for auxiliary lighting because the truck has to sense(electrically) a trailer in tow to work. Next step I tied into the blue positive / black negative on the cargo lamps. This would allow the aux lights to flash 3 times then shut off all cargo lamps. My little project is much harder on this new truck then the last ones I have had.

If you are wiring in additional reverse lamps , pull the talilamp assembly and tie into the reverse feed there.  Thats what I did. No issues..


Mash2k10 Enthusiast

Mash2k10

Posted
  • Author
Posted
10 minutes ago, NHAT4 said:

If you are wiring in additional reverse lamps , pull the talilamp assembly and tie into the reverse feed there.  Thats what I did. No issues..


Share the details, I was intending to have a switch in factory location...obviously out of luck so far. I removed tails to tie into cargo but ran out of time. What color is reverse on the tails? TIA

GN2018 Enthusiast

GN2018

Posted
Posted

Please comment on how those work.  Are they pretty bright?  Do they light up the driveway (about 20 feet across) when you’re backing up?  Any other pros or cons in the choice of lamp?  Thanks.

NHAT4 Enthusiast

NHAT4

Posted
Posted
1 hour ago, Mash2k10 said:

Share the details, I was intending to have a switch in factory location...obviously out of luck so far. I removed tails to tie into cargo but ran out of time. What color is reverse on the tails? TIA

I don't recall the wire color. Use a multi meter / test prob while someone places truck in reverse...

NHAT4 Enthusiast

NHAT4

Posted
Posted (edited)
38 minutes ago, GN2018 said:

Please comment on how those work.  Are they pretty bright?  Do they light up the driveway (about 20 feet across) when you’re backing up?  Any other pros or cons in the choice of lamp?  Thanks.

They actually suck... I wanted the slim line for a clean install, but they don't put out the light... I'm going to eventually replace with the 2" flush mount cubes in the bumper... Just haven't gotten around to it yet...  Something like these.  https://www.amazon.com/Rough-Country-Square-Lights-70803BLKDRLA/dp/B07KYTX6MS   Clear not amber like listed
