Evap Vent Valve Location

nharrel

By nharrel
in Ask A GM Technician

 Share

Recommended Posts

Nanotech Environmental Enthusiast

Nanotech Environmental

Posted
Posted

I have a 2006 Sierra 1500 ext Cab 4x4 with the 5'8" box. I also have this code happening, but I can't find this part under my truck. Where would it be? The only part of the fuel system by the tank is the big rectangular box that I assume is both a fuel filter on the pressure line and something else for the return line. There are no wires or anything like that nearby for this.



Where would I find this evap solenoid on this specific truck????. I have the replacement part ready to install....

  • Replies 133
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

odayflor
odayflor

***IMPORTANT INFORMATION YOU MUST READ*****   Ok everyone, listen up....If you have a 04 and newer silverado, with a failed evap vent solenoid, you have to read this info. Do not pay $100+ for this

IndyDingo
IndyDingo

Ian -   I have the '06 Chevy version of your truck (crew cab Z71) - but I can't seem to locate the canister. I've looked at the pics that have been posted here - crawled under the truck yesterday

evallade
evallade

I just put the 214-2149 on my 07 Sierra (new body). It also has 40k on it. $31 all in. I bought 3' of 5/8 heater hose and had 18" left over. Cleared the code with a code reader, and so far it has

Posted Images

Nanotech Environmental Enthusiast

Nanotech Environmental

Posted
Posted (edited)

Found it above the tank over the frame rail, almost inaccessible. The engineer that chose that location needs a serious kick in the nads.....inexcusable..

There ought to be a law......

Edited by 3beejay3
Black02Silverado Senior Enthusiast

Black02Silverado

Posted
Posted

Found it above the tank over the frame rail, almost inaccessible. The engineer that chose that location needs a serious kick in the nads.....inexcusable..

There ought to be a law......

Yep, easy to just pull the bed to replace.

Nanotech Environmental Enthusiast

Nanotech Environmental

Posted
Posted (edited)

Yep, easy to just pull the bed to replace.

No thanks. Plus, it's actually under the cab & wouldn't easily be accessible by lifting the bed.

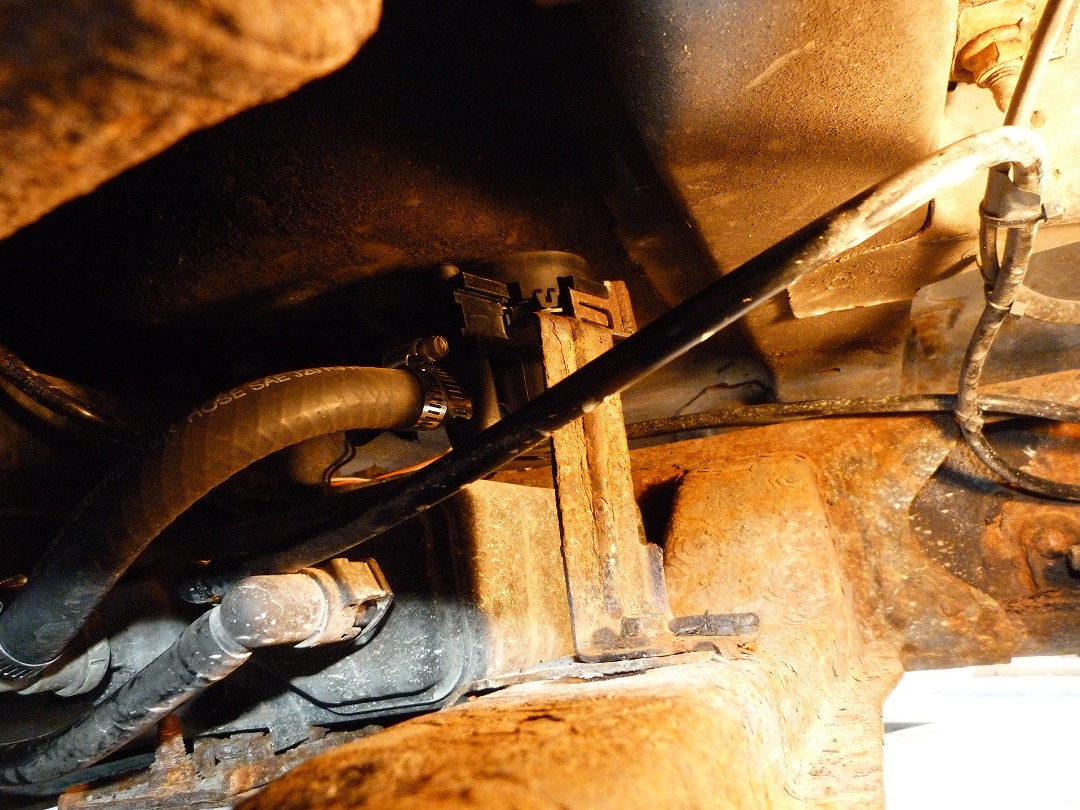

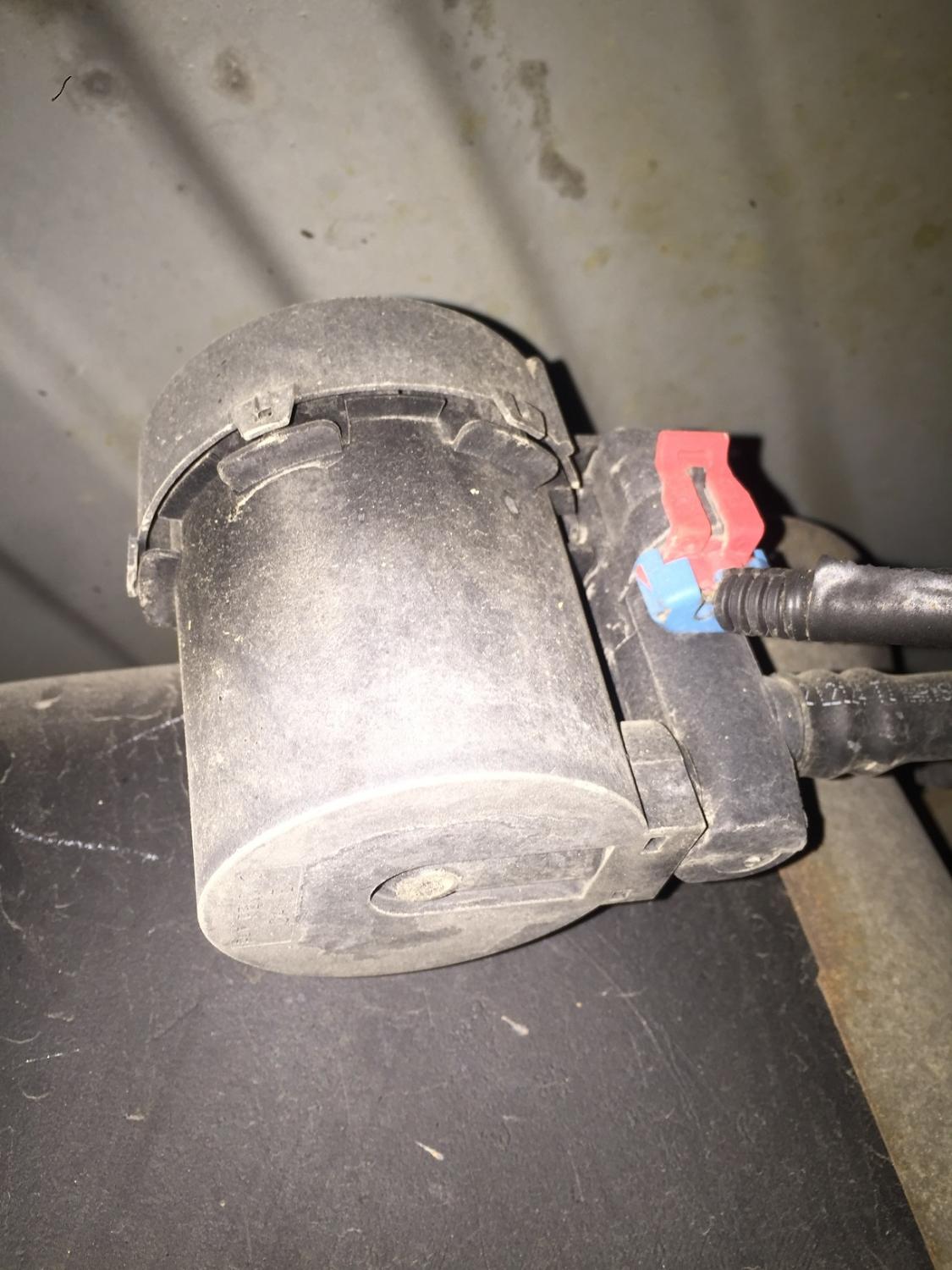

Got it out and moved it to a new location above the main charcoal? canister. See pics.



Also, was able to use the bracket by putting a bend in it and using the existing bolt on the crossmember for the main filter/canister bracket. Used the same wiring connector by pulling it out of the main loom for about a foot or so.

This new location is where the thing should have been mounted in the first place. It's inexcusable that the bed, or cab should need to be lifted, or tank dropped, to do any type of maintenance, incl. the fuel pump.......That's :bs:













Edited by 3beejay3
Black02Silverado Senior Enthusiast

Black02Silverado

Posted
Posted

Good to see you were able to get at it. Mine is under the bed. I pulled the bed to change out my fuel pump. Yes is sucks and shouldn't be designed that way. But it is one way to bring $$$ into the dealership. I'm now getting a P0442 code and think it is where I had to fix a broken line I did when I changed out the pump. So off the bed will come again for that fix and I ordered a new line. Here is my fix that is now two years old.



AMSOILsignandtruckfuelpump029_zps3a3762d



AMSOILsignandtruckfuelpump019_zps40f9677

Nanotech Environmental Enthusiast

Nanotech Environmental

Posted
Posted

Good to see you were able to get at it. Mine is under the bed. I pulled the bed to change out my fuel pump. Yes is sucks and shouldn't be designed that way. But it is one way to bring $$$ into the dealership. I'm now getting a P0442 code and think it is where I had to fix a broken line I did when I changed out the pump. So off the bed will come again for that fix and I ordered a new line. Here is my fix that is now two years old.



AMSOILsignandtruckfuelpump029_zps3a3762d



AMSOILsignandtruckfuelpump019_zps40f9677

Geez look at how nice and rust free everything is! Mine is a rust factory and its 4 yrs newer than yours.

  • 11 months later...
yzman720 New Member

yzman720

Posted
Posted

I have a 2004 Sierra with 5.3 engine.



Every interchange that I see for the recommended part #214-2149 says it is for 07' up new body styles only. Can anyone confirm this will work on the older body style 2004's?



Mine does not have a clip at the canister like some do. The hose is heat on from factory. Instead of putting heater hose from the canister to the old hose, I would think it would be better to use heater hose from the new canister all the way to the filter box. In my mind it would have less chances of any evap leaks this way. - thoughts on doing it this way?





  • 4 years later...
GeorgeLG Enthusiast

GeorgeLG

Posted
Posted

I have a 2006 GMC Sierra 5.3L Ext Cab Short Bed. I can't find my evap solenoid either. Its not at the back of the fuel tank and its not visible sighting down the space between the cab and bed. My charcoal cannister is in front of the tank lying flat with the three ports facing towards the passenger  side of the truck. All three hoses disappear going up and towards the drivers side.  If you don't know where the vent solenoid is, which of the three ports is attached to the vent solenoid?



Thanks,



George



GeorgeLG Enthusiast

GeorgeLG

Posted
Posted
On 11/30/2015 at 12:59 PM, Nanotech Environmental said:

Found it above the tank over the frame rail, almost inaccessible. The engineer that chose that location needs a serious kick in the nads.....inexcusable..

There ought to be a law......

I have the same set up, how did you get this thing out of there? Any help is appreciated. Nads definitely need to be involved. Thanks,



George



Nanotech Environmental Enthusiast

Nanotech Environmental

Posted
Posted
On 12/10/2020 at 5:04 PM, GeorgeLG said:

I have the same set up, how did you get this thing out of there? Any help is appreciated. Nads definitely need to be involved. Thanks,



George



Hi George- Sorry for not responding sooner- I haven't been on here for a bit. I responded to your pm.

  • 1 year later...
Robert Paul Enthusiast

Robert Paul

Posted
Posted (edited)

Is this okay the TSB says to relocate remote filter to top of transmission? I relocated to above fuel pump on top of gas tank will that be okay I don't think any water should be getting up there right? It was a tight spot but doable and it helps to cut the old hose off then just slide out old solenoid between outside of cab and bed and hose from under the truck for those wondering how to get this thing out. So think I'm good with this spot for my filter everyone or should I run it to the top of my transmission? Ty




Edited by Robert Paul
txab Senior Enthusiast

txab

Posted
Posted

It's dust that caused the filter location to be shifted above the trans. housing.

Robert Paul Enthusiast

Robert Paul

Posted
Posted

So that's not a good spot for it then? It is alittle dusty there I guess. I'll have to get more hose.

txab Senior Enthusiast

txab

Posted
Posted

Not the best of spots when you see all the debris that collects on top of some tank. It'll probably do fine up there. I'm still running the OE valve on the back of the tank, but then I'm not driving on dusty roads all the time either.



Some people have run it up by the gas tank fill hose and I guess it's worked for them
