2014+ Lowering / Drop Kits

[Velocibiker]

Will somebody let me know what the torque specs are for the rear shackles on a 2014 Siverado LTZ?



When I searched for 'torque', I found posts that said "torqued to spec", but nobody has posted what the spec actually is.

Bumping my own post.



Also need the specs for the U-bolts.

[Velocibiker]

Bumping my own post.



Also need the specs for the U-bolts.

Went to my dealer yesterday and a very nice mechanic looked up the specs for me.



Rear Spring Shackle Nuts: First Pass = 85 lb ft. Final Pass = additional 90 degrees.

Rear Spring Anchor Plate Nuts: First Pass = 59 lb ft. Final Pass = additional 130 degrees.

[rcmike]

Lowered my truck with two inch rear lowering shackles,installation straight forward,no problems with ride or drive pinion . I'm glad I did this modification .

Edited November 16, 2014 by rcmike

[mafd2]

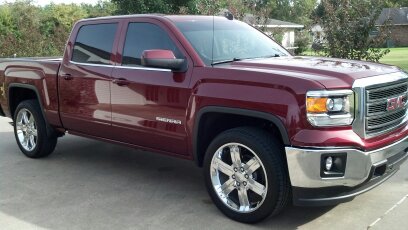

I've removed the blocks in the last 3 GM trucks I've owned using stock U bolts and nuts with "zero" problems. It levels the truck nicely. I just had to lower my headlights a tad.



[ridersonthestorm]

Couldn't get the bed seams laid over far enough to get top bolt out. Ran out of time............

Try again another day

[N2Black]

Couldn't get the bed seams laid over far enough to get top bolt out. Ran out of time............

Try again another day



It took me a while also. I also loosened the bed bolts also to give it some give when I was knocking the bolt out. After I removed the bolt I cut off the bolt lip on the head so it would be easier to knock it back in.

[Tqjunkie]

I've removed the blocks in the last 3 GM trucks I've owned using stock U bolts and nuts with "zero" problems. It levels the truck nicely. I just had to lower my headlights a tad.




Would it be possible to get a direct side view of your truck,by the the look of the pic. the stance of your truck looks perfect but I would like to see a direct side view if you have one ,just to verify the picture is just with the factory blocks removed correct?thanks

Edited November 28, 2014 by Tqjunkie

[landfusion]

I put a set of 2" lowering shackles on the back of my 2014 denali, drives great until I hooked my trailer to it (approx. 2000lbs)

Got a bad vibration that gradually gets worse up to about 110 kph.

I'm thinking it needs shimmed but I just wanted to see if anyone else has run into this.

[smokenu]

Here is My 2014 Sierra. Lowered 2 in the front 6 in the rear





Stock the day I bought it



After the drop and painted Grill



After 24's installed

[K2jer]

Here is My 2014 Sierra. Lowered 2 in the front 6 in the rear





What did you do to get the 6" in the rear?

[smokenu]

What did you do to get the 6" in the rear?



Its a rough country lowering kit. It says 5.5 inch in the rear and for whatever reason it ended up being 6 after it settled. Its a simple flip kit in the rear

[bj.berryhill]

When you guys adjusted your headlights down do you turn the screws clockwise or counter clockwise





Sent from my iPhone using Tapatalk

[bj.berryhill]

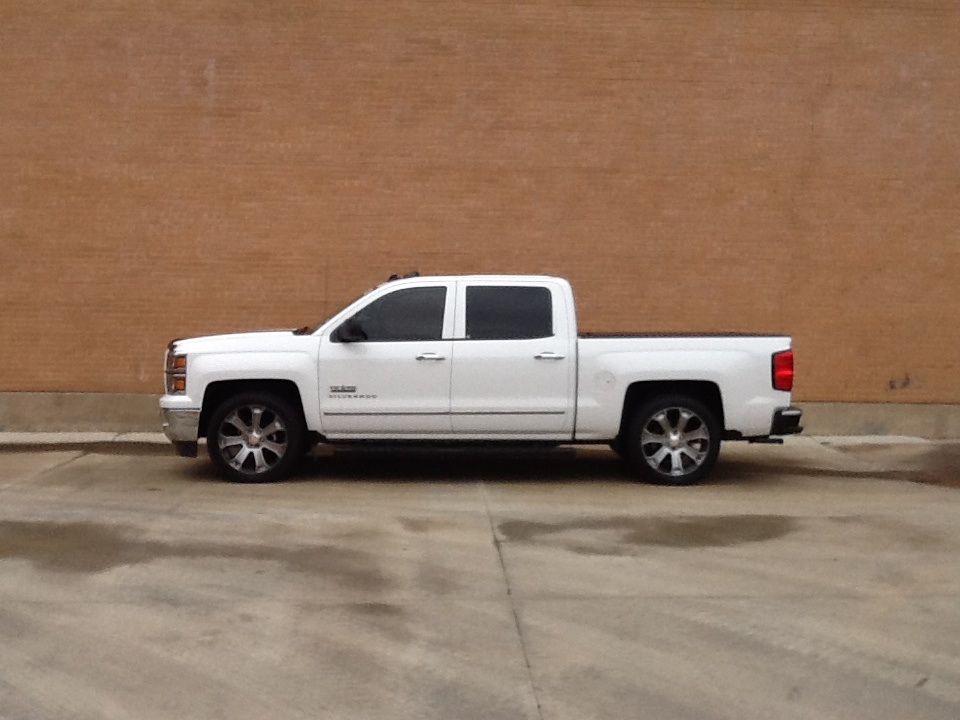

this is mine with a 2" shackle and block removed





Sent from my iPhone using Tapatalk

[502ss]

Here is My 2014 Sierra. Lowered 2 in the front 6 in the rear





Stock the day I bought it



After the drop and painted Grill



After 24's installed

I like those rims! What brand/model!!



Nice looking truck!

[frenchsquared]



Has anyone who's played around with u-bolts ever seen them loosen up after a few hundred miles or is this more urban legend than sound engineering?





Yes, more then once.



I can name 3 trucks that I or my friends lifted and had the u-bolt loosen up after a few hundred miles.

I always recheck them.
