Center console swap?

quickvert1

By quickvert1
in Modifications & Accessories

 Share

Recommended Posts

Osirus Enthusiast

Osirus

Posted
Posted
Just now, zikronix said:

Possible however, that port will charge my phone with out issue and the usbstick i put in there lights up. I havnt tested the aux jack in there either.



My AUX jack wasn't working, either. I assume it's just a USB device internally connected to the hub.

  • Replies 1.9k
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

darkfox1
darkfox1

OK.. mine's in.   Here's a writeup, cos I haven't seen one so far.   1. remove the "ash tray" and cig. ligther in your dash with 3 t-10 torx screws, and 2 clips. 2. Remove the radio trim, clips i

dla
dla

I always wanted a RCSB with buckets and a center console...   Received and installed mine yesterday. Very straight forward, thanks for all who posted instructions and part numbers.   Possibly to h

o7bodybagged
o7bodybagged

Finally the console is complete now ready for the install and see what other problems I run into

Posted Images

zikronix Enthusiast

zikronix

Posted
Posted (edited)

there was some one here that did some weird cable splicing. and got everything working, I dont remeber if he had a glove usb.  One thought I had was why are we using the front usb pass through. Why cant we use the usb that was under the seat in the first place. Thoughts? How many usb outputs does the hmi have two or three?



Edited by zikronix
Osirus Enthusiast

Osirus

Posted
Posted

Ok, I double checked every connection, everything looks right to my knowledge.



  • Everything in the front of the console works, both USB, both 12Vs, and the 110V (this shows open ground on a circuit tester, I assume that's normal? I didn't check it before the swap.)
  • The 12V inside the console and on the back of the console for the back seat work.
  • LED inside the console works.
  • Wireless charging lid works.
  • 2 USBs inside the console charge devices.
  • 2 USBs inside the console work with Android Auto when my phone is plugged into them.
  • 2 USBs inside the console DO NOT WORK FOR USB MEDIA. This is the only thing not working.

I even checked the 2 wires on the power plug for the front USB hub that is part of pgamboa's harness with a multimeter and confirmed there is 12V across the pins.



I don't know what the problem could be. Obviously there's some communication going on with the inside USB ports because Android Auto works. Could it be a problem with one of the hubs. How hard is it to remove the interior hubs? Maybe try swapping it with the one from the jump seat since I think they're the same part?

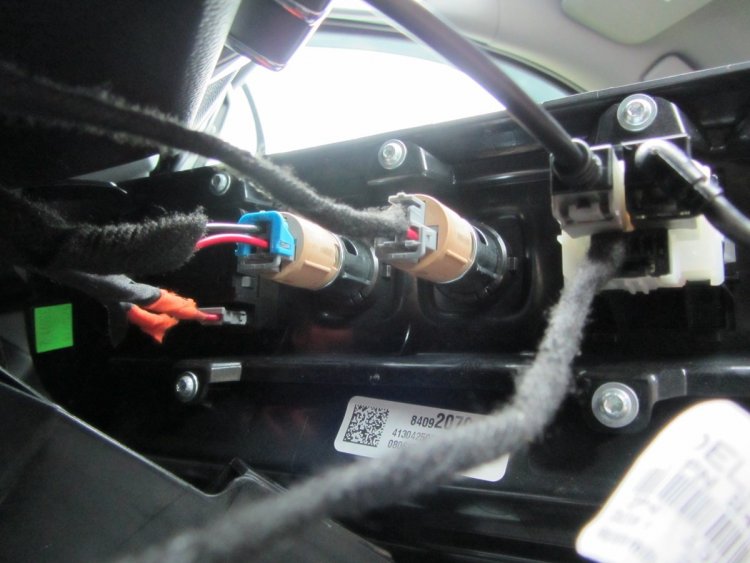

Pictures of connections:




BluEyeItln Enthusiast

BluEyeItln

Posted
Posted

Using the full function of the usb depends on your HMI.  The HMI only has two USB connections to give the full functionality and the others would only receive power without other features.  Phil @pgamboa can answer this much better.

zikronix Enthusiast

zikronix

Posted
Posted
1 minute ago, BluEyeItln said:

Using the full function of the usb depends on your HMI.  The HMI only has two USB connections to give the full functionality and the others would only receive power without other features.  Phil @pgamboa can answer this much better.

works in the stock trucks with out issue. Which generally have glove usb, front, and inside.



zikronix Enthusiast

zikronix

Posted
Posted

also a thought is to come from the floor usb to the front usb, then out of the front usb to the interior usb. Its either a hub problem or a cable problem, again it works stock.

pgamboa Senior Enthusiast

pgamboa

Posted
Posted

I find it odd that CarPlay works perfectly but not USB Data (Media). I’ll have to retest this on mine and will report the results...

When I return from vacation :)


Sent from my iPhone using Tapatalk

zikronix Enthusiast

zikronix

Posted
Posted
7 minutes ago, pgamboa said:

I find it odd that CarPlay works perfectly but not USB Data (Media). I’ll have to retest this on mine and will report the results...

When I return from vacation :)


Sent from my iPhone using Tapatalk

Aux doesn't work either

  • Like 1
pgamboa Senior Enthusiast

pgamboa

Posted
Posted
Aux doesn't work either

Ok - thanks for the info. I’ll recheck that too. Thanks!


Sent from my iPhone using Tapatalk
Osirus Enthusiast

Osirus

Posted
Posted

Update to my list above: AUX doesn't work either.



I'm willing to test anything the more knowledgeable people would like me to.

  • Like 1
pgamboa Senior Enthusiast

pgamboa

Posted
Posted
Update to my list above: AUX doesn't work either.

I'm willing to test anything the more knowledgeable people would like me to.

If you still have your jump seat, can you pop the USB hub out of it and try it?

I know there are hardware differences between 14-15 modules versus 16+ where car play was introduced.

There are also auxiliary input detect signals in the harness so I will check those as well on mine. When I started building the prototype harnesses, I tested 3.5mm aux input and phone as CarPlay. I don’t recall testing a flash drive in in the inside compartment as it worked on the front hub and glove box USB.


Sent from my iPhone using Tapatalk
  • Like 1
Osirus Enthusiast

Osirus

Posted
Posted
11 minutes ago, pgamboa said:


If you still have your jump seat, can you pop the USB hub out of it and try it?

I know there are hardware differences between 14-15 modules versus 16+ where car play was introduced.

There are also auxiliary input detect signals in the harness so I will check those as well on mine. When I started building the prototype harnesses, I tested 3.5mm aux input and phone as CarPlay. I don’t recall testing a flash drive in in the inside compartment as it worked on the front hub and glove box USB.


Sent from my iPhone using Tapatalk

How does the hub pop out of the jump seat?

  • Like 1
pgamboa Senior Enthusiast

pgamboa

Posted
Posted
How does the hub pop out of the jump seat?

You have to pop it out from inside. If you have a strong L-Shape pick tool you might be able to pop it out from the front.

I didn’t have much luck doing it that way, so I removed the rubber part of he cup holder and cup holder itself and took apart as much as I could to gain access to it.


Sent from my iPhone using Tapatalk
Osirus Enthusiast

Osirus

Posted
Posted (edited)
45 minutes ago, pgamboa said:


You have to pop it out from inside. If you have a strong L-Shape pick tool you might be able to pop it out from the front.

I didn’t have much luck doing it that way, so I removed the rubber part of he cup holder and cup holder itself and took apart as much as I could to gain access to it.


Sent from my iPhone using Tapatalk

Got it pulled from the jump seat, wasn't hard at all.



FWIW:

04/27/18

(P) 1351 9224

DELPHI-35022700_A



These hubs have a connector on them with a bunch of wires that the front console hub doesn't have.

Edited by Osirus
  • Like 1
