Hey I have a 2001 chev 1500 reg cab 8ft box and I have put in a prebent brake line kit but... I can remember how they were routed in the clips that hold the four lines and the wiring harness to the frame, if anyone has a picture of the clip with the lines in and can lable which are the master and which are the left and right to the flex lines it would be greatly appreciated



Thanks Jamie

Posted

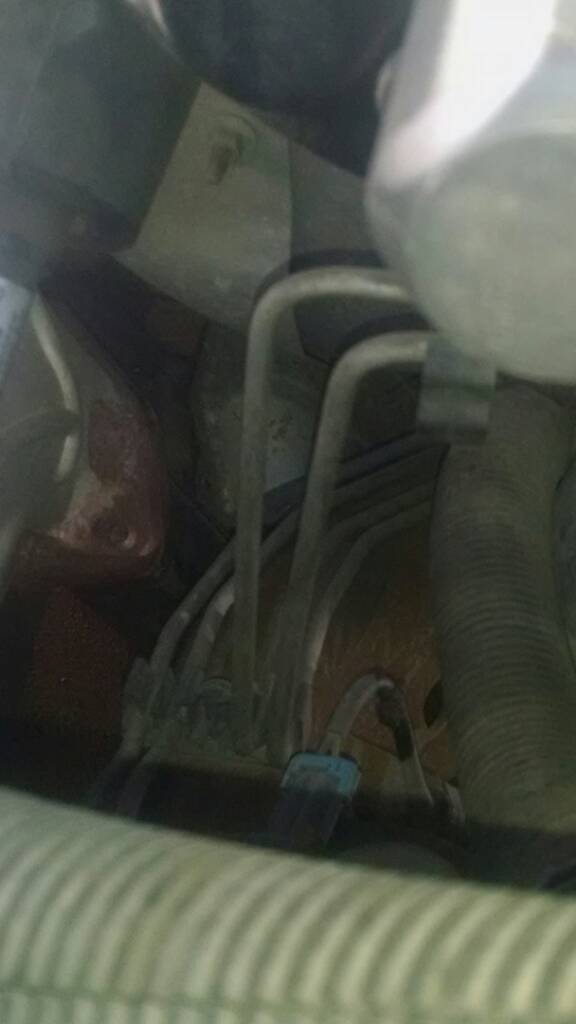

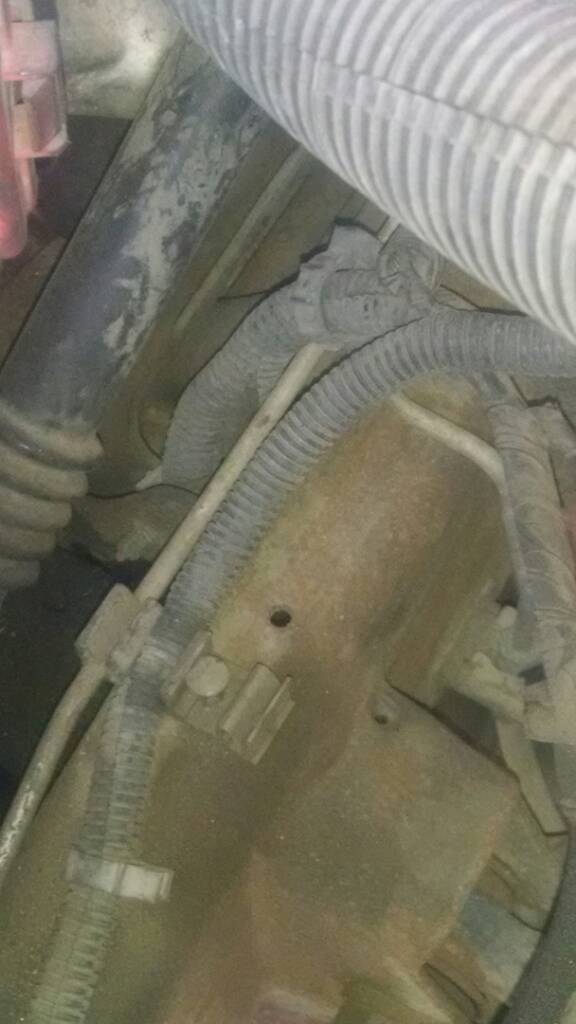

See attached, pics from a 01 burb. Grabbed these before wifey took off today. From engine bay. Right two go from master to valve. Two left go to front with left most line for the front right wheelpost-141897-148547102006_thumb.jpgpost-141897-148547102705_thumb.jpg



Sent from my XT1053 using Tapatalk
