Silverado/ Serria HUD Retrofit

JADSCOOP

By JADSCOOP
in Modifications & Accessories

 Share

Recommended Posts

JADSCOOP Enthusiast

JADSCOOP

Posted
Posted

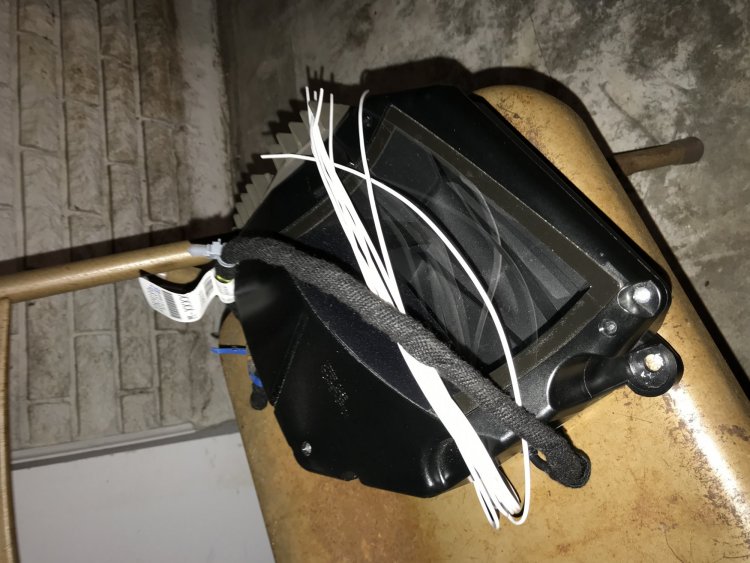

Ok guys. I need help with wiring up the HUD unit. I have 8 wires that come out of the HUD unit. Can anyone help me with a wiring Schematic? The Silverado/Serria did not have HUD as an option. So it is not plug and play like the Yukon/Tahoe guys had.

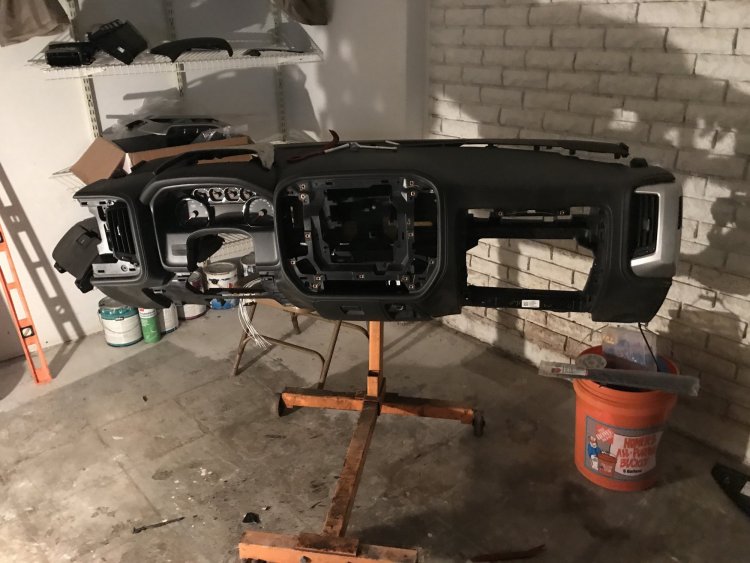

I will attach a few pictures of my progress so far

  • Replies 36
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

JADSCOOP
JADSCOOP
Bigmac
Bigmac

My friend - you have a bigger pair then I do for attempting this.  Good luck and watching. Liking the direction you are going.

JADSCOOP
JADSCOOP

I know in another post on this forum. A guy with a Yukon installed one. Let me know if you find the post with it installed in a Silverado/Serria  I have been doing a little home work. I come acro

Posted Images

th3magpi3 Enthusiast

th3magpi3

Posted
Posted

You're trying to add the HUD from a yukon to the silverado? Do you know if this has ever been done before?



I have a feeling this might either be a complete pain in the ass to do or will require a stupid amount of work.

2017Darkness Enthusiast

2017Darkness

Posted
Posted

I may be wrong, but I believe there is a difference in the windshields. There is a reflective layer in the windshield of vehicles produced with HUD...

JADSCOOP Enthusiast

JADSCOOP

Posted
  • Author
Posted

HUD will require a different windshield. BlkSS is checking with the Chevrolet dealership in his area to see if the Yukon/ Tahoe/Suburban or Escalade windshields would work in a Silverado/Serria. The dealerships in my area are not that willing to help with technical information. I guess they are worried about liability risk?

2017Darkness Enthusiast

2017Darkness

Posted
Posted
15 minutes ago, JADSCOOP said:

HUD will require a different windshield. BlkSS is checking with the Chevrolet dealership in his area to see if the Yukon/ Tahoe/Suburban or Escalade windshields would work in a Silverado/Serria. The dealerships in my area are not that willing to help with technical information. I guess they are worried about liability risk?

I don't know if you're talking to service or parts, but service would probably kick you to the curb. Talking to parts, they should be able to easily cross the part numbers...some places just suck....

JADSCOOP Enthusiast

JADSCOOP

Posted
  • Author
Posted

The dashboard in the pictures is not out of my truck. I purchased a used dashboard from a junkyard 2014-18 are the same


JADSCOOP Enthusiast

JADSCOOP

Posted
  • Author
Posted

The parts department. They try to work with me but when I say this is a custom install. They just know part numbers. I need a parts guy that has been around a few years. Someone use to doing custom work

wforrest08 Senior Enthusiast

wforrest08

Posted
Posted

Have you considered contacting a local auto glass shop (probably not Safelite) and seeing if their part numbers on the windshield is the same for a same year Silverado and Tahoe (without HUD)? Also if by chance the 019 Silverados have the same windshield since HUD is an option on those as well? They/you would probably have to get out the tape measure for that one since they may not have a parts listing for them yet. I seen you posted in the 11 page HUD thread I think if I remember right didn’t somebody say they were exploring the option of a clear film on the inside of the windshield for the display? Might be an opt.

Bigmac Enthusiast

Bigmac

Posted
Posted
4 hours ago, JADSCOOP said:

HUD will require a different windshield. BlkSS is checking with the Chevrolet dealership in his area to see if the Yukon/ Tahoe/Suburban or Escalade windshields would work in a Silverado/Serria. The dealerships in my area are not that willing to help with technical information. I guess they are worried about liability risk?

My friend - you have a bigger pair then I do for attempting this.  Good luck and watching. Liking the direction you are going.

  • Like 1
JADSCOOP Enthusiast

JADSCOOP

Posted
  • Author
Posted
1 hour ago, Bigmac said:

My friend - you have a bigger pair then I do for attempting this.  Good luck and watching. Liking the direction you are going.

I will give this project my best shot.

Does anyone have any information on the HUD wiring

I have this post talk about the wires.It does not give me exactly what wire goes where

I would prefer not to spend another $342 on a wire harness


NIXONRIDE Enthusiast

NIXONRIDE

Posted
Posted

Keep me posted on this...I had WAMS set my cluster up and I have the switch and the HUD unit.  I just haven't had the time to figure out the wiring and or the install of the HUD unit.  It looks like you have already started modifying the dash?  I believe the current windshield would work if you have the lane departure warning stuff, as there is currently a row of red lights that display on my glass if someone slams on their brakes in front of me.
