2018 SIERRA 1800 SLT PLUS Z71 4x4 Wiring Help

JCeballos8

By JCeballos8
in Modifications & Accessories

Recommended Posts

JCeballos8 Enthusiast

JCeballos8

Posted
Posted

Hi guys,  hopefully someone out there in GM world can help me.  I'm installing an aftermarket running board lights which has courtesy lights and turn signal lights.  I looked every where to get some concrete answer where i can tap into the OEM parking lights wire, courtesy light wire, and turn signal wire.  Now, I realize i can run them into the hood and into each headlamp but I much rather keep the connections neat inside the cab.  I looked at the GMUPFitter manual and quite honestly it might as well be in chinese to me.  If any one has any info with pictures broken down Barney style I would appreciate it.  Also if you recommend not tapping into any wire coming from the BCM then where would be the best place to tap into?  Thanks in advance to everyone who is willing to help!   @pgamboa any suggestions?

1SLOW1500 Senior Enthusiast

1SLOW1500

Posted
Posted

Wires are at bcm and also in front door kick panels. If you are handy with a meter you can just meter in the door harness and find color in kick panel trim. Use floor grommets and you are all set.

Sent from my SM-N960U using Tapatalk

amxguy1970 Senior Enthusiast

amxguy1970

Posted
Posted

Is the wiring different on 4wd than 2wd for the parking lights and courtesy lights? Do they make a 2wd Z71 in 2018? Just curious because of the title, that seems like a bunch of Autozone information...



Tyler

JCeballos8 Enthusiast

JCeballos8

Posted
  • Author
Posted
19 minutes ago, amxguy1970 said:

Is the wiring different on 4wd than 2wd for the parking lights and courtesy lights? Do they make a 2wd Z71 in 2018? Just curious because of the title, that seems like a bunch of Autozone information...



Tyler

not sure, but mine is a 4x4

JCeballos8 Enthusiast

JCeballos8

Posted
  • Author
Posted

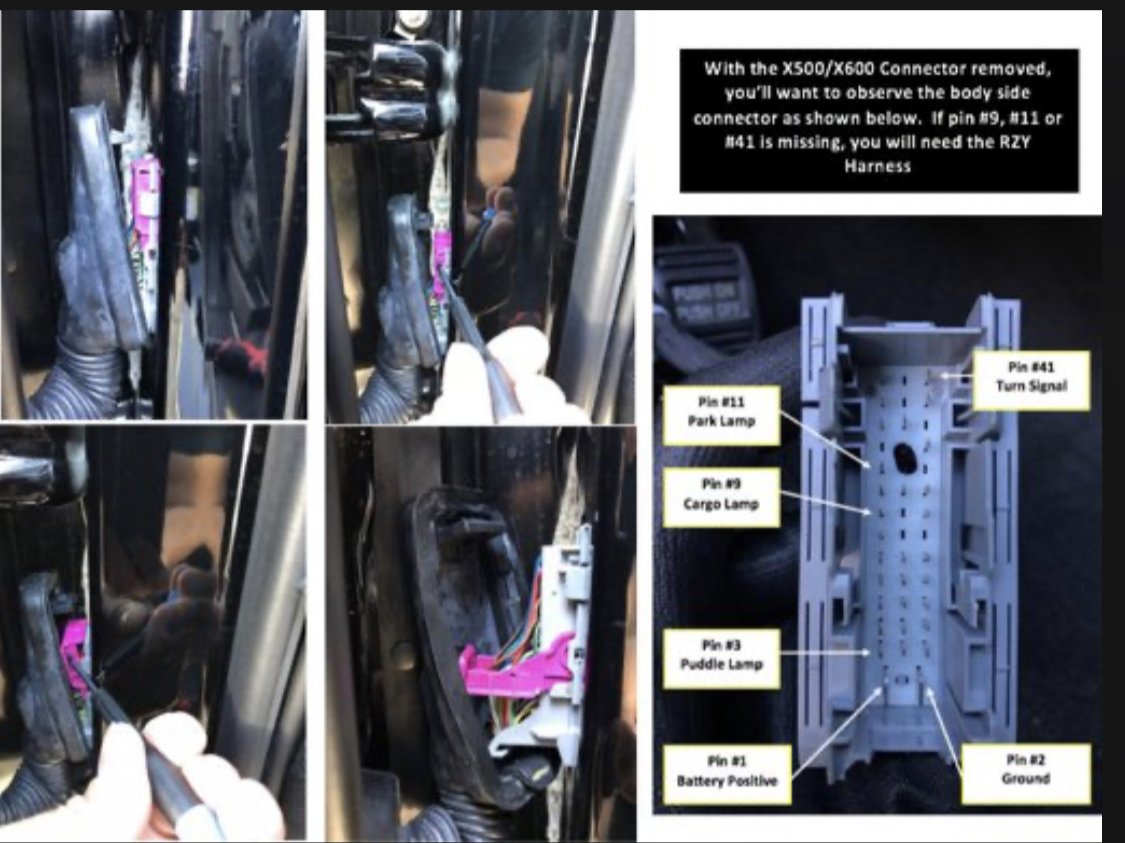

So just to update, pgamboa is the man.  He helped me out a lot.  No need to touch the BCM.  Pretty much remove the connection from the front door jambs by first removing the rubber boot from the outside.


JCeballos8 Enthusiast

JCeballos8

Posted
  • Author
Posted
On 9/25/2019 at 4:44 PM, paracutin said:

Get a hold of Phil (pgamboa).  If anyone knows, it will be Phil.

Thanks a lot for this info, Phil helped me out a lot, he is the man!
