Tow Mirrors WORKING On a 2019!

SamDSJR
 Share

Recommended Posts

SamDSJR Enthusiast

SamDSJR

Posted
Posted (edited)

So I wanted to update my original post, but I couldn't figure out how to do it.



Anyway, after much research and with help and collaboration from TNT799 - We have figured out how to get the 2020 Tow Mirrors fully functional on a 2019. It's actually kinda simple, you just need to tap into the following wires on the BCM and, run them to the mirrors and tap into the corresponding wires in the mirrors:



X7 - PIN 4 - Cargo Lamp Switch Control
X4 - PIN 3 - Right Turn Signal
X5 - PIN 2- Left Turn Signal

X4 Pin 13 - Running Lights



I have tested and confirmed this in "spaghetti mode" on my truck. However I don't have it hard-installed. I'm going to be working on that this weekend. When I'm done I'll post pictures as well as the color codes of the wires inside the tow mirrors. I just wanted to get the info out to those of you who have been wanting the tow mirrors to function on your 2019.



I have these 100% working and functional now.. I've posted in detail on the Facebook 2019-2020 Silverado's group. I'll be updating the full walk through here soon.



Here's my original post on the tow mirrors:









Edited by SamDSJR
  • Like 4
  • Thanks 2
  • 3 weeks later...
  • Replies 43
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

SamDSJR
SamDSJR

So I wanted to update my original post, but I couldn't figure out how to do it.   Anyway, after much research and with help and collaboration from TNT799 - We have figured out how to get the

TheElementalCashew
TheElementalCashew

Yes, if you get tow mirrors with that feature they will continue to work, plug and play.

SamDSJR
SamDSJR

Correct. You would have to buy tow mirrors from a 2020 HC 1500 (order them from the parts department.) Higher end tow mirrors with cams & blindspot warnings are not available on the accessory site

Posted Images

19Trailboss914 New Member

19Trailboss914

Posted
Posted

Please update, I would like to buy these mirrors ASAP but I dont want to buy them if I cannot get all of the lighting to work properly. I have a 2019 Trail Boss so all I need is power adjust heated and all the lights to work.

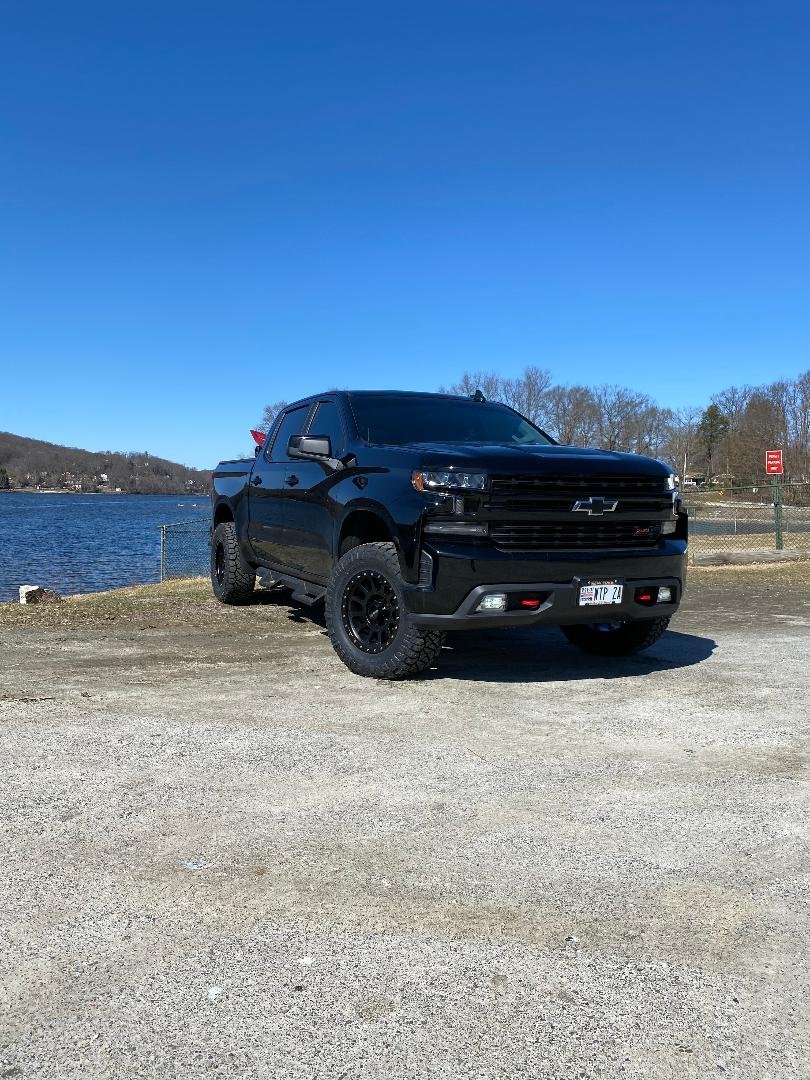

thumbnail (2).jpg

pewterliftedz Enthusiast

pewterliftedz

Posted
Posted
12 hours ago, mdfinest said:

I have a 2020 Sierra Denali and I am very interested in this also.

Do you have surround view cameras?

  • 4 weeks later...
TheElementalCashew Enthusiast

TheElementalCashew

Posted
Posted
On 3/7/2020 at 11:08 AM, SamDSJR said:

So I wanted to update my original post, but I couldn't figure out how to do it.



Anyway, after much research and with help and collaboration from TNT799 - We have figured out how to get the 2020 Tow Mirrors fully functional on a 2019. It's actually kinda simple, you just need to tap into the following wires on the BCM and, run them to the mirrors and tap into the corresponding wires in the mirrors:



X7 - PIN 4 - Cargo Lamp Switch Control
X4 - PIN 3 - Right Turn Signal
X5 - PIN 2- Left Turn Signal

X4 Pin 13 - Running Lights



I have tested and confirmed this in "spaghetti mode" on my truck. However I don't have it hard-installed. I'm going to be working on that this weekend. When I'm done I'll post pictures as well as the color codes of the wires inside the tow mirrors. I just wanted to get the info out to those of you who have been wanting the tow mirrors to function on your 2019.



I have these 100% working and functional now.. I've posted in detail on the Facebook 2019-2020 Silverado's group. I'll be updating the full walk through here soon.



Here's my original post on the tow mirrors:









Hey, I was curious if you ever finished this install and a write-up. I traded my standard mirrors for some fully loaded tow mirrors, and it would be cool to get the various light features working properly.

SamDSJR Enthusiast

SamDSJR

Posted
  • Author
Posted
9 hours ago, TheElementalCashew said:

Hey, I was curious if you ever finished this install and a write-up. I traded my standard mirrors for some fully loaded tow mirrors, and it would be cool to get the various light features working properly.

Yes. I did get them working 100%. I posted in detail on the Facebook Group 2019+ Silverado/Sierra & 2020 HD Trucks. Here's the overview:



Here’s the circuits you have to tap into:
X4 pin 3 - right turn signal
X5 pin 2 - left turn signal
X7 pin 4 - cargo lamp LED’s
X4 pin 13 - running/clearance lamp



PM me and I will send you all the pics and procedures in detail.

Black02Silverado Senior Enthusiast

Black02Silverado

Posted
Posted

One question.  I have a HC and use my blind spot monitoring on my side mirrors.  Do the tow mirrors have the blind spot and does it work?



Thanks for taking the time to research this and get it out to us. :)

TheElementalCashew Enthusiast

TheElementalCashew

Posted
Posted
One question.  I have a HC and use my blind spot monitoring on my side mirrors.  Do the tow mirrors have the blind spot and does it work?

Thanks for taking the time to research this and get it out to us. [emoji4]

Yes, if you get tow mirrors with that feature they will continue to work, plug and play.
  • Thanks 1
SamDSJR Enthusiast

SamDSJR

Posted
  • Author
Posted
23 hours ago, Black02Silverado said:

One question.  I have a HC and use my blind spot monitoring on my side mirrors.  Do the tow mirrors have the blind spot and does it work?



Thanks for taking the time to research this and get it out to us. :)

Correct. You would have to buy tow mirrors from a 2020 HC 1500 (order them from the parts department.) Higher end tow mirrors with cams & blindspot warnings are not available on the accessory site.

  • Thanks 1
  • 2 weeks later...
TheElementalCashew Enthusiast

TheElementalCashew

Posted
Posted

Update: I swapped pins 5 and 13 in my harness and now my tow mirror task lights are functioning normally. As these tow mirrors do not have puddle lights underneath, the integrated parking lights now come on instead of the puddle lamps. TNAT4 and I came to this conclusion based on pin diagrams for our vehicles. He has yet to swap pins on his standard mirrors, but he should regain task light functionality as well.



If anyone is interested in the pin diagrams for the 2019 and 2020 GMC trucks, I can post them up. I plan to build and add a 3-wire harness to my truck that will allow the turn signals, parking lamps, and rear cargo lights to function.

  • Like 1
chris84 Enthusiast

chris84

Posted
Posted
11 hours ago, TheElementalCashew said:

Update: I swapped pins 5 and 13 in my harness and now my tow mirror task lights are functioning normally. As these tow mirrors do not have puddle lights underneath, the integrated parking lights now come on instead of the puddle lamps. TNAT4 and I came to this conclusion based on pin diagrams for our vehicles. He has yet to swap pins on his standard mirrors, but he should regain task light functionality as well.



If anyone is interested in the pin diagrams for the 2019 and 2020 GMC trucks, I can post them up. I plan to build and add a 3-wire harness to my truck that will allow the turn signals, parking lamps, and rear cargo lights to function.



Yes, please post them. I plan to get the tow mirrors in the future.



Did you guys have the dealer do any calibration/programming for the cameras?



TheElementalCashew Enthusiast

TheElementalCashew

Posted
Posted
11 hours ago, chris84 said:



Yes, please post them. I plan to get the tow mirrors in the future.



Did you guys have the dealer do any calibration/programming for the cameras?



I posted them above.



As mentioned before, both of our cameras are misaligned. They still work, but the surround view is rather skewed on the sides. TNAT4 went to his dealer to get reprogramming done, and they were unable to do it without a code from GM. From what I understand, he would have had to buy another set of GM mirrors that come with a code, and there would still be no guarantee that they would be able to reprogram the mirrors I traded him.



Maybe he can chime in at some point, but he was looking into having a custom shop fab up a mirror housing that would relocate his cameras to his previously calibrated locations.
