2020 LTZ 4 High mod help

Thomas White

Recommended Posts

Thomas White Enthusiast

Thomas White

Posted
Posted

Hi guys, new to the forum and first post, I have been reading often though since buying my truck a couple of months ago. I have a 2020 LTZ with a 6.2. I've seen on older trucks being able to have the low beams stay on when the high beams are engaged by jumping a diode between relays. I can't find any information on doing this on the 2020. I've found plenty of info about auto on fog lights but not this. Any help would be greatly appreciated.

jeepincbum11 Enthusiast

jeepincbum11

Posted
Posted
46 minutes ago, Thomas White said:

Thanks for sharing this, unfortunately it doesn't apply to the 2020. The relay and fuse setup is completely different. There is only one headlight relay instead of one for high and low beams. Also the new style relays completely block the contact points underneath them when they are installed.

Sorry - read the post too fast.  I thought you wanted the fogs on with highs.

ArcherMP Enthusiast

ArcherMP

Posted
Posted
52 minutes ago, Thomas White said:

Thanks for sharing this, unfortunately it doesn't apply to the 2020. The relay and fuse setup is completely different. There is only one headlight relay instead of one for high and low beams. Also the new style relays completely block the contact points underneath them when they are installed.

How about this one: https://boostautoparts.com/products/6hi

jeepincbum11 Enthusiast

jeepincbum11

Posted
Posted

Basically the info is the same but the diodes are much cheaper way to go.   If you want to send me a message with your address ill mail you some for free.   I have a hundred or so left over.



Thomas White Enthusiast

Thomas White

Posted
  • Author
Posted
Just now, jeepincbum11 said:

Basically the info is the same but the diodes are much cheaper way to go.   If you want to send me a message with your address ill mail you some for free.   I have a hundred or so left over.



I appreciate that, I actually ordered some that are getting delivered this afternoon. That's why I was doing the research.

Maven Enthusiast

Maven

Posted
Posted

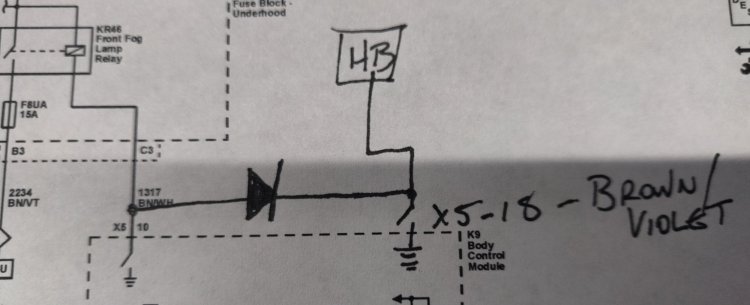

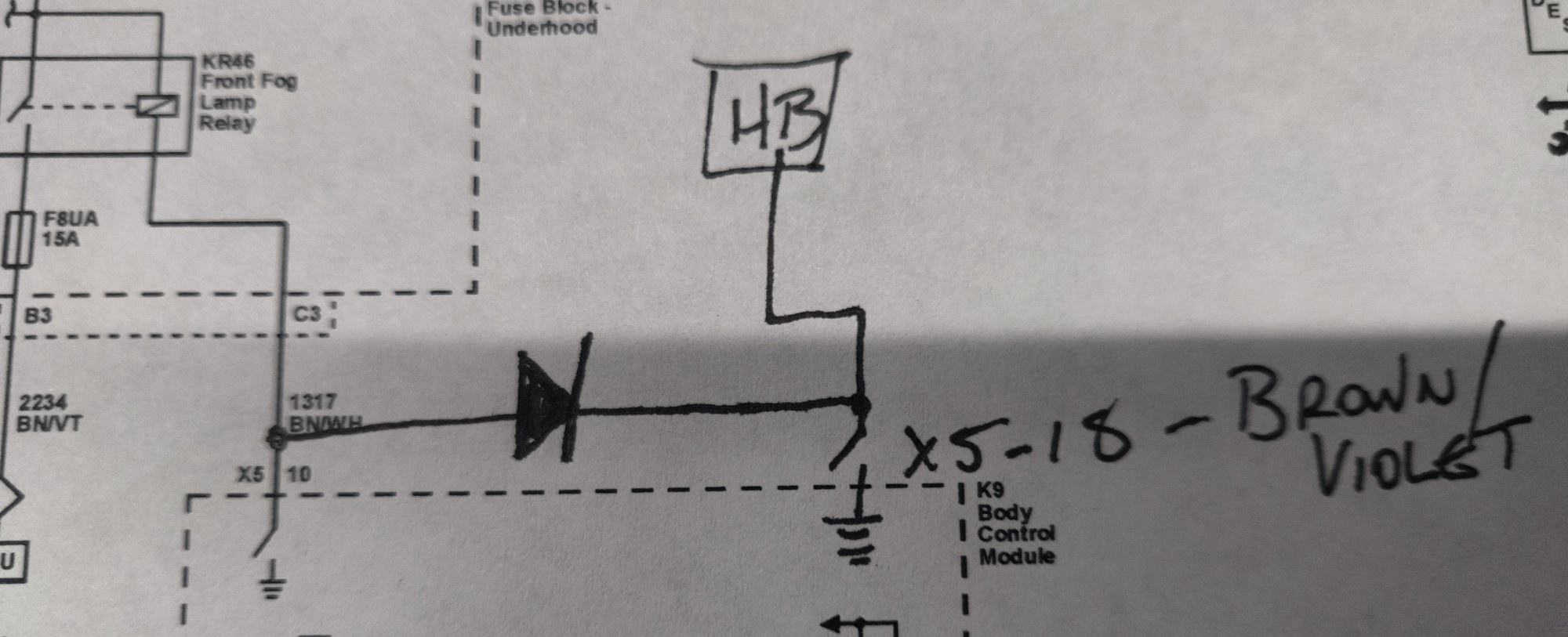

its super simple, a single diode between the fog lamp relay control circuit 1317, terminal 10 in BCM X5, and high beam relay control circuit 1969 terminal 18, BCM X5 gets the job done


bobbobtar Enthusiast

bobbobtar

Posted
Posted

I went from terminal 10 in the BCM X5 to terminal 22 in BCM X5. The fogs come on any time the parking lights come on (you do not have to push the fog light switch) and stay on with high beam
