2016-2018 Hidden Winch Factory Bumper

Will O'Daniel
 Share

Recommended Posts

Will O'Daniel Enthusiast

Will O'Daniel

Posted
Posted (edited)

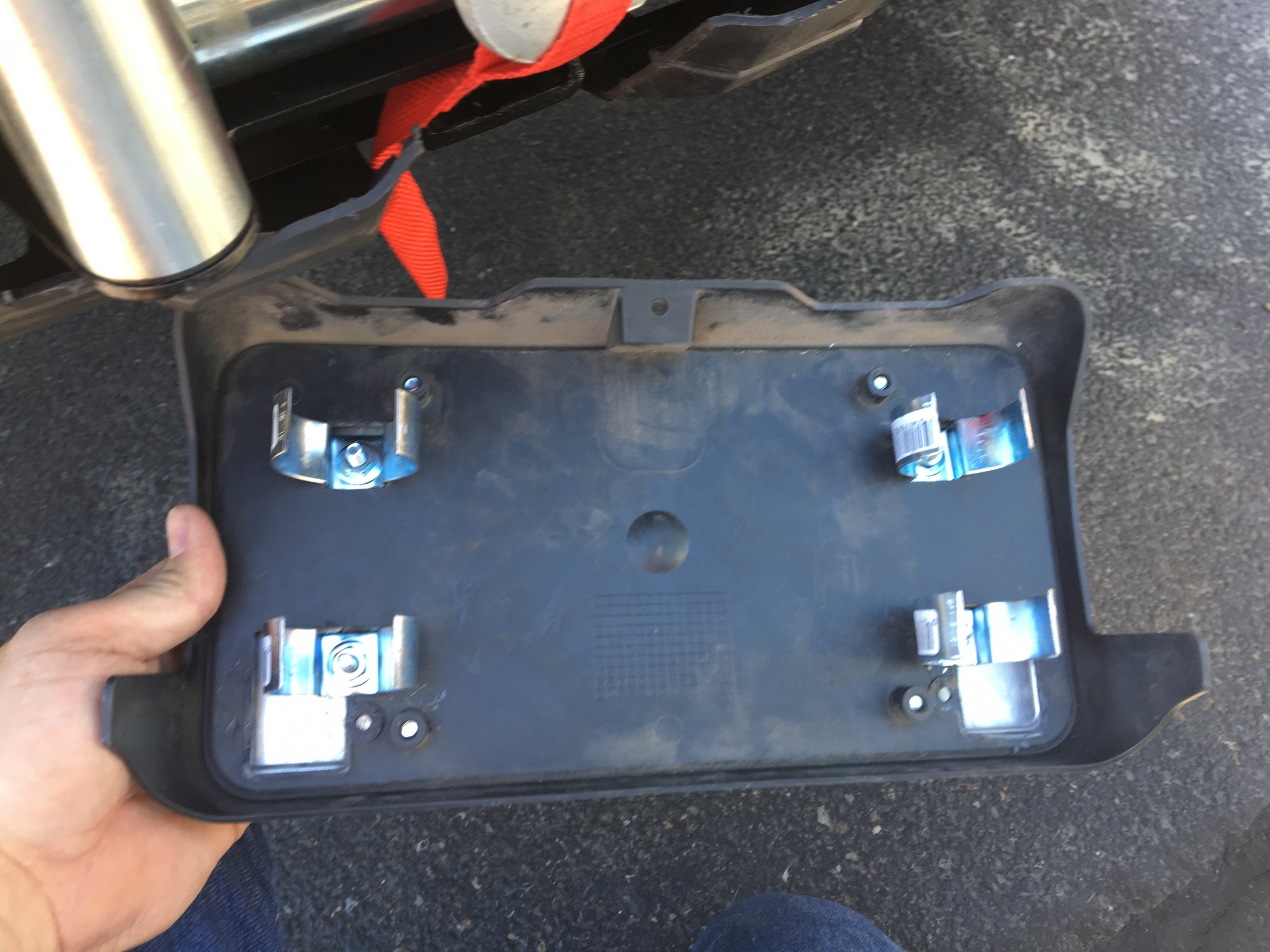

Well, here is mine. No one makes a bracket for a hidden winch because of the tow hook bolt placements on the frame. All brackets and plates were made of 1/4 inch steel. I did have to drill one hole in the frame and run a 4 inch bolt through the passenger side frame, rear hole of the tow hook for the bracket bolts. I also had to cut off the lower front bumper brackets. The winch was to wide to sit between them so they had to go. The last major mod was the lower facia being cut. The fairlead sits right below the metal of the bumper and I cut out the plastic of course. I also cut the plastic to fit a receiver and we welded a small piece of angled steel to the bottom of the winch plate and used the original screws and retainer nuts for the facia bracket. Last, Oregon requires a front license plate. So I used 1-1/4 conduit holders, drilled holes in the license plate and original plate bracket, and it just simply snaps onto the fairlead. Completely hidden. Winch is a Badlands ZXR 12,000 with wireless remote. I am unable to use the spool lock, so no free spool for me on this setup unfortunately. I also ran quick connects 1/0 AWG wire to both front and rear of the truck. I will also be doing a hidden winch on the rear factory bumper of the truck in the coming weeks.




Edited by Will O'Daniel
  • Like 6
  • Replies 75
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

Will O'Daniel
Will O'Daniel

Well, here is mine. No one makes a bracket for a hidden winch because of the tow hook bolt placements on the frame. All brackets and plates were made of 1/4 inch steel. I did have to drill one hole in

Will O'Daniel
Will O'Daniel

Final glamour shot!

Will O'Daniel
Will O'Daniel

Rear winch done. I welded these brackets and plates onto the hitch receiver.

Posted Images

Will O'Daniel Enthusiast

Will O'Daniel

Posted
  • Author
Posted

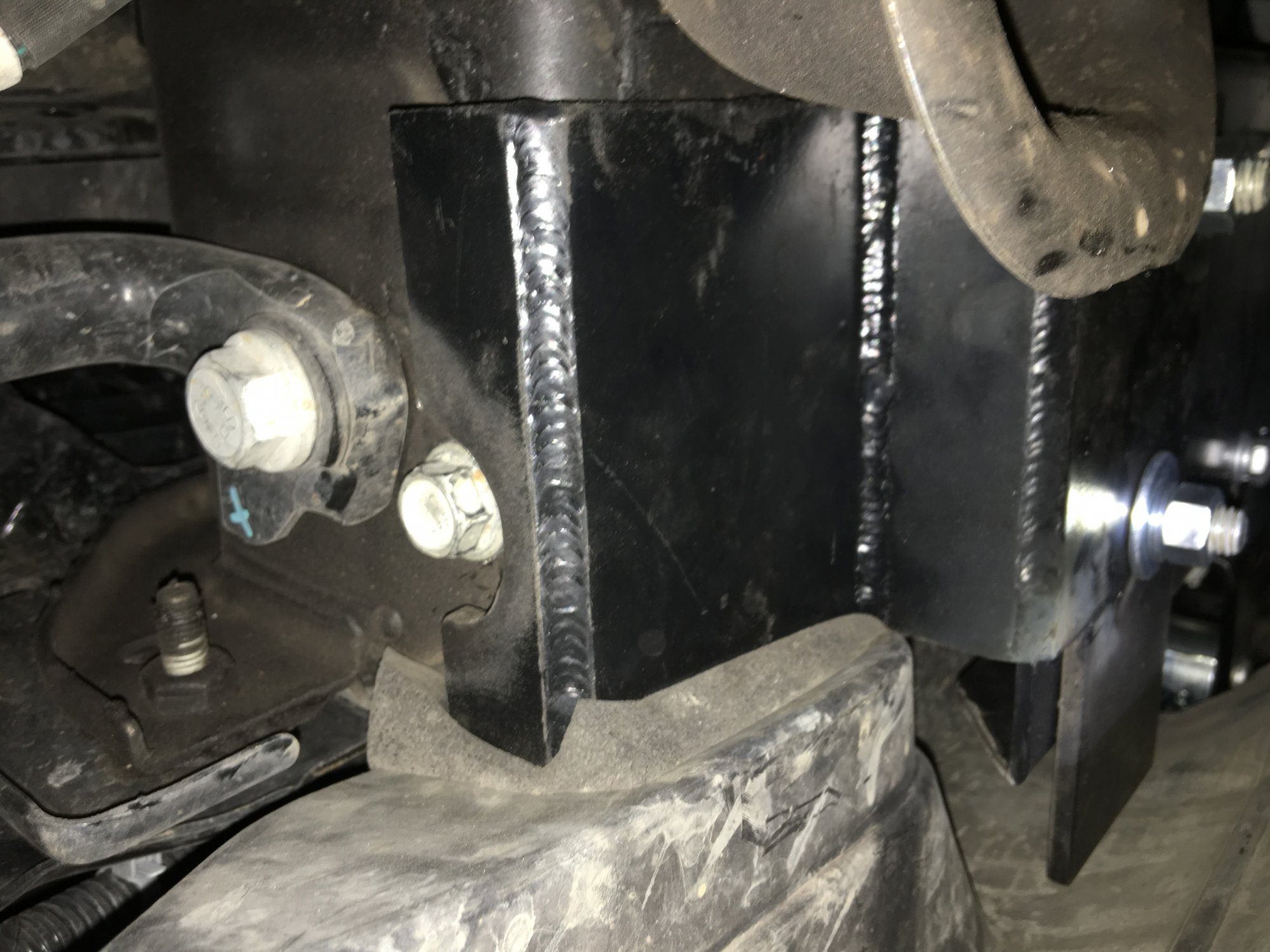

Driver side brackets. Notice the drop 1-1/2 so the plate can sit on the bracket and also give the clearance I want with the fairlead.



  • Like 1
Will O'Daniel Enthusiast

Will O'Daniel

Posted
  • Author
Posted

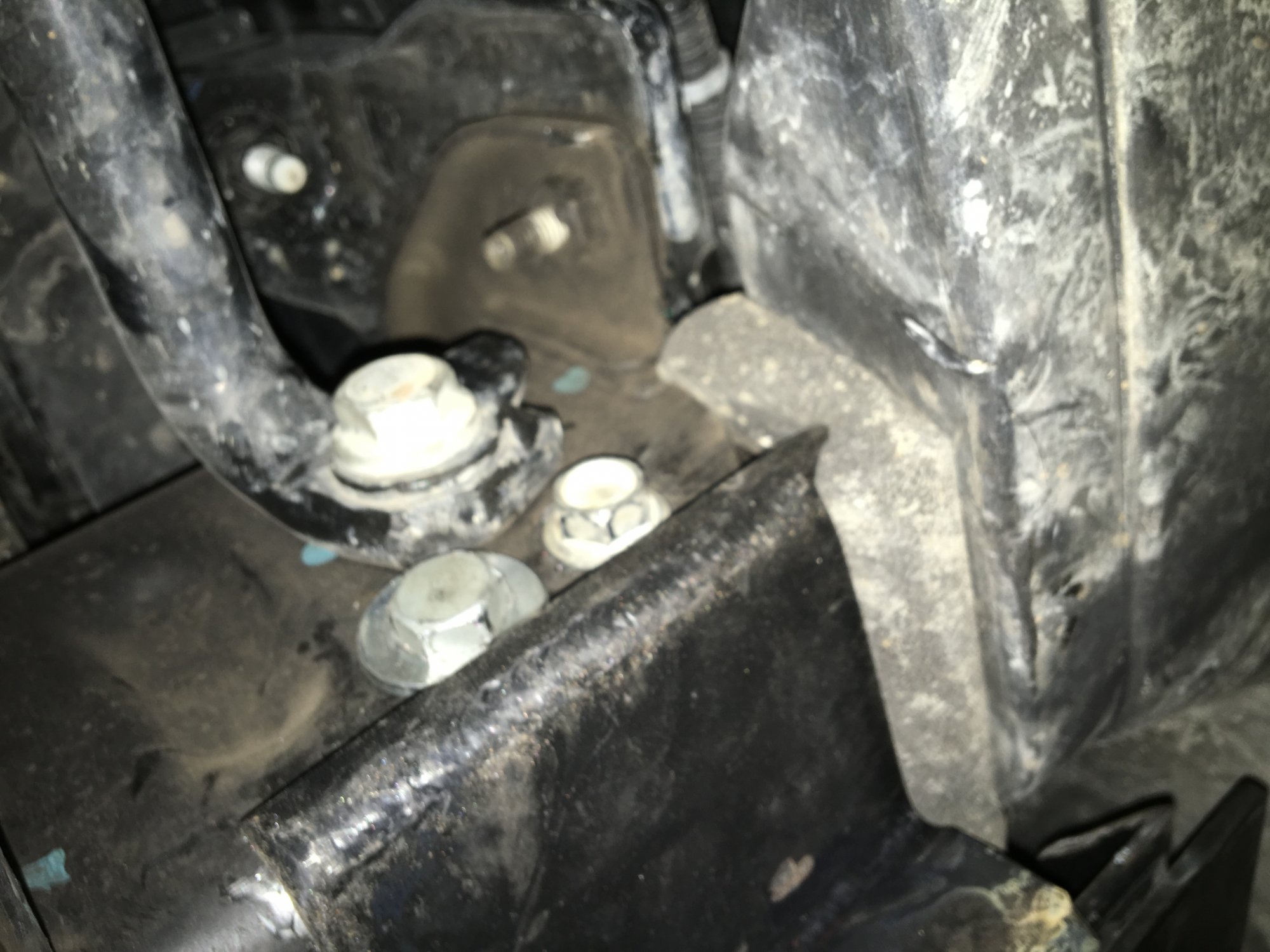

Passenger side bracket. Mirrors the other bracket. Notice the odd bolt and nut. This is where I had to bore out the tow hook and drill the frame.



  • Like 1
Will O'Daniel Enthusiast

Will O'Daniel

Posted
  • Author
Posted (edited)

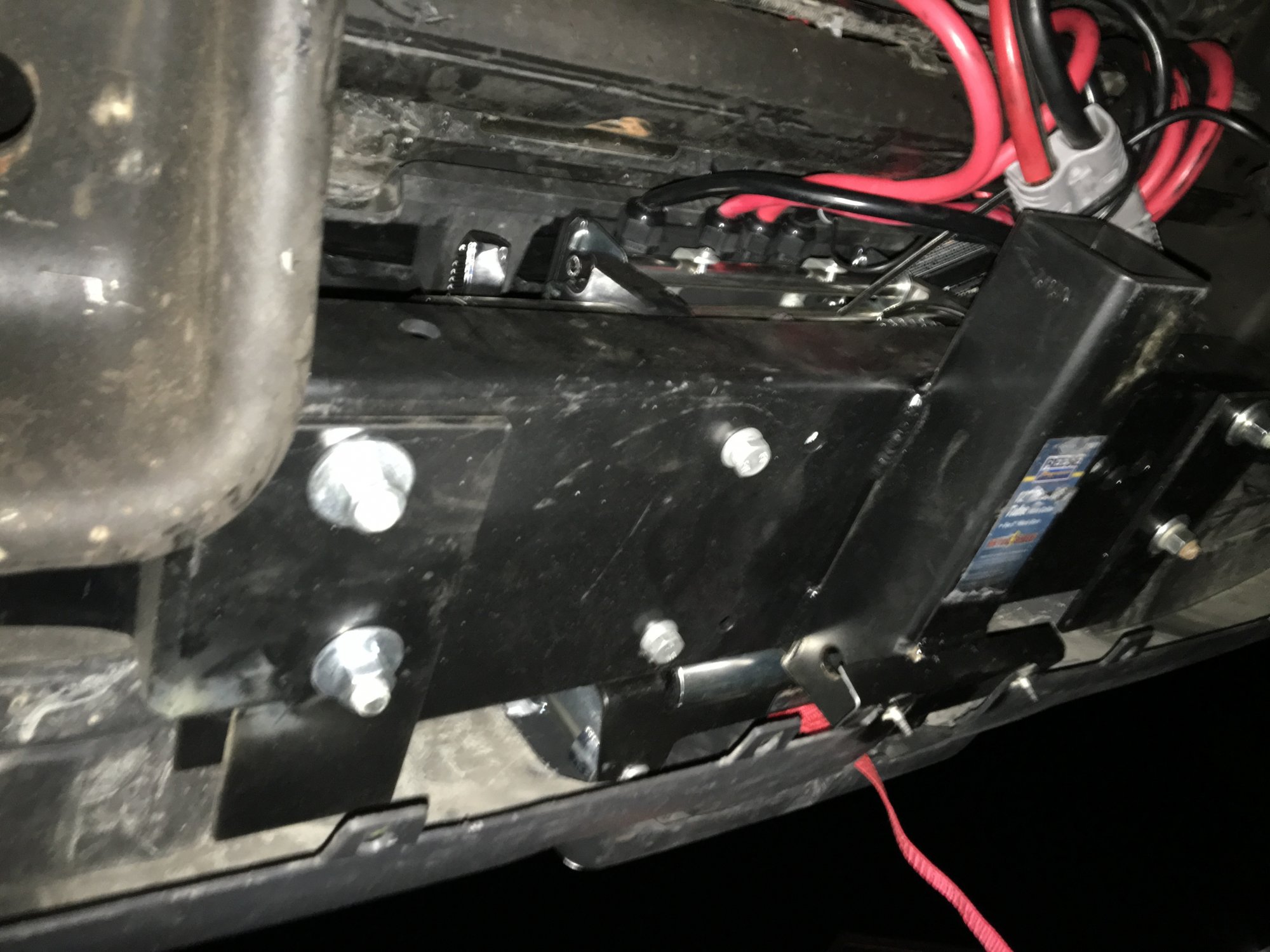

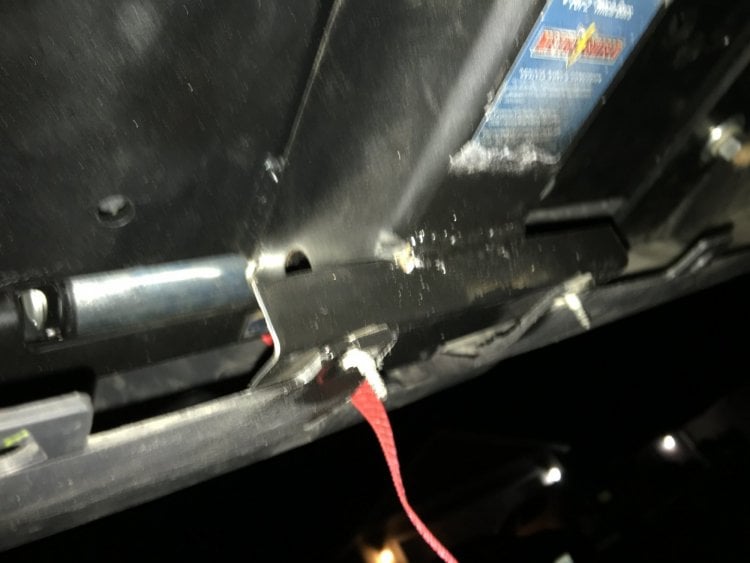

Winch plate and fascia bracket. Just drilled holes for the plate to mount to the bracket and welded a piece of angle iron to the receiver and used the factory bracket mount holes and screws for the facia.



Edited by Will O'Daniel
  • Like 1
Will O'Daniel Enthusiast

Will O'Daniel

Posted
  • Author
Posted
11 minutes ago, silveradonationfan15 said:

Would you have either picture of your truck side on? this truck looks amazing! What size of lift are you using?

I used a Fabtech 6” lift. She sits on 35x13.5 tires on 20” Fuel Beast rims.


  • Like 1
gixxerk8 Enthusiast

gixxerk8

Posted
Posted

Do you do this kind of work for a living or a hobby.  If a living, I would be interested in talking to you about doing another one.  I'm in Southern Oregon.

  • Like 1
Will O'Daniel Enthusiast

Will O'Daniel

Posted
  • Author
Posted
15 minutes ago, gixxerk8 said:

Do you do this kind of work for a living or a hobby.  If a living, I would be interested in talking to you about doing another one.  I'm in Southern Oregon.

It’s a hobby. My cousin does this for a living. He lives in Powell Butte, Oregon. He is the one that helped me with the install on this. I had a vision, designed and fabed the brackets, and he helped do the fit and install. You can PM me and I can see what you want to do.

Will O'Daniel Enthusiast

Will O'Daniel

Posted
  • Author
Posted
18 minutes ago, Penguin VII said:

That is amazing! I don't really know that I have a need for a winch but I want one now.

There is always a need for a winch! I could fab up some brackets for you and send them to you if you decide you want to do one!

Donstar Senior Enthusiast

Donstar

Posted
Posted

Nicely done!  I personally would never cover it with the plate.  I'm not sure where I'd locate the licence but it doesn't matter as everyone will be focused on the winch!

  • Thanks 1
