2016 Silverado overhead console pinouts

[Riki Knight]

Does anyone have a pin out or wire diagram of the overhead console of a 2016 Silverado? I have searched everywhere for days and cant find one.



Here is what I'm trying to do. I put in the home link system in my truck but the only cover I could find was one with the opening back window. My truck doesn't have one.



I installed a bull bar that has an led light bar and want to replace the window switch with a switch for the light bar. The wire I am looking for is the one that turns on the backlight when the headlights are on, and if separate dims the light.



Thank you in advance,

Rick

[pgamboa]

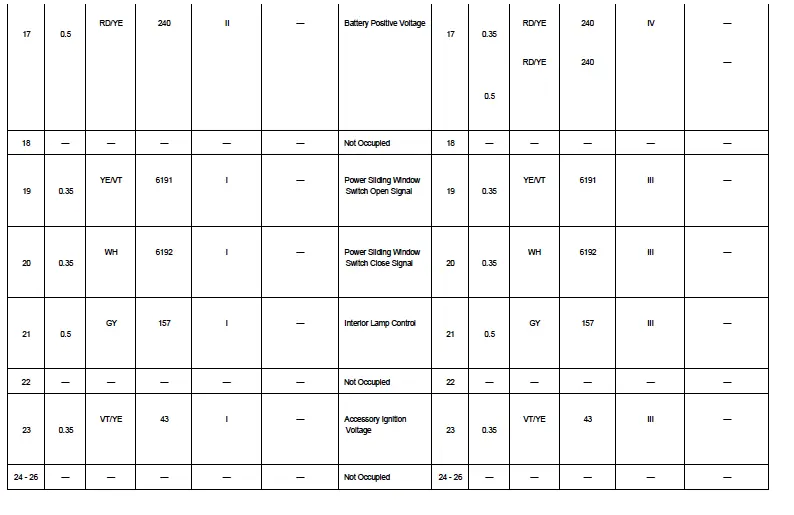

In the X316 Plug (Main Plug for the overhead console), Pin #10 (Solid Yellow Wire) is the Cirucit # 6817 - LED Backlight Dimming Control.

I have a video on the use of this circuit for something else.

Sent from my iPhone using Tapatalk

[pgamboa]

[Riki Knight]

Thank you so much! Hopefully I can get this switch in there without too much problems.

[pgamboa]

Thank you so much! Hopefully I can get this switch in there without too much problems.

Just keep in mind that this is a positive + voltage circuit. If you’re running a bull bar, you want to consider an alternate method to supply power to it.

Here is a video from@TinkeringFox that explains the use of a switch and relays. Great video.

Sent from my iPhone using Tapatalk

[Riki Knight]

17 minutes ago, pgamboa said:

Just keep in mind that this is a positive + voltage circuit. If you’re running a bull bar, you want to consider an alternate method to supply power to it.

Here is a video from@TinkeringFox that explains the use of a switch and relays. Great video.









Sent from my iPhone using Tapatalk



It already has a relay and fuse in line for the led bar. The switch has it's own separate backlight power thus I need to run power to the backlight and a separate power via the switch to the led bar.
