Rev Hard Tonneau Leaks

ForkliftJeff
 Share

Recommended Posts

ForkliftJeff Enthusiast

ForkliftJeff

Posted
Posted (edited)

I bought a 2020 AT4 a couple months ago and had the dealer install the hard tonneau cover. This thing lets in so much water it’s crazy. Does anybody have the installation instructions? Curious to see if they installed it wrong. It looks like it needs an adjustment. The triple lip seal at the back of the tonneau barely touches the tailgate and lets in water. It looks like I have enough contact at the front to adjust the whole thing back a quarter inch. Also there are two gutter tubes in the front corners that exit through holes in the front of the box and they leak more water into the box than they get out.








Edited by ForkliftJeff
  • Replies 51
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

jaxcam02
jaxcam02

I just ordered one Friday since I had a whole bunch of GM rewards cash and it was on sale. I spent like 750 after tax on it in actual cash. I should be getting it early this week. I'll try to get my r

jaxcam02
jaxcam02

So I go mine in just before dark. Having experience installing a variety of different tonneau covers, this one could have better seals BUT I think I've got it figured out pretty good. I'll get so

paulny
paulny

I just installed this on my ZR2 and like you mentioned, it seems to be too short for the current body style.  I bet this part has been around quite a while which may have fit the pre-2019 trucks perfe

Posted Images

ForkliftJeff Enthusiast

ForkliftJeff

Posted
  • Author
Posted (edited)

Went out to take a few pictures and noticed the tonneau was installed crooked. I was able to loosen the two main nuts holding the front down and straightened the tonneau, as well as slid it back so the seal at the tailgate makes a better contact. Still gonna have to seal up the corners better and seal the multi gate but this is a start.





Edited by ForkliftJeff
ForkliftJeff Enthusiast

ForkliftJeff

Posted
  • Author
Posted

Now just gotta figure out why the gutter drains leak so bad. The left drain seems tighter than the right but both leak anyway. Might just have to silicone them.




BigMick2023 Enthusiast

BigMick2023

Posted
Posted

What cover is that?

That hard Tri-Fold cover looks exactly like the BakFlip MX4 that I have........



Mine leaks a slight bit but not bad......alignment and gasket sealing is critical and so is the torque on the front knobs as that puts pressure on the front seal.

You will never get it waterproof but it shouldn't leak like a sieve either.



railguy777 Enthusiast

railguy777

Posted
Posted

I have what looks like the same cover installed by the dealer on my SLT. Mine is made by REV. So far we have had some pretty hard rain storms and has not leaked. I have not seen any water in the box, so I guess it depends on the installation but so far I am pleased with this cover.

kurtg2020 Enthusiast

kurtg2020

Posted
Posted

I have this same cover, and I just went out and looked as it is currently raining out, and my bed is dry, whoever there is some water drops in a few spots, but overall on a scale of 1-10 I would give it a 9 for dryness.  Very pleased with the cover.

Coastie Enthusiast

Coastie

Posted
Posted (edited)

Are you sure the cover is leaking? Let me explain that...

On my hard cover, the water gets trapped in the mounting rails, but instead of going out the front drain holes it flows back and out the end by the tailgate, and into the bed. My issue is the mounting rails not draining properly and had I not seen it happen by opening the tailgate and seeing water flowing out the rails, I would have though it was from the rear seal, but in my case, it isn't.

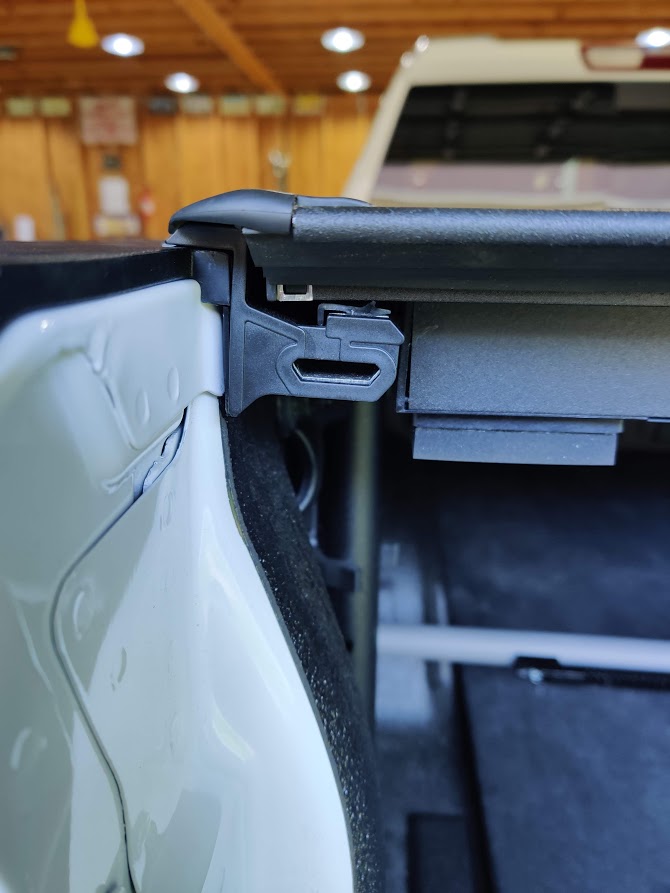

Water flows into and out of the lower channel in this image, it hits the tailgate and instead of all of it flowing down and out, a good portion makes it back into the bed. This is on an extang xceed.


Edited by Coastie
  • 2 weeks later...
ForkliftJeff Enthusiast

ForkliftJeff

Posted
  • Author
Posted
On 6/5/2020 at 7:15 AM, BigMick2020 said:

What cover is that?

That hard Tri-Fold cover looks exactly like the BakFlip MX4 that I have........



Mine leaks a slight bit but not bad......alignment and gasket sealing is critical and so is the torque on the front knobs as that puts pressure on the front seal.

You will never get it waterproof but it shouldn't leak like a sieve either.



This is the REV hard tri-fold installed from the dealer. I have read it is possibly made by the same manufacturer as the Backflip.

ForkliftJeff Enthusiast

ForkliftJeff

Posted
  • Author
Posted
On 6/9/2020 at 6:04 AM, railguy777 said:

I have what looks like the same cover installed by the dealer on my SLT. Mine is made by REV. So far we have had some pretty hard rain storms and has not leaked. I have not seen any water in the box, so I guess it depends on the installation but so far I am pleased with this cover.



On 6/9/2020 at 1:34 PM, kurtg2020 said:

I have this same cover, and I just went out and looked as it is currently raining out, and my bed is dry, whoever there is some water drops in a few spots, but overall on a scale of 1-10 I would give it a 9 for dryness.  Very pleased with the cover.

Good to hear you guys have the same cover and it keeps dry. I just need some free time when it’s dry to get out there and do a proper water test to see exactly where it’s leaking and fix it.

ForkliftJeff Enthusiast

ForkliftJeff

Posted
  • Author
Posted
On 6/9/2020 at 3:36 PM, Coastie said:

Are you sure the cover is leaking? Let me explain that...

On my hard cover, the water gets trapped in the mounting rails, but instead of going out the front drain holes it flows back and out the end by the tailgate, and into the bed. My issue is the mounting rails not draining properly and had I not seen it happen by opening the tailgate and seeing water flowing out the rails, I would have though it was from the rear seal, but in my case, it isn't.



Water flows into and out of the lower channel in this image, it hits the tailgate and instead of all of it flowing down and out, a good portion makes it back into the bed. This is on an extang xceed.


Excellent point on the rails. The fronts go to the drains and the rears just drain near the tailgate. Just need some free time to identify each leak and take care of em.

GMCustomerService Senior Enthusiast

GMCustomerService

Posted
Posted

Hey there, everyone. This is certainly not what we like to hear. For those experiencing issues, we would like to take a closer look on our end. To do so, please send an email to [email protected] ATTN: Forum Username/GM Trucks with your contact information, VIN, brief description of your concern,  and preferred dealership. We look forward to hearing from you. To learn more about GM's privacy policy, please visit http://bit.ly/2h3ZUnC.



Aleigha W.

  • 6 months later...
ForkliftJeff Enthusiast

ForkliftJeff

Posted
  • Author
Posted

An update for ya.


I contacted the GM team above and they replied back. Unfortunately they are the US team and I need Canada but they forwarded my info and the Canadian team got right back to me. I had my truck in for its first service and to have the tonneau cover looked at. They didn’t really listen to my concerns and adjusted the cover making it way worse. I got back to the GM customer care team and gave them a word document with pictures showing every little issue as well as a few videos. They got the service manager in touch with me and we made an appointment. So last week I dropped off my truck as well as all my info on the leaks and let them at it. 4 days later I got my truck back. They installed a new cover as well as did some modifications to help prevent any leaks in the future. They said the water test was good so now I’m just waiting for it to rain so I can see if it is any better. The cover looks 100% better than the last one. I have high hopes for this one but time will tell.


And the customer care team did a great job at keeping me in the loop. I think I have about 15 emails back and forth with them.





14SLE Enthusiast

14SLE

Posted
Posted

My GMC REV cover was installed by the dealership right after I bought the truck.  I noticed a fair amount of water in the bed after a decent rain or hand-washing the truck.  I realized the seals were riding a bit above the bed rail and adjusted the clamps to make sure the seals were actually sitting on the plastic rails.  That was a five minute adjustment and it helped a lot.  I still get a bit of water in the back, especially if I go through a car wash to get rid of road salt--mostly at the rear corners.  This cover is definitely not as dry as the GMC cover on my 2014, but I really like the hard cover better than the pseudo-hard 2014 cover that was like a soft cover with hard inserts underneath.

  • 2 months later...
ForkliftJeff Enthusiast

ForkliftJeff

Posted
  • Author
Posted

Well turns out this cover leaks too much for my liking as well. And the service manager agrees so they are going to take the cover off and refund me. Most likely gonna go with the Extang Xceed.
