adding 360 surround view, UVI (Trailer Camera) package to UVS (Surround/invisible Trailer) Upgrade 2020 Silverado RST

Rally6.2RST · July 2, 2020

I have a 2020 Silverado RST. I have the UVI trailer camera package (bed view, rear camera and 2 trailer camera provisions). I really liked look of my RST and I really liked UVS (surround view with trailer camera package.

I now have the UVS setup.

Buy List

-2 side view mirrors with cameras ($350 each)

-1 front view camera ($70) 84400532

-1 camera I used for rear ($70) 23390514

-1 video processing module 84743036 ($250) got this from a junk yard probably be $700 from dealer

-1 rg316d 15ft fakra code z female wire (segemart website) ($25)

-1 rg316 12ft fakra code z female wire(segemart website) ($25)

-1 rg316 17ft fakra code z female wire(segemart website) ($25)

-3 Two position female fakra z connectors ebay ($10)

Chris White from White Audio and Media Services programmed the module for me.

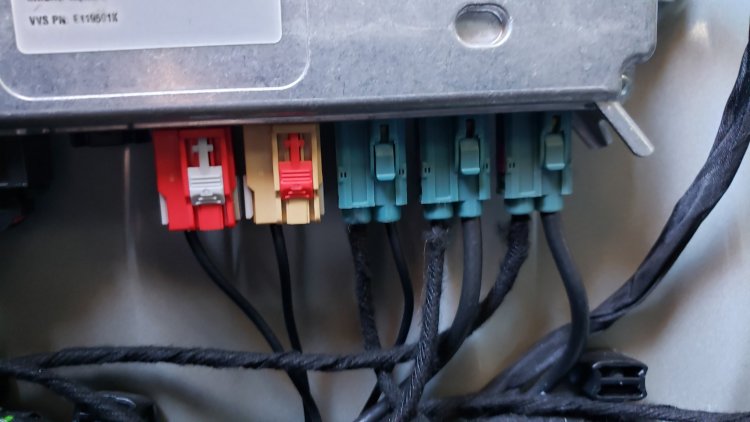

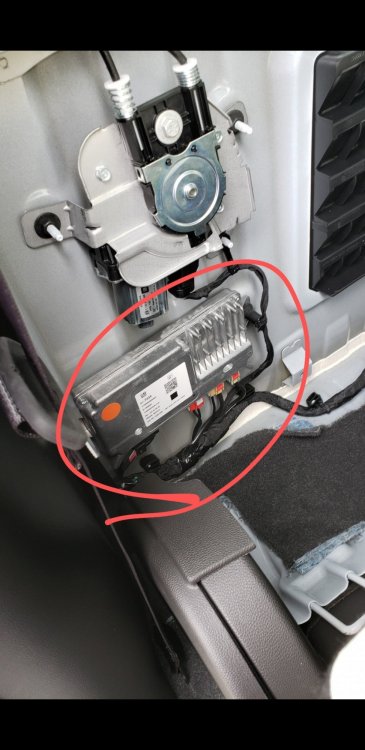

Module is behind rear passenger seat.

Edited September 23, 2020 by Rally6.2RST
title update

Rally6.2RST · July 2, 2020

topgear1224 · July 2, 2020

Total cost with install?

The Serria nose is wayy too pug nosed to accurately place the front nose. Combined with no parking sensors make placement expecially on trails hard.

Sent from my SM-N975U using Tapatalk

Rally6.2RST · July 2, 2020

I have around $1500 in total with reprogram. I can sell old mirrors and swapped rear cam to recoup some costs. I did the work myself so no labor cost besides the reprogram. It is a lot of money but it was fun to learn about and prevented some curb rash dollars.

topgear1224 · July 2, 2020

If I have an Elevation with the preferred package and prograde trailer system. (HD backup with hutch guidance)

Will I be able to upgrade? Also any idea the part number on the trailering mirrors with cameras?

Sent from my SM-N975U using Tapatalk

Rally6.2RST · July 2, 2020

do you have bed view camera on your high mount brake light? if yes, it probably will work. my old VPM was part number 84717434. look up video on how to remove rear seat back on youtube and see if its there.

topgear1224 · July 2, 2020

No bed view camera.

the lemon LTZ had it but I couldn't figure out a way for the side mirror to show an image when the blinker was on, maybe the trailer had to be connected?

Sent from my SM-N975U using Tapatalk

Rally6.2RST · July 2, 2020

if no bed view cam you probably dont have a VPM or harness to do this. on mine, for turn signal camera view to display automatically trailer has to be plugged in.

topgear1224 · July 2, 2020

if no bed view cam you probably dont have a VPM or harness to do this. on mine, for turn signal camera view to display automatically trailer has to be plugged in.

[emoji35][emoji35][emoji35] wish the dealer would have told me that. Then again though I don't think it would have changed my decision the rollback the LTZ.

I guess the options were a truck that I liked with a powertrain that I thought was possibly one of the worst modern systems I've ever driven. (5.3 / 8 speed)

Or a powertrain I like in a truck (3.0) but none of the options I want (no sunroof, no park sensors, no cameras, cloth seats) 2020 Elevation

Sent from my SM-N975U using Tapatalk

ausomecasey · July 3, 2020

Wow, that’s awesome. Nice job!! Saving this post for sure.

TheVez · July 3, 2020

On 7/2/2020 at 8:32 AM, Rally6.2RST said:

I have around $1500 in total with reprogram. I can sell old mirrors and swapped rear cam to recoup some costs. I did the work myself so no labor cost besides the reprogram. It is a lot of money but it was fun to learn about and prevented some curb rash dollars.

You maybe the person to ask, as you sound like you have experience with all things cams. I, like you have an RST with the trailer camera provisions and a bed cam. I also have front parking sensors and when it goes into the red it triggers my back up camera. It’s almost like if I had the front camera it would trigger it. Any way to add a front camera to my current set up that you know of? Thanks and awesome job on the swap.

ausomecasey · July 3, 2020

21 minutes ago, TheVez said:

You maybe the person to ask, as you sound like you have experience with all things cams. I, like you have an RST with the trailer camera provisions and a bed cam. I also have front parking sensors and when it goes into the red it triggers my back up camera. It’s almost like if I had the front camera it would trigger it. Any way to add a front camera to my current set up that you know of? Thanks and awesome job on the swap.

Adding just a single front camera would be a nice alternative to buying a bunch of cameras. Curious about the answer!

Rally6.2RST · July 3, 2020

15 minutes ago, TheVez said:

You maybe the person to ask, as you sound like you have experience with all things cams. I, like you have an RST with the trailer camera provisions and a bed cam. I also have front parking sensors and when it goes into the red it triggers my back up camera. It’s almost like if I had the front camera it would trigger it. Any way to add a front camera to my current set up that you know of? Thanks and awesome job on the swap.

There are 5 ports on your video processing module. one to send image to radio, one for rear cam, one for bed view, and 2 for trailer. trailer buttons can only be pressed if a trailer is plugged in. so you could use those ports but you would need to trick truck into thinking a trailer is there. You could use bed view port to put a front cam on if you didnt care about having bedview cam. then you could push bed button to see front view. you need to buy 10 port module to do what i did. thanks!

Rally6.2RST · July 3, 2020

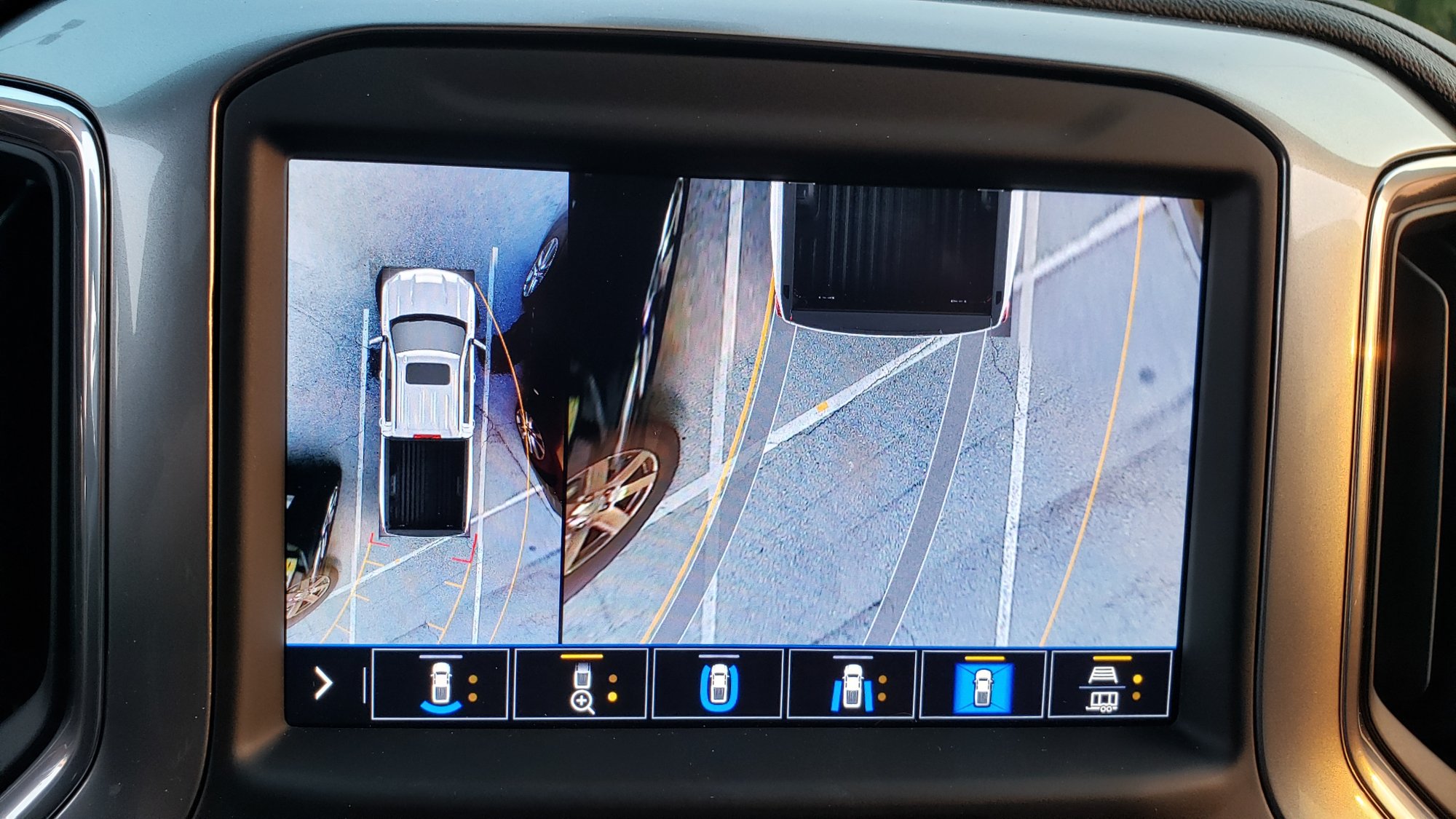

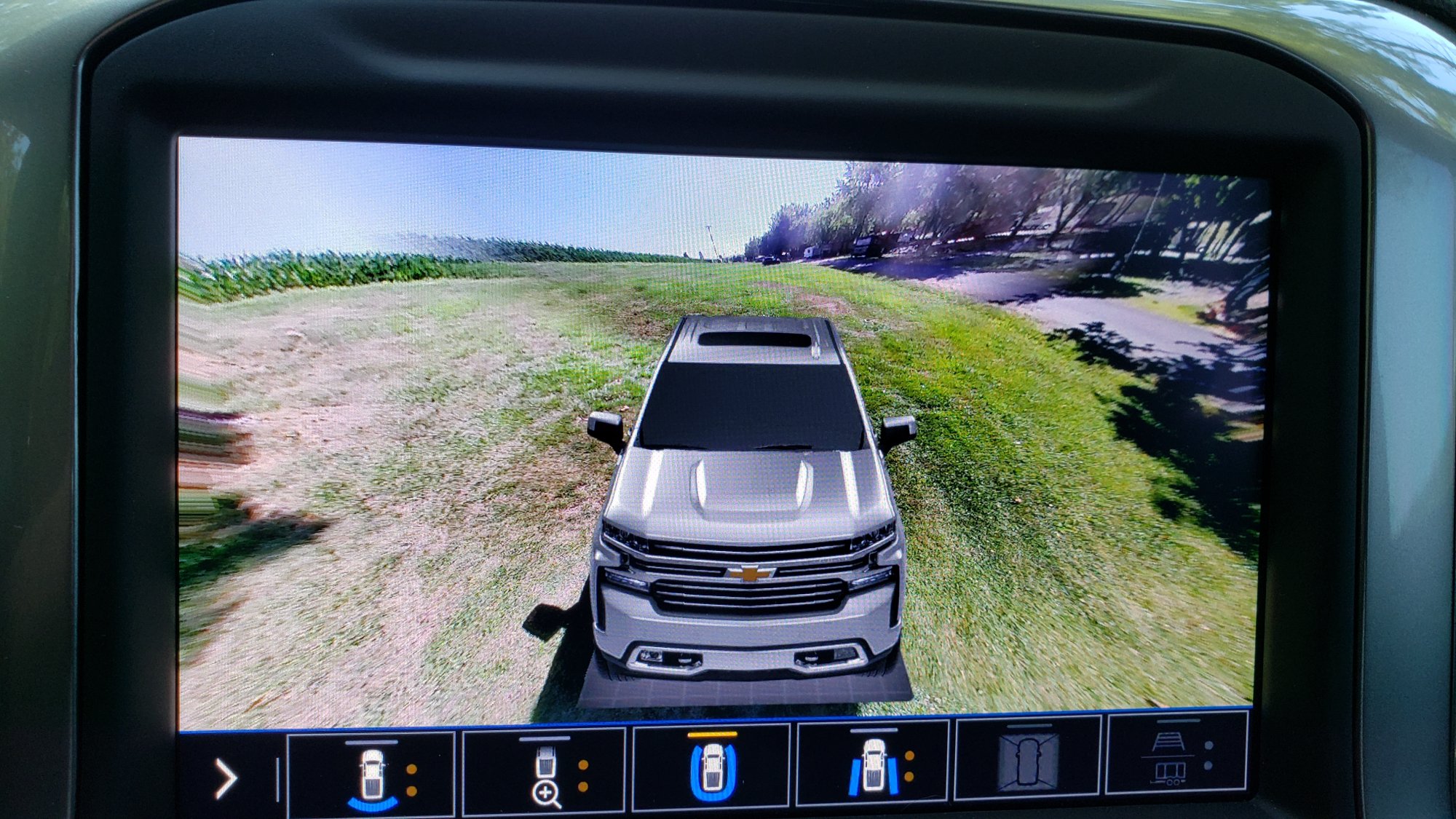

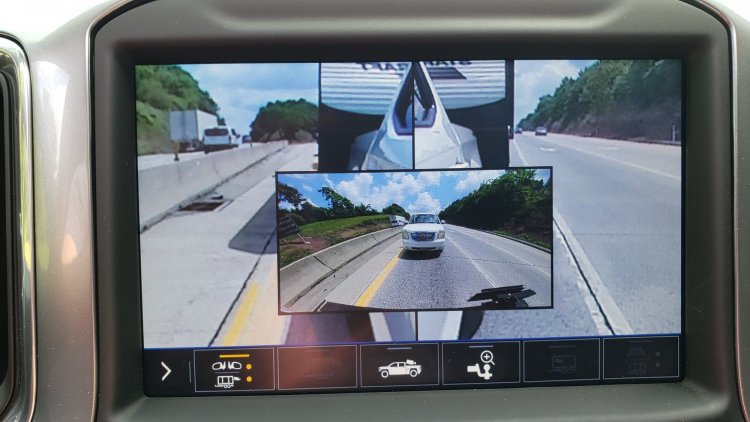

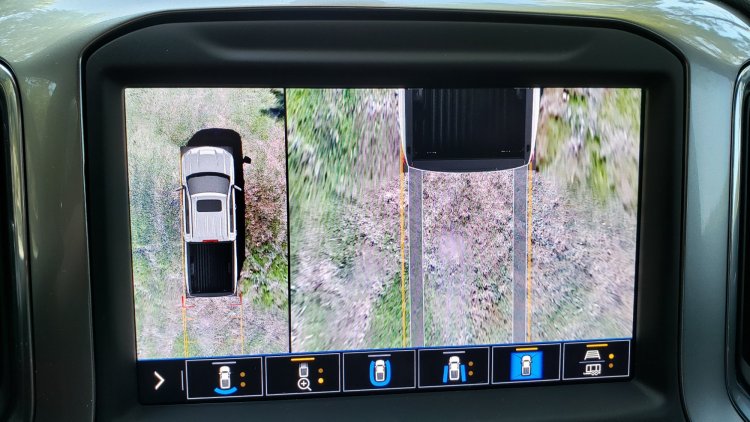

some more pics of 360 upgrade

TheVez · July 3, 2020

3 minutes ago, Rally6.2RST said:

There are 5 ports on your video processing module. one to send image to radio, one for rear cam, one for bed view, and 2 for trailer. trailer buttons can only be pressed if a trailer is plugged in. so you could use those ports but you would need to trick truck into thinking a trailer is there. You could use bed view port to put a front cam on if you didnt care about having bedview cam. then you could push bed button to see front view. you need to buy 10 port module to do what i did. thanks!

Thanks for the insight. I’ll probably never use the inside trailer view. Kinda strange it has the front parking sensors switch the rear cam on and not have a provision somewhere to add the front camera. Be nice of some one is able to come up with a lockpic type set up like they have for older vehicles.
