I've got a Bedrug and Bakflip VP...mine doesn't leak even from hard Texas down pours or the car wash...here's what I did...

1) Sealed the bed...I did use a bed seal kit which seals the rails and tailgate...you'd be amazed at how much dust and water drip in...there is also a seal along the front seam (fits completely side to side) of the bed where the bed floor meets the bed side behind the cab...

2) Drains... I used the front two outer two flexible tie down plastic caps...drilled a hole in each one, used 90 degree elbows out toward the cab into another elbow to go out toward the cab and down. Any water that needs to exit, just goes out between the bed and cab...also no kinks in the plastic drain lines...

3) Bedrug...installed the Bedrug and notched where necessary for the bed lights and tie downs. No holes for drains because they run behind the Bedrug.

Second time I've done it this way...nice hardware store trip...nice finished look...

armyman22 · March 4, 2016

I've got a Bedrug and Bakflip VP...mine doesn't leak even from hard Texas down pours or the car wash...here's what I did...

1) Sealed the bed...I did use a bed seal kit which seals the rails and tailgate...you'd be amazed at how much dust and water drip in...there is also a seal along the front seam (fits completely side to side) of the bed where the bed floor meets the bed side behind the cab...

2) Drains... I used the front two outer two flexible tie down plastic caps...drilled a hole in each one, used 90 degree elbows out toward the cab into another elbow to go out toward the cab and down. Any water that needs to exit, just goes out between the bed and cab...also no kinks in the plastic drain lines...

3) Bedrug...installed the Bedrug and notched where necessary for the bed lights and tie downs. No holes for drains because they run behind the Bedrug.

Second time I've done it this way...nice hardware store trip...nice finished look...

Any chance you could snap a few pics especially of your drain tubes and the bed seal kit your talking about?

Sent from my SM-N910V using Tapatalk

chuckl1218 · March 4, 2016

Here's the bed seal kit I used. I can't take pictures of it since it is underneath my Bedrug. Look at their pictures. It will show how it's installed. The foam blocks go under the bed rails since there is a lot of open slots under there...

https://www.realtruck.com/trailseal-total-truck-bed-seal/?utm_campaign=product_ads&utm_source=google&utm_medium=cpc&utm_content=79235&productid=79235&cparam=22025&gclid=CPudhOKUpssCFQgaaQodb-gDPQ

chuckl1218 · March 4, 2016

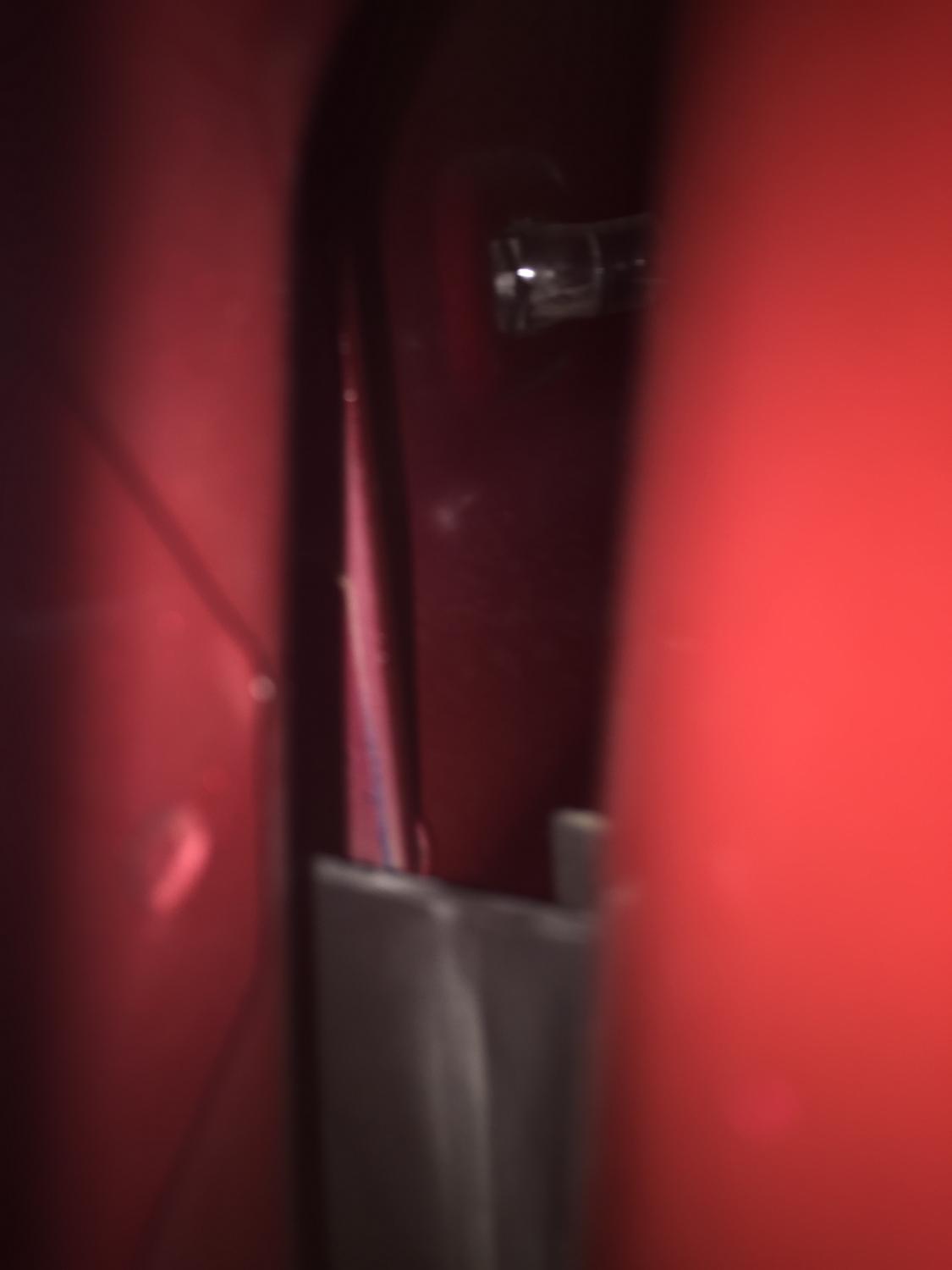

Here's the drain tube between the bed and cab. I don't have any pictures from the bed side, but basically remove the two outer tie down cover and drill holes in the them so that the tubing can pass through. Measure down from where the drain tube attaches to the rail to the tie down hole and cut the tube accordingly. Attach an elbow to the downward tube. Cut a straight piece of tube long enough to go from the elbow past the outer bed edge. Attach another elbow to this straight piece, and finally attach another piece of tube that can hang between the cab and bed. After it is assembled, feed the assembly through the plastic tie down cover and snap the plastic cover back in. Put a little silicone sealer around the tube where it meets the plastic cover. Repeat on other side.

Tim O'Brien · March 4, 2016

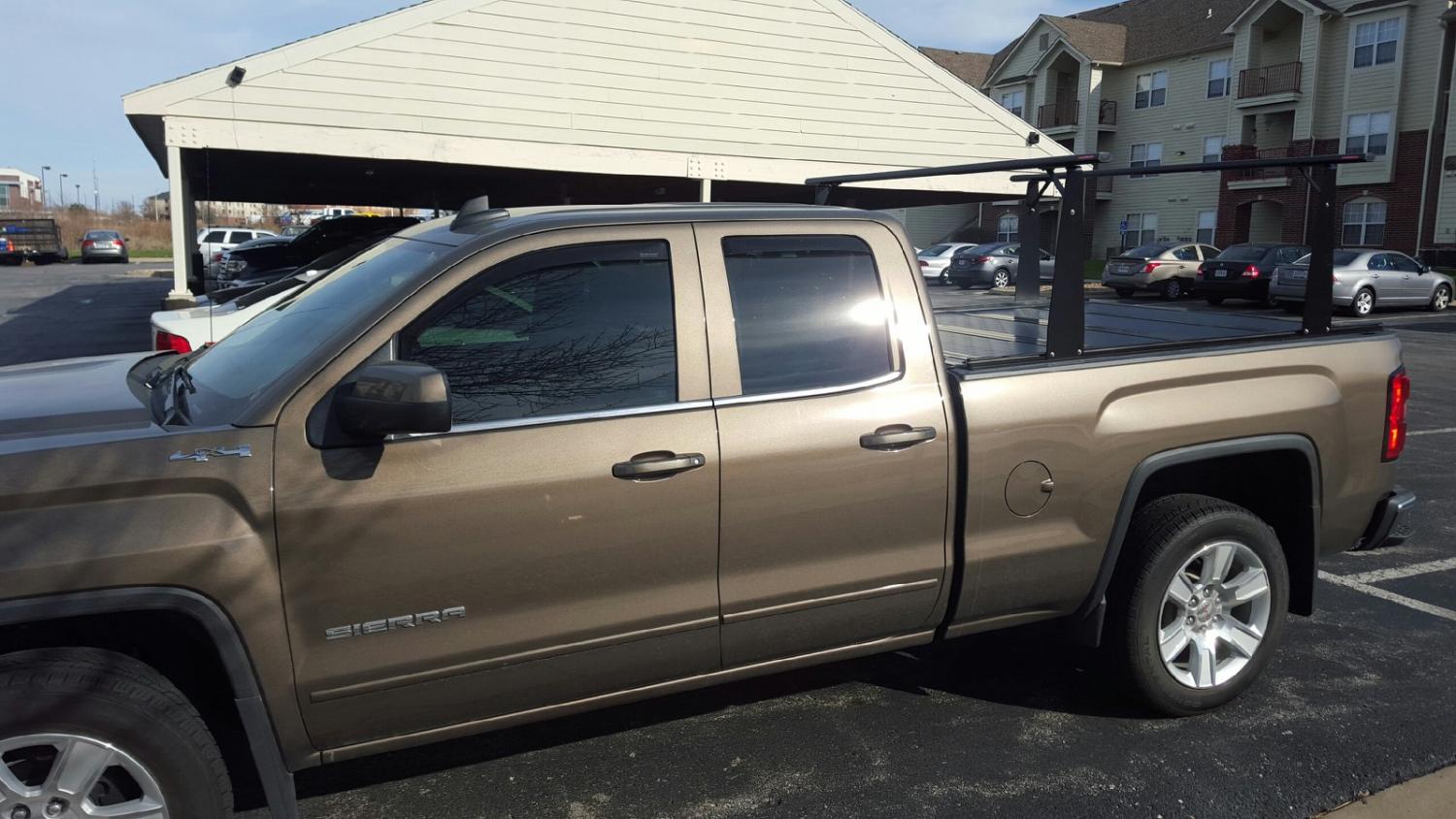

Bak flip cs, not quite as low profile as a regular bak flip cover because of the rails for the rack.

leaks a little bit at the cab end, going to seal it better to keep everything dry, have the drain tube routed between cab and bed, works good for the quick install I did.

armyman22 · March 4, 2016

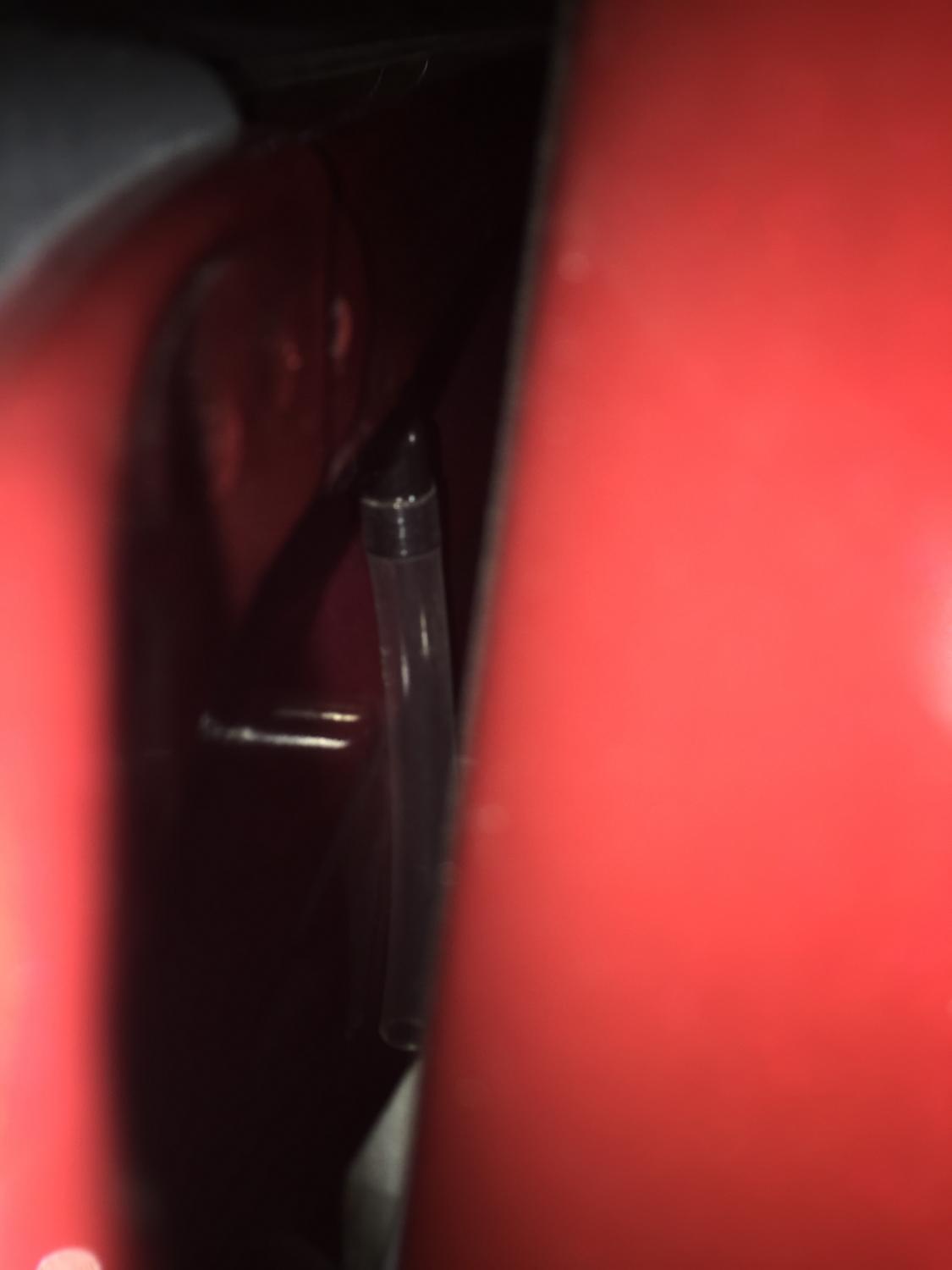

Here's the drain tube between the bed and cab. I don't have any pictures from the bed side, but basically remove the two outer tie down cover and drill holes in the them so that the tubing can pass through. Measure down from where the drain tube attaches to the rail to the tie down hole and cut the tube accordingly. Attach an elbow to the downward tube. Cut a straight piece of tube long enough to go from the elbow past the outer bed edge. Attach another elbow to this straight piece, and finally attach another piece of tube that can hang between the cab and bed. After it is assembled, feed the assembly through the plastic tie down cover and snap the plastic cover back in. Put a little silicone sealer around the tube where it meets the plastic cover. Repeat on other side.

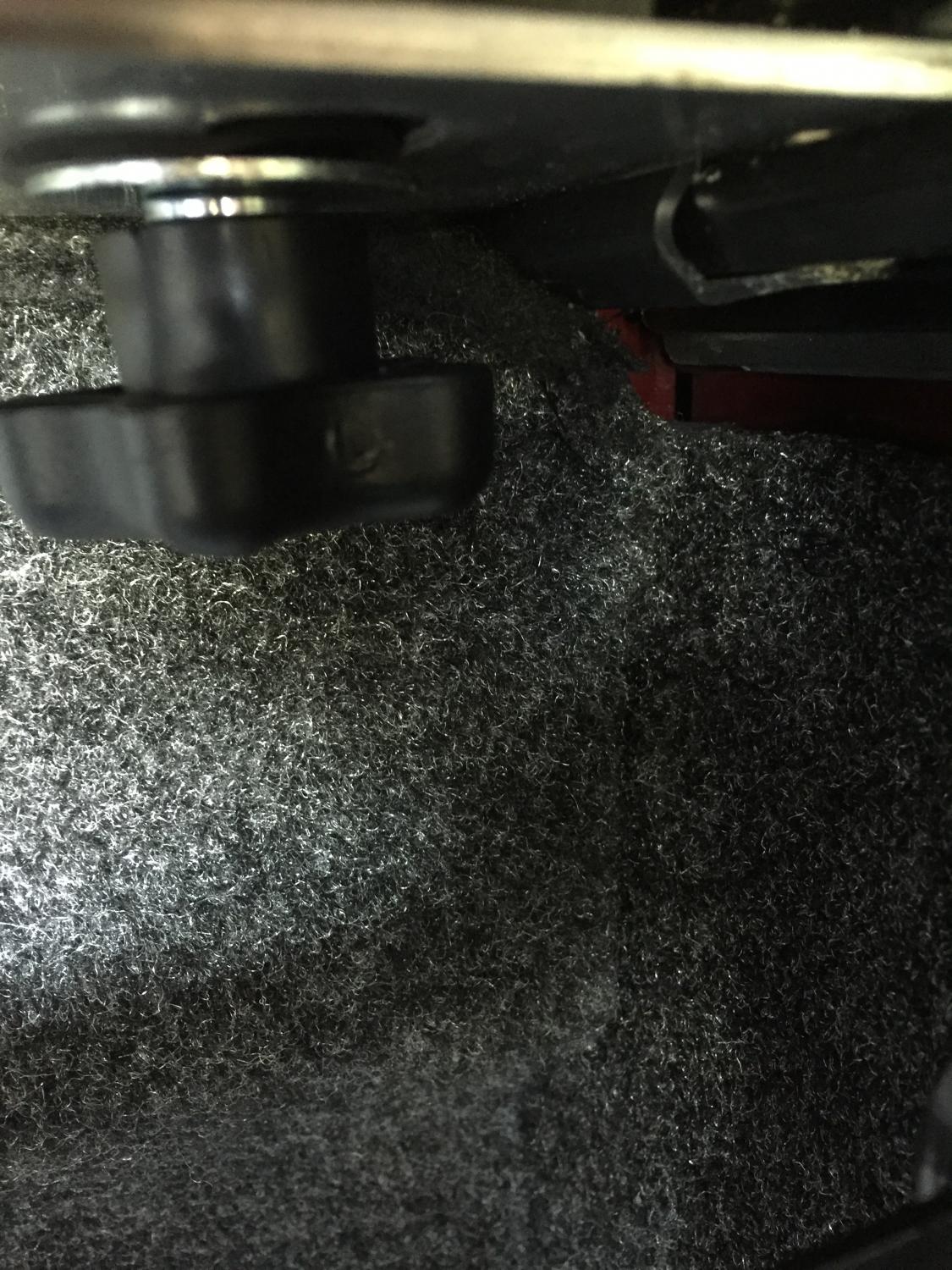

2015-06-16 10.27.48.jpg

2015-06-16 10.30.40.jpg

Thanks man! I really like your setup. Only thing I'm not sure about is how did you do this without cutting a hole/notch in the bedrug? You said in your other post that the drains run behind the bedrug, but with the placement of where those caps are I can't envision how you ran the tubes behind it since the bedrug comes all the way to the top of the bulkhead.

chuckl1218 · March 4, 2016

Thanks man! I really like your setup. Only thing I'm not sure about is how did you do this without cutting a hole/notch in the bedrug? You said in your other post that the drains run behind the bedrug, but with the placement of where those caps are I can't envision how you ran the tubes behind it since the bedrug comes all the way to the top of the bulkhead.

I'll try to get a picture for you later today. Since the tube is flexible, and I installed the tubes before installing the Bedrug, they are just run routed down to the front tie down holes behind the Bedrug - think of it as if the Bedrug were holding the tubes in place with the velcro holding the Bedrug. Remember, the Backflip rail is higher than the bulkhead...

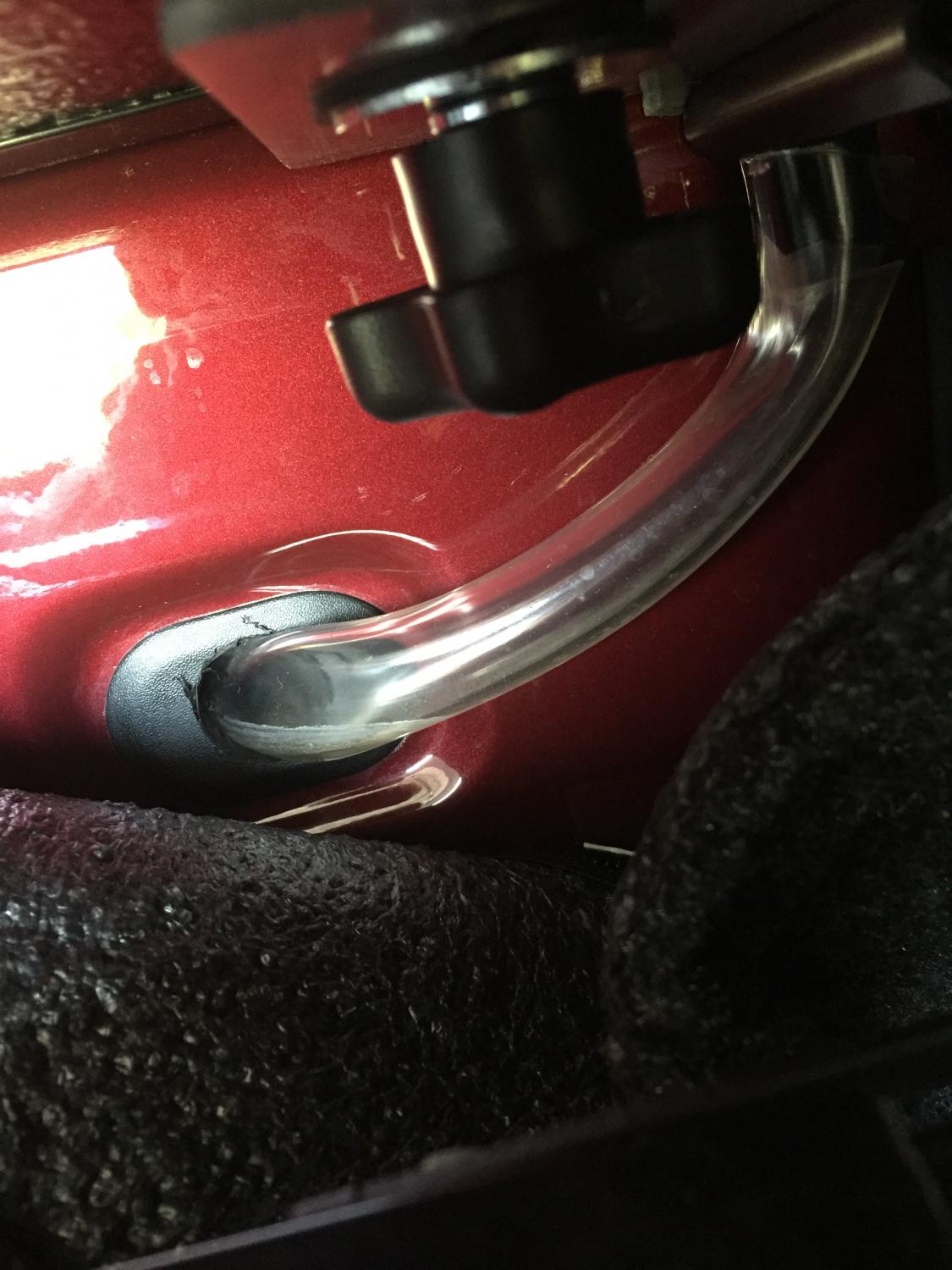

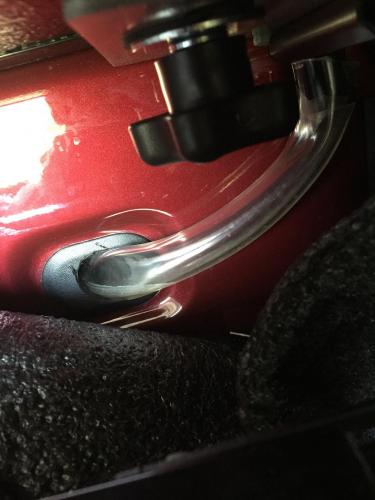

UPDATE...here's the picture with the drain tube routed from the Backflip rail to the hole I drilled in the tie down hole plug. Each tube has only one elbow after all (its been a while since I did this) between the bed and cab. I do remember that when I did this without the elbow, there was too many twists in a short distance which caused the tube to collapse.

Drain tube routed from the Backflip rail to the tie down hole plug...

And here's what it looks like with Bedrug in place...can't even see the drain tubes...

2017SierraSLT · March 5, 2016

Truxedo Lo Pro QT. I am very happy with the quality and ease of use.

armyman22 · March 5, 2016

I'll try to get a picture for you later today. Since the tube is flexible, and I installed the tubes before installing the Bedrug, they are just run routed down to the front tie down holes behind the Bedrug - think of it as if the Bedrug were holding the tubes in place with the velcro holding the Bedrug. Remember, the Backflip rail is higher than the bulkhead...

UPDATE...here's the picture with the drain tube routed from the Backflip rail to the hole I drilled in the tie down hole plug. Each tube has only one elbow after all (its been a while since I did this) between the bed and cab. I do remember that when I did this without the elbow, there was too many twists in a short distance which caused the tube to collapse.

Drain tube routed from the Backflip rail to the tie down hole plug...

2016-03-04 15.23.37.jpg

And here's what it looks like with Bedrug in place...can't even see the drain tubes...

2016-03-04 15.24.54.jpg

Ahhh, very nice man! Thanks for taking the time to take the pics. That makes for a good setup.

Sent from my SM-N910V using Tapatalk

GMANsr · March 5, 2016

I have a Peragon.

Piggywutz · March 5, 2016

I recommend the Truxedo lo pro qt as well.

I have had mine for three years now and it still looks and works good. Very easy to operate and remove completely if you have to.

I also looked at the BAK Roll X but I couldn't justify the price. I got my Truxedo for $475 out the door installed at a local dealer. The BAK would have been $950 at the time.

GMC207 · March 6, 2016

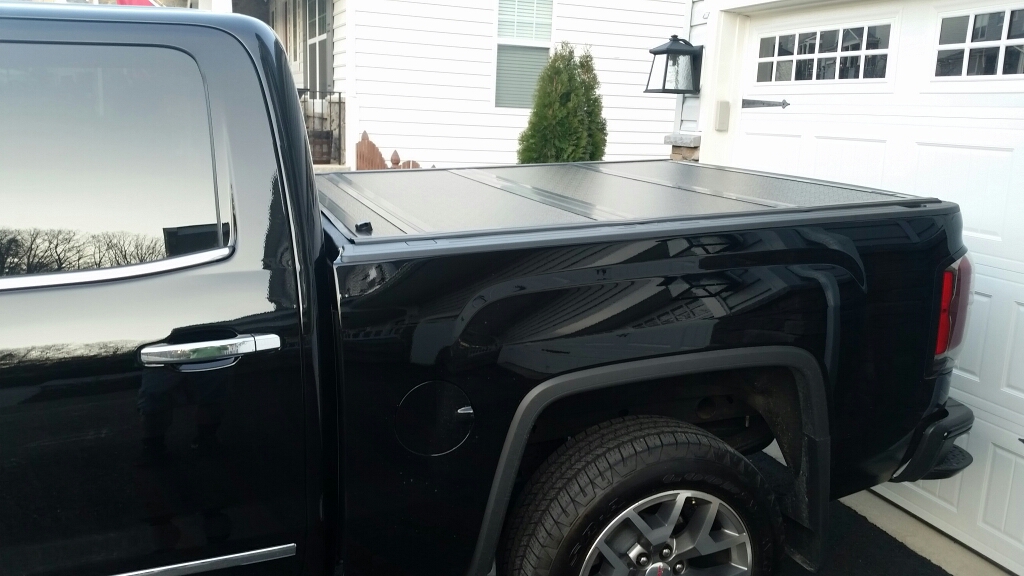

I have the revolver x2. Super low pro. Hardly leaks at all, only on the very corners of the tailgate.

SierraMyst · March 6, 2016

I'll try to get a picture for you later today. Since the tube is flexible, and I installed the tubes before installing the Bedrug, they are just run routed down to the front tie down holes behind the Bedrug - think of it as if the Bedrug were holding the tubes in place with the velcro holding the Bedrug. Remember, the Backflip rail is higher than the bulkhead...

UPDATE...here's the picture with the drain tube routed from the Backflip rail to the hole I drilled in the tie down hole plug. Each tube has only one elbow after all (its been a while since I did this) between the bed and cab. I do remember that when I did this without the elbow, there was too many twists in a short distance which caused the tube to collapse.

Drain tube routed from the Backflip rail to the tie down hole plug...

2016-03-04 15.23.37.jpg

And here's what it looks like with Bedrug in place...can't even see the drain tubes...

2016-03-04 15.24.54.jpg

My right side drain tube on my undercover flex is run the same way.

On difference is I used 90 degree pvc elbows to cut route route it out the anchor hole.

chuckl1218 · March 6, 2016

My right side drain tube on my undercover flex is run the same way.

On difference is I used 90 degree pvc elbows to cut route route it out the anchor hole.

Yeah, I was going to do that and even bought the extra elbows - keeps the tube from collapsing. I thought I'd try it this way first. Can always add more elbows later..for now it seems to work fine. Either way works. Thanks.
