Does anyone know about hardwiring fuse setup on 2019 Silverado?

[JS_KING]

Hi guys



I bought Silverado LT Z71 2019 few weeks ago and trying to hook up dash cam using hard wiring.

so I ran wiring all the way from rear view mirror to driver side fuse box.

But I'm stuck in fuse box... it was completely different than 2018 model so I couldn't find out which one I should use...

so if anyone have a experience with dashcam with hard wiring, your advice is much appreciated!

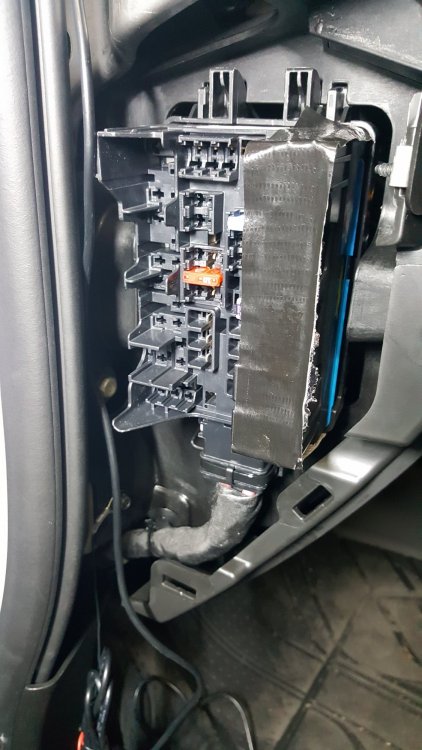

I attached driver side fuse box... It's pretty much empty!



[Black02Silverado]

Just get yourself a test light and figure out which one is hot with the key on and go from there.



I'm going to install one in mine when I get it.



What model dash cam do you have?  Do you like it?  Rear cam as well?

Edited December 19, 2018 by Black02Silverado

[JS_KING]

Well if I could figure it out how to find correct fuse, I wouldn't post here for help lol.

I'm using Kdlinks X3 2018 version. On day time, camera quality is super clear but at night, kinda disappointed. Of course,  it's way better than Garmin dashcam that I used to have before.



X3 only has single channel so.. I no rear cam.



[Jerry's Denali]

I ran my dashcam power wires to the passenger side fuse box. There is several spare fuses on that side.

My Son just tapped into an ign. source at the rear view mirror for his dash cam .



[brisk00]

Were you ever able to find the proper fuse to tap into to?

[fish_guru]

I used this write up and it worked perfectly for me...





[brisk00]

Awesome!  Thank you!

[AJ Sullivan]

Using this info for a hardwired radar detector and ignition sense wire for a siren.  Thanks!

[Sotally Tober]

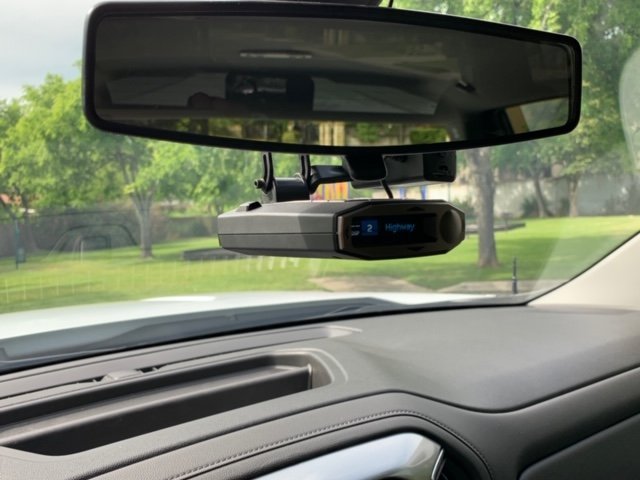

I had my Escort 360c Radar Detector hard wired into the wiring behind the rear view mirror using a Blend Mount.  From there I purchased the Escort M1 Dashcam and it plug directly into the side of the Radar Detector utilizing the same power.  Great set up!

[MadCaddie]

22 hours ago, Sotally Tober said:

I had my Escort 360c Radar Detector hard wired into the wiring behind the rear view mirror using a Blend Mount.  From there I purchased the Escort M1 Dashcam and it plug directly into the side of the Radar Detector utilizing the same power.  Great set up!

How are you liking the M1?   I was debating on getting one but was worried it wouldn't mount right with my blend mount.

[Sotally Tober]

Loving it!  Make sure to use the Blendmount M1 Adapter and it will mount perfectly.

[Wowwwww]

Has anyone been able to confirm the ignition wire color to tap into on the passenger side? If inline fuse, what fuses did you use?

[Method2Madness]

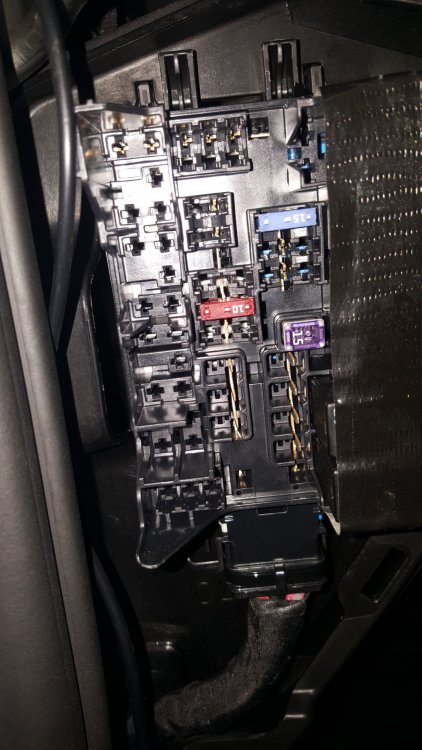

Almost dead center, there’s a micro 7.5amp and right below it, there’s a blue 15amp. I used a fuse tap on the blue one for my dash cam and it works perfect. (Keyed on and off).

[Smoothbassman]

Almost dead center, there’s a micro 7.5amp and right below it, there’s a blue 15amp. I used a fuse tap on the blue one for my dash cam and it works perfect. (Keyed on and off).

This is much easier guys.

That spade right next to the 50 amp circuit breaker in the picture above is ACC power.

Just plug in there with an inline fuse and your golden.

Sent from my SM-N960U1 using Tapatalk

[Wowwwww]

52 minutes ago, Method2Madness said:

Almost dead center, there’s a micro 7.5amp and right below it, there’s a blue 15amp. I used a fuse tap on the blue one for my dash cam and it works perfect. (Keyed on and off).

What fuse did you use for the inline fuse? I just need ignition with ACC. Can



13 minutes ago, Smoothbassman said:

This is much easier guys.

That spade right next to the 50 amp circuit breaker in the picture above is ACC power.

Just plug in there with an inline fuse and your golden.

Sent from my SM-N960U1 using Tapatalk


Where did you get the inline fuse for that? Also would you mind sharing a picture? I greatly appreciate it.
