Drop Shackles

Tano53180
 Share

Recommended Posts

mafd2 Senior Enthusiast

mafd2

Posted
Posted

Installed Wulf shackles. Used top holes. Perfect fit and truck sits level now. 22's next.f1cc222a70584774d0c9db9225bc0710.jpg97ee7e348b18ff3a0e38dd0ec9633d08.jpg



Sent from my LG-V495 using Tapatalk









  • Like 1
  • Replies 86
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

mafd2
mafd2

Looks good . Spinning the shim does clear the vib. I like the looks of dropping the rear to level than raising the front.

Zach-91
Zach-91

Got mine in today. Tried to install them on the higher set of holes and found that I still had about 3/4" of rake so I went ahead and went with the lower set. Also flipped around the shims just to be

19trailbossRic
19trailbossRic

Installed those 2”  dropshackles and used the 1.5” hole. Also did airbags to stop the porpoising I was experiencing while pulling a travel trailer at highway speeds over dips. I ride it 1/2” higher th

Posted Images

Billet Bowtie Enthusiast

Billet Bowtie

Posted
Posted
3 hours ago, mafd2 said:

Installed Wulf shackles. Used top holes. Perfect fit and truck sits level now. 22's next.f1cc222a70584774d0c9db9225bc0710.jpg97ee7e348b18ff3a0e38dd0ec9633d08.jpg



Sent from my LG-V495 using Tapatalk









Did you have any vibration after the shackle install? I had a little during deceleration around 20 to 30 mph. I ended up spinning the factory pinion angle shim from the thick end of the shim facing the front of the truck to the rear of the truck.

.

mafd2 Senior Enthusiast

mafd2

Posted
Posted (edited)

Haven't experienced any vibration.  Shouldn't have to change the pinion angle with just a shackle drop. I can understand a 4" or 5" rear drop. Did the shim reversal help?

Edited by mafd2
Billet Bowtie Enthusiast

Billet Bowtie

Posted
Posted
2 hours ago, mafd2 said:

Haven't experienced any vibration.  Shouldn't have to change the pinion angle with just a shackle drop. I can understand a 4" or 5" rear drop. Did the shim reversal help?

I thought the same thing but once I did some research it's fairly common on the older body style. It kind of makes since. On a flip kit the rear stays at the exact same angle as before the flip. With a shackle and hanger style lowering kit the front and the rear of the springs are lifted together. Doing just a shackle just lifts the rear of the spring causing the pinion to point down. I'm sure it might not affect some trucks but could others. Heck I dont know if all the 19s have a factory installed shim like mine does. It might depend truck to truck. Flipping the shim did correct my minor vibration.

mafd2 Senior Enthusiast

mafd2

Posted
Posted

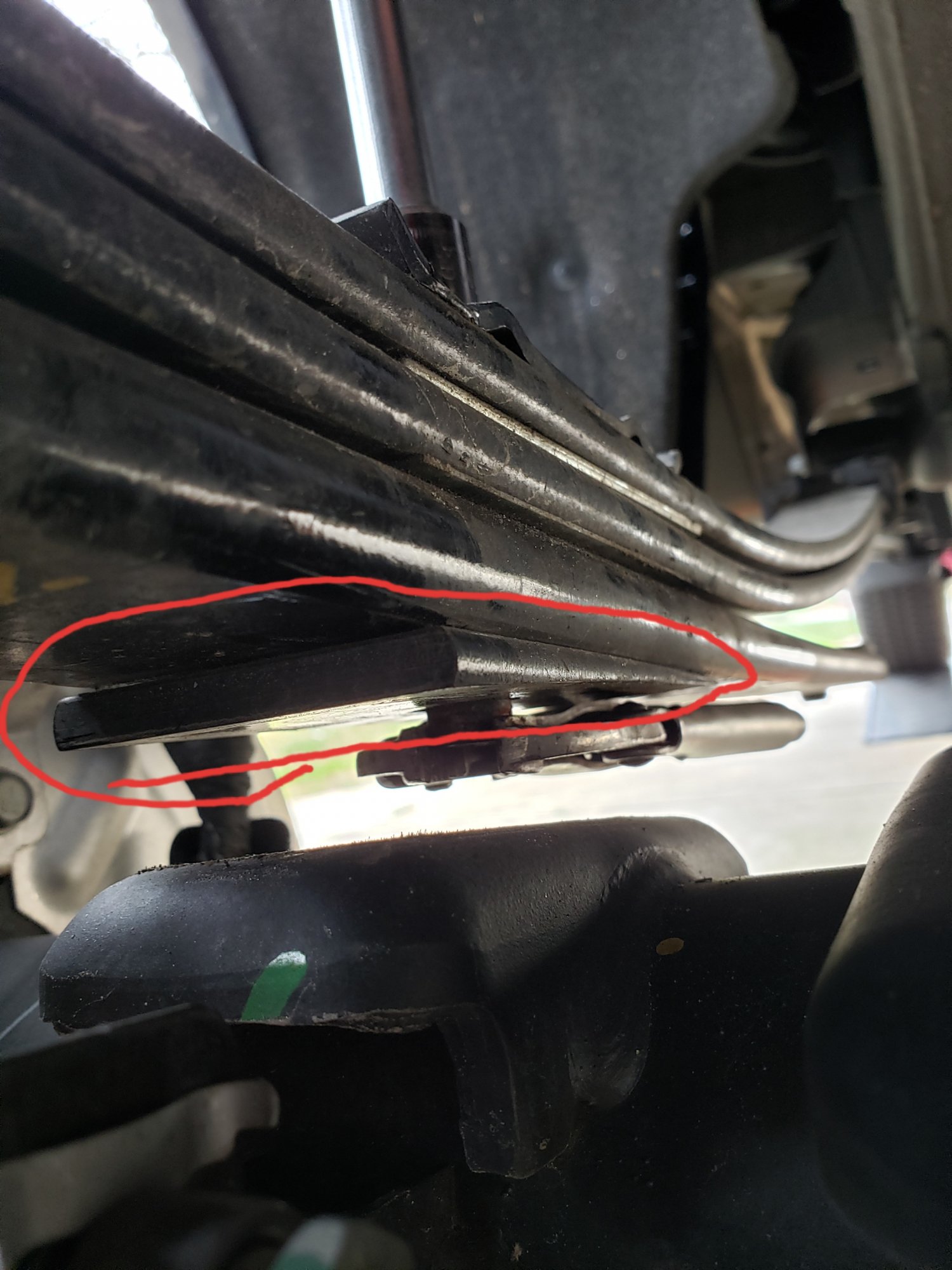

Gotcha.  Where's the shim at?  Where the lift block was between the axle and leaf springs?

mafd2 Senior Enthusiast

mafd2

Posted
Posted

OK thanks.  Did you have to loosen the bolt going through the leaf's or did it spin freely?  I still haven't noticed vibration but if I do I'll reverse the shim.

  • 3 months later...
RUSSH Enthusiast

RUSSH

Posted
Posted

I'm having a vibration when slowing down. It's the worst at 30mph. I guess I'll try and rotate the factory shim. Never had a problem on my previous trucks.

mafd2 Senior Enthusiast

mafd2

Posted
Posted
1 minute ago, RUSSH said:

I'm having a vibration when slowing down. It's the worst at 30mph. I guess I'll try and rotate the factory shim. Never had a problem on my previous trucks.

Yea I hear ya.  I've never had problems in the past and have put drop shackles on many trucks.  I didn't notice any vib when I installed my shackles but then later noticed the same vibration when slowing down around 30mph.  I rotated the shim and "voila"!  Cleared it up.

  • Like 1
19trailbossRic Enthusiast

19trailbossRic

Posted
Posted (edited)

Installed those 2”  dropshackles and used the 1.5” hole. Also did airbags to stop the porpoising I was experiencing while pulling a travel trailer at highway speeds over dips. I ride it 1/2” higher than flat with around 10lbs in the bags and around 20lbs with the trailer hooked up and loaded down.




Edited by 19trailbossRic
  • Like 4
KEEPER OF SECRETS Enthusiast

KEEPER OF SECRETS

Posted
Posted

19trailbossRic, what brand shackles are those? Are they the ones currently on Amazon? (Black with red bushings)



I'm looking to go this exact route with mine, towing a car though.

I don't want to raise the front, just drop the rear level for daily driver mode.

I figured this setup would be the best solution for both daily driving and towing.

Thanks in advance.



-Patrick-

19trailbossRic Enthusiast

19trailbossRic

Posted
Posted

You might consider stock ride height bags. I got the ones for the trail boss (2' lift) and with the drop shackle they are a bit compressed and hit the internal bump stop when flat over bumps which is why I run them with air which adds an inch of rake for a smooth ride. I did the bags first for trailering but then wanted to fix the non-trailering ride height.  Also, the "trail boss" bags actually required a 1/2" shim to make them work on the factory bump stop bracket to accommodate the total axle drop once you release the loading while on the lift.

trininatx Enthusiast

trininatx

Posted
Posted
On 7/8/2019 at 6:02 PM, KEEPER OF SECRETS said:

19trailbossRic, what brand shackles are those? Are they the ones currently on Amazon? (Black with red bushings)



I'm looking to go this exact route with mine, towing a car though.

I don't want to raise the front, just drop the rear level for daily driver mode.

I figured this setup would be the best solution for both daily driving and towing.

Thanks in advance.



-Patrick-

https://www.belltech.com/catalog/product/view/id/16164/s/belltech-2019-silverada-sierra-2wd-4wd-2-lowering-shackle-6416/category/165/

  • Like 2
Mountain boy Enthusiast

Mountain boy

Posted
Posted

I did this on my 03 Denali and my 14 SLT,  what I noticed is it made the front of the truck seem higher at first, back goes down front goes up. I liked it and people noticed it but weren’t sure what was different. Put 305/50/20’s on the Denali looked fantastic.
