Flatblack83
Flatblack83

Job done in under an hour, all wheel buttons work with the radio and cluster..!!!

GTPprix
GTPprix

A few people have expressed interest in a lower cost method to do this upgrade. While I think if you're going to go through all of this the real upgrade is the Denali / High Country variants we have c

Railroad_Jim
Railroad_Jim

Upgrade complete on my 2020 Custom Trail Boss!  With the help of the Harness Dr's instructions, I was able to figure out how to get the wires landed where they needed to be.   Unlike everyon

Posted Images

fondupot Senior Enthusiast

fondupot

Posted
Posted

I'll be doing this mod in my 2022 Custom LTD. I have the High Country cluster from WAMS, I have a new steering wheel with the controls for the DIC, and I have HarnessDR harness on order.



I plan on making an install video to add to my youtube channel for more in depth look at this modification. Stay tuned.



fondupot Senior Enthusiast

fondupot

Posted
Posted (edited)

*UPDATE* 7/31/22

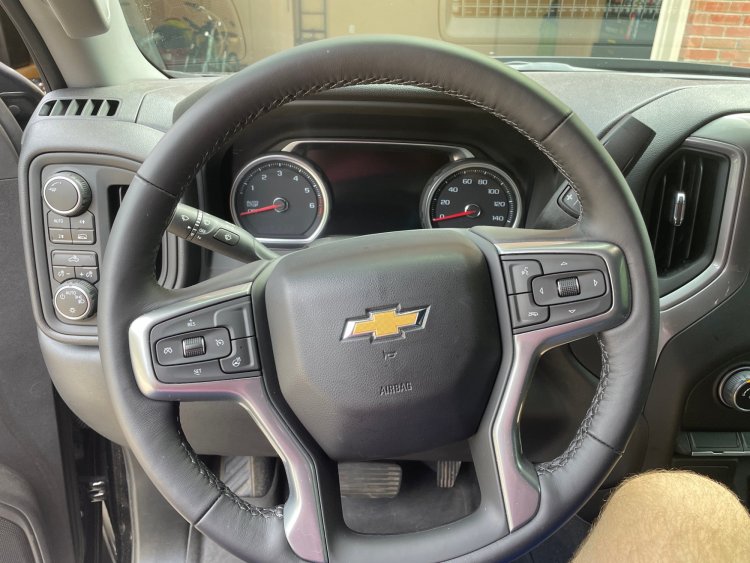

Got my High Country cluster installed yesterday along with the harness dr. wire, and my new steering wheel. Couldn't be any more pleased. The install took about 2 hours (while filming) and was not really that difficult. I am in the process of editing my in depth tutorial video that should help others do this mod.image0.thumb.jpeg.08dd2555358b21bd216c97f783020371.jpeg

Edited by fondupot
GETGONE Enthusiast

GETGONE

Posted
Posted

Should have swapped in a black Bowtie while it was apart!

Mac-427 Enthusiast

Mac-427

Posted
Posted
11 hours ago, GETGONE said:

Should have swapped in a black Bowtie while it was apart!

Changing to a black Bowtie on the steering wheel is deceptively hard to do because it is glued to the air bag.  I ended up masking mine and and painting it with semi-gloss black.  So far, it is holding up just fine.

New Instruments.jpg

GETGONE Enthusiast

GETGONE

Posted
Posted
8 hours ago, Mac-427 said:

Changing to a black Bowtie on the steering wheel is deceptively hard to do because it is glued to the air bag.  I ended up masking mine and and painting it with semi-gloss black.  So far, it is holding up just fine.



Hmm interesting. On my 08 Avalanche it is an aluminum badge(circle) that is held on with 4 bent over tabs on the back side of the airbag cover. I was able to pull the cover off and not disturb the airbag and swap it out for a red SS emblem.

Mac-427 Enthusiast

Mac-427

Posted
Posted
13 hours ago, GETGONE said:



Hmm interesting. On my 08 Avalanche it is an aluminum badge(circle) that is held on with 4 bent over tabs on the back side of the airbag cover. I was able to pull the cover off and not disturb the airbag and swap it out for a red SS emblem.

I thought my situation would be that simple only to be disappointed because it was not.  That emblem is glued on so tightly it is almost impossible to remove without damaging the air bag.  That's why I decided to back off and paint it.

fondupot Senior Enthusiast

fondupot

Posted
Posted

Here is my install video. It's long. But I think very detailed, and should help anyone wanting to do this.





  • Thanks 1
  • 2 weeks later...
tpettigr Enthusiast

tpettigr

Posted
Posted
On 4/22/2022 at 9:46 AM, Railroad_Jim said:



I have done some research on that, but I'm not sure if it will work.



From reading the schematics on the gmupfitter site, we would need to add a wire to the clockspring harness, similar to what is required to get the steering wheel controls to work.



We would need to connect the X85 clockspring connector pin 10 (Circuit 4119 GN/BU size 0.35, LIN Bus 19) to K33 HVAC Control Module X2 pin 6.  (As seen on pages 182 and 461 in the schematics.)



The related 7.5A F22 fuse for the circuit was already in my fusebox.



I don't know where the K33 X2 connector is located, but I believe it is in the instrument panel, so harnessdr could probably make up a wire for this, similar to the other one.  The big question for me is, does the HVAC Control Module have the Lin Bus 19 support on our trucks?



Somebody should try this!  :)

Just got done installing the High Country Cluster and Leather Steering Wheel on my 2019 Trail Boss. I ran a wire from clockspring pin 10 to the HVAC control module pin 6 and unfortunately the heated steering wheel still doesn't work. I believe it may be a feature that has to be activated by the dealership. For those interested, the HVAC Control Module is located in the instrument panel straight up above the brake pedal and kind of a pain to get to.

  • Like 1
Railroad_Jim Enthusiast

Railroad_Jim

Posted
Posted
4 hours ago, tpettigr said:

Just got done installing the High Country Cluster and Leather Steering Wheel on my 2019 Trail Boss. I ran a wire from clockspring pin 10 to the HVAC control module pin 6 and unfortunately the heated steering wheel still doesn't work. I believe it may be a feature that has to be activated by the dealership. For those interested, the HVAC Control Module is located in the instrument panel straight up above the brake pedal and kind of a pain to get to.



Thanks for trying this!  I was really curious if just adding that wire would get the steering wheel heater to work.  Bummer to hear that it didn't work.



Thanks for telling us where the HVAC Control Module is located.



I ended up going with the steering wheel that doesn't have the steering wheel heater, as that was the only one that I could find in stock.



  • 1 year later...
22TrailBoss22 Enthusiast

22TrailBoss22

Posted
Posted

Bump for a 22 Chevy Trail Boss Custom update.  My truck has the FCA (Forward Collision Alert) distance button on the cruise control cluster.  I have the Dr. Harness ordered.  I will order the Instrument Cluster this week.  My question is which model steering wheel to try to locate that will allow the FCA to work?

GETGONE Enthusiast

GETGONE

Posted
Posted

You can swap the button from your current wheel to whatever one you find. I swapped mine because the leather wheel I bought was a new "scratch and dent" that had a scratch across the button and trim. If you get one from a non refresh truck, you'll have to swap both buttons and wiring plug since I'm sure they are different since it's Global B architecture vs the pre refresh Global A.

22TrailBoss22 Enthusiast

22TrailBoss22

Posted
Posted

Thanks for the reply! My truck is pre-refresh 06/2022 mfr date with IOR radio.

I've ordered 2 different steering wheels from eBay arriving next week.  Both are non-heated with the FCA button on the cruise cluster on left side.  Hoping this works!



86821395 Jet Black Precrash 2021-2023 Chevrolet Tahoe Suburban

84946368 OEM Black Poly Steering Wheel For Chevy Silverado, GMC Sierra 1500, 2500, 3500

GETGONE Enthusiast

GETGONE

Posted
Posted

Why did you order the poly steering wheel? Isn't that what you already have from the factory?

22TrailBoss22 Enthusiast

22TrailBoss22

Posted
Posted

Not quite.  The current wheel doesn't have the audio controls on the right side of wheel.  Both of the wheels I ordered from eBay have audio controls.  What is unclear to me is how one determines whether a wheel (and the resultant controls) will work when installed with a WAMs cluster upgrade, the Harness Dr. Lin bus cable, etc.  Most of the available resources (here, YouTube, etc) show steering wheels with heated option but do not have the FCA button.   The 2 wheels I ordered have that.



I'm also not clear on Global A vs. Global B as it relates to this process.



Thanks for the feedback and commentary.
