Is the only termination point the wires under the dash or is their a spot under the hood that you can hook up to the switches? Also I only have 4 wires but 5 switches. how do you terminate the fifth switch position?

  • Replies 146
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

Kevin Monaghan
Kevin Monaghan

They do light up too, the 4 blunt cuts out the bottom are for your connection. #5 is the roof beacon wire that is coiled near the 3rd brake light. (snowplow prep pkg)

Say When
Say When

I’m happy to report that my 2020 Black-on-Black GMC Sierra 2500HD SLE CC LB 4WD "L8T” Gas truck was delivery on 02/14/2020 with Upfitter Switches Factory installed.

Robo9831
Robo9831

Well the first picture is similar to the one in my truck. Just a different color. Well I added a 5 aux switch panel to it today. I didn’t want to cut into my dash just to add some switches. Plus I wan

Posted Images

LSX Z28 Enthusiast

LSX Z28

Posted
Posted
24 minutes ago, Truckchauffeur said:

Is the only termination point the wires under the dash or is their a spot under the hood that you can hook up to the switches? Also I only have 4 wires but 5 switches. how do you terminate the fifth switch position?

The only termination point is under the dash. Switch 5 is prewired for a strobe light in the roof, and the other end is in the spoiler. You could pull that wire out of the harness and cut it and then use it for what you want.

Truckchauffeur Enthusiast

Truckchauffeur

Posted
  • Author
Posted
1 hour ago, LSX Z28 said:

The only termination point is under the dash. Switch 5 is prewired for a strobe light in the roof, and the other end is in the spoiler. You could pull that wire out of the harness and cut it and then use it for what you want.

Thanks Kevin



  • 5 months later...
Catman HD Enthusiast

Catman HD

Posted
Posted

So has anyone had dealer install this? What did they charge?



JCunningham Enthusiast

JCunningham

Posted
Posted

i bet its over $500. the 5th switch is the green wire in the gray plug.





mmjsport Enthusiast

mmjsport

Posted
Posted

I tried asking a couple of dealers around me and they all turned down the installation. With all the videos on youtube, you can do it yourself very easily. Hardest part is popping off interior panels. Everything else was easy.

  • 2 months later...
  • 6 months later...
Robo9831 Enthusiast

Robo9831

Posted
Posted

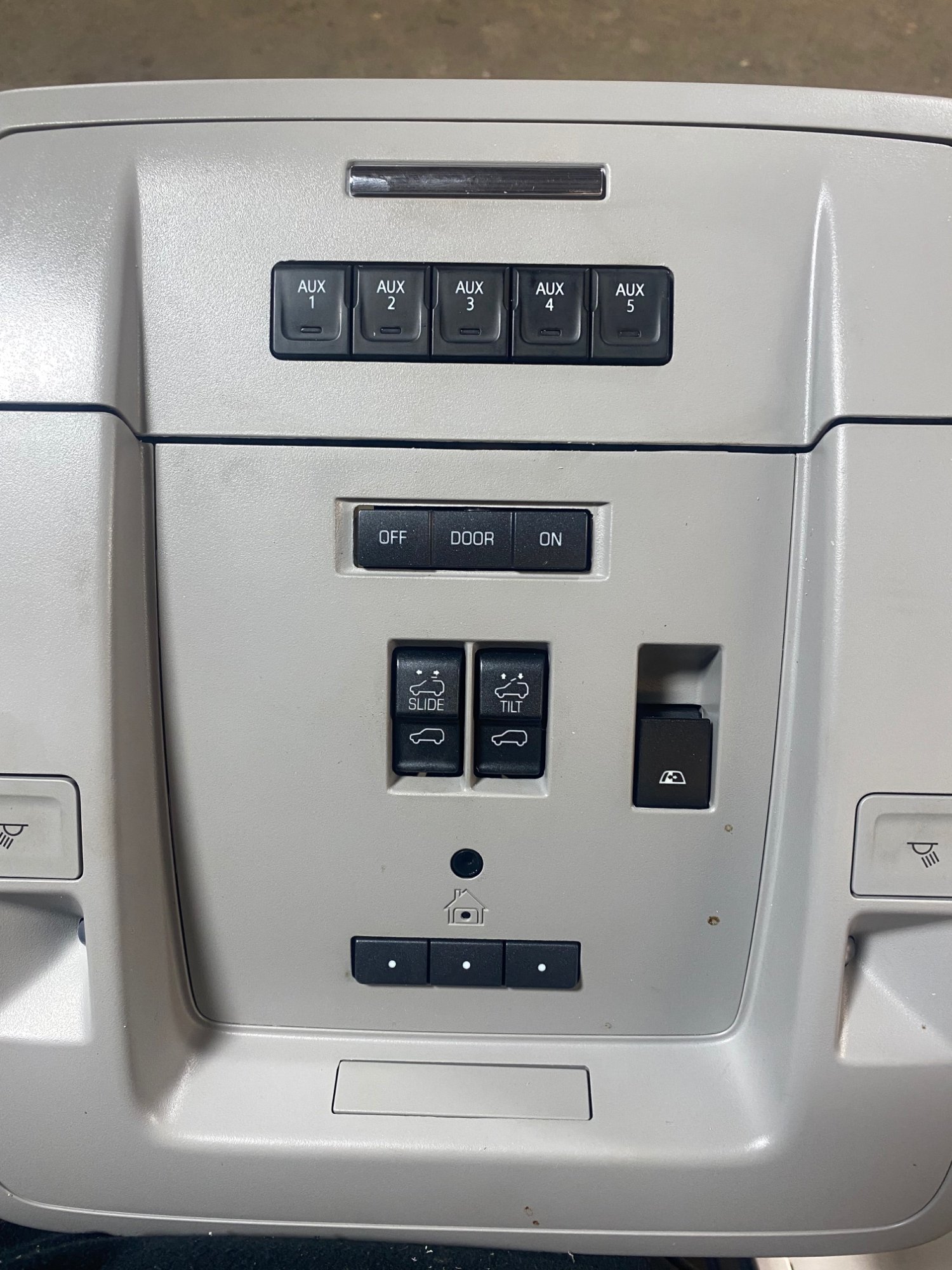

Well the first picture is similar to the one in my truck. Just a different color. Well I added a 5 aux switch panel to it today. I didn’t want to cut into my dash just to add some switches. Plus I wanted it to look factory. So since the fold down compartment for the eye glasses isn’t really big enough to hold glasses. I decided to use that space. So I cut out the hole with my router table. Then Cut out couple of abs panels with a rectangle hole in it. big enough to snug the switch panel body into it. And drill a small hole on each corner of the abs panel. This becomes my mounting plate. Then Epoxy one abs panel to the back side of the compartment. And the second one. I epoxy that to the switch panel body. Then screwed ( using the 4 holes i drilled ) the switch panel to the abs panel on the back side of the compartment. It turned out amazing. What do you all think of it.


So my gmc truck is 2017 2500hd Denali. And this kit is made for newer trucks.
So I have to extend all the wires, and hardwire it in. ( gotta find abs locate couple of wires on the truck to tap into to make the switches work with the leds ).  Since I don’t have the factory plug that this kit comes with. Plus I have to find a place to mount the fuse / relay box.

Robo9831 Enthusiast

Robo9831

Posted
Posted
On 4/8/2020 at 6:32 PM, mkeddie said:

Thanks
I won't need the knee bolster as I'm gonna extend the wires and put the switches up in the headliner



Sent from my Moto Z (2) using Tapatalk


Well the first picture is similar to the one in my truck. Just a different color. Well I added a 5 aux switch panel to it today. I didn’t want to cut into my dash just to add some switches. Plus I wanted it to look factory. So since the fold down compartment for the eye glasses isn’t really big enough to hold glasses. I decided to use that space. So I cut out the hole with my router table. Then Cut out couple of abs panels with a rectangle hole in it. big enough to snug the switch panel body into it. And drill a small hole on each corner of the abs panel. This becomes my mounting plate. Then Epoxy one abs panel to the back side of the compartment. And the second one. I epoxy that to the switch panel body. Then screwed ( using the 4 holes i drilled ) the switch panel to the abs panel on the back side of the compartment. It turned out amazing. What do you all think of it.


So my gmc truck is 2017 2500hd Denali. And this kit is made for newer trucks.
So I have to extend all the wires, and hardwire it in. ( gotta find abs locate couple of wires on the truck to tap into to make the switches work with the leds ).  Since I don’t have the factory plug that this kit comes with. Plus I have to find a place to mount the fuse / relay box. 05FD42DF-4B82-46F2-A0C8-0C1197D811AF.thumb.jpeg.6b4875d8f4a9621e26108b3fd2e750ae.jpeg

  • Like 3
sheath Enthusiast

sheath

Posted
Posted

@Robo9831 You did a very clean job on cutting out, and installing the switch stack.  I like where you have this installed for a couple of reasons:

* Easy to see which switches are activated

* Easy to manipulate the switch while keeping your averted vision on the road ahead.



I was not excited to see the OEM location, so this is a nice alternative.



Will look forward to see how you end up making all your connections.

Nice work! :thumbs:

  • 3 weeks later...
Robo9831 Enthusiast

Robo9831

Posted
Posted
On 2/10/2022 at 10:07 AM, sheath said:

@Robo9831 You did a very clean job on cutting out, and installing the switch stack.  I like where you have this installed for a couple of reasons:

* Easy to see which switches are activated

* Easy to manipulate the switch while keeping your averted vision on the road ahead.



I was not excited to see the OEM location, so this is a nice alternative.



Will look forward to see how you end up making all your connections.

Nice work! :thumbs:

Thank you.
