Upfitter switches

Truckchauffeur
 Share

Recommended Posts

  • Replies 146
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

Kevin Monaghan
Kevin Monaghan

They do light up too, the 4 blunt cuts out the bottom are for your connection. #5 is the roof beacon wire that is coiled near the 3rd brake light. (snowplow prep pkg)

Say When
Say When

I’m happy to report that my 2020 Black-on-Black GMC Sierra 2500HD SLE CC LB 4WD "L8T” Gas truck was delivery on 02/14/2020 with Upfitter Switches Factory installed.

Robo9831
Robo9831

Well the first picture is similar to the one in my truck. Just a different color. Well I added a 5 aux switch panel to it today. I didn’t want to cut into my dash just to add some switches. Plus I wan

Posted Images

LSX Z28 Enthusiast

LSX Z28

Posted
Posted
11 hours ago, rongotti said:

Dealer said he couldn't find them, I gave him these parts, any other advice?1c93c15d6790fe54a597c1547e59474f.jpg

Sent from my SM-G988U1 using Tapatalk


The only thing I would verify is the knee bolster part number. I believe there are two in black. 1 for trucks with push to start, and 1 for trucks with a standard key. ----- I could be wrong, but the one that I got had the hole in it for push to start. I just cut the switches into my existing bolster so I didn't have a big hole in it where the button would be.

Link to comment
Share on other sites
rongotti Enthusiast

rongotti

Posted
Posted
The only thing I would verify is the knee bolster part number. I believe there are two in black. 1 for trucks with push to start, and 1 for trucks with a standard key. ----- I could be wrong, but the one that I got had the hole in it for push to start. I just cut the switches into my existing bolster so I didn't have a big hole in it where the button would be.
Still have the other one?

Sent from my SM-G988U1 using Tapatalk

Link to comment
Share on other sites
nbscanuck Enthusiast

nbscanuck

Posted
Posted

I have an idea, wondering if anyone has tried this.  I spotted this https://www.tailgatefix.com/ and they are just splicing into and interrupting the power to the switch for the center section of the tailgate to prevent it from dropping on your trailer hitch.  Why not wire it to an upfitter switch?  At present you would have to run wire to the back of the truck to make this work.  Unless that same wire could be found in the harness further forward in the truck.  This is the install video.  The important information starts at 5 minutes into the video.





Thoughts?  Comments?

Link to comment
Share on other sites
rongotti Enthusiast

rongotti

Posted
Posted

I have tried ordering these 4 different times, I have used the yellow sheet and the part numbers and they tell me they cannot find the part numbers and have no idea what an upfitter switch kit is. Are my GM parts guys idiots or am I doing something wrong? Help......[emoji53]

Sent from my SM-G988U1 using Tapatalk

Link to comment
Share on other sites
2k19Sierra Enthusiast

2k19Sierra

Posted
Posted
5 minutes ago, rongotti said:

I have tried ordering these 4 different times, I have used the yellow sheet and the part numbers and they tell me they cannot find the part numbers and have no idea what an upfitter switch kit is. Are my GM parts guys idiots or am I doing something wrong? Help......emoji53.png

Sent from my SM-G988U1 using Tapatalk


lol my dealer said the same thing.  in the end, i ended up showing them the part numbers on the parts diagram to get them to order them....

Link to comment
Share on other sites
rongotti Enthusiast

rongotti

Posted
Posted
lol my dealer said the same thing.  in the end, i ended up showing them the part numbers on the parts diagram to get them to order them....
Lord, it sounds like I am screwed, I could never find all of these on a diagram [emoji2357]

Sent from my SM-G988U1 using Tapatalk

Link to comment
Share on other sites
2k19Sierra Enthusiast

2k19Sierra

Posted
Posted
10 minutes ago, rongotti said:

Lord, it sounds like I am screwed, I could never find all of these on a diagram emoji2357.png

Sent from my SM-G988U1 using Tapatalk


not too hard actually, just have to go through the different sections on gmpartsdirect.com

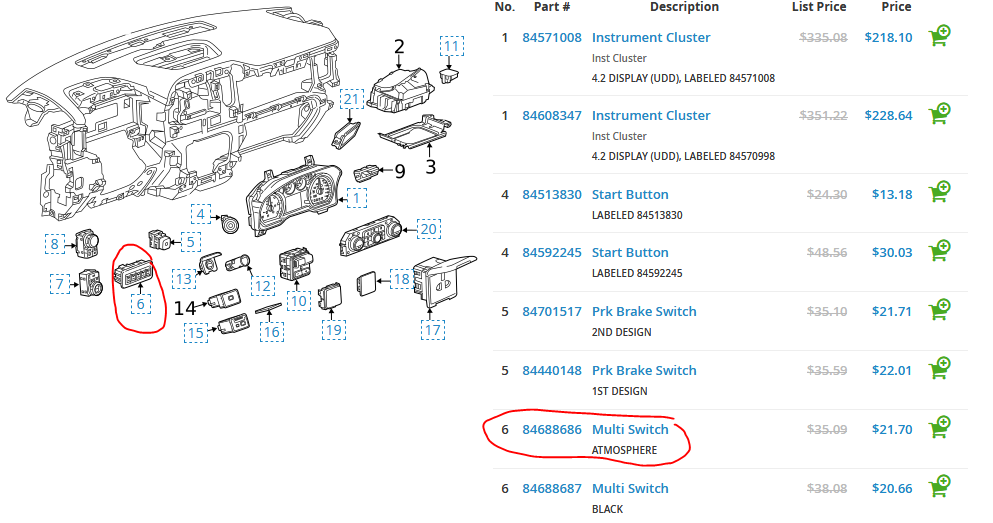

heres most of the part diagrams for ya!  Think all im missing here is the fuse kit for the battery itself.. Remember different part numbers for the knee bolster/switches depending on colour! image.thumb.png.cc99229c94234e8299de8b03a1e308b7.pngimage.thumb.png.0108cfc79b348e4cb594421ac667d22a.png




  • Like 1
Link to comment
Share on other sites
  • 4 weeks later...
Truckchauffeur Enthusiast

Truckchauffeur

Posted
  • Author
Posted

After 244 days on order I have my truck. The switches are in the knee bolster but nothing is wired. The dealers not sure whos paying for it when I bring it back. A $64,000 truck and GM can't do it at the factory? Come on GM you can do better than that.?

  • Like 1
Link to comment
Share on other sites
LSX Z28 Enthusiast

LSX Z28

Posted
Posted
1 hour ago, Truckchauffeur said:

After 244 days on order I have my truck. The switches are in the knee bolster but nothing is wired. The dealers not sure whos paying for it when I bring it back. A $64,000 truck and GM can't do it at the factory? Come on GM you can do better than that.?

For some reason GM doesn’t include the installation. It says in the installation bulletin it it is not paid for by GM, and dealers will not be reimbursed. Installing the switches is the hardest part. With the GM upfitter instructions, wiring only took me about an hour trying to figure it out for the first time. I could do it again in less than 30 minutes. It is nice all the mounting locations are there and all the parts are in the bag.

  • Like 1
Link to comment
Share on other sites
rongotti Enthusiast

rongotti

Posted
Posted
After 244 days on order I have my truck. The switches are in the knee bolster but nothing is wired. The dealers not sure whos paying for it when I bring it back. A $64,000 truck and GM can't do it at the factory? Come on GM you can do better than that.[emoji2959]
I can't even order mine, the parts idiots tell me the part numbers I give them from here don't exist [emoji2357]

Sent from my SM-G988U1 using Tapatalk

Link to comment
Share on other sites
Indycanard New Member

Indycanard

Posted
Posted (edited)

My just picked up my 2020 2500HD Duramax. As I bought off the lot, and the truck I selected did not have the upfitter switches optioned, so I need to 100% self install.  I took a look under the hood, and the firewall pass thru doesn't seem to include the "nub" that is cut to allow the power pass thru. My truck was mfg in Feb 2020.  I can't tell from reading the past pages of posts, so I'll ask. Does the upfitter install work with diesel? I'm ready to order the parts, but as has been noted many times, the parts are not specified for the 2500s (although I get it that they fit), just not sure about the Duramax. Maybe the power pass thru is different?  I can select the Upfitter option on the chevy.com website to build a truck, so I think it will work. I'd just like confirmation.



Thanks



Edit:  I climbed up on a ladder to peer into the cavernous engine bay and the firewall. I looked way farther back and saw the "nub" that is used for the pass thru. I also went under the dash I spotted the connector taped to the harness near the fuse box. Sure sounds like it will work. Debating if I should just cut a hole in my existing (one button start version) knee bolster instead of buying the one with the outfitter switch cut out.  I guess time to order...
