Once everything is loose and pulled forward You will finally see the holy grail the final screw. All that to get to this one screw! Undo it and you can now remove the bottom dash. From here I would do all you wiring and switch assembly under the dash then put everything back together and plug in the upfitter switches and follow the rest of the guide to hook it up to the battery. Hopefully this helps someone. I looked everywhere and so nothing of how to actually remove the bottom of the dash completely.






  • Like 1
  • 2 weeks later...
Posted

Good Morning All,



Great write up!  Does anybody have a part numbers for the up fitter switch kit?

Posted
1 hour ago, Seapacer2 said:

Good Morning All,



Great write up!  Does anybody have a part numbers for the up fitter switch kit?

Requester,

The Service Parts 9L7 retrofit kits are NOW available.  Below is the kit P/Ns based on the vehicle’s interior color and whether it has push button (BTM) or keyed ignition start. The table below then provides the list of P/Ns that are included in the kit for your vehicle application. NOTE: dealer price for these kits is $126.92, if more pricing information is required dealers are recommended to contact the pricing center customer assistance and request pricing.

  • 84942071 for use with Jet Black interior and keyed ignition (-BTM)
  • 84942072 for use with Very Dark Atmosphere Interior and keyed ignition (-BTM)
  • 84942073 for use with Jet Black interior and with push button ignition (+BTM)
  • 84942074 for use with Very Dark Atmosphere interior and with push button ignition (+BTM)



Kit #



84942071



84942072



84942073



84942074



Knee Bolster



84487351



84487352



84487354



84487355



Switch Bank



84688687



84688686



84688687



84688686



Fuse Kit



84669070



84669070



84669070



84669070



Fasteners



11589015 (2)



11589015 (2)



11589015 (2)



11589015 (2)



Aux Fuse Block



84645397



84645397



84645397



84645397



Under Hood Wiring harness



84794790



84794790



84794790



84794790



Retainers



11589290



11589290



11589290



11589290





The dark coco color interior is called "Very Dark Atmosphere" Now look carefully at the part numbers as it depends on how your truck is outfitted with OR without a key type switch. I did my own taking my time and I can say you will have to disassemble the entire (or most of it) the center console. Do a search and a good article is on Diesel forums. I had to redo the entire writeup in MS Office as the photos were messed up. I again took my time. I utilized my own means and methods.



Good Luck

Chuck

  • Thanks 1
  • 2 weeks later...
Posted

Quick stupid question.  In regards to the 4 "hot wires" that come off the switch panel, do I wire my light positive directly to them and ground to driver side battery?   Or do I still run this to a relay that is typically used when running accessory lighting etc.

  • 2 weeks later...
Posted
On 11/8/2020 at 9:58 AM, JT19HC said:

Quick stupid question.  In regards to the 4 "hot wires" that come off the switch panel, do I wire my light positive directly to them and ground to driver side battery?   Or do I still run this to a relay that is typically used when running accessory lighting etc.

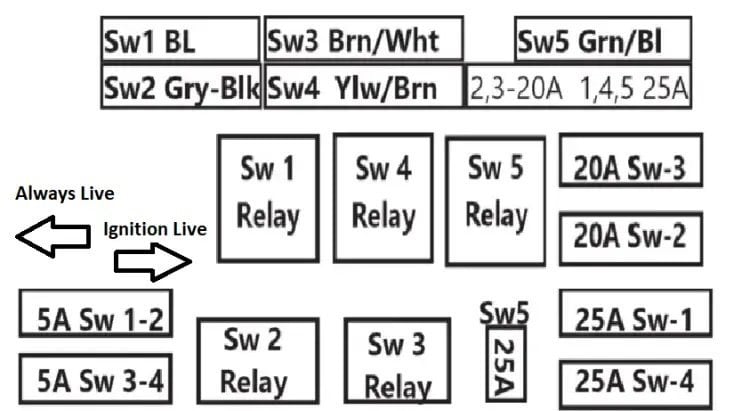

You can put the positive wire directly to one of those upfitters wires as the upfitters already has relays as part of the kit. Remember there rating of each switch to 20 amps and 30 amps. You can usually ground the negative to the metal of the truck. Also you can select by position of the fuse asswmbly where its can be turned on by key on use or swap the fuse slot to activate power on at all times. Of course by pushing the button / switch on the group.



Chuck

  • 3 weeks later...
Posted

So I am pretty sure that I saw somewhere that the 5th switch is for a wire in the headliner for a strobe, does anyone know where in the wire harness that is so we can utilize it?  Also the switches are all on/off, is there a way to make any of them momentary switches ( for something like an air horn)?

Posted

I was able to do the install without removing the kick panel, If you pop out the switches which was very easy, and remove the fuses from the side as described, I had plenty of room to do all of the wiring.  And instead of screwing the module in place, I just used zip ties and it feels sturdy as heck. However I think if I need to there is enough room behind the kick panel to get a 1/4" ratchet with a small bit and screw behind the kick p[panel if you pull it out just a bit

Posted

I found the wire for the 5th switch using the wiring diagram on gmupfiitter.com.  it is pin 8 on the harness and should be green with a blue stripe,  Remove the connector, pull the red lock out (in the middle of the lock there is a tab) I used a pin removal tool, or you can use a tiny screwdriver to lift the locking tab inside the connector via the non wire side, and pull out the wire,


  • 2 weeks later...
Posted

Found this video on taking center console trim pieces and radio off.






  • 2 weeks later...
Posted
On 10/30/2020 at 12:56 PM, Gecko50 said:

Requester,

The Service Parts 9L7 retrofit kits are NOW available.  Below is the kit P/Ns based on the vehicle’s interior color and whether it has push button (BTM) or keyed ignition start. The table below then provides the list of P/Ns that are included in the kit for your vehicle application. NOTE: dealer price for these kits is $126.92, if more pricing information is required dealers are recommended to contact the pricing center customer assistance and request pricing.

  • 84942071 for use with Jet Black interior and keyed ignition (-BTM)
  • 84942072 for use with Very Dark Atmosphere Interior and keyed ignition (-BTM)
  • 84942073 for use with Jet Black interior and with push button ignition (+BTM)
  • 84942074 for use with Very Dark Atmosphere interior and with push button ignition (+BTM)



Kit #



84942071



84942072



84942073



84942074



Knee Bolster



84487351



84487352



84487354



84487355



Switch Bank



84688687



84688686



84688687



84688686



Fuse Kit



84669070



84669070



84669070



84669070



Fasteners



11589015 (2)



11589015 (2)



11589015 (2)



11589015 (2)



Aux Fuse Block



84645397



84645397



84645397



84645397



Under Hood Wiring harness



84794790



84794790



84794790



84794790



Retainers



11589290



11589290



11589290



11589290





The dark coco color interior is called "Very Dark Atmosphere" Now look carefully at the part numbers as it depends on how your truck is outfitted with OR without a key type switch. I did my own taking my time and I can say you will have to disassemble the entire (or most of it) the center console. Do a search and a good article is on Diesel forums. I had to redo the entire writeup in MS Office as the photos were messed up. I again took my time. I utilized my own means and methods.



Good Luck

Chuck

So this might be a stupid question, but can anyone confirm that these part #'s are the same between the 1500 and 2500HD trucks?



Posted
On 12/28/2020 at 3:21 PM, ekbruster said:

So this might be a stupid question, but can anyone confirm that these part #'s are the same between the 1500 and 2500HD trucks?



I am curious on this as well.

Posted
On 1/4/2021 at 3:45 PM, Thaflood said:

I am curious on this as well.

Confirmed, I got the kit in the mail today from gmpartsdirect.com, just got the old panel removed (not fun) and will pull wires tomorrow before putting the new panel back in, but did a quick fit check and everything lines up on my 2500HD AT4...

Posted

I  have been looking for the kit 84942073 for use with Jet Black interior and with push button ignition (+BTM).

Had it ordered with gm parts direct, but the order was canceled do to "back ordered and no expected date". Does anybody know if its available anywhere? Looks like most of the gm parts sites are the same pages with different names....

Posted
4 hours ago, ekbruster said:

Confirmed, I got the kit in the mail today from gmpartsdirect.com, just got the old panel removed (not fun) and will pull wires tomorrow before putting the new panel back in, but did a quick fit check and everything lines up on my 2500HD AT4...

Thank you! So on that parts list you had to order 1 of everything? Or is there 1 part number that includes the entire kit?
