2020 Tail light upgrade

ChevyMyers

By ChevyMyers
in Modifications, Wheels & Tires

 Share

Recommended Posts

ChevyMyers Enthusiast

ChevyMyers

Posted
Posted

Hey guys,

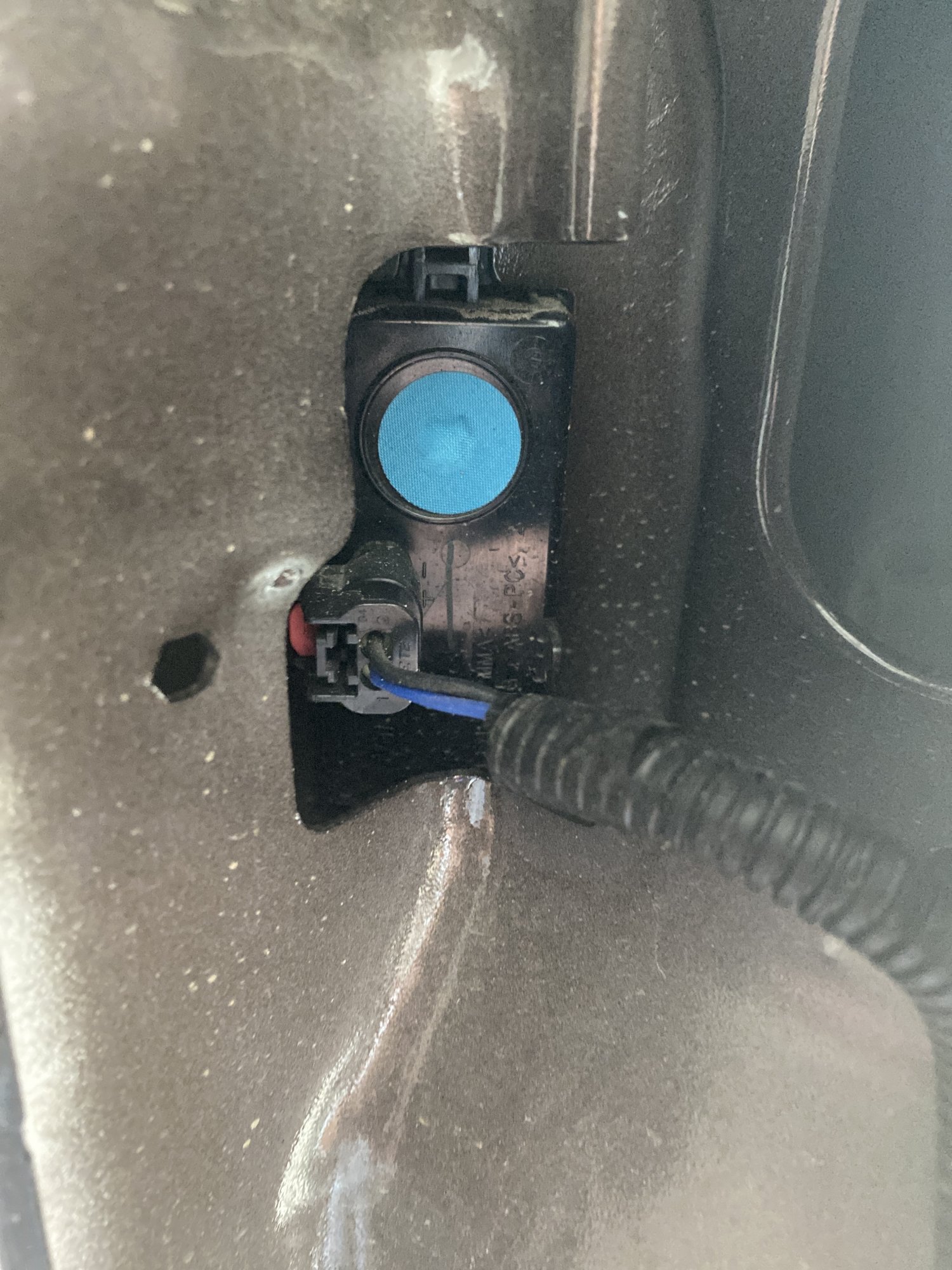

I have a 2020 Chevy Silverado 1500 recently bought spyder aftermarket headlights. Having trouble removing the (pigtail connector) from GM. I’ll attached photos. For the life of me I cannot remove the connection due to fat hands and the location of the connection.



Has any one upgrade their halogen Oem tailLights to led aftermarket.

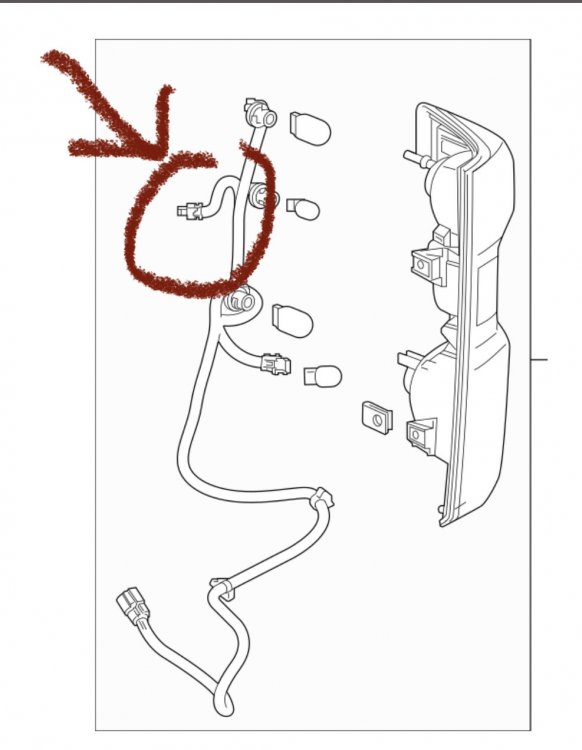

Part # (Removed) 84752979



any help is Greatly appreciate





14 Silvy Enthusiast

14 Silvy

Posted
Posted

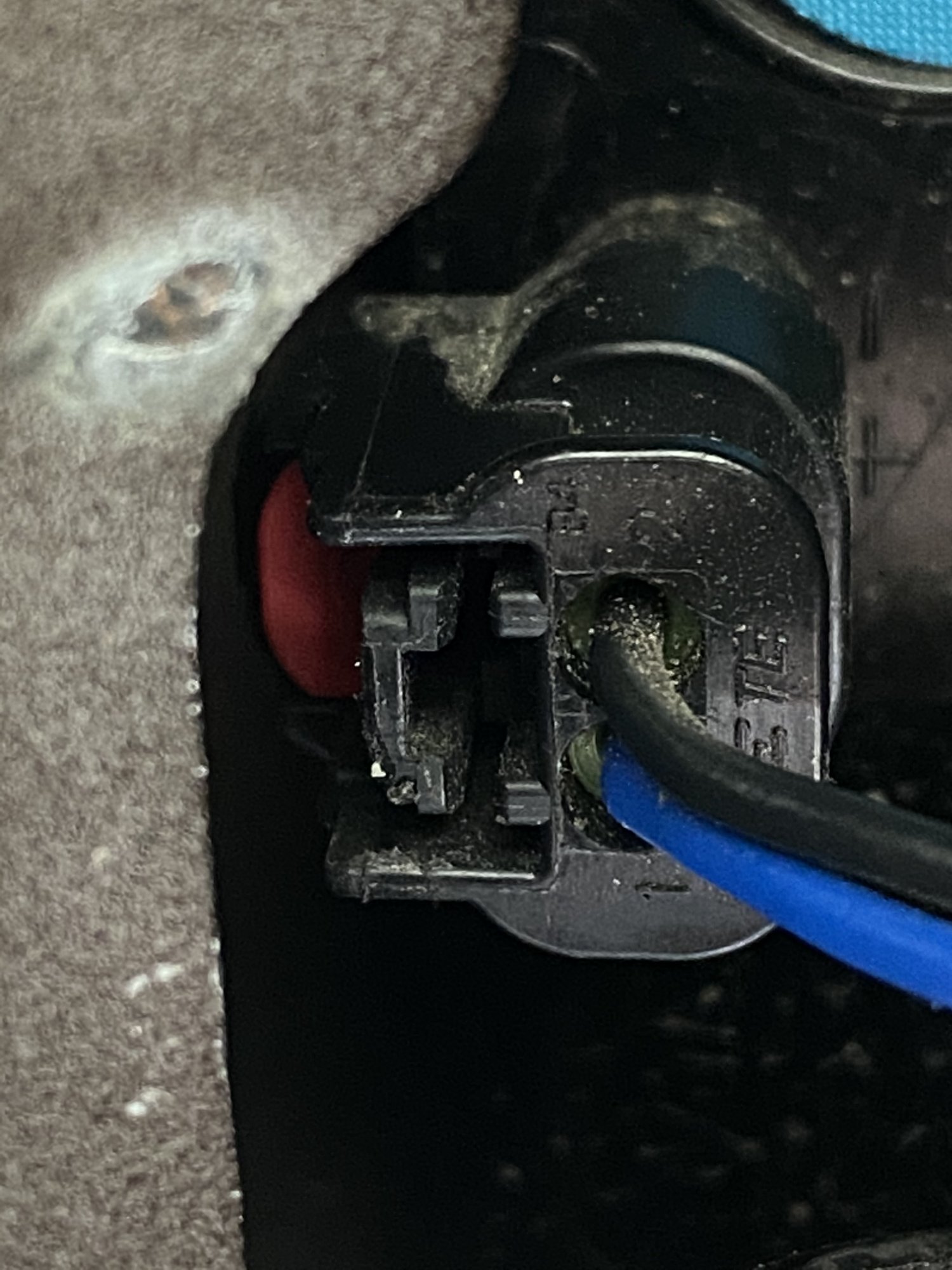

You should be able to push the red lock tab towards the front of the trick Jen press down on the tab and unplug it. Just don't forget to push red tab back once new lights are plugged in.

Sent from my SM-G988U using Tapatalk

TNTSierra Senior Enthusiast

TNTSierra

Posted
Posted

Agreed, push the red pin forward, or possibly back, then push the black tab down and pull.  It like the MAF sensor tab on the intake. Had to push up on that, then push tab in and it came right out.  Good luck

ChevyMyers Enthusiast

ChevyMyers

Posted
  • Author
Posted

Thanks for your reply man, these absolutely no way I can push that tab down hole to narrow for my hand and at a hard angle  for any tools

If I had a child’s hand then maybe lol


TNTSierra Senior Enthusiast

TNTSierra

Posted
Posted
3 minutes ago, ChevyMyers said:

Thanks for your reply man, these absolutely no way I can push that tab down hole to narrow for my hand and at a hard angle  for any tools

If I had a child’s hand then maybe lol


Try getting a flathead screw driver and pushing the red tab towards the truck. Then use it to push in on the black tab.  See if that helps.  I know, my father is a mechanic, and he says its getting harder every year to work on these trucks.  My mom had an older Traverse and to remove the head light bulb was a nightmare!

ChevyMyers Enthusiast

ChevyMyers

Posted
  • Author
Posted

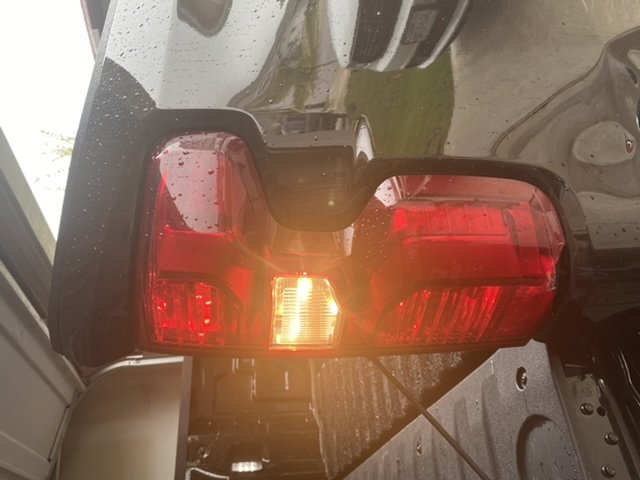

Smh update**** I dropped one of two connections from the new tail light down, and connected it underneath the bed. And bam lights came on .....



So I may have been spinning my wheels on trying to remove that connection, however now there’s one “exposed” connection just sitting there behind the tail light



All lights are working



kioolt Enthusiast

kioolt

Posted
Posted

If you're unable to get your hands in there to pull the red tab to you try using a small screwdriver.  Then squeeze the black tab at the wire end of the plug.  Needle nose pliers may help here.  You appear to be showing the rear of the bed lights, so if you are still unable to unplug the light try removing the light first.

ChevyMyers Enthusiast

ChevyMyers

Posted
  • Author
Posted (edited)

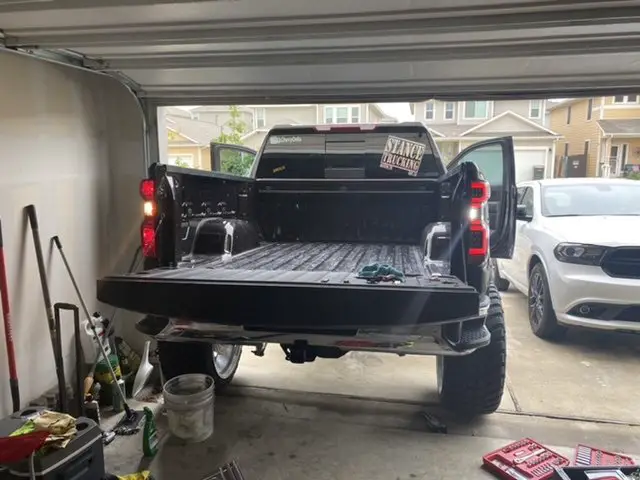

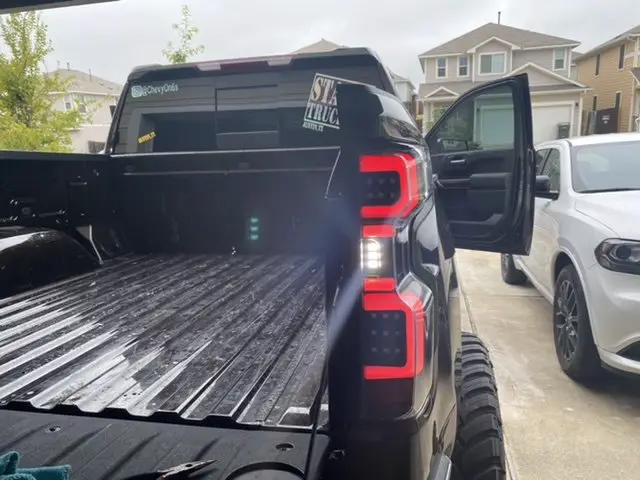

Btw here’s a photo of my build I’m sure I will be back for more question HAHA thanks for the input guys.



and follow me on

IG @ Chevyon6s

for more photos



Edited by ChevyMyers
TNTSierra Senior Enthusiast

TNTSierra

Posted
Posted

glad you got it to work.  They look nice! Love black when it's all clean!!

I'm thinking of painting mine black. Still haven't decided yet

Take care

ChevyMyers Enthusiast

ChevyMyers

Posted
  • Author
Posted
2 minutes ago, kioolt said:

If you're unable to get your hands in there to pull the red tab to you try using a small screwdriver.  Then squeeze the black tab at the wire end of the plug.  Needle nose pliers may help here.  You appear to be showing the rear of the bed lights, so if you are still unable to unplug the light try removing the light first.

You’re absolutely correct, the connection is installed on the bed cargo lights. I I tried to remove the cargo light with a plastic pry, However I stopped when I heard a cracking sound.


Since the lights are working now with only one connection I’m going to assume this connection does not need to be removed, and is not needed due to the factory harness still being installed.


I need to contact the company and verify though.


Thanks for your reply!

ChevyMyers Enthusiast

ChevyMyers

Posted
  • Author
Posted (edited)
2 hours ago, 14 Silvy said:

Good looking ride any more info and pics?

Sent from my SM-





2020 Chevy Silverado 1500 Texas edition

Havana brown metallic

Mcgaughys 7-10 inch lift (Set at 10)

37x13.5x26 AMP M/T

26x14 Hard-core off-road Rims

vinyl wrap grille “color matched”

Straight pipe muffler delete





Edited by ChevyMyers
ChevyMyers Enthusiast

ChevyMyers

Posted
  • Author
Posted

2nd update**

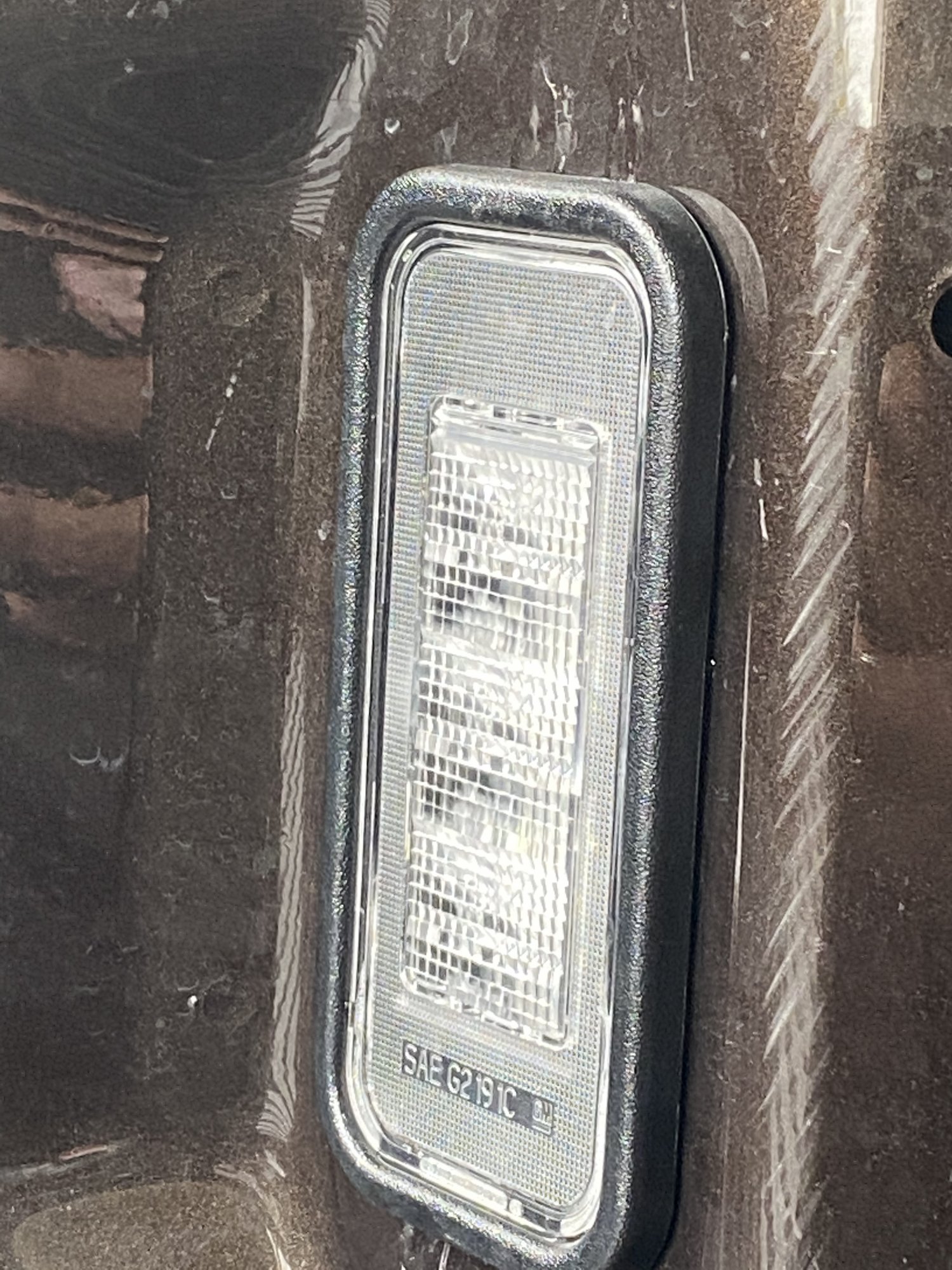

Although the tail lights are now working correctly, I’ve lost the bed cargo, which alludes to that god awful connection is needed? so I will have to pull the cargo light off......



Any ideas how to remove it with out breaking the damn light???????



ive tried the pry method and I swear it will break in half lol


TNTSierra Senior Enthusiast

TNTSierra

Posted
Posted (edited)

Have you tried using a charge card to slide on the side of it to pop it lose?  I would think a big flathead screwdriver also would work. I would think it has a clamp on top and bottom that holds it in.


Btw. First picture looked black. I’m digging the brown color. Guy on forum has GMC that color. Very unique.  Nice choice

Edited by TNTSilverado
