How-To: Install GMT900 Footwell Lighting.

Recommended Posts

This past weekend I had footwell lighting (aqua blue) installed into my camaro at Camarofest by ACCLighting. Liked it so much the next day I purchased a white set for my truck.



Here is the brand I went with



http://www.automotiv...ngpair-1-1.aspx






I wired them so they come on with the dome lights, another option is to wire them with a switch but I like them to automatically come one.



TOOLS - Flashlight/Cap light, Trim remover tool, Knife (to strip wires), Zip Ties, Electrical Tape, Footwell Lights



TIME: 15-30 mins



DIFFICULTY - Easy

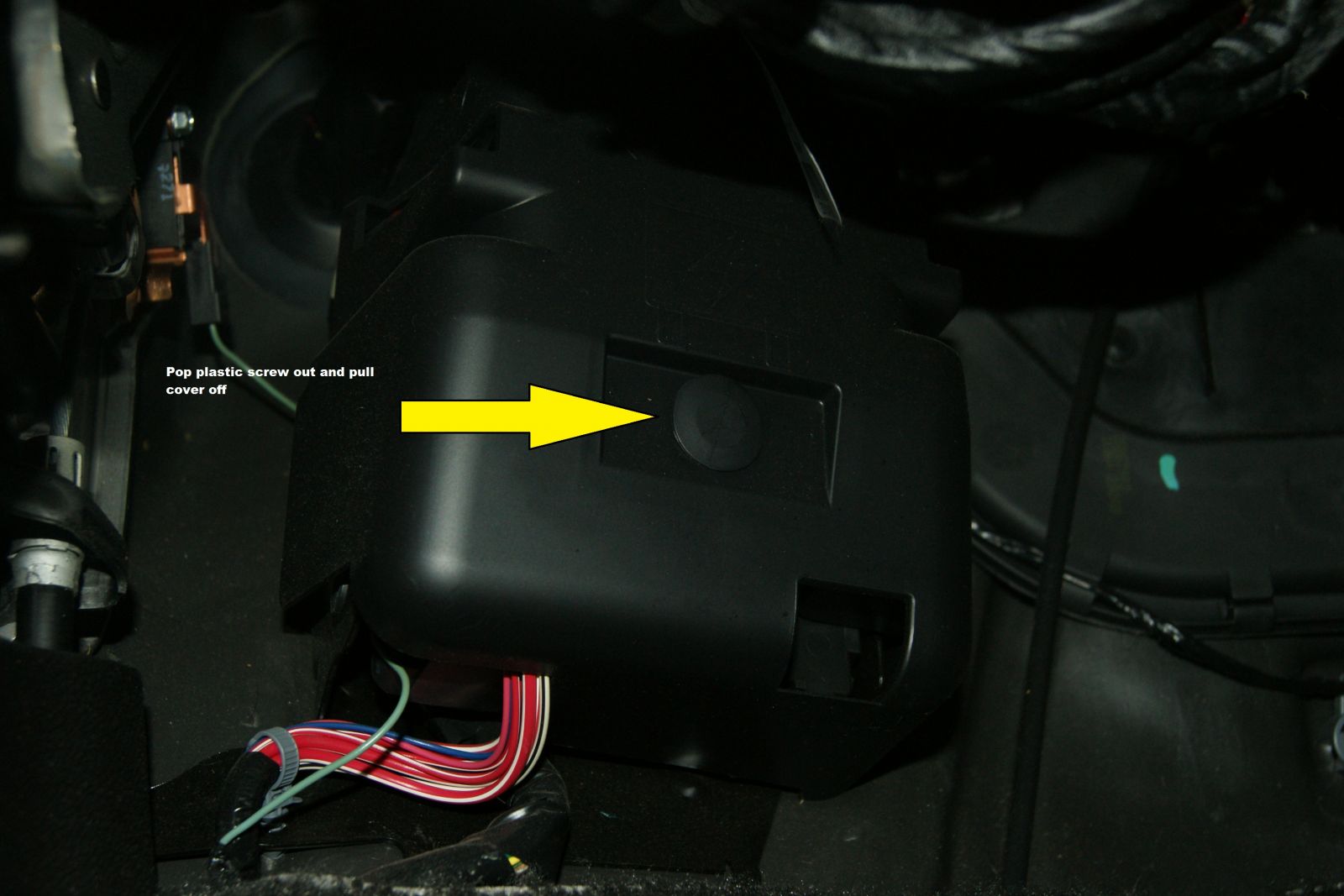

Step 1 - Remove black plastic cover. This is located on the drivers side to the very left under the dash. Unplug the harness as noted in the 3rd photo in the yellow box. This will make splicing easier
















STEP 2 - Run Pass Side Foot Well lights through back of Center Console

I just shoved the light and wires and grabbed them on the other side. I then peeled the tape and stuck in a desired location under the footwells






STEP 3 - Wire in both sides

Connect the 2 red wires from the footwell lights and splice them into the gray wire from the wiring harness (shouldnt matter which gray wire you choose).






STEP 4 - Wire ground

I connected the ground to a bolt on the firewall.






STEP 5 - Attach drivers side footwell lights in desired location (I used zip ties to help secure)



STEP 6 - Connect wire harness and put black cover back on

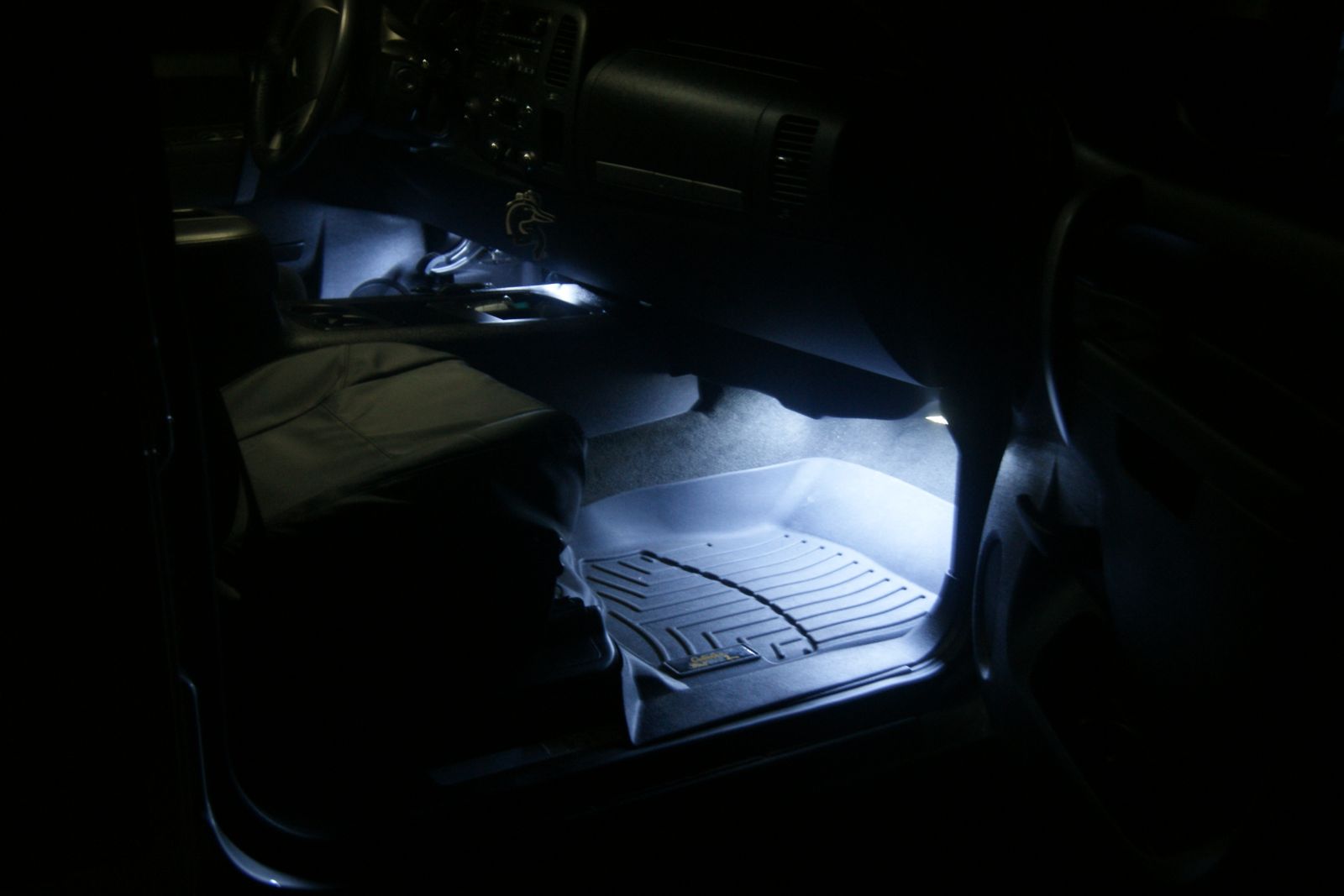

STEP 7 - TEST and Enjoy the new lights




Edited by RyanbabZ71
  • Like 4

Share this post


Link to post
Share on other sites

I did this a bout 6 months ago. It's a nice mod

Share this post


Link to post
Share on other sites

this looks awesome and I appoligize now for jacking your thread but I have 2 green strip lights and I wanted to wire it up so it comes on with the dash lights,does anyone know what wire that would be.

Share this post


Link to post
Share on other sites

Had blue ones in my 1990, I wired them into the light on the floor 4x4 shifter. The blue lights on the blue interior looked awesome.

Share this post


Link to post
Share on other sites

i did this today with blue led strips

Share this post


Link to post
Share on other sites

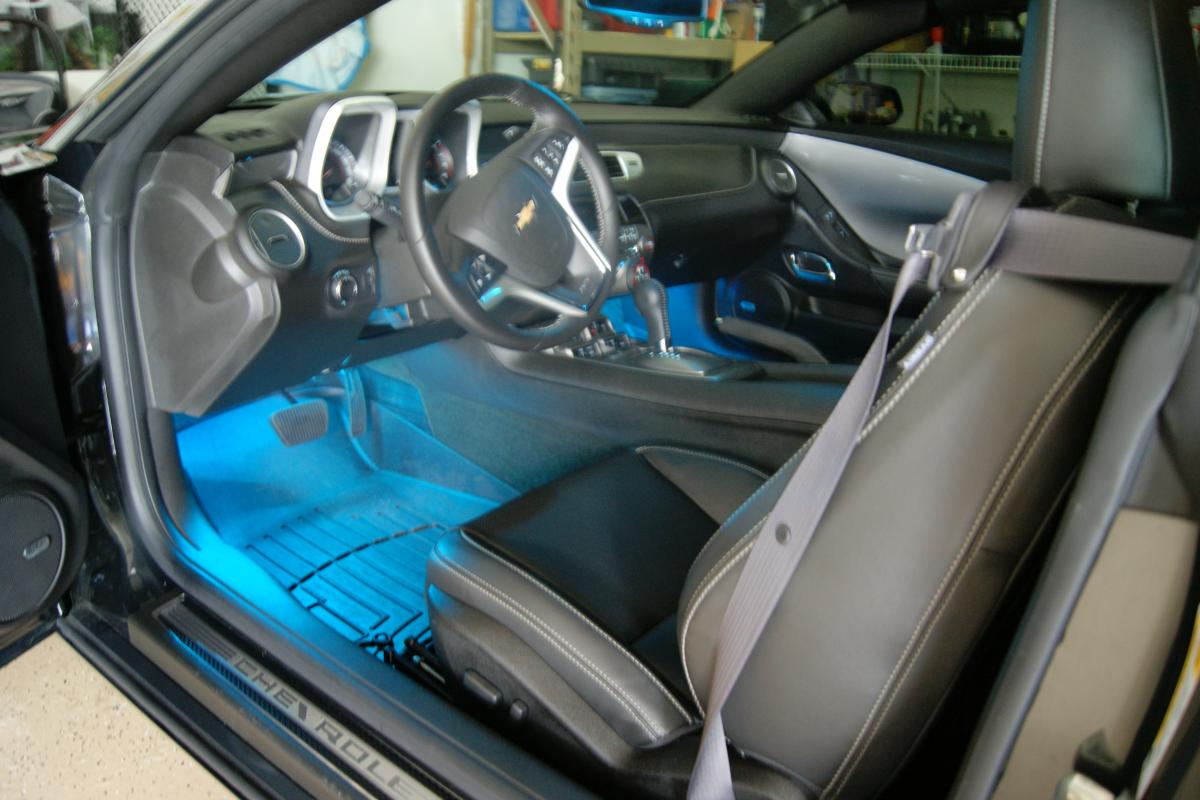

Here are my aqua blues in the camaro. Matches perfect with the door panel and dash lighting





  • Like 1

Share this post


Link to post
Share on other sites

The dome lights in the gmt900 do not dim





Ryan





Share this post


Link to post
Share on other sites

The dome lights in the gmt900 do not dim





Ryan





Maybe by "dimming" he's referring to the "fade-on" and the "fade-out" that the dome lights do when doors are open/closed? Anyway, thats my question, as well lol.

Edited by mc7719

Share this post


Link to post
Share on other sites

I will check. I am not 100% sure at the moment



As far as dimming there isnt a dial/switch where you can adjust when they are on so its either on or off.

Share this post


Link to post
Share on other sites

Yes they "fade out" like the dome light





Ryan





Share this post


Link to post
Share on other sites

Yes they "fade out" like the dome light





Ryan





Mine fad out too. These things are cool....

Edited by Coolmaker

Share this post


Link to post
Share on other sites

They really light up the ground around the truck when you open the doors too





Ryan





Share this post


Link to post
Share on other sites

Yes, I was talking about the "fade in, fade out", guess "dimming" was the wrong word. Good to know, will be doing this SOON.

Share this post


Link to post
Share on other sites
