Help with cab lights

JACOBE9 · January 16, 2013

I have a 2004 GMC 2500HD and I would like to get cab lights on it. And I have a couple of questions, first do I have to use the lights that would have came on my truck from factory or can I use a newer model? Next question is can I do this on my own or is it more of a job for a shop? If i could do this on my own is there a how to out there or where should I go for help?

Any help would be great. Thanks in advance

Jake

tanked_darren · January 16, 2013

Well you might run into leaks later on doing this just putting it out there.

Sent from my Nokia 5190 using Tapatalk 2

Chris · January 16, 2013

Lots of clear silicone

Sent from my DROID RAZR MAXX using Xparent Red Tapatalk 2

8.1HD/ALLISON · January 16, 2013

It can be done if you are handy with a drill, tape measure, and wiring. If you are not comfortable drilling about 12 holes in your cab, you need to go to a shop.

schlegle1 · January 24, 2013

silicone and lots of it.

yukon25008.1 · January 24, 2013

Some things Its just better for a shop to do.. As far as what kind you can put whatever you want on the roof It all

comes down to lights,wiring,switch.. If the shop has a good stereo/wiring guy.. They will come on with the other

lights and operate like they should with no leaks.

Id rather change the tranny then pull a headliner and start trying to do those lights!

JACOBE9 · January 30, 2013

Thanks for the help I think I am going to go through a shop and have it done right. I think I am going to go with the Recon set.

07sierra8.1 · February 9, 2013

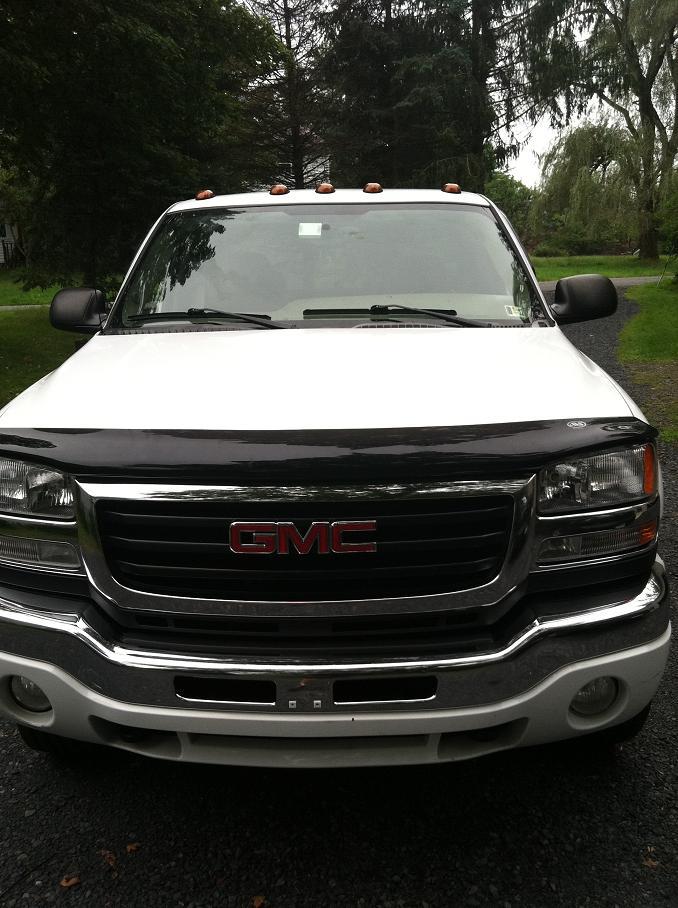

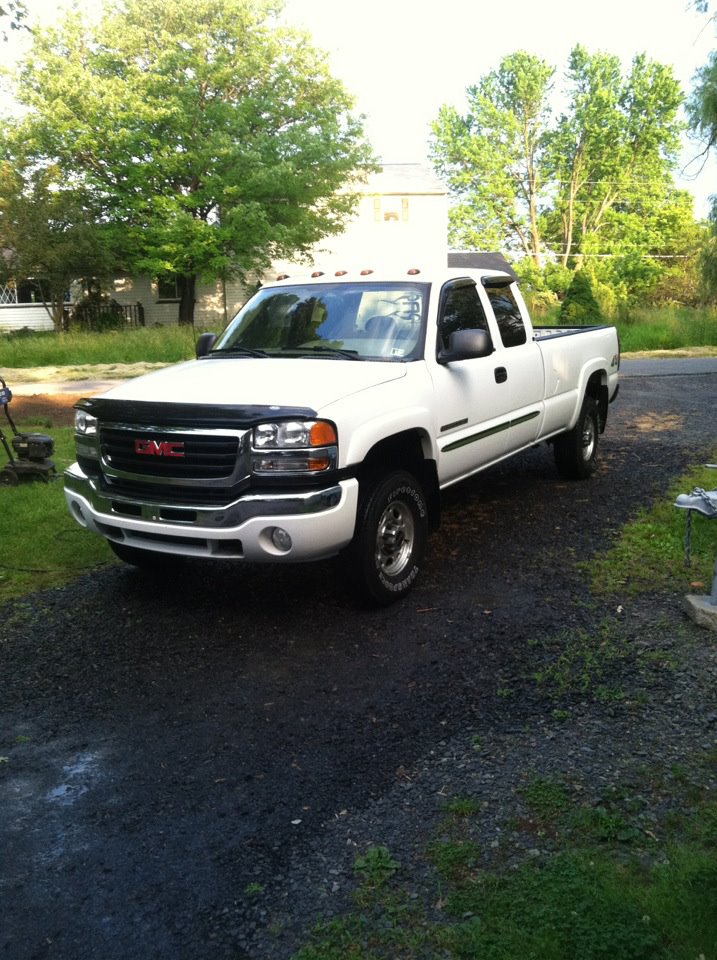

I did my own almost 2 years ago now...I did mine alittle different then the factory ones....I didnt like the look of the bar in the middle....As for the wiring...at least in my truck that was the easy part...the truck was prewired up to the side of dash on the passenger side..I bought a factory harness to run up to the roof...and from there on I had to splice into it because of the way I did my lights...Everything works perfect...I do have one pesky one that keeps getting condensation inside of it in a real hard rain..but thats the only complaint I have about it....Deff makes the truck look ALOT BETTER IMO......If I look deep into my favorites I am sure I can find part numbers for everything I got...

JACOBE9 · February 12, 2013

I did my own almost 2 years ago now...I did mine alittle different then the factory ones....I didnt like the look of the bar in the middle....As for the wiring...at least in my truck that was the easy part...the truck was prewired up to the side of dash on the passenger side..I bought a factory harness to run up to the roof...and from there on I had to splice into it because of the way I did my lights...Everything works perfect...I do have one pesky one that keeps getting condensation inside of it in a real hard rain..but thats the only complaint I have about it....Deff makes the truck look ALOT BETTER IMO......If I look deep into my favorites I am sure I can find part numbers for everything I got...

It does look really good and I am not really worried about the wiring, my issue is with the sealing of the lights and keeping out water. I did find a shop to do them for me for just a little more then what the lights will cost so thats the route I am going to take. But I would like to know what brand of lights you went with I like the look of the lights like that?

Thanks

07sierra8.1 · February 14, 2013

It does look really good and I am not really worried about the wiring, my issue is with the sealing of the lights and keeping out water. I did find a shop to do them for me for just a little more then what the lights will cost so thats the route I am going to take. But I would like to know what brand of lights you went with I like the look of the lights like that?

Thanks

They are all the OEM GM lights that would be the two outer ones ..The ones that come from the factory on each side of the bar ..A company on ebay was selling the Exact OEM lights for like 20 bucks a Light...(They are like 60 EACH from the dealer) I just looked on ebay, I couldnt find that company anymore though

07sierra8.1 · February 14, 2013

Found Him!!!!

http://www.ebay.com/...a860beb&vxp=mtr

Those are the lights I bought....They are 100% Identical to Factory ones....Much Much Cheaper then dealer prices though..Been on my truck for 2 Years..Still look brand new

Lights P/N: 15059752

Factory Wire Harness P/N: 15846970

Pig Tail P/N: 12085535

I used this as a Guide as to where to mount them

http://home.comcast.net/~tophog/duramax/tech/CabLight_Install.pdf

JACOBE9 · February 16, 2013

Found Him!!!!

http://www.ebay.com/...a860beb&vxp=mtr

Those are the lights I bought....They are 100% Identical to Factory ones....Much Much Cheaper then dealer prices though..Been on my truck for 2 Years..Still look brand new

Lights P/N: 15059752

Factory Wire Harness P/N: 15846970

Pig Tail P/N: 12085535

I used this as a Guide as to where to mount them

http://home.comcast....ght_Install.pdf
