AUX switch install

smcgillis10

By smcgillis10
in Modifications & Accessories

 Share

Recommended Posts

Techboy2010 Enthusiast

Techboy2010

Posted
Posted

Do you still have the part number for this? This is how I was wanting to approach this too. Just run the four wires to a relay panel, then I can wire the relays to my devices.

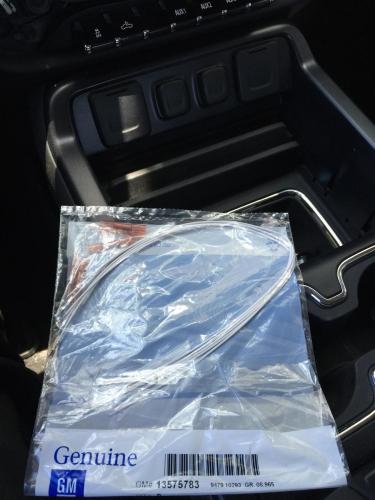

The Attached image has the GM Part Number: 13575783. I honestly do not remember the exact cost of the them , but it was worth it to me so that I did not need to tear into my new switch. I hooked the wires up to the Negative of an automotive relay and they work great! Let me know if you need anything else.





  • Like 4
  • Replies 450
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

Sffsks11
Sffsks11

So if everybody is wondering on how to install these auxiliary switches (GM Oem P# 23145158) without the GM upfitter diagram. I purchased the Bussmann 15303 - 5 it is a weather tight fused and relay b

tha_lildude
tha_lildude

I have just successfully fully integrated my AUX switches OEM style. My fuse block did not come with the relays or fuses, nor did it have connectors for them. I had to purchase a few new things.

AZelkhunter
AZelkhunter

Here are some pictures of the modified buttons. I had to remove all the black and white, then respray the white because you couldn't see the icon in the daylight. I am pretty happy with the way they

Posted Images

Techboy2010 Enthusiast

Techboy2010

Posted
Posted

and here is how it looks on the factory harness side. Make sure you look at the sheet that is posted earlier in this forum as it tells you which pin is Aux 1 , Aux 2 .. and so on.





  • Like 2
AZelkhunter Enthusiast

AZelkhunter

Posted
Posted

The Attached image has the GM Part Number: 13575783. I honestly do not remember the exact cost of the them , but it was worth it to me so that I did not need to tear into my new switch. I hooked the wires up to the Negative of an automotive relay and they work great! Let me know if you need anything else.



I see 5 wires in the package, is that correct? Awesome information, exactly what I needed.

  • Like 1
arkiehou02 Enthusiast

arkiehou02

Posted
Posted

There's many different switch panels. But be aware the only ones you can hook a relay up to have the latch switches.


The momentary switches will only be used for small voltage actions controlled by the BCM.

These are momentary (the same kind the remote your tv uses) very low amp. . 6691d94bf5f83064c0d55d13983acd11.jpg

So just to clarify this post the top type switch is capable of switching a standard relay. The bottom type must utilize the "latching relay" mentioned in the last few posts. I am assuming the actual 4 auxiliary switch has the switches like the top photo and the ones such as the 7 switch with exhaust brakes have the bottom photo type.

smcgillis10 Enthusiast

smcgillis10

Posted
  • Author
Posted





So just to clarify this post the top type switch is capable of switching a standard relay. The bottom type must utilize the "latching relay" mentioned in the last few posts. I am assuming the actual 4 auxiliary switch has the switches like the top photo and the ones such as the 7 switch with exhaust brakes have the bottom photo type.

Correnct



Sent from my SM-N920V using Tapatalk

AZelkhunter Enthusiast

AZelkhunter

Posted
Posted

No only 4 wires are in there.

Did you have to buy all 4 individually? I ordered 2 from my dealer (thinking I would get 4 in a package) and only got 2 single wires. I need to make sure they didn't rip me off. $9.54 ea is a bit steep for single wires!! I can find them $6.04 online with $12 shipping(ouch)

AZelkhunter Enthusiast

AZelkhunter

Posted
Posted

Here are some pictures of the modified buttons. I had to remove all the black and white, then respray the white because you couldn't see the icon in the daylight. I am pretty happy with the way they turned out, I think I can do better though. post-153411-0-97064400-1453995226_thumb.jpegpost-153411-0-72529300-1453995237_thumb.jpeg







  • Like 5
derekc89 Enthusiast

derekc89

Posted
Posted



How do you connect your wiring harness to the garage door openers to work as the switch for the LED bar?



You connect the wiring harness like you would normally do. When your done, program your homelink with the remote it comes with. Just like your programming a garage door opener. To be honest, Id rather have a switch hard wired. While driving I have to press the button a few times before the lightbar turns on.

arkiehou02 Enthusiast

arkiehou02

Posted
Posted

Here are some pictures of the modified buttons. I had to remove all the black and white, then respray the white because you couldn't see the icon in the daylight. I am pretty happy with the way they turned out, I think I can do better though. image.jpeg image.jpeg

That looks pretty good. So you used a white paint behind the vinyl? Was it a translucent paint or just normal spray paint? I had thought about doing a white vinyl behind the black and layering them. I was worried about the appearance at night, but I think you solved that issue.
AZelkhunter Enthusiast

AZelkhunter

Posted
Posted

That looks pretty good. So you used a white paint behind the vinyl? Was it a translucent paint or just normal spray paint? I had thought about doing a white vinyl behind the black and layering them. I was worried about the appearance at night, but I think you solved that issue.

I just used normal spray paint. The coats could have been a little bit lighter but I wanted to make sure they were even. I sprayed about 3 coats then sanded it flat with 800 grit. They are slightly darker at night but it is barely noticeable. I didn't test the white vinyl, probably should have but I think it would have been to dark.

  • Like 1
