Bed LED wiring question

[crewl1]

Use the dummy plug - drill out the needed locations and pull out the wires and pins from your 6 way plug and shove them in the 8 prong dummy.

Sorry you have to go through the hassle but it may be your only choice if you want to use it.

Otherwise sell it off to a 2016 owner in the marketplace here.

[chuckl1218]

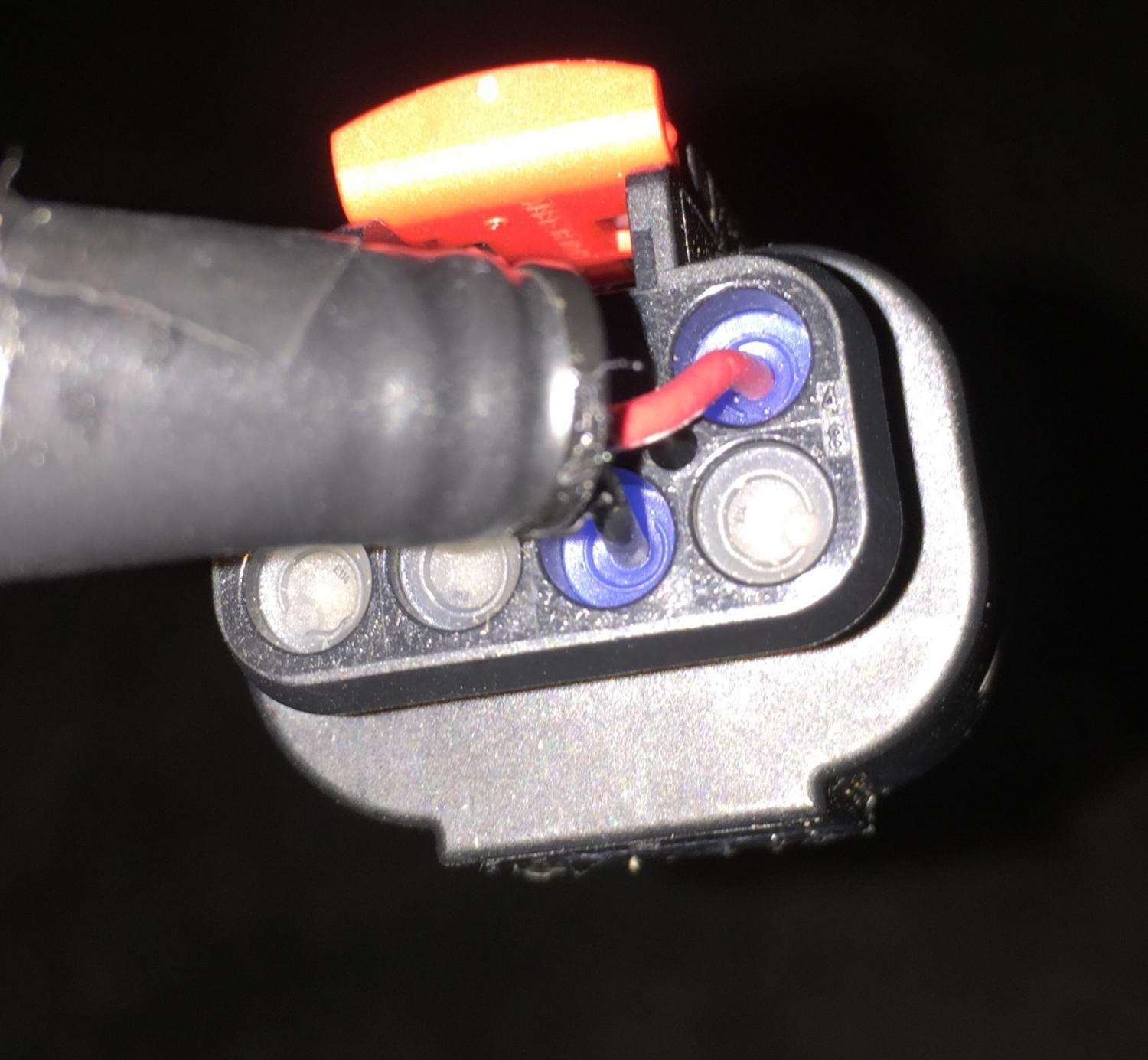

Here's the plug from the other side...

[silveradosid]

thanks chuck that pic will make life simple. any one know what the other 6 ports are for

[tbarn]

If you opt for the drill and shove method, be aware that the terminals are different from '14/15 to '16. Not sayin' it won't work but GM service info shows different test probes for checking the terminals. Whatever you do, make sure it is weather tight!

[Imcrazy]

Seller sent me the 6 way and it was advertised for fitting 14-16. Won't accept return so I am stuck with a kit that fits a 16 and not my 15.



Do you want to sell the harness? I'd buy it for my '16 possibly... Another thread a guy with a 14 or 15 said he bought this harness for his project: http://www.gmpartsdirect.co/oe-gm/22878806?origin=pla&gclid=CLqv2aeLk8sCFQEdaQodPnEPuQ



I'd give ya $30 shipped for your harness then you could grab that one what should do the trick for you.

Let me know! By either quoting this post or send me a private message.

Thanks,

Aaron.

[je1279]

I had the same exact problem and ended up drilling out the dummy plug and purchasing new terminals because I couldn't get the old ones out undamaged. Here are some links that might be helpful.



http://www.gm-trucks.com/forums/topic/153192-led-under-rail-bed-lighting/page-18



http://www.gm-trucks.com/forums/topic/181863-diy-led-bed-lights/?hl=bed+light

[Bigfoot16]

Well, I ordered a kit also. The kit came with a 6 prong plug but my dummy plug is 8. I have a 2016.. I thought it was supposed to be a 6 prong... really confused...
