So i put my RC 2" level kit and Toyo 295/55/20's on this weekend. Install was simple, just like on my 2011. It definitely helps to have an extra set of hands when wedging that spacer in there. 295/

Saleenpowr
Saleenpowr

Thanks. Here is one more from yesterday. Considering we're getting 8-10 inches of rain the next two days, I won't be taking any better pics soon.

FH212
FH212

Mine is finally done! After months of research I went with the RC 2.5" level kit front only, stock rear block. 20"x9" Fuel Nutz w/ +1 offset, 33x12.50x20 Toyo M/T tires. No rubbing, No trimming, yet a

Posted Images

mnm99 Enthusiast

mnm99

Posted
Posted
10 hours ago, Piggywutz said:

2015 with a Zone 2" level. Wheels are Vision Valor 18x8.5 with 0 offset. Tires are Toyo Open Country AT2 Extreme 285/65/18.



That's what I'm looking to do. This Friday I'm doing the 2" RC Level and still debating on the 285 or 275. What PSI did you fill them to? Any Idea in loss of MPG yet?

Piggywutz Enthusiast

Piggywutz

Posted
Posted
5 hours ago, mnm99 said:

That's what I'm looking to do. This Friday I'm doing the 2" RC Level and still debating on the 285 or 275. What PSI did you fill them to? Any Idea in loss of MPG yet?

I have them at 45 psi. I only drove home from the tire shop so far, so I don't know about mpg's yet.

chewy22 Enthusiast

chewy22

Posted
Posted
16 hours ago, mnm99 said:

That's what I'm looking to do. This Friday I'm doing the 2" RC Level and still debating on the 285 or 275. What PSI did you fill them to? Any Idea in loss of MPG yet?

On my 14 275/70 18s I lost ~2. That was after recalibrating speedo for the larger tire.  Would thinks it’s close to the same for both sizes.  I really like the looks of the 275 but thinking of going to 285 on my next set. No room for chains with the 275s. But it’s hard to swallow the price difference between the two.

mnm99 Enthusiast

mnm99

Posted
Posted (edited)
7 hours ago, chewy22 said:

On my 14 275/70 18s I lost ~2. That was after recalibrating speedo for the larger tire.  Would thinks it’s close to the same for both sizes.  I really like the looks of the 275 but thinking of going to 285 on my next set. No room for chains with the 275s. But it’s hard to swallow the price difference between the two.

The 275/70 you have is 33.2" tall. The stock I have is 31.6" 265/65. I like the 285/65, but the more I read I don't think I'm going to do it just because I'm looking more for function than looks. Kinda 60/40... The 275/65 is 32.1" and they don't weigh that much at all. It should still look good with a nice tread like the Wildpeaks and not affect my gas mileage too much. We''ll see. Thanks

Edited by mnm99
DOUBLE TAP Enthusiast

DOUBLE TAP

Posted
Posted

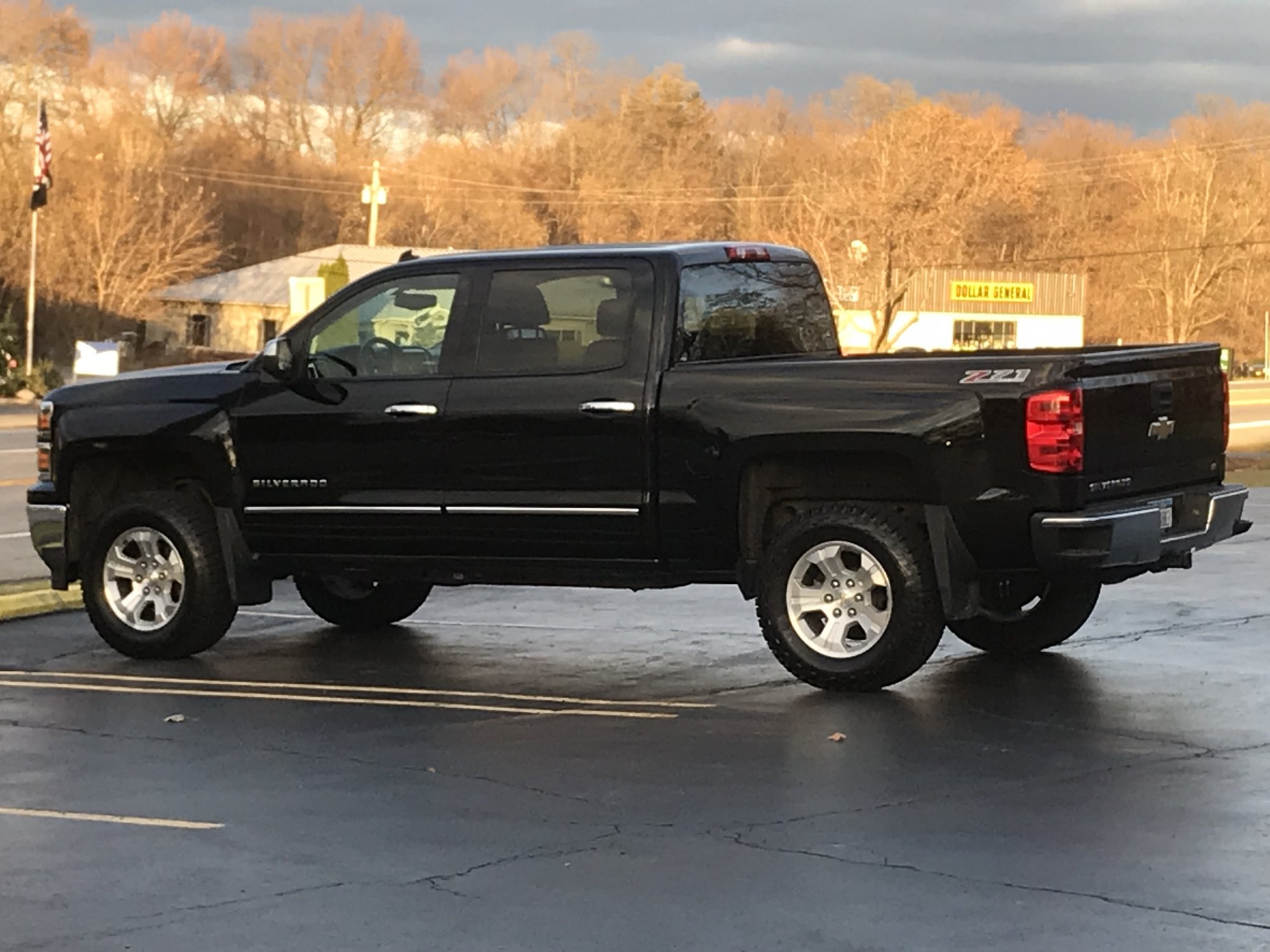

2014 Silvy Crew,_ IMG_0236.thumb.jpg.158049a838275d61ee391d15ed5e4030.jpgMotofab 2 1/2 up front and Ebay 1" block in rear, Falken wildpeaks 285/65/18 , when i first started looking at the lifts seemed 2' had more rake than i liked so I compensated, bought a 2 1/2" up front, alot of pics on the NEW trucks seem pretty level however, on mine once installed then the back sat 1/2' lower..WHY because a 3 yr old truck with a seasoned suspension. So answered issue with 1' rear lift, to do it over i would of went with 2 or 2.25 front lift

  • Like 1
rudyb Enthusiast

rudyb

Posted
Posted (edited)
On 11/21/2017 at 7:34 AM, Geiser100 said:

Finally got my RC 2" level installed. I have a 2015 regular cab with 17 wheels and 265/70/17 tires. Looks great. I took it to a reputable shop in my area. They quoted me $85-95 to install and $65 for alignment plus $5.00 to adjust headlights. Ended up costing me $75 for install and $58 for alignment. Came to $157 total. They even drove me home and picked me up. Best service I've ever had from a shop. I'll post picrures later!



Wth... that's awesome. I called a shop here in OKC yesterday and they quoted me $370. Looks like I need to do some more shopping.

Edited by rudyb
mnm99 Enthusiast

mnm99

Posted
Posted (edited)

Well I ended up finishing the first part. It's a 2 inch RC level. The ride is a little rougher. I can feel the road a bit more.  There is about a 1 inch rake. I'm good with that.I don't get all the fuss with the kit. I installed both sides in 20 min not including jacking and removing the tires. All I did was jack up the entire front end so both tires were off the ground. Remove top nut on sway bar. Remove both strut bolts. Use a pry bar and push down on the upper arm. Just slid the puck in with some effort and that was it. No removing ball joints ect... I think I'm going with 275/65r18 Falken Wildpeaks.






Edited by mnm99
bcbz71 Enthusiast

bcbz71

Posted
Posted
23 hours ago, mnm99 said:

Well I ended up finishing the first part. It's a 2 inch RC level. The ride is a little rougher. I can feel the road a bit more.  There is about a 1 inch rake. I'm good with that.I don't get all the fuss with the kit. I installed both sides in 20 min not including jacking and removing the tires. All I did was jack up the entire front end so both tires were off the ground. Remove top nut on sway bar. Remove both strut bolts. Use a pry bar and push down on the upper arm. Just slid the puck in with some effort and that was it. No removing ball joints ect... I think I'm going with 275/65r18 Falken Wildpeaks.

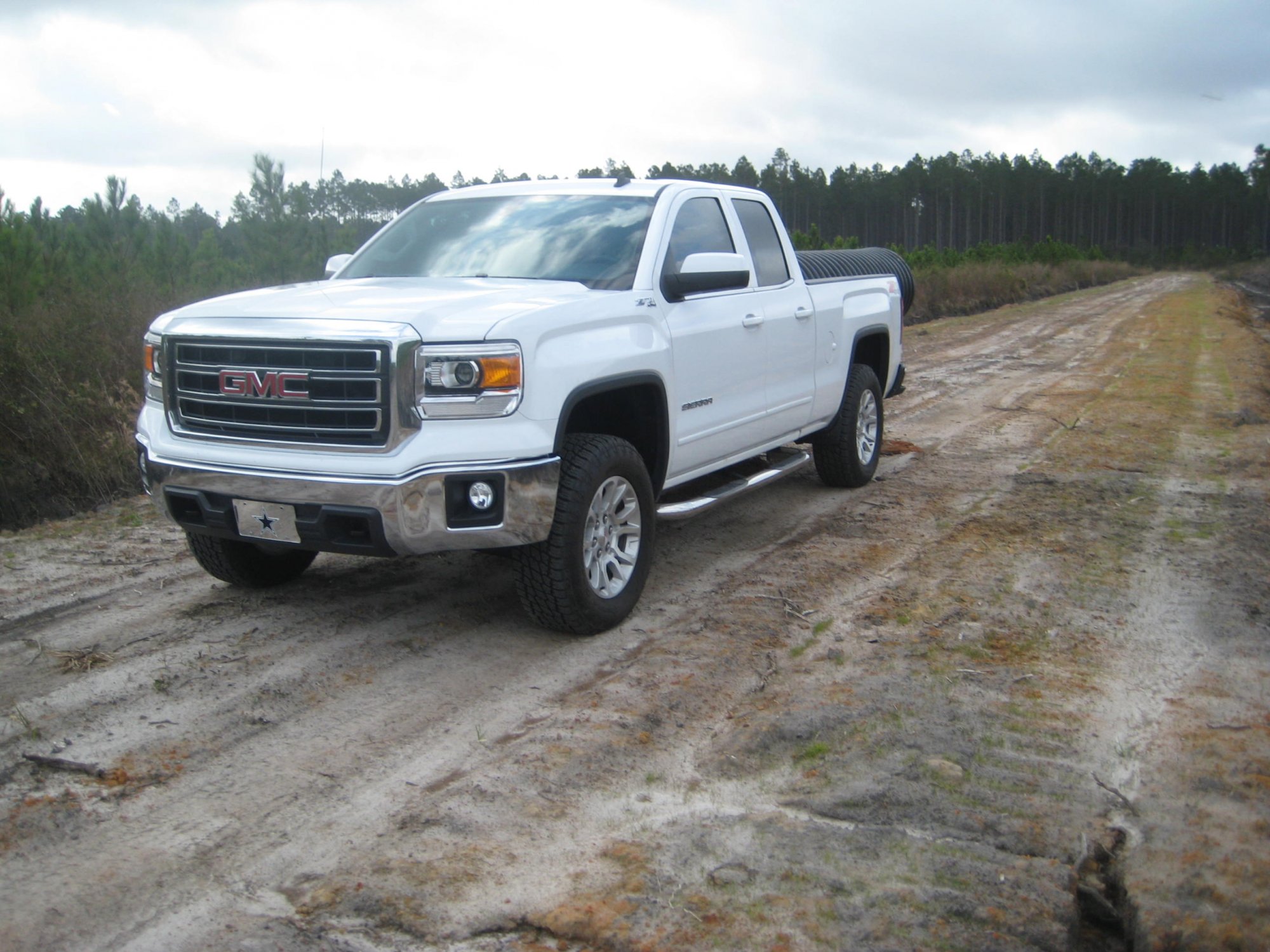

I've been running 275/65r18 Nittos G2s on stockers and 2.5 level for 3 years....it's just mehhhh to me.   Barely any bigger than the stock 265s.  MPG is 17.5 to 18 (non towing).     IMO the 285/65 is perfect size for a level.  I might even go 285/70 Nitto RGs when these wear out.  Depends on if I take the plunge and put a CST 4.5 on it or not.    Would like to get my suspension travel back.

5 Mar 15 Briar road (2).JPG

Daly Senior Enthusiast

Daly

Posted
Posted (edited)

I can see 275/65r18s being meh, they are the same size as the factory 20s. I run that size on my stock High Country in the winter to keep the speedo honest.

Edited by Daly
Spate47 Enthusiast

Spate47

Posted
Posted (edited)

Went with 2" RC. Ride loss VERY minimal. Waiting on treads until we know for sure if we are moving to Hawaii or not. More than happy with the stance. I wanted some rake left up front for any light towing/hauling.


Edited by Spate47
Spate47 Enthusiast

Spate47

Posted
Posted (edited)
On 12/7/2017 at 6:08 PM, mnm99 said:

Well I ended up finishing the first part. It's a 2 inch RC level. The ride is a little rougher. I can feel the road a bit more.  There is about a 1 inch rake. I'm good with that.I don't get all the fuss with the kit. I installed both sides in 20 min not including jacking and removing the tires. All I did was jack up the entire front end so both tires were off the ground. Remove top nut on sway bar. Remove both strut bolts. Use a pry bar and push down on the upper arm. Just slid the puck in with some effort and that was it. No removing ball joints ect... I think I'm going with 275/65r18 Falken Wildpeaks.






Looks great! Just picked mine up today too with 2" front and awaiting tread decision. Glad I still had about an inch or so of rake left.

Edited by Spate47
Sierra1500mm Enthusiast

Sierra1500mm

Posted
Posted


Got new tires put on. 35x11.50 Trail Grapplers. Truck has a 2.5 leveling kit by Rough Country. Also got front and rear replacement bumpers by Ranch Hand installed.


Sent from my iPhone using Tapatalk

  • Like 1
