wireless charging upgrade

Robwcormack
 Share

Recommended Posts

pukeysmith Enthusiast

pukeysmith

Posted
Posted

After some help from a member on the forum, I ordered a few pieces from GM, and bought a GM wireless charger off eBay to make a factory install.



I ordered an RST which didn't have the wireless charger as an option, but I wanted one.  I am unfortunately still waiting for my truck to be built so I don't have actual install photo's, but I have pics and part numbers of the hardware which is just as good.  All in just under $200 for what is listed below.  The last unknown is if I will be lucky enough to use the small jumper harness that came with the charger to slave off a 12V source, or if I need to hard wire into something.



GM Parts:

-84555398 Console Mat

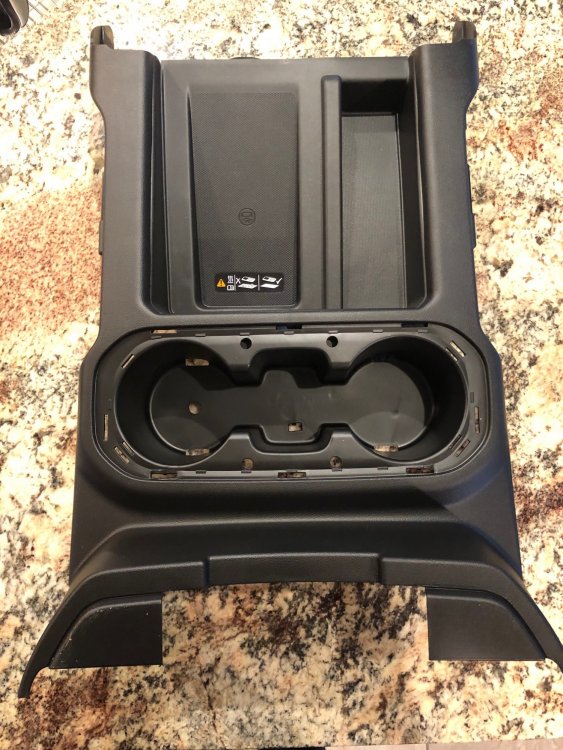

-84505586 Upper Trim Panel

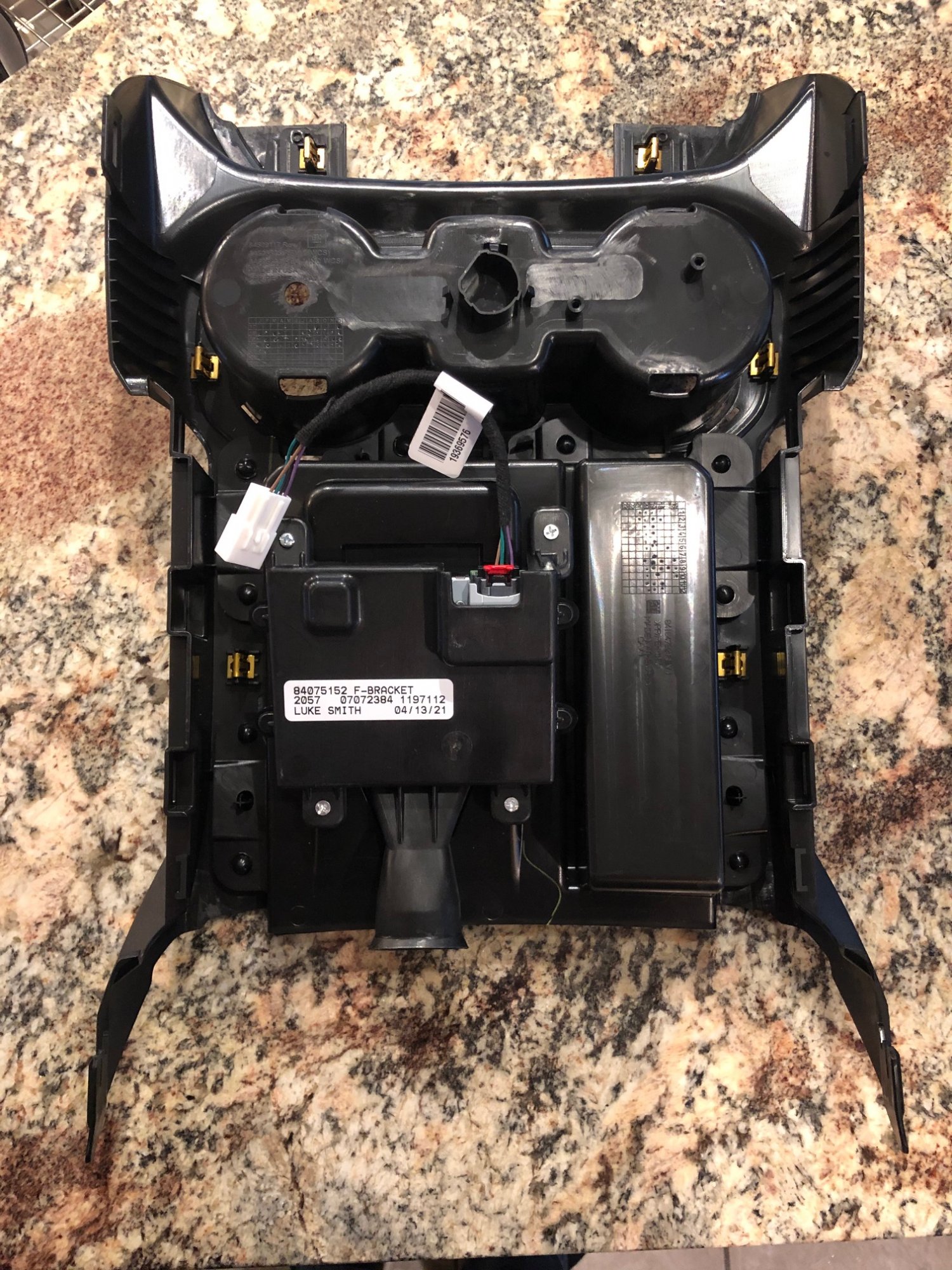

-84075152 Bracket (holds the wireless charger underneath the trim, need to supply your own small screws)



eBay:

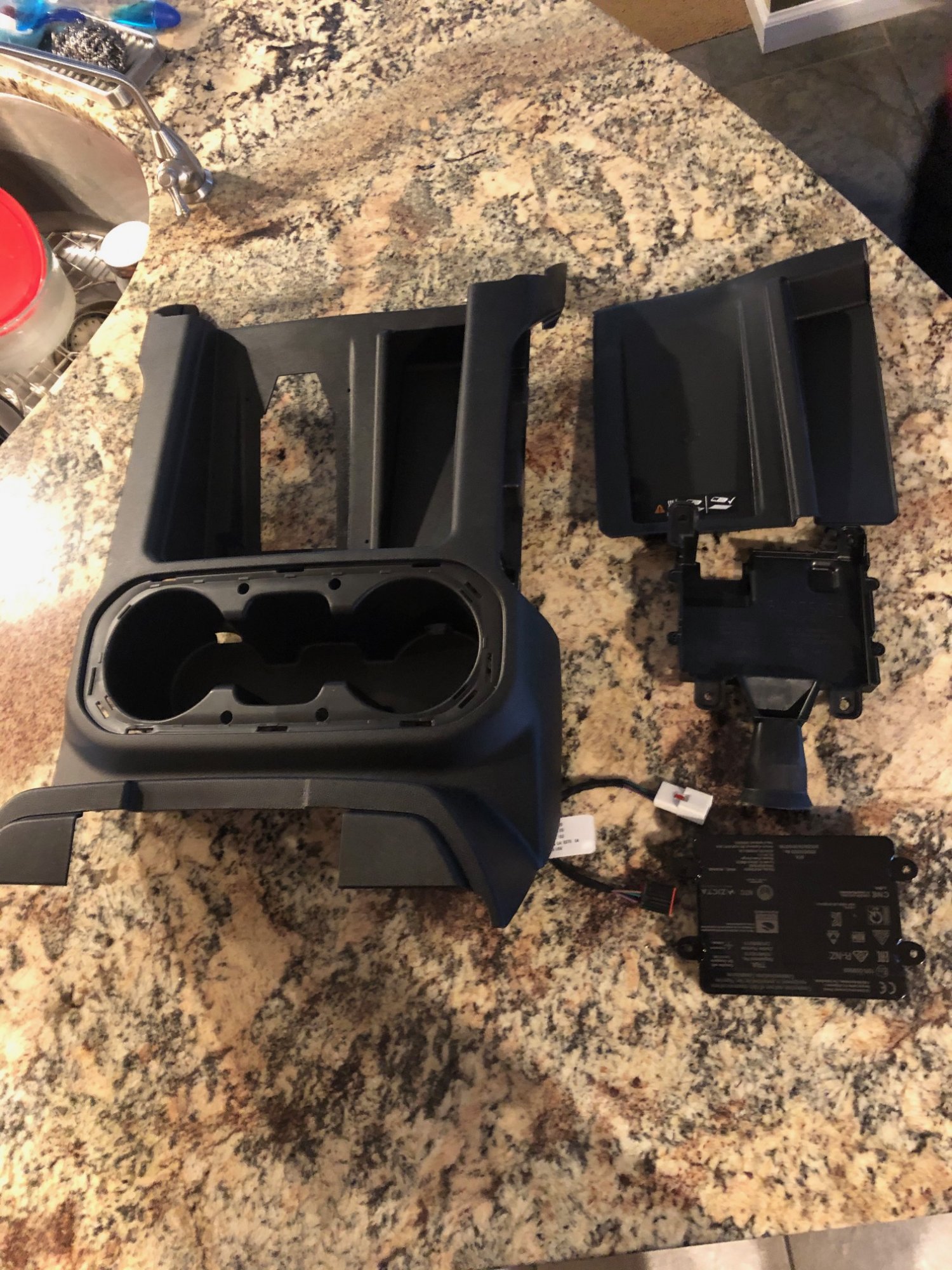

-GM Gen II Qi Wireless Charger Retrofit kit



I am still looking for a good video on how to gain access to replace this console trim, but worse case I will deal with it when the truck finally arrives.  Any suggestions or links would be appreciated.

Gm Parts List.jpg

Charging Unit.png




  • 4 months later...
  • Replies 87
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

Jmonty
Jmonty

iPhone XS works great with my new AT4 fast and easy

Arkannos
Arkannos

I have been looking into adding wireless charging to a 2020 LT Trail Boss. It took a little digging and found the factory components on gmpartsdirect.com. The total cost is $108, and here are the requ

Smitty
Smitty

I agree, I have one in the 2019 LTZ and it works great.  It's not picky where you put it and plenty fast!   They must have upgraded it since the K series.

Posted Images

rbdjr Enthusiast

rbdjr

Posted
Posted
On 4/21/2021 at 2:01 PM, pukeysmith said:

After some help from a member on the forum, I ordered a few pieces from GM, and bought a GM wireless charger off eBay to make a factory install.



I ordered an RST which didn't have the wireless charger as an option, but I wanted one.  I am unfortunately still waiting for my truck to be built so I don't have actual install photo's, but I have pics and part numbers of the hardware which is just as good.  All in just under $200 for what is listed below.  The last unknown is if I will be lucky enough to use the small jumper harness that came with the charger to slave off a 12V source, or if I need to hard wire into something.



GM Parts:

-84555398 Console Mat

-84505586 Upper Trim Panel

-84075152 Bracket (holds the wireless charger underneath the trim, need to supply your own small screws)



eBay:

-GM Gen II Qi Wireless Charger Retrofit kit



I am still looking for a good video on how to gain access to replace this console trim, but worse case I will deal with it when the truck finally arrives.  Any suggestions or links would be appreciated.

Gm Parts List.jpg

Charging Unit.png




How did the charger you put together work out?  Any update, Harness plug and play?

Thanks for any info. rbdjr

pukeysmith Enthusiast

pukeysmith

Posted
Posted
10 hours ago, rbdjr said:

How did the charger you put together work out?  Any update, Harness plug and play?

Thanks for any info. rbdjr

So my truck isn't even here yet!  I ordered it in March and have yet to see it.  My salesman says I should have it by December!  By the time I get it he said it wont have Auto Start/Stop or Displacement on Demand, but I am fine without either one of them.



A friend of mine did this same upgrade on his RST and he had to get the GM wiring harness and an air duct to keep the charger cool.  They are both GM parts and their numbers are listed below:



Part Number Part Name Price Quantity Total
84514829 Genuine GM Harness 84514829 $60.56 1 $60.56
23391625 Genuine GM Instrument Panel Air Duct 23391625 $28.55 1

$28.55



The nice thing is that with this harness he said the charging icon comes on in the center cluster to let you know it is charging.  Yes, after adding these two extra items the whole charging pad will be about $300, but it will be factory, and better than paying $10k more for an LTZ which has it.





  • 2 months later...
rbdjr Enthusiast

rbdjr

Posted
Posted

I installed the one from Boost Auto, Easy Install looked good and fitment was good.

I just ask question as after 3 weeks my phone was getting very WARM and sometimes phone was losing charge? They sent me a return label and sent it back 3 days ago? we will see outcome.



here is the link, nice setup if it works longer than 3 weeks.

https://boostautoparts.com/products/2019-newer-gm-charging?variant=40369454612639

  • 4 weeks later...
Ricky_Starbucks Enthusiast

Ricky_Starbucks

Posted
Posted
On 6/13/2020 at 12:14 PM, Arkannos said:

I have been looking into adding wireless charging to a 2020 LT Trail Boss. It took a little digging and found the factory components on gmpartsdirect.com. The total cost is $108, and here are the required part #'s.



#84482763 Wiring Harness (w/o rear heated seats)



#84505586 Upper Trim Panel



#84002462 Wireless Charging Module



The only thing I'm not 100% is whether or not there would be any firmware requirements, or if it is a simple plug and play situation.

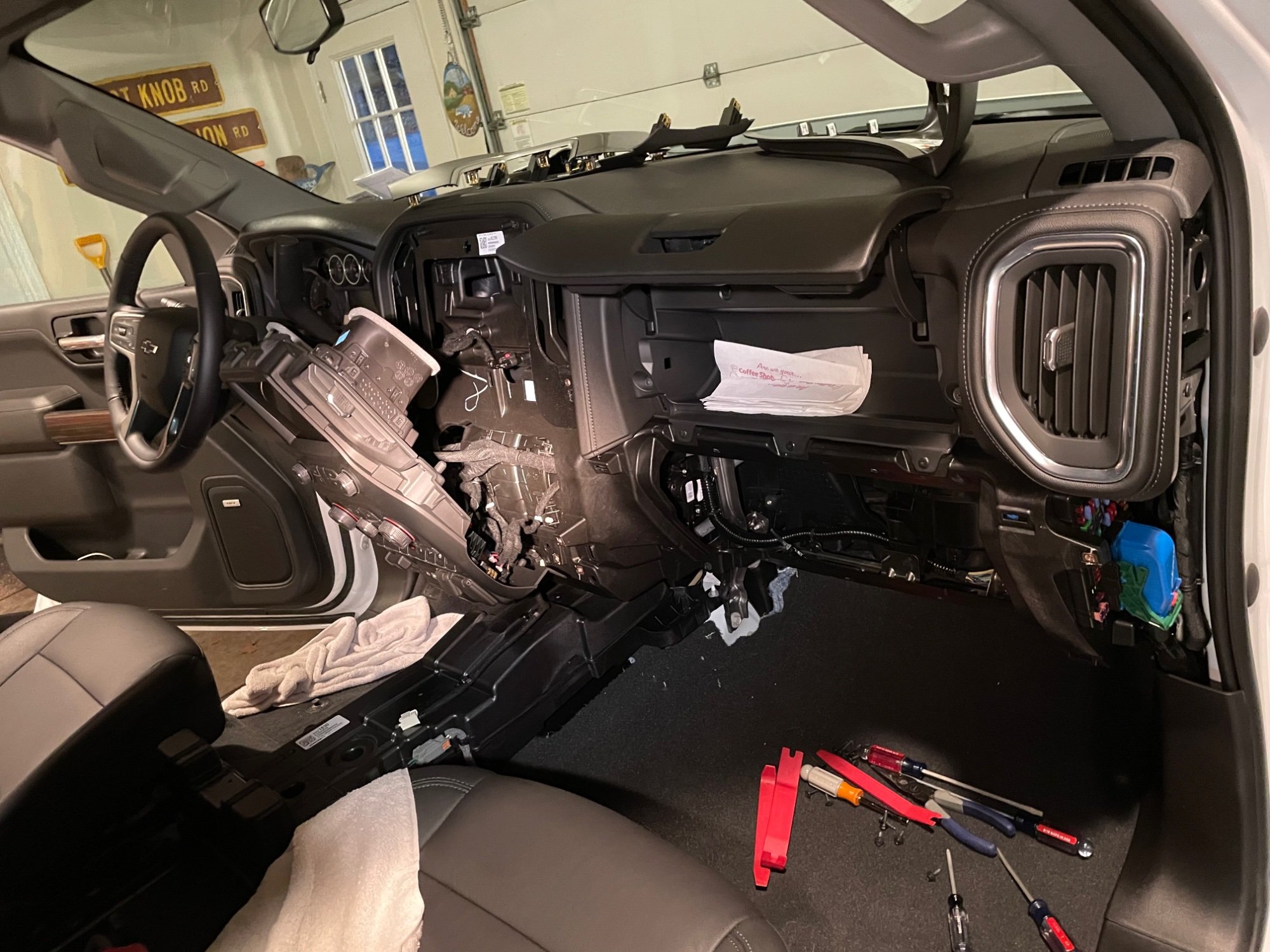

Did you end up doing this upgrade?  I have a 2021 Trail Boss and just took apart my whole vehicle but found out the harness I have is not correct.  I have 84514829 which was referenced earlier in this thread, however this harness does not have the correct hookups for the light in the center console, the sensor for when it is opened, nor what appears to be the USB C next to the SD Card reader inside the console.



Thanks!



Rick.

pukeysmith Enthusiast

pukeysmith

Posted
Posted (edited)

I ordered the wrong harness as well that I referenced earlier.  The harness I ordered to replace it is 84482759 which includes the SD card reader, USB’s in the center console, wireless charging, front USB, etc.  check out this thread for the wireless charger upgrade:




Edited by pukeysmith
Ricky_Starbucks Enthusiast

Ricky_Starbucks

Posted
Posted (edited)
52 minutes ago, pukeysmith said:

I ordered the wrong harness as well that I referenced earlier.  The harness I ordered to replace it is 84482759 which includes the SD card reader, USB’s in the center console, wireless charging, front USB, etc.  check out this thread for the wireless charger upgrade:




Thanks for the reply!  So with that harness you had all of the console working?  Lights inside it as well?  Looks like that is the harness to add rear seat heaters as well, did you do those or just coil up the wire and tuck it inside the console?



Also, did you have any "Service Remote Keyless Start" messages after taking apart and reassembling?  I am getting them now and positive I put all back together correctly.



Thanks~!



Rick.



Thanks again!

Edited by Ricky_Starbucks
pukeysmith Enthusiast

pukeysmith

Posted
Posted (edited)

Rick,



yes, it did have one more connection for the heated seats that I didn’t use, I just taped it up next to the other rear usb connections and left it alone.



there is a little module that I had to move over from the center of the cup holders for the keyless remote.  I didn’t ever get that warning when I did mine.  Maybe the connection isn’t in all the way?



everything works just fine with this new wiring harness,  factory charging icon shows up on the Home Screen, and the charging icon works on Apple car play obviously.  No other lights or issues to report.



the worst part of this job was installing the air duct.  I fought that damn tube for an hour before I got it into place.  It blows a puff of air across the charger now to keep it cool.


Edited by pukeysmith
Added photo
Ricky_Starbucks Enthusiast

Ricky_Starbucks

Posted
Posted
1 minute ago, pukeysmith said:

Rick,



yes, it did have one more connection for the heated seats that I didn’t use, I just taped it up next to the other rear usb connections and left it alone.



there is a little module that I hade to move over Uber the center of the cup holders for the keyless remote.  I didn’t ever get that warning when I did mine.  Maybe the connection isn’t in all the way?



everything works just fine with this new wiring harness,  factory charging icon shows up on the Home Screen, and the charging icon works on Apple car play obviously.  No other lights or issues to report.



the worst part of this job was installing the air duct.  I fought that damn tube for an hour before I got it into place.  It blows a puff of air across the charger now to keep it cool.

Thanks man!  Looks like Ill be pulling it apart again tomorrow to check my connections!  All works except for the buttons on the exterior door handle to unlock the vehicle.  I appreciate your time and assistance!

  • 3 weeks later...
  • 1 month later...
chrisfox75 Enthusiast

chrisfox75

Posted
Posted
On 12/13/2021 at 2:20 PM, Ricky_Starbucks said:

Thanks for the reply!  So with that harness you had all of the console working?  Lights inside it as well?  Looks like that is the harness to add rear seat heaters as well, did you do those or just coil up the wire and tuck it inside the console?



Also, did you have any "Service Remote Keyless Start" messages after taking apart and reassembling?  I am getting them now and positive I put all back together correctly.



Thanks~!



Rick.



Thanks again!

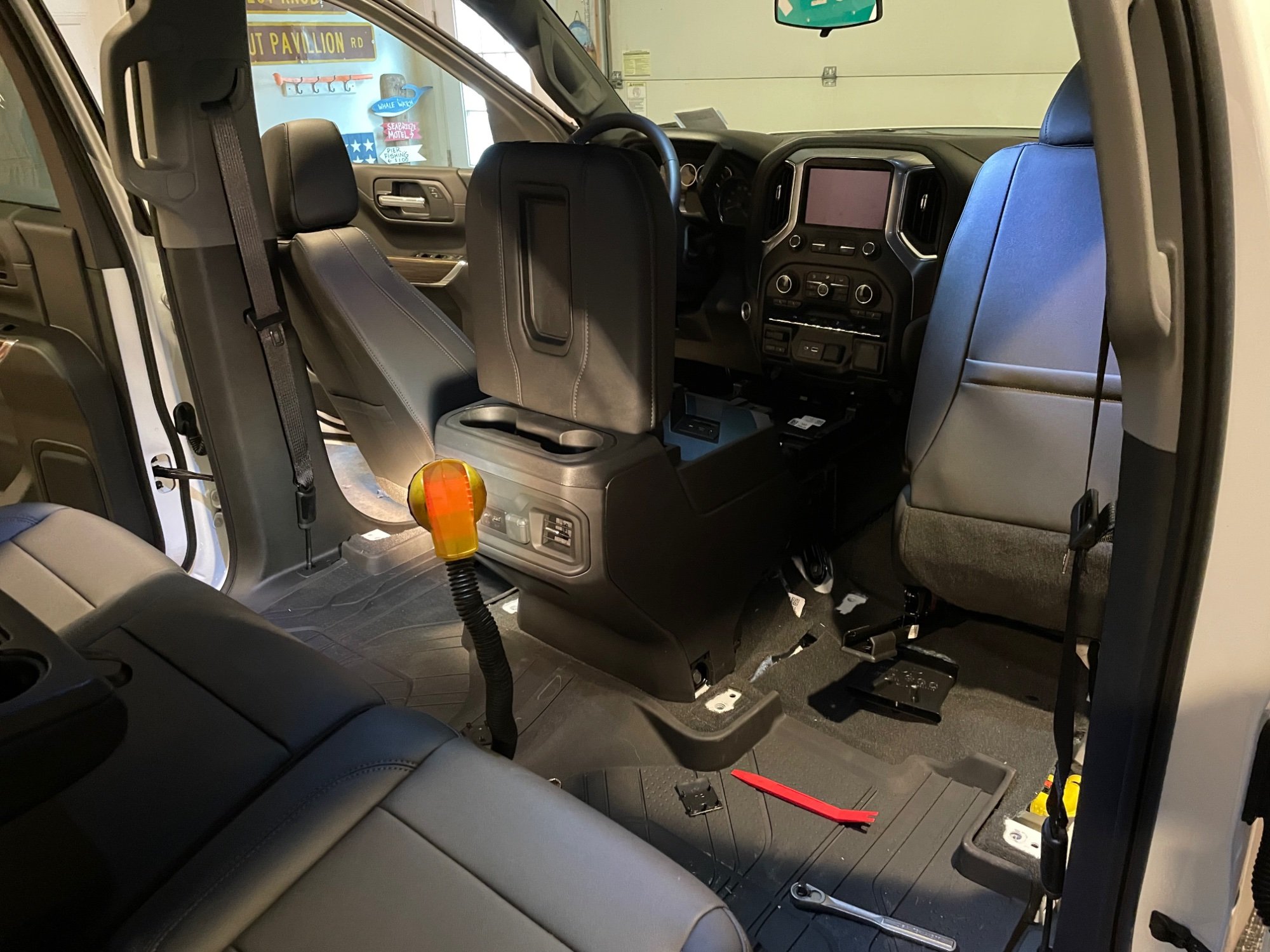

FYI i had the same problem just did my add on wireless charging, turned out on the back of the console at the rear vents there is a module plug i forgot to plug back in that plugs in right below the vents that controls the passive unlocking using the buttons on the doors, you can get to it easily even if you put the console back in the truck by removing the rear cupholders and the torx screws holding that in and the torx screw holding the vents on pop it off and the plug is there under the vents.



Plugged it back in the Service Remote Keyless Start error went away for me





spitcoff New Member

spitcoff

Posted
Posted
On 11/14/2021 at 6:50 PM, rbdjr said:

I installed the one from Boost Auto, Easy Install looked good and fitment was good.

I just ask question as after 3 weeks my phone was getting very WARM and sometimes phone was losing charge? They sent me a return label and sent it back 3 days ago? we will see outcome.



here is the link, nice setup if it works longer than 3 weeks.

https://boostautoparts.com/products/2019-newer-gm-charging?variant=40369454612639



 I was thinking about adding one of these. How is it holding up? Does it work with larger phones well?
