Illuminated GMC emblem

Dick Messerly
 Share

Recommended Posts

Maverick0984 Enthusiast

Maverick0984

Posted
Posted (edited)

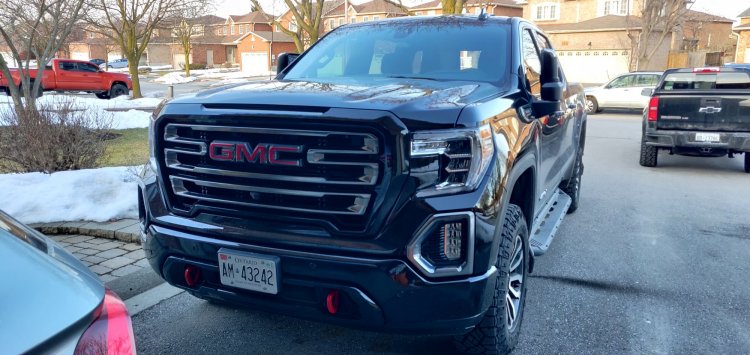

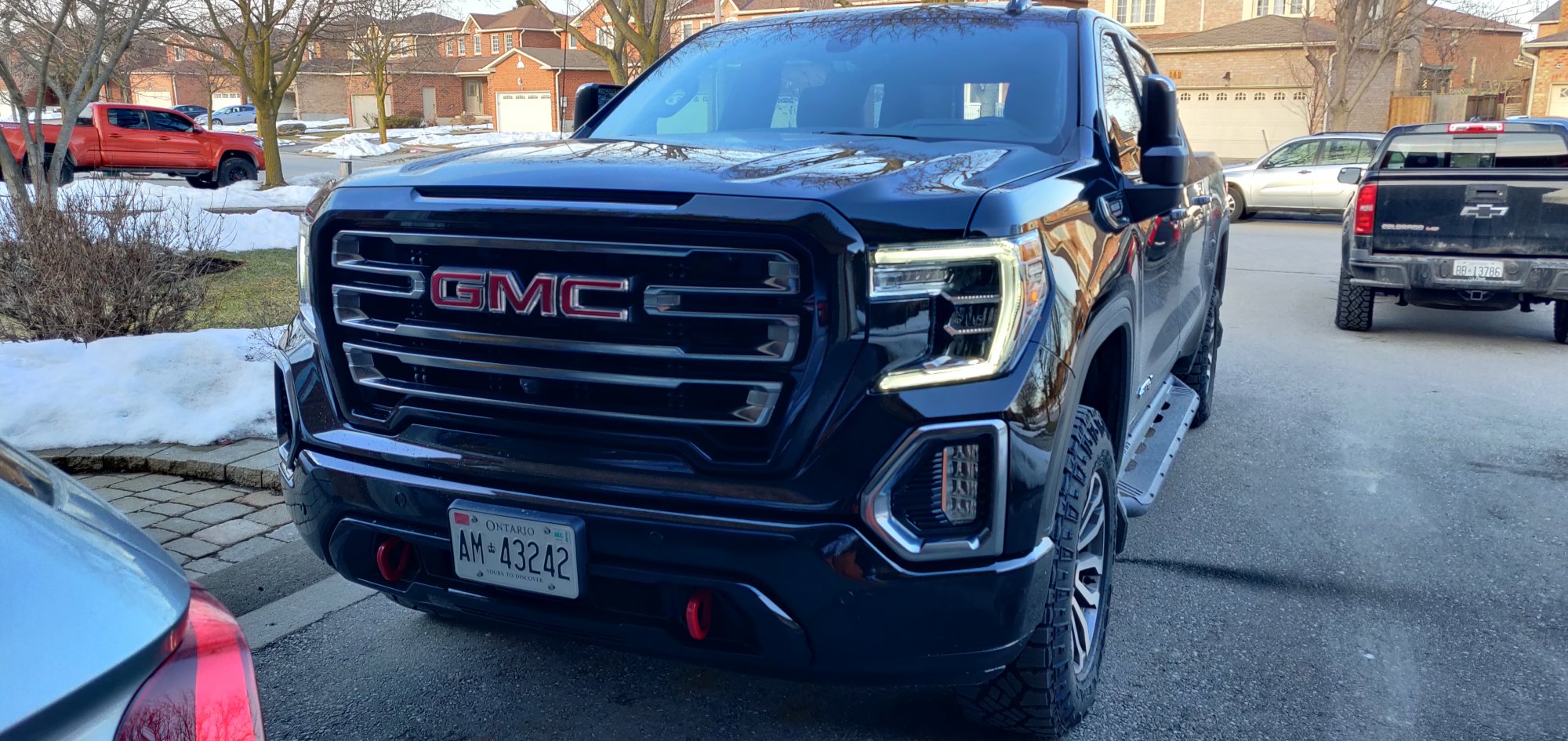

I just finished mine, looks good.  Went with red opposed to black even though the truck is Onyx Black.  There's enough red on the truck as accents already that I didn't want to have to go and make everything black as it would have bothered me.



Just to give some bit of experience from my install:

  • Took me 60-90 min actually, which seems to be considerably longer than most here but still not bad.
  • I spent a lot of time trying to route the wires and harness as best as possible to avoid seeing it through the grill.  Probably spent 20-30 min on that alone.  I did end up routing it similar to pictures from the 1st page incidentally.  Was difficult to squeeze through there but got it done.
  • Even after disengaging the clip on the headlight hardness, it was still very difficult to get it out.  Probably another 15-20 min here as well.  I don't know if my hands are bigger or something but it's just difficult to gain any sort of leverage.  I'm sure it would have been easier if you removed the headlight assembly per the instructions but even with the wasted time, I was happy not to have to remove the headlight assembly.
  • Taking the black cover off between/over the grill and radiator is essential to a successful install.  Removing the grill might have made things a bit easier, and I'm not sure it is very difficult to remove.  I saw 3-4 bolts but it looked fairly simple.  In hindsight, I probably should have removed it but it isn't required.
  • Saving the existing emblem is only possible if you remove the grill in my humble opinion.  Disengaging all the clips on the existing emblem seems very difficult to do without damaging them if the grill is still installed and the red inlays are still in.  Prying the red out of the chrome surround makes it easy but you will destroy the existing emblem this way.  No way around it.  I actually broke two small flat screwdrivers trying to pry out the red.  Tips of them snapped clean off.  They were cheaper screwdrivers but still, it's a tight fit.  Should have just went at it with a bigger screwdriver not caring about damaging them because they cannot be saved.

Overall impression:

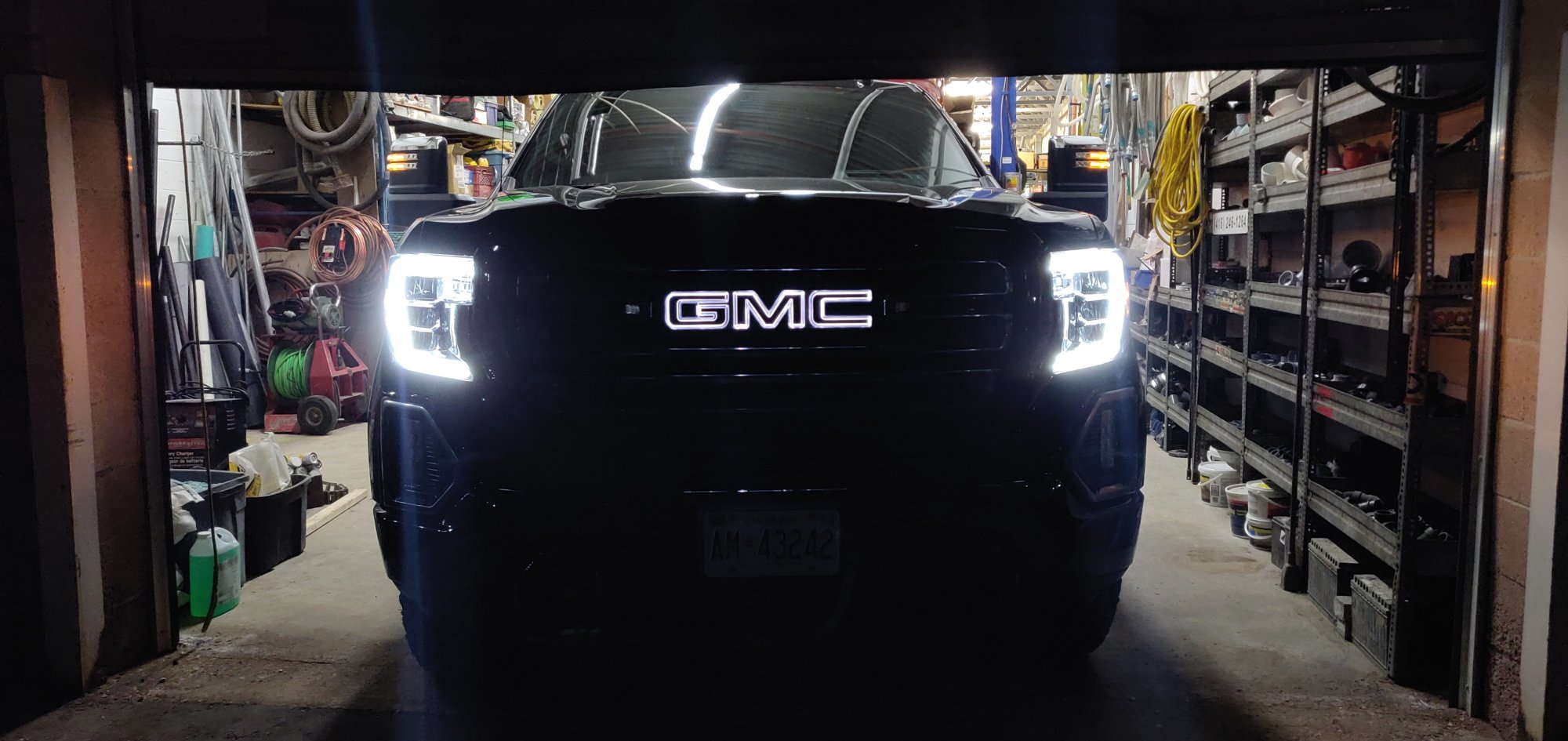

  • They are not terribly noticeable in the daylight, which I like.  I haven't seen them in the dark yet but it's a good amount of light to not be obnoxious but still give it some pop.
  • Another user mentioned that the chrome surround is lost and that it looks better.  I agree.  The grill on my AT4 doesn't have much chrome really except the emblem.  It's a darker more subdued grey for the most part in other areas.  This makes the emblem fit better on the front end for sure, visually.  Unless you really like the chrome.  I know many other Sierras go full chrome in a lot of places (like the Denali) so if you like that look, you might think it's a small step back.  If you have an AT4 though, it's perfect, as they eliminated a lot of the chrome on that trim.
Edited by Maverick0984
  • Like 1
  • Replies 193
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

Mason603a
Mason603a

Mine is a 2019. The lighted emblem (GM Part # 84741557) works for both 2019 & 2020 year models. Personally confirmed. Yes, basically the harness has a dual ended pigtail... Unplug headlight

Mason603a
Mason603a

Just did the install. Took about 15-20 minutes. A few tips: 1. I would recommend routing the wire BEFORE installing the emblem. Would make plugging the pigtail into the emblem much easier! 2

3MTA3
3MTA3

Here is a pic of mine before and after.

Posted Images

kimo_lava Enthusiast

kimo_lava

Posted
Posted

thank you for the info i'm still waiting by the mail box for to be delivered haha and i'mn copy an paste this information when I do mines and i'll post my experience

thank you

james

  • Like 1
Chrisd534 Enthusiast

Chrisd534

Posted
Posted

Finally got around to installing mine. If you have active shutters it was impossible to get your hand back there to save the letters. Ended up breaking off all of mine. Took me 5 min to do it with breaking everything after 1 hour if trying to save everything ha...


  • 4 weeks later...
silverado990 Enthusiast

silverado990

Posted
Posted
On 2/5/2020 at 8:35 AM, Mason603a said:

Ordered mine from shopchevyparts.com (direct link below) last Thursday (1/30/20) and received it yesterday (2/4/20). Installing today. Will take photos and update when finished.



https://www.shopchevyparts.com/exterior/2020-sierra-1500-illuminated-gmc-emblem-red-gmc-logo-front-grille/84741557-p-92306784.html



GM installation instructions are attached in PDF format. I suspect that grill removal and headlight removal will not be necessary....

Illuminated GMC installation instuctions.pdf 1.13 MB · 288 downloads

Did you have to remove grille

J2Jones Enthusiast

J2Jones

Posted
Posted
On 3/1/2020 at 12:57 AM, Gerstein1989 said:

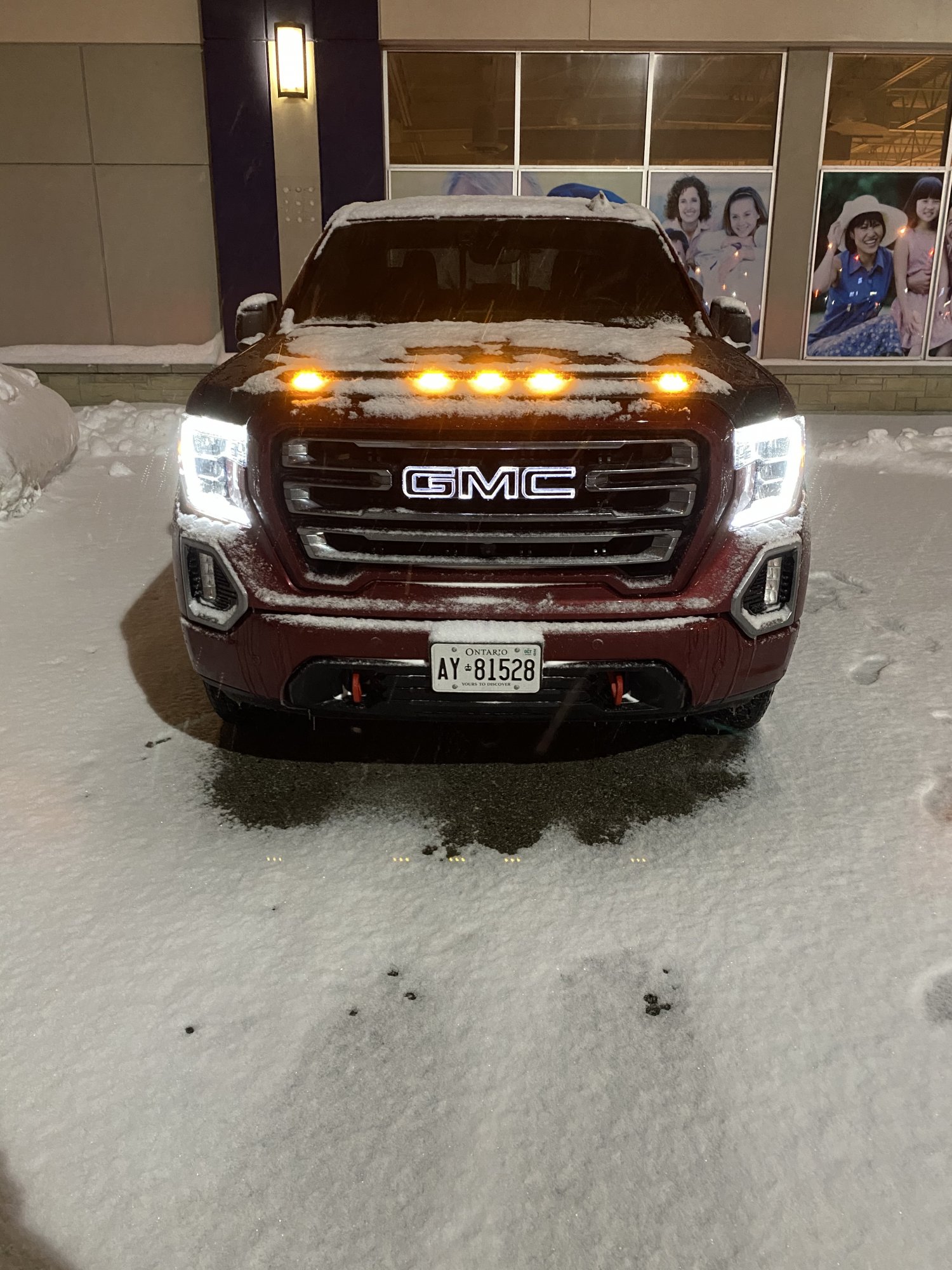

Just installed mine yesterday. Really liking it. It’s not to bright but just enough :)






What model and make protector do you have on your hood with the leds?  I like it.



silverado990 Enthusiast

silverado990

Posted
Posted
On 2/2/2020 at 2:41 AM, Dick Messerly said:

Just ran across this today. Has anyone installed the new illuminated GMC emblem on their truck yet? I'd like to know how the install is and what it actually looks like in a truck. What's everyone's thoughts on them? I'm thinking of getting one but I'm kind of on the fence with it being too much. Part number is 84741557


I ordered one from ebay , should be here by Monday

Catchme2003 Enthusiast

Catchme2003

Posted
Posted

Would it be possible for someone to post the measurements of this emblem please. Individual letters or entire assembly would be great. Want to see if it can work for 2017-2018. Wiring isn’t an issue just the size. Thanks

tmo Enthusiast

tmo

Posted
Posted

The dimensions for the T1 are “18 1/2" long and 3 1/4" wide”. The height is the same. K2 is 17” long
