BevoXV
BevoXV

I know the K2 guys have one of these threads so I figured we should too. Think it’d be useful for others. Post pics of your setup! Make sure to add specs of the wheels/tires, spacers, suspension, rubb

bamulk
bamulk

Method NV 305 18x9 -12 Offset Cooper Discoverer S/T Maxx 295/70/18 1.5 Level (Trailboss) Slight Rub on mudflap on full lock.

BevoXV
BevoXV

Caliper clearance!

Posted Images

PureZ71 Enthusiast

PureZ71

Posted
Posted (edited)
20 hours ago, MgoBlue said:

Is that stock or leveled or lifted on your set ip

Hey, its leveled. I have the ready lift 2' sst lift kit on the front only. Got it mainly to just level out the truck




Edited by PureZ71
MgoBlue Enthusiast

MgoBlue

Posted
Posted
On 7/7/2021 at 9:28 AM, PureZ71 said:

Hey, its leveled. I have the ready lift 2' sst lift kit on the front only. Got it mainly to just level out the truck




Thanks, ordered a set of the Fuel D750s (same style all black) for my 35X12.5 bfg ko2s. Will be selling my stock wheels wth the black lug nuts and center caps.

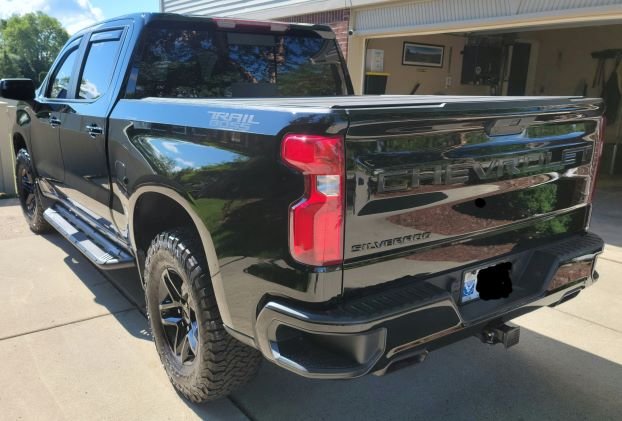

tb tips post.jpg

  • Like 1
ict_wildcat Enthusiast

ict_wildcat

Posted
Posted
On 7/15/2019 at 2:09 AM, GJM32387 said:

Fuel Rebel 20x10 -18 Offset
No spacers
Nitto Ridge Grappler 295/55/20
Factory Trailboss Suspension
Slight Rub on mudflap on full lock.




Truck looks great!  Are you sure that's factory suspension?  Looks perfectly level.  Did you drop the back?

Mariano Lozano Enthusiast

Mariano Lozano

Posted
Posted

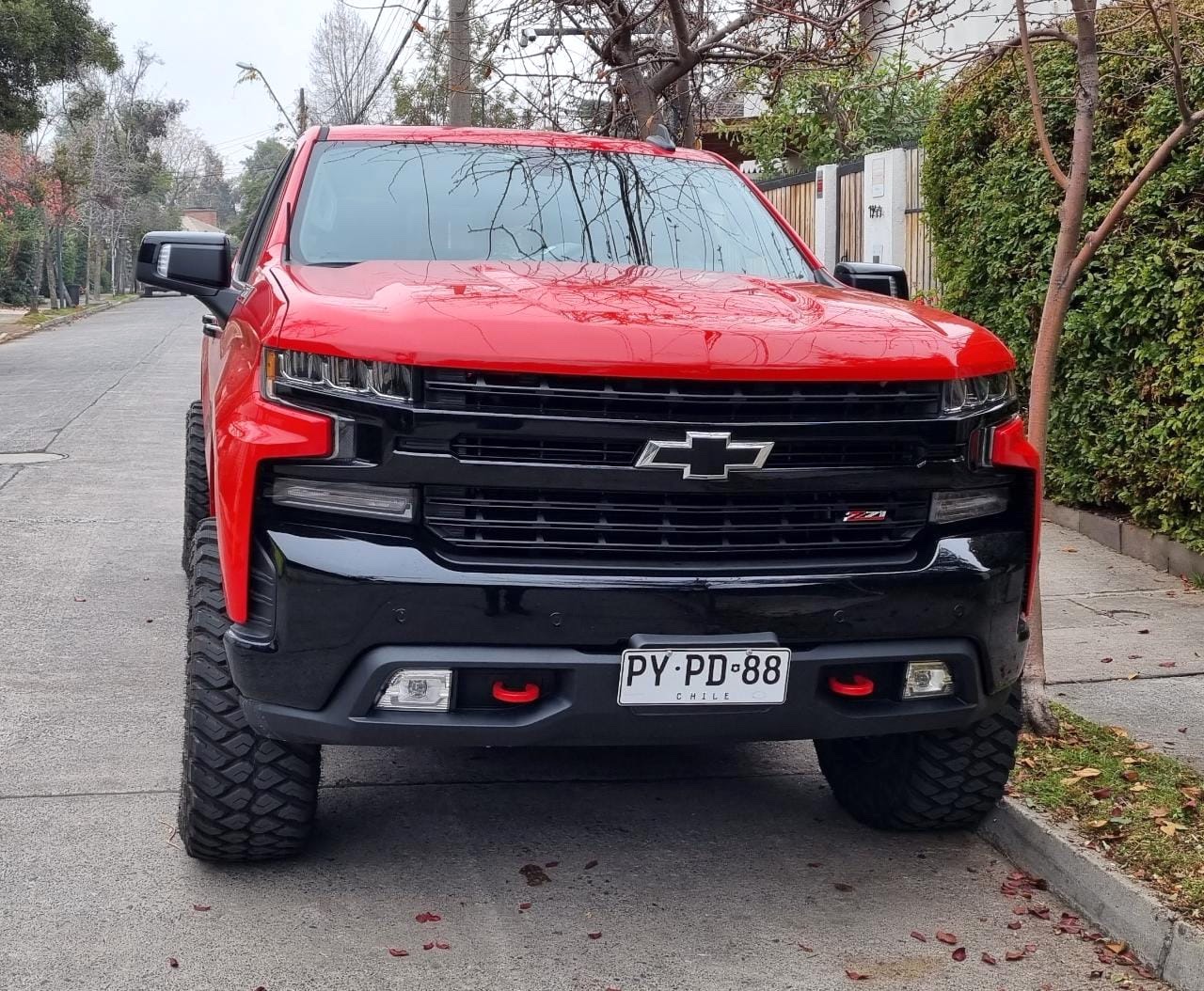

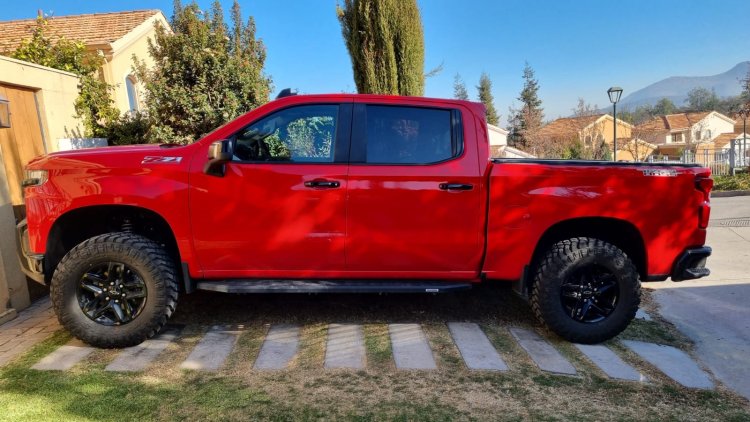

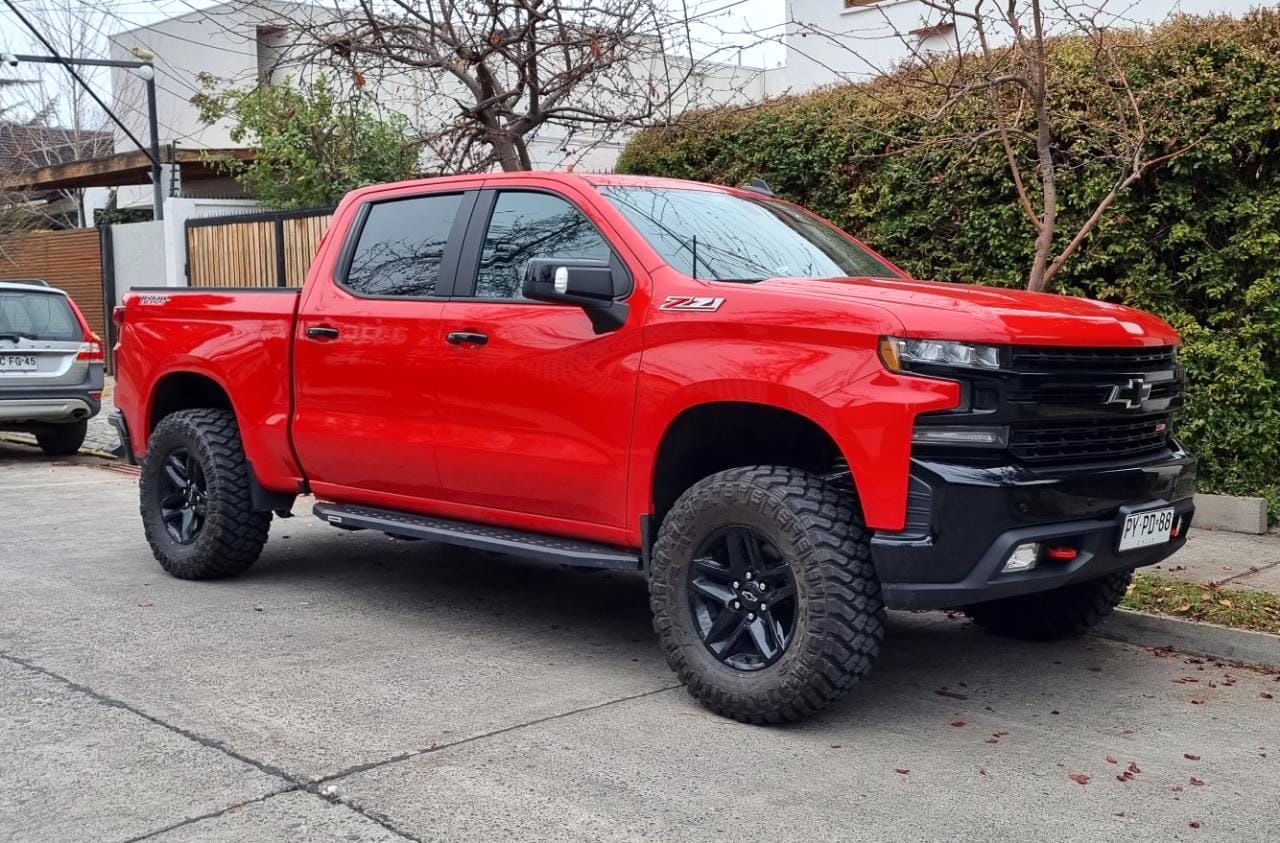

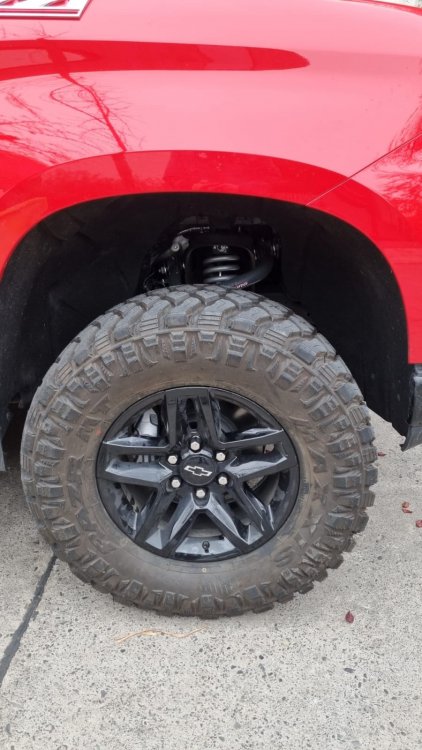

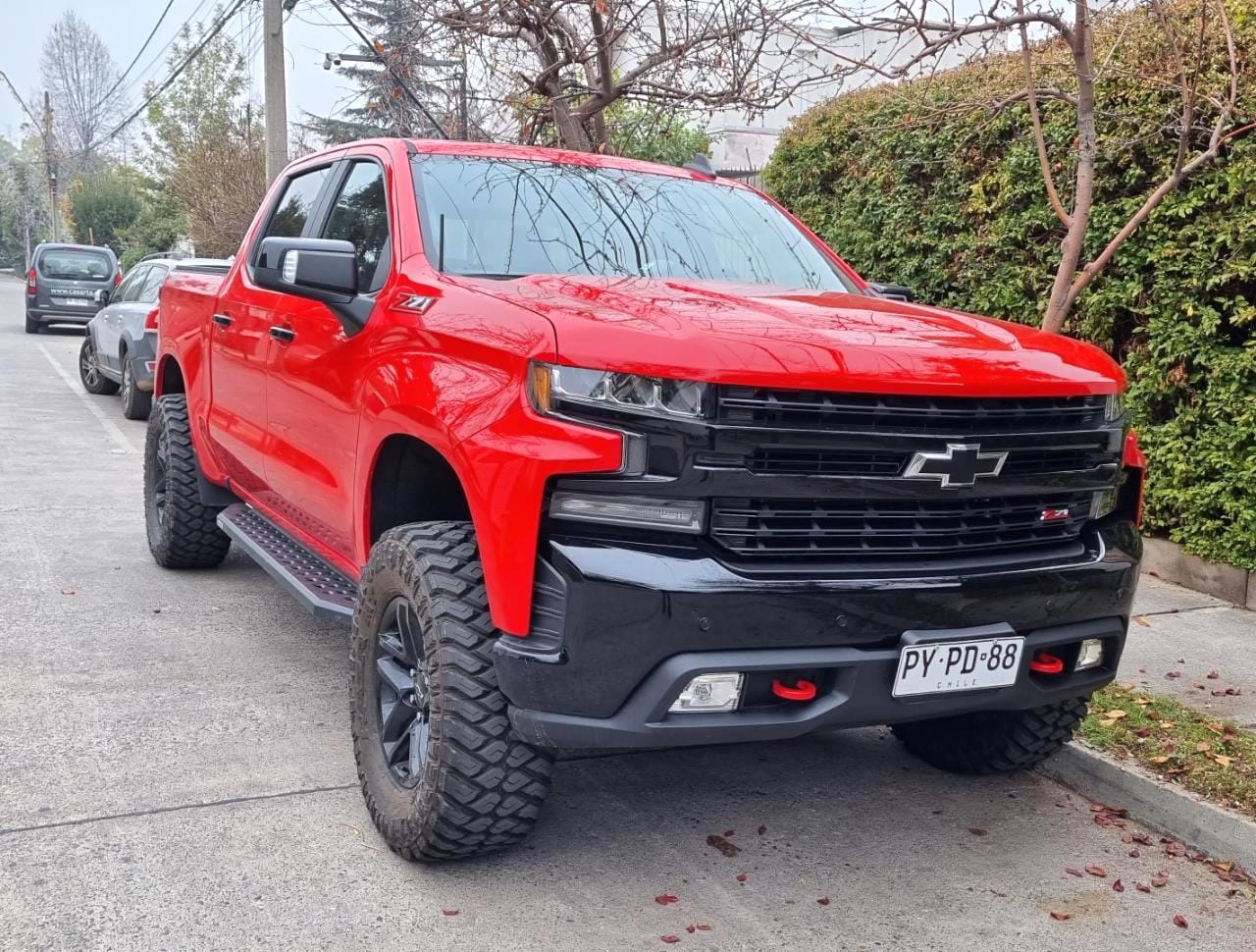

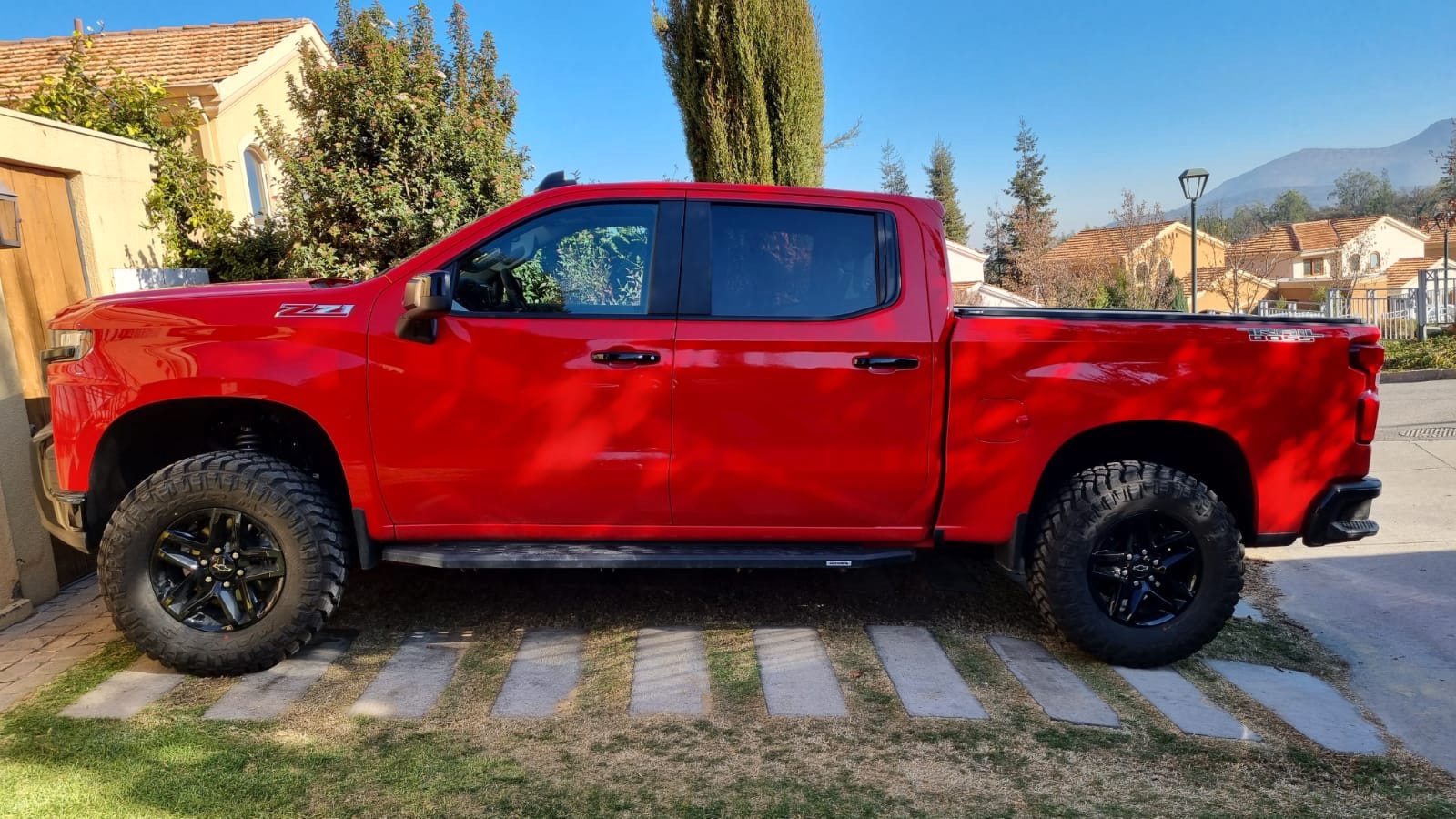

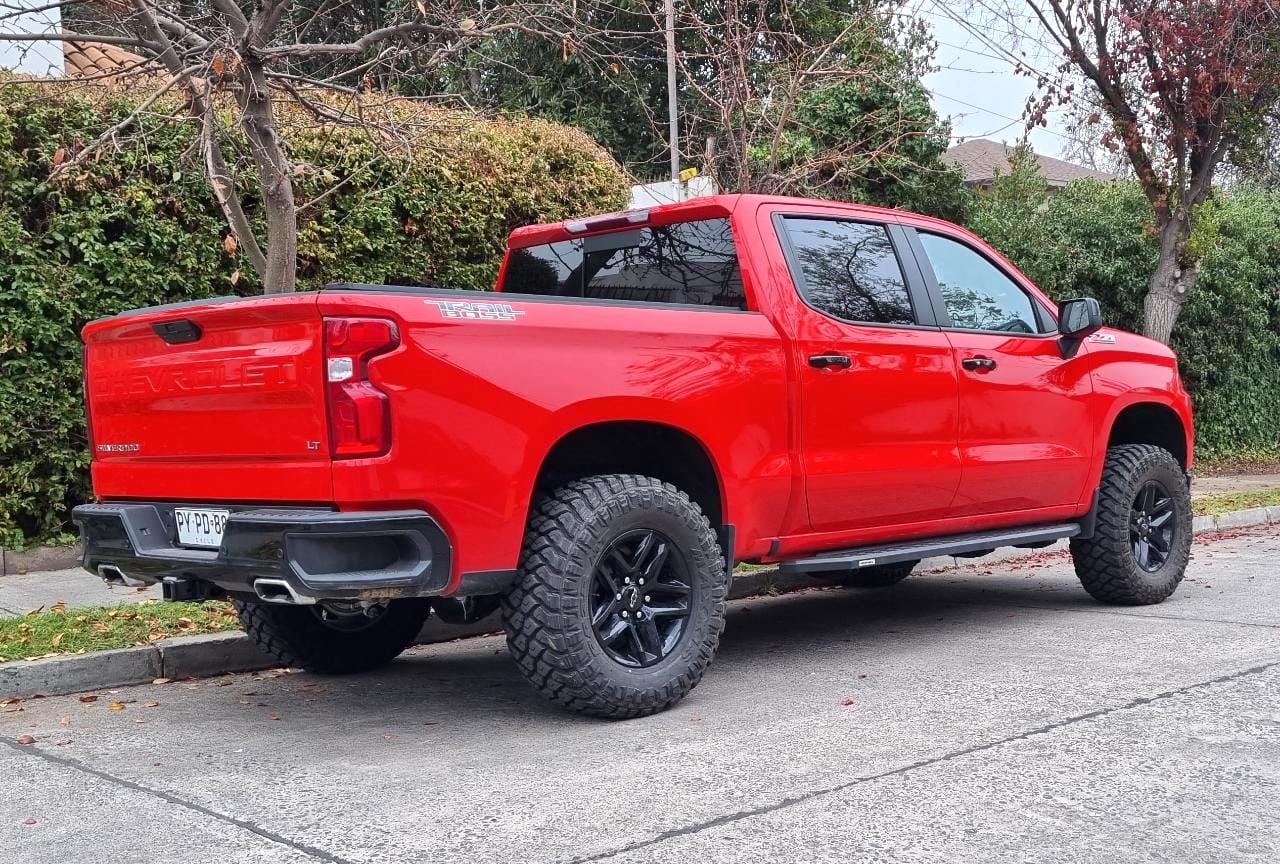

Hello All from Chile.



Here is my setup for 2021 Silverado Trail Boss LT:



- 35x12,5R18 Maxxis Razr MT on stock wheel.
- 2" Wheel spacers.
- 2" Body Armor leveling kit.

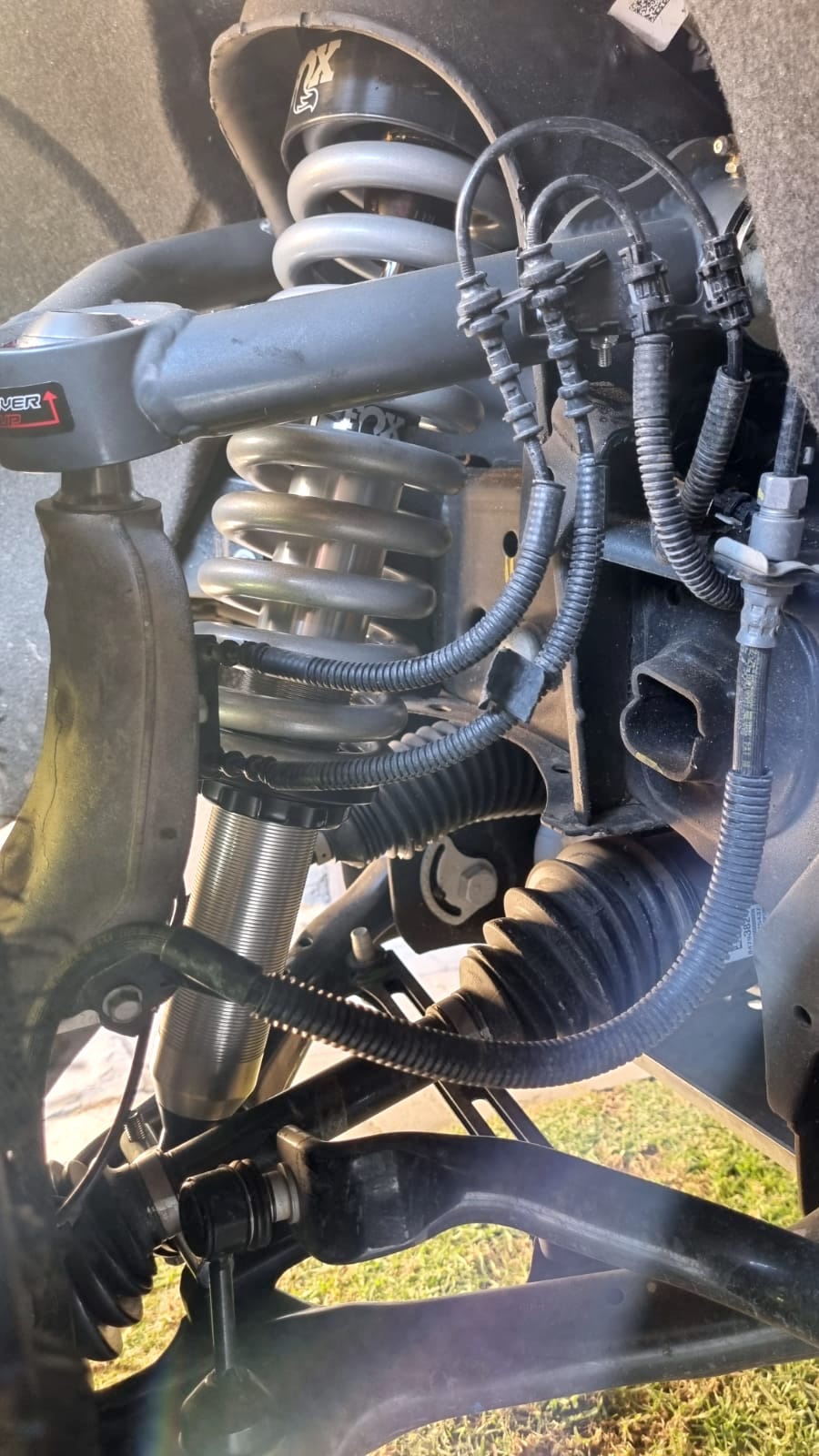

- Fox IFP 2" Shocks.

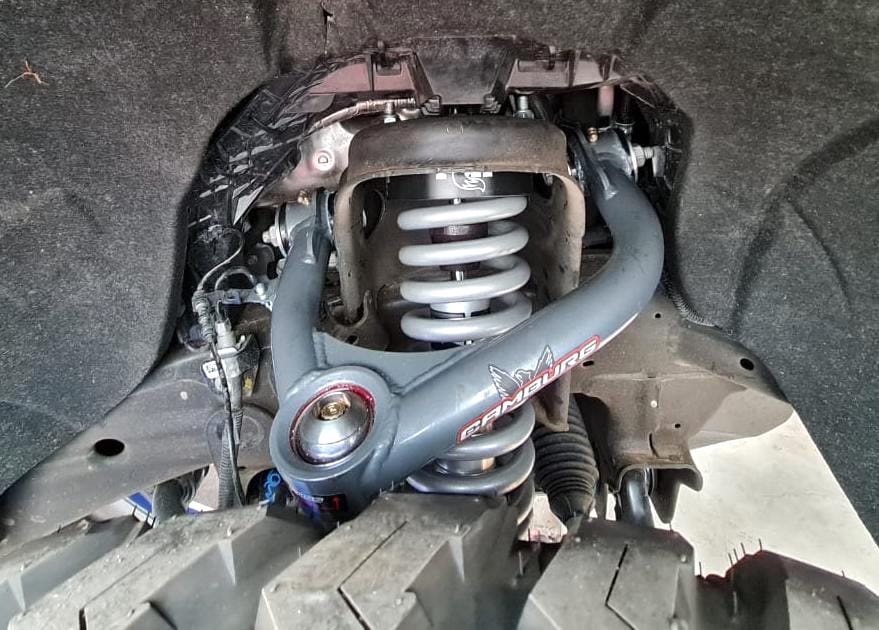

- Camburg Upper Control Arms.
- Trimmed mud flaps (Needs more trimming, still rubbing in full turn and flexing).











  • Like 3
jeter33 Enthusiast

jeter33

Posted
Posted

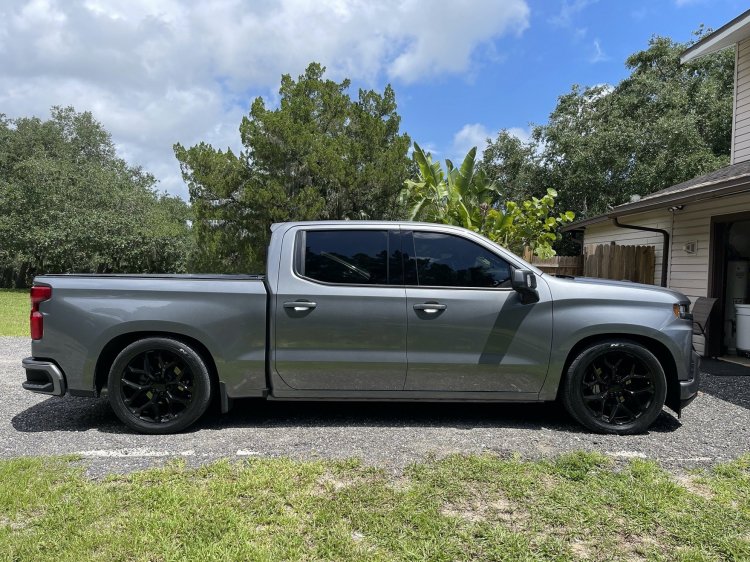

On 7/13/2021 at 5:45 PM, Chad Nelson said:

Such a horrible thing to do to a truck

In your opinion! Who cares...it's his money and can do what he wants. I grew up in Norcal and we lowered and lifted trucks all the time. To each their own, stop hating.

  • Like 6
paxamus Enthusiast

paxamus

Posted
Posted
On 6/20/2021 at 2:53 PM, PureZ71 said:

Replaced my stock 18's with 2' spacers for a set of Fuel Block D751 (18X9, -12 offset). I believe this offset is just the perfect amount for these trucks.



http://www.fueloffroad.com/wheel/14570/fuel-1-piece-wheels-block-d751/?finishID=4434&lugs=6








Any rubbing with the -12 offset?  I'm thinking about some Fuels in 17x9 with the -12 offset for my 21 Silverado 1500 and wanted to make sure they would clear the calipers and no rub

Paul 2020RST Enthusiast

Paul 2020RST

Posted
Posted
On 7/14/2021 at 11:53 PM, jeter33 said:

In your opinion! Who cares...it's his money and can do what he wants. I grew up in Norcal and we lowered and lifted trucks all the time. To each their own, stop hating.

Yes, that’s his opinion, and he has every right to state his opinion no matter how much you may disagree or not like it.

PureZ71 Enthusiast

PureZ71

Posted
Posted
23 hours ago, paxamus said:

Any rubbing with the -12 offset?  I'm thinking about some Fuels in 17x9 with the -12 offset for my 21 Silverado 1500 and wanted to make sure they would clear the calipers and no rub

Not exactly sure because I had removed my mud flaps and the bracket behind them  before due to my previous setup (Stock wheels + 2" spacers). They will for sure clear the calipers. But -12 is just the perfect amount IMO.


  • Like 2
