Post your T1 wheel/tire setup

BevoXV
 Share

Recommended Posts

Asmith721 Enthusiast

Asmith721

Posted
Posted

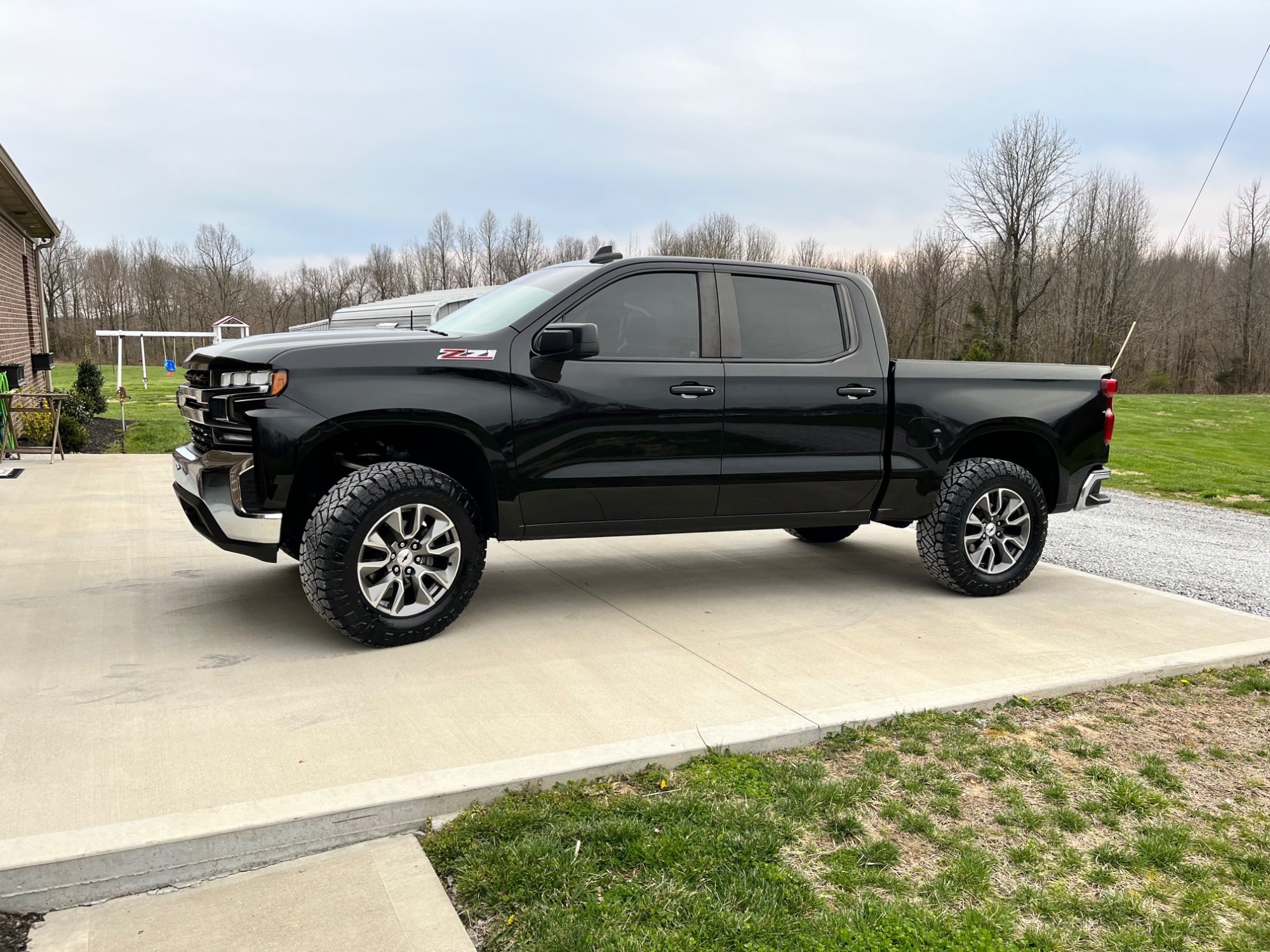

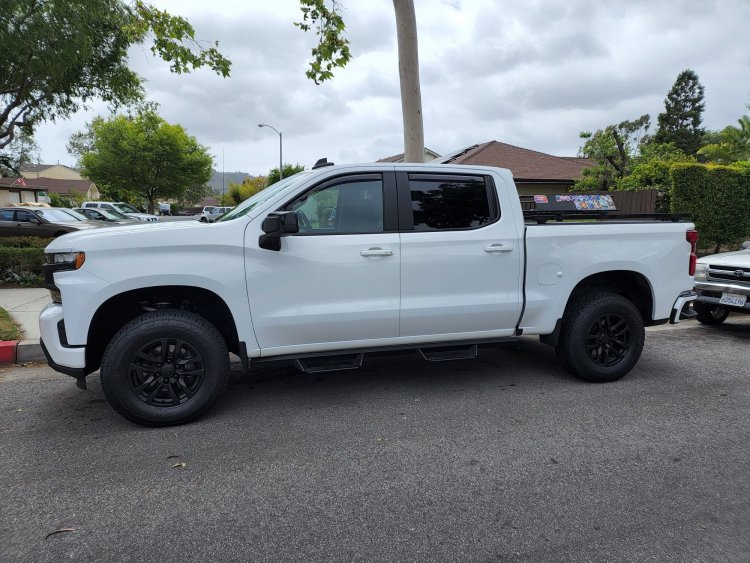

2019 Silverado RST 5.3L. General grabber A/Tx 275/70r18. Full throttle +0 offset. 6mm spacers in front. Stock suspension.  Slight rub and full lock turning left in reverse.





  • Like 2
  • Replies 1.2k
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

BevoXV
BevoXV

I know the K2 guys have one of these threads so I figured we should too. Think it’d be useful for others. Post pics of your setup! Make sure to add specs of the wheels/tires, spacers, suspension, rubb

bamulk
bamulk

Method NV 305 18x9 -12 Offset Cooper Discoverer S/T Maxx 295/70/18 1.5 Level (Trailboss) Slight Rub on mudflap on full lock.

BevoXV
BevoXV

Caliper clearance!

Posted Images

TyAT4_6.2 Enthusiast

TyAT4_6.2

Posted
Posted
On 9/8/2021 at 6:39 PM, Freeagnt54 said:

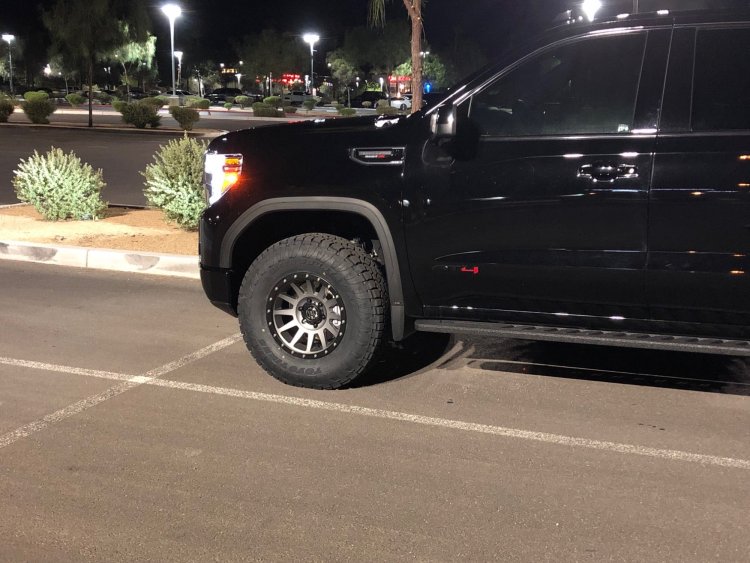

Icon Compression 17”x8.5” 0 offset

Toyo open country at3 275/75r17 (34”x11.5”)





Stock height? Any rubbing or trimming?

fastk9dad Enthusiast

fastk9dad

Posted
Posted

For those running Nittos, how does the actual mounted inflated height compare to the advertised inflated height?

  • 2 weeks later...
SC4R3C120W Enthusiast

SC4R3C120W

Posted
Posted (edited)

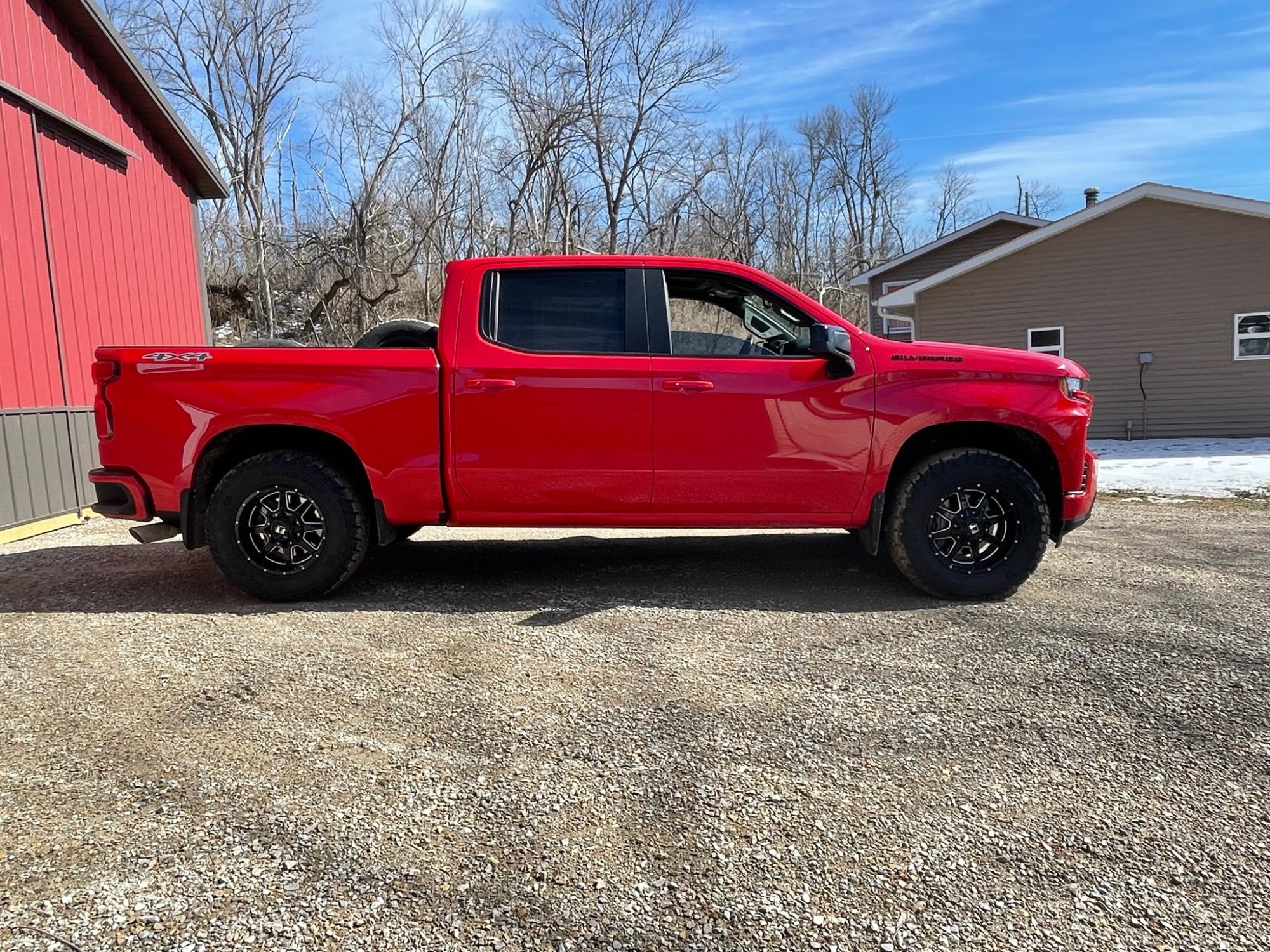

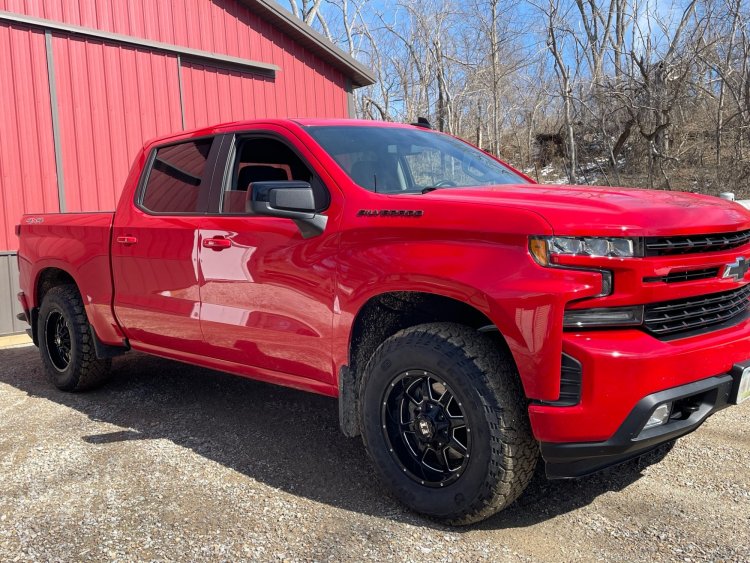

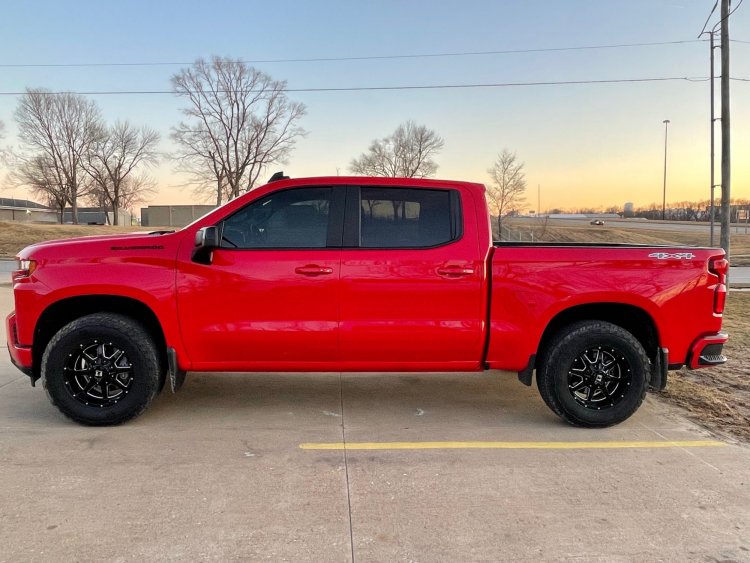

275/70/18 bridgestone revo at3

3.0 RST duramax with 3.5" RC lift/ level

Stock 18" rims


Edited by SC4R3C120W
  • Like 1
Mike Borowski Enthusiast

Mike Borowski

Posted
Posted (edited)

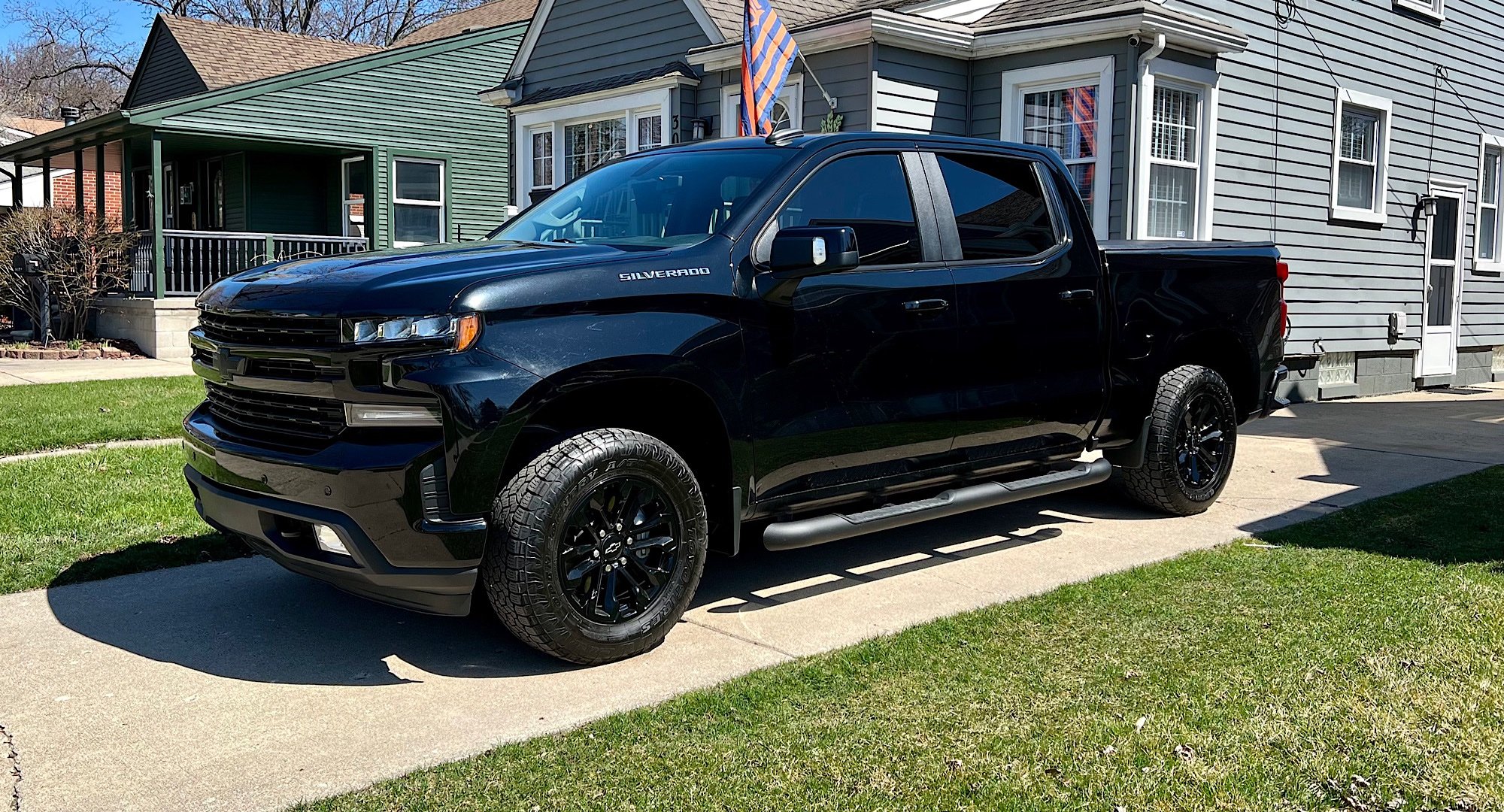

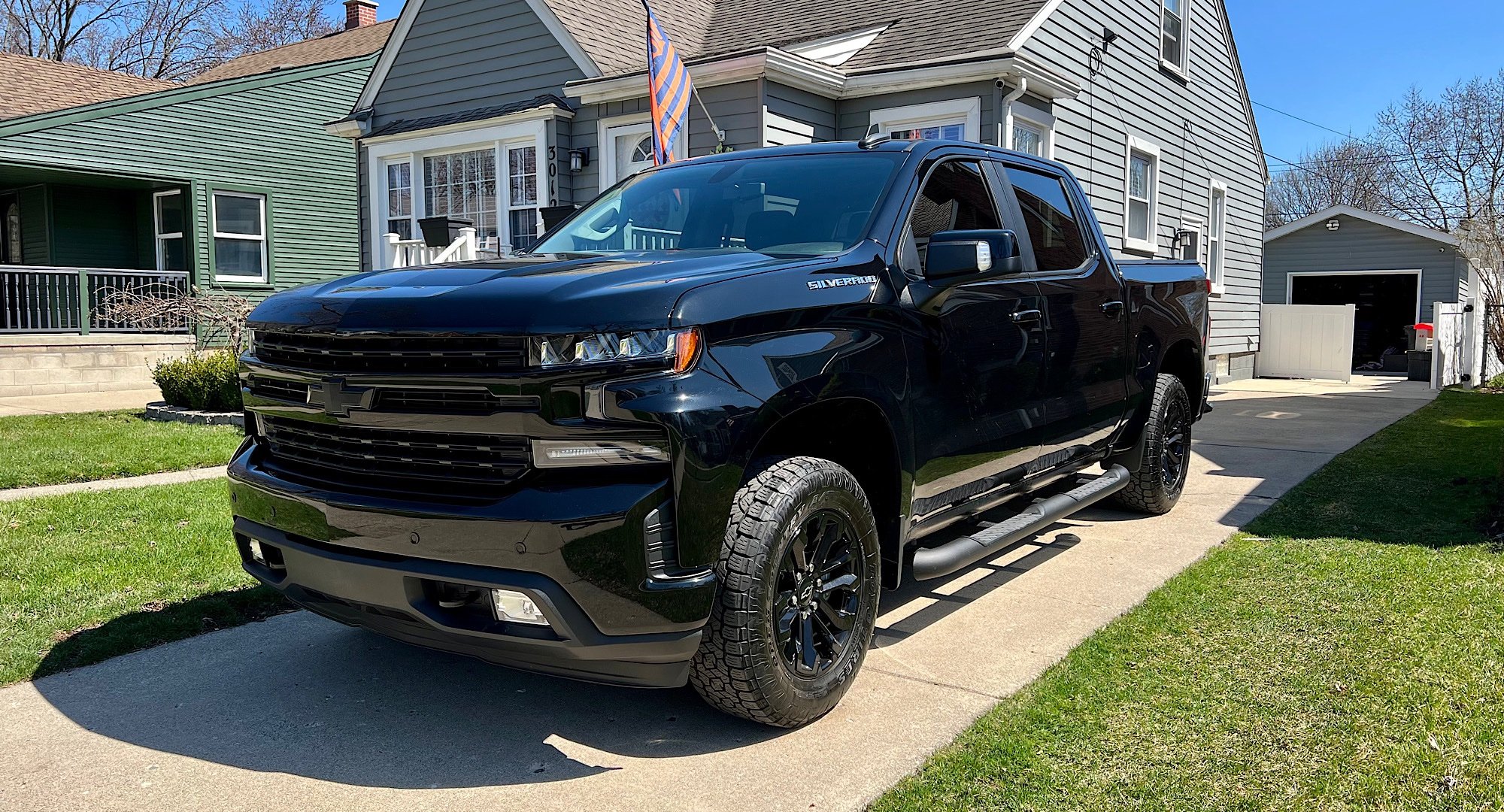

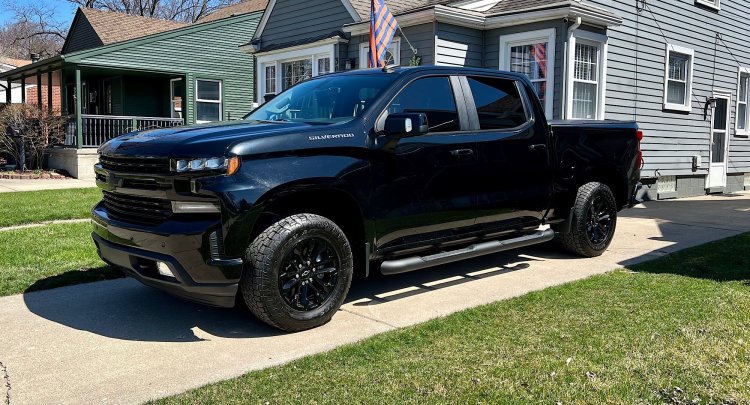

Picked these up on FB Marketplace brand new with center caps still in bags for $775 shipped. I love them over the stock silver 18’s



Part:84641199

Toyo AT3’s 265/65/18

Bilstein 5100 1” lift in front.



Edited by Mike Borowski
newdude Senior Enthusiast

newdude

Posted
Posted
1 hour ago, SC4R3C120W said:

275/70/18 bridgestone revo at3

3.0 RST duramax with 3.5" RC lift/ level

Stock 18" rims






Nice.  Hope you got new upper control arms for it.  We got a 2020 gas GMC Elevation here that has a 2 inch level.  Stock UCA ball joint failed, and hard.  Took out the CV, the wheel, ABS sensor too.

SC4R3C120W Enthusiast

SC4R3C120W

Posted
Posted (edited)
2 hours ago, newdude said:





Nice.  Hope you got new upper control arms for it.  We got a 2020 gas GMC Elevation here that has a 2 inch level.  Stock UCA ball joint failed, and hard.  Took out the CV, the wheel, ABS sensor too.

Correct.... New upper control arms and mine being a diesel, they recommend the strut spacer instead of the coil overs because of the heavier engine. Plus the 2.5" block with new V2 shocks. Rides just the same as factory. Was surprised the tires didn't ride more stiff or make any road noise. I was looking at 34's, but since I commute 120 miles a day, i wanted something lighter weight to try and keep mileage. These Bridgestone's were one of the lightest 33's while still having a little all-terrain patterned tread/look. They are each 15lbs heavier then my stock 265/65/18 Michelin LTX's, adding 60lbs more or rotating mass. I also got the RC speedometer calibrator to keep DIC correct

Edited by SC4R3C120W
Wisco68 Enthusiast

Wisco68

Posted
Posted

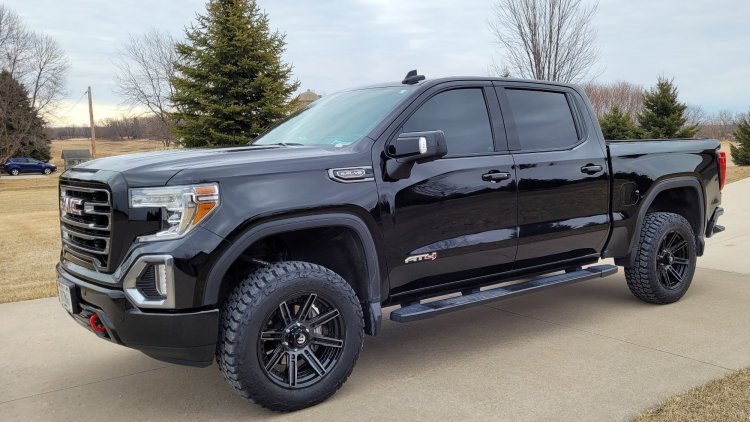

2020 Sierra AT4, 5.3L

275/60R20 Mickey Thompson Baja Boss AT

20x9 Fuel Rogue +1 offset, Gloss Black w/ Machined DDT face

1.75” ReadyLIFT Leveling Kit with UCAs





  • Like 1
Trevor Towers Enthusiast

Trevor Towers

Posted
Posted
27 minutes ago, bluemonstercali said:

Truck looks amazing!!!! What tire size?


The wheels are Vossen HF 6-4 20x9.5 @ +15 offset. The tires are Falken Wildpeaks AT3W 275/60 R20s. No rub at stock height. This setup was on my old truck (21 Elevation). I just swapped them out!

  • 2 weeks later...
Matt Jackson New Member

Matt Jackson

Posted
Posted
On 3/28/2022 at 9:28 PM, Mattuz93 said:

3.5” Rough Country lift

295/65/20 ridge grapplers


Truck looks great great, very similar setup to what I would like to do. Did you have to run any spacers or make any mods to eliminate rubbing?
