Adding Rear camera Above Bed

Boda1985

By Boda1985
in Modifications, Wheels & Tires

 Share

Recommended Posts

Boda1985 Enthusiast

Boda1985

Posted
Posted

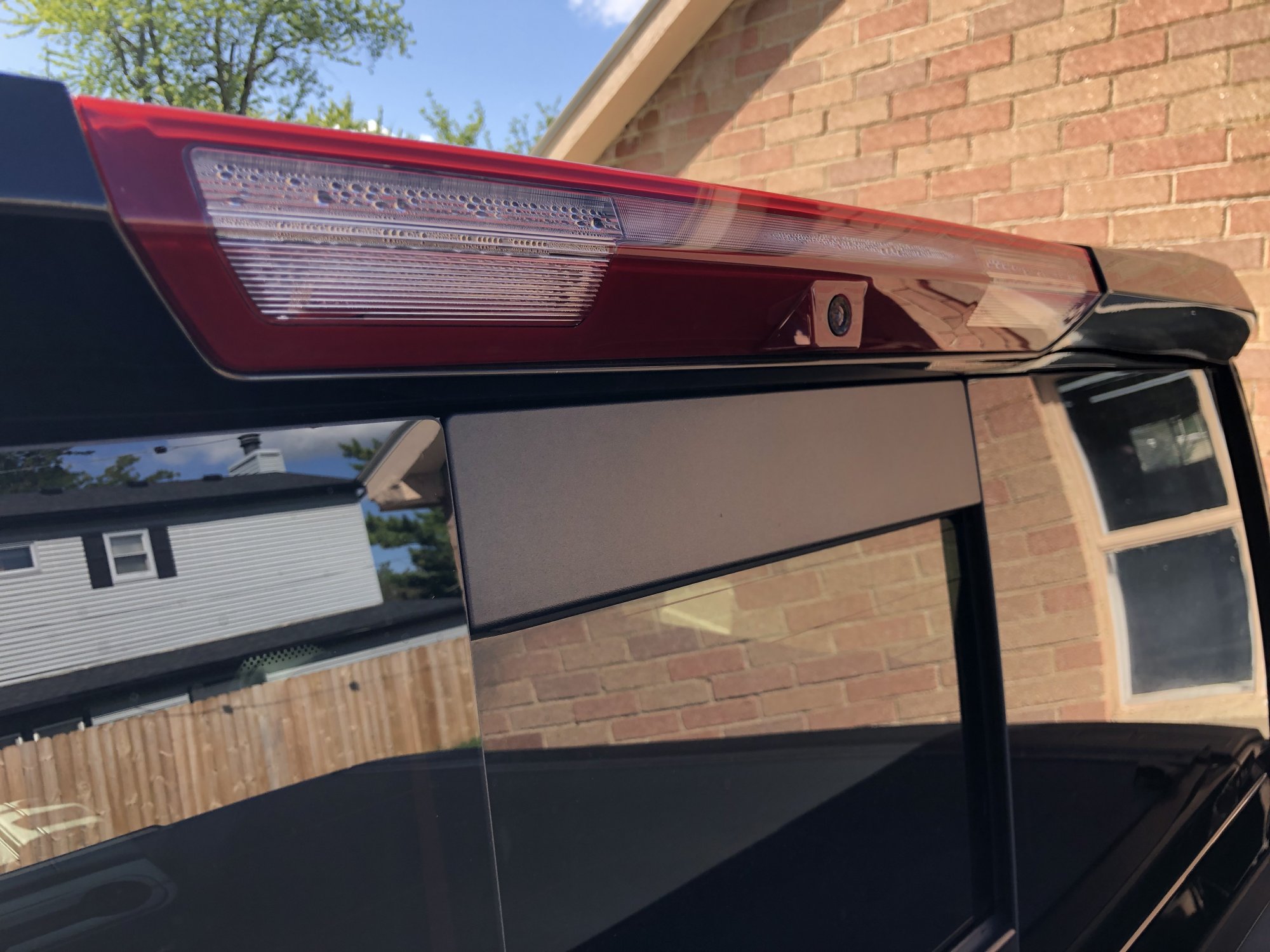

I have the 19 1500 SLT with the rear tailgate camera, side mirror cameras and the trailering camera package for a camera on the back of the trailer. I have looked into adding the front camera, but I found out that the trailering camera port replaces the front camera, it isn’t possible to have both. I would love to have the camera above the bed in the rear backup light that is on the cab. I talked to GM, you can purchase the light with the camera for $350. I am wondering if the wires are already installed for the cameras, just unused. I also know that the software on the system would need to be updated.



Has anyone added this camera? Or do any of you know if the wiring already installed?


  • Replies 287
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

FiatDale
FiatDale

I don’t think either of you read what I’ve typed. Here is what you need: Spoiler assembly with camera (black) 84515287 Mirror 13532977 Coax cable 84335461 You do NOT need to buy the PN I ACCIDENTA

FiatDale
FiatDale

K it works. Zero programming needed plug and play. When I have time to compile everything I’ll do a whole write up. Get your parts on order.

FiatDale
FiatDale

Mirror came in, waiting on the camera, should be here Monday. Powers up perfect with the plug that’s glued inside the headliner. I’ll post a full install with PN needed next week.

Posted Images

brisk00 Enthusiast

brisk00

Posted
Posted

I'm wanting to do this as well.  Do you happen to have the part number for the light with the camera?

Semedar Enthusiast

Semedar

Posted
Posted

Following!

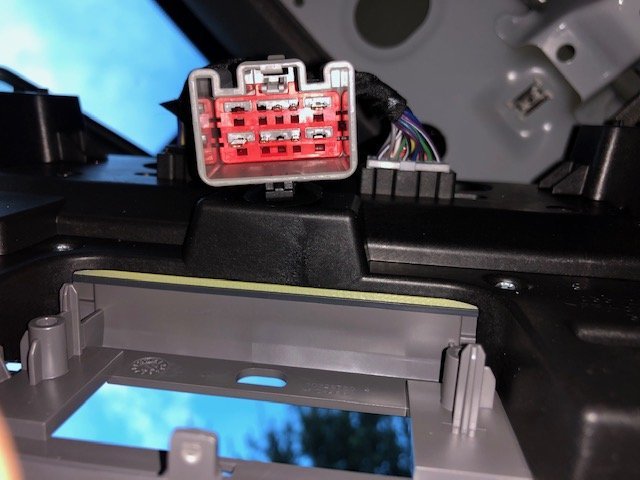

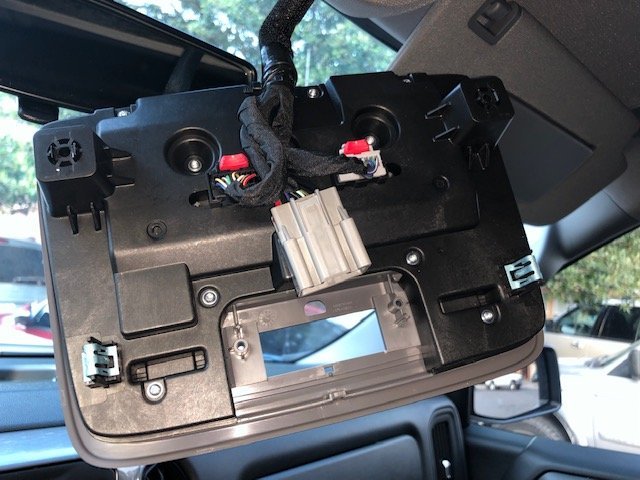

I took pictures of the unused harnesses on top of the headliner when I put in an auto dim rear view mirror. If you can find out what plug the rear view camera uses, maybe we can figure out what those other unused plugs/harnesses are for.





Boda1985 Enthusiast

Boda1985

Posted
  • Author
Posted

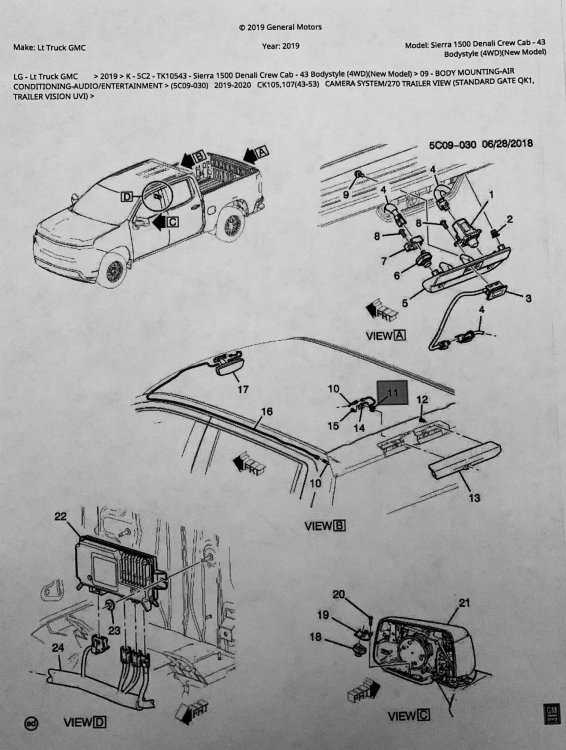

The part number is 84487008, it’s on back order and costs $267. Here is a picture of the diagram






  • Like 1
Semedar Enthusiast

Semedar

Posted
Posted
10 minutes ago, Boda1985 said:

The part number is 84487008, it’s on back order and costs $267. Here is a picture of the diagram






Plug #11 sure does look a lot like this one..







Boda1985 Enthusiast

Boda1985

Posted
  • Author
Posted

Here is another diagram that shows the wire to the mirror. So with even more research I learned that camera is for the mirror only. So this should be easy to install. Need the mirror, wiring harness and camera. I assume you don’t need software update if it is all just in the mirror.

Boda1985 Enthusiast

Boda1985

Posted
  • Author
Posted
6 minutes ago, Semedar said:

Plug #11 sure does look a lot like this one..







Yes it does! I need to go to the dealer this week. I’ll get a price on the rest of the parts, mirror and wiring harness. I think it’s doable. If I can order all the parts, I’ll make the attempt. Just not sure how long they will be on backorder.

OnTheReel Senior Enthusiast

OnTheReel

Posted
Posted

Suspect I know why they are on backorder. Mine filled up with water pretty bad and needed to be replaced.






Side note...for 2020 this part has a second camera for the bedview mode. That one will be a hell of a lot harder to add on, if possible at all. Since the infotainment would need to be updated/ upgraded and who knows what else.

Semedar Enthusiast

Semedar

Posted
Posted
33 minutes ago, OnTheReel said:

Suspect I know why they are on backorder. Mine filled up with water pretty bad and needed to be replaced.






Side note...for 2020 this part has a second camera for the bedview mode. That one will be a hell of a lot harder to add on, if possible at all. Since the infotainment would need to be updated/ upgraded and who knows what else.

I don't suppose you can verify with us to see what's connected to you harness here ?







brisk00 Enthusiast

brisk00

Posted
Posted
5 minutes ago, FiatDale said:

More to this, mine has an extra unused connector in the headliner. Any ideas?


If it's at the front of the headliner that one is for the autodim.



Chris Callanan Enthusiast

Chris Callanan

Posted
Posted
On 9/14/2019 at 10:19 AM, Boda1985 said:

I have the 19 1500 SLT with the rear tailgate camera, side mirror cameras and the trailering camera package for a camera on the back of the trailer. I have looked into adding the front camera, but I found out that the trailering camera port replaces the front camera, it isn’t possible to have both.







Anybody know if I can add the Side mirror cameras and the Front view camera to my SLT?  I've had other threads on this and nobody has been solid on it...  but I do have the mirrors already that look like there is room for the cameras...  how would I know if the wiring for the Front camera is in place?  Do I just need to go talk to my dealer?

FiatDale Enthusiast

FiatDale

Posted
Posted

I’ve got the mirror and brake light coming. Unfortunately with this strike it’s put a hold on these special order parts, so it may be a little bit until I get to installing and making a harness.

To the comment above, most dealers will say it’s not possible to add after the fact, so I’d save your breath. Either attempt it on your own with more research and then report back to them, or don’t try. Most dealers will not want to mess with trying to reprogram as they don’t know how.

  • Like 1
FiatDale Enthusiast

FiatDale

Posted
Posted

Confirmed: that grey plug on top of the console is power for the power sunroof. and no, I do not have one.


  • Like 1
  • Thanks 1
