Hold the Presses - New Top Crate Engine From Chevy

[Gorehamj]

John Goreham
Contributing Writer, GM-Trucks.com
12/21/2015

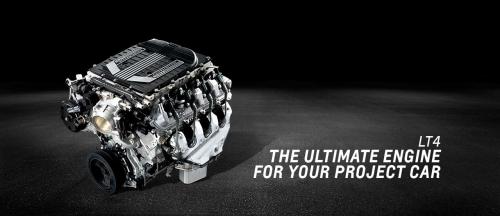

As if there are presses anymore! Anyway, the story we did just two months ago about Chevy's top crate engine, is now obsolete. The ZZ6 will take a back-seat to the Corvette's 650 hp LT4, which you can now buy to power your sleigh.

The newest addition to your Christmas list will enable your project car to pack the same punch as a "vette. Chevy says the new engine is "The perfect balance of performance and efficiency, the LT4 leverages the technologies introduced on the 2014 Corvette Stingray’s LT1 Gen-V small block, including Direct Injection and continuously Variable Valve Timing, while advancing the supercharging technologies established with the previous-generation Corvette ZR1’s LS9 engine. The result is a surprisingly efficient engine capable of producing 650 horsepower and 650 lb-ft of torque."



Chevy says the kit can come with a wet or dry sump lubrication system. The good folks at Chevy can also offer a kit to enable the engine to fit an automatic transmission.

Related Stories:

Boost or V8 for your Chevy project truck? Why not both?

Chevy's surprising new Turbo-4 crate engine

[barry G]

the net is terrible on actual specs.

I get as far as titanium valves, a unique hard alloy for the heads...

powder forged rods

and no further.



what is the chamber size, port design, CFM numbers, exhaust and intake sizes..

is the block non-siamese (wet cylinder) ?



what is the cylinders sleeved?



this lack of facts kills every great launch by gm. I have even found some throwing the vortec eninges away...yes, those engines with the LT 1 heads before LT ever got them.



ridiculous. Can they treat us mechanics like mechanics and lead us to real facts?

[Gorehamj]

Here is some more info:

Pistons (P/N right hand 12674094 and left hand 12674093):

Camshaft Lift (in.):200° intake / 212° exhaust

Valve Lift (in):.492 intake / .551 exhaust



Camshaft Duration (@.050 in.): 189° intake / 223° exhaust

Cylinder Heads (P/N 12646959): A356-T6 rotocast aluminum
Valve Size (in.): 2.13 intake / 1.59 exhaust

Compression Ratio: 10.0:1

Engine Type: Direct injection spark ignition Gen-V Small-Block V8

Displacement (cu. in.): 376 (6.2L)



Bore x Stroke (in.): 4.06 x 3.62 (103.25 x 92 mm)

Block (P/N 12619171): Cast aluminum with 6-bolt nodular iron main bearing caps

Crankshaft: Forged steel

Connecting Rods:Powdered-metal steel

Recommended Fuel:Premium



Here is the install guide for a Wet Sump: http://www.chevrolet.com/content/dam/Chevrolet/northamerica/usa/nscwebsite/en/Home/Vehicles/Performance/Catalog_Download/04_2015pdfs/lt4-engine-specs-wet-sump-19332622.pdf

Here is the install guide for a Dry Sump: http://www.chevrolet.com/content/dam/Chevrolet/northamerica/usa/nscwebsite/en/Home/Vehicles/Performance/Catalog_Download/04_2015pdfs/lt4-engine-specs-dry-sump-19332703.pdf
