Post your T1 wheel/tire setup

BevoXV
 Share

Recommended Posts

TA^Guy Enthusiast

TA^Guy

Posted
Posted

I was wonder if anyone has any photos of a SLT with AT4 wheels on it.  I don't typically like dark wheels when a vehicle also has chrome, but with the polished face I was curious how it would look.



 look at a lot of photo in this thread, but will admit I didn't go through all 70 pages.



Thanks for any help.

  • Replies 1.2k
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

BevoXV
BevoXV

I know the K2 guys have one of these threads so I figured we should too. Think it’d be useful for others. Post pics of your setup! Make sure to add specs of the wheels/tires, spacers, suspension, rubb

bamulk
bamulk

Method NV 305 18x9 -12 Offset Cooper Discoverer S/T Maxx 295/70/18 1.5 Level (Trailboss) Slight Rub on mudflap on full lock.

BevoXV
BevoXV

Caliper clearance!

Posted Images

PureZ71 Enthusiast

PureZ71

Posted
Posted

- @readylift 2” SST Lift Kit
- @toyotires Open County R/T (35X12.5R18)
- @fueloffroad Block D751 wheels (18X9, -12 offset)










  • Like 1
  • 3 weeks later...
Coppertone Enthusiast

Coppertone

Posted
Posted
On 7/16/2020 at 9:26 PM, FlyerPete said:

 2019 SLT 2in GM Lift. Just put on set of KO2s.  275-65-20 (34" tire)


What is the "GM lift"?

bdallas Enthusiast

bdallas

Posted
Posted
1 hour ago, Coppertone said:

What is the "GM lift"?

It is the 2" lift that you can buy from GM... It's the same one they put on the Trail Boss and AT4's.



Coppertone Enthusiast

Coppertone

Posted
Posted
21 hours ago, bdallas said:

It is the 2" lift that you can buy from GM... It's the same one they put on the Trail Boss and AT4's.



It looks pretty level, do you have a leveling kit on top of it?

Tdola Enthusiast

Tdola

Posted
Posted (edited)

•Fuel Rebel 20 x 9 with 0 Offset

•Toyo Open Country A/T 3’s
  325/60-20

•Fox 2.5 w/Reservoir Front and
  Rear Leveling Kit

•Icon Upper Control Arms
•2” Block in the Rear

•Deavers Full Leaf Springs with

  the 1.5” lift of the springs taken

  out by Deavers (maybe should

  have left it to avoid using the 2”

  block).
•Front and Rear Hellwig
  Sway Bars.


Some minor inner wheel well trimming with mud flap trimming and 1/2” hubcentric wheel spacers but all else is fine. Full turn lock to lock has a slight hit of frame


Edited by Tdola
  • Like 2
  • 2 weeks later...
bluemonstercali Enthusiast

bluemonstercali

Posted
Posted
On 4/11/2023 at 10:27 PM, DrewSal said:

Anyone running 285/55/22 on their 2022/2023 Denali with a level?



I’ve had Nitto Terra Grapplers on chrome CK158 reps on my 2014 Silverado and love the setup, however am looking to upgrade.


If anyone has photos please post and you’ll likely get me into a new truck sooner 🙌🏼🙌🏼🙌🏼

I am getting ready to put those on my elevation with a level. its the 1.5 motofab spacer upfront not the 2". I will post pics when its done. I had a hard time finding many pics of this set up. I believe there are 2 guys on here that have it on their trucks.

  • Like 1
85CJ Enthusiast

85CJ

Posted
Posted
On 3/27/2023 at 6:26 PM, SilverMak said:

Your AT4 looks good. Have you leveled it? How much difference do the new tires make in ride quality?

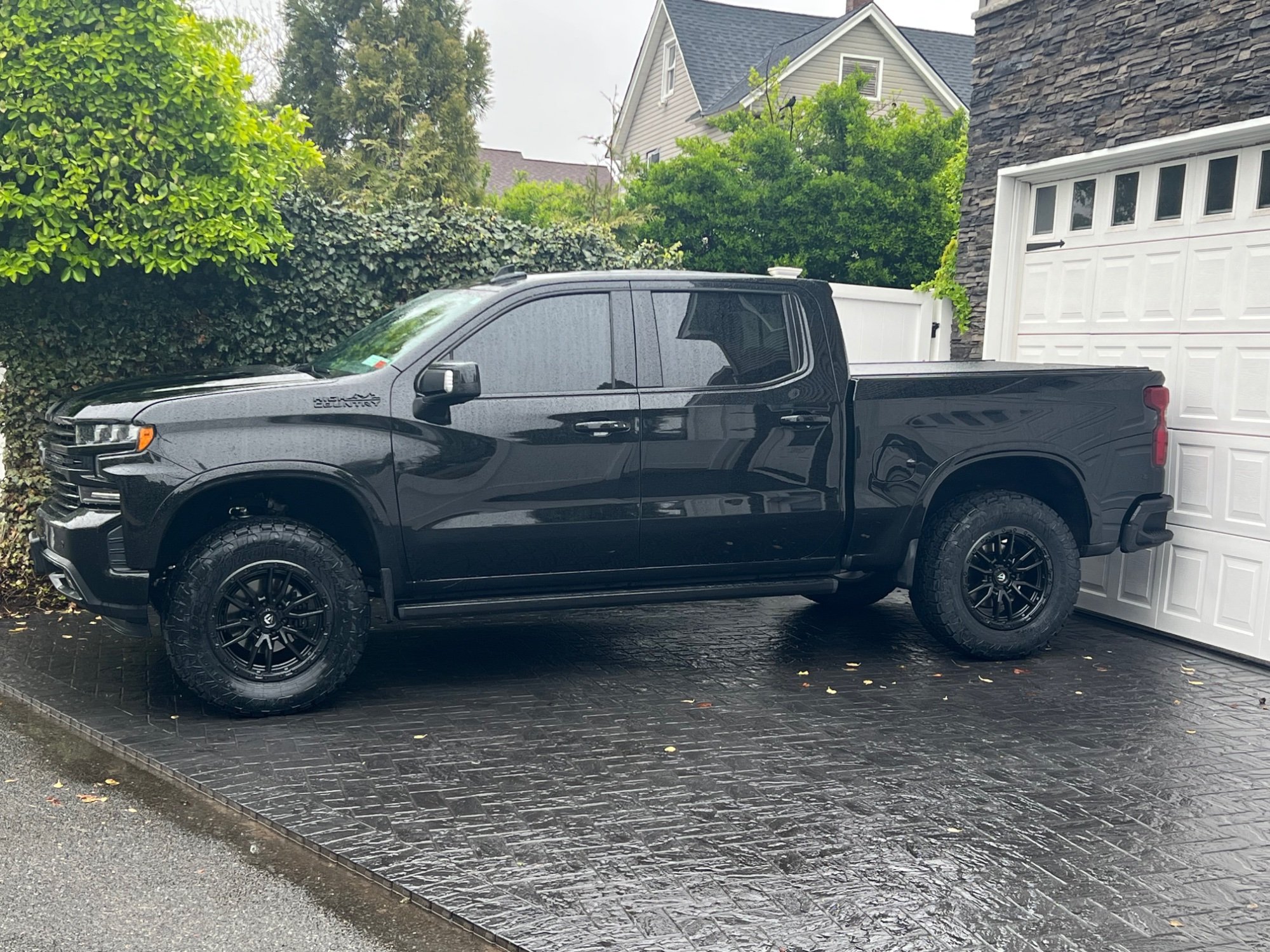

Apologies for slow response.  I did the 1 inch Cognito kit and I really like it.  In my opinion, it's the perfect level and looks like we all wanted it to come from the factory.



Thus far, the Coopers are great - no complaints.  The ride is great, they are quiet and they performed really well in snow.   Plus, they were buy 3 get 1 free at Big O....incredible deal!

  • Thanks 1
Daniel Formichelli Enthusiast

Daniel Formichelli

Posted
Posted

Hello - This not a post of a setup just a potential setup.  Looking for some assistance so I do not have to return anything?

I have a 22 LTD RST Redline with 275/60/20 on it. I have the Eibach Pro Truck Lift System Stage 1 with aftermarket Control Arms. Wondering if I could get away with putting 20x9; 18mm Offset on it with clearance and without stressing the ball joints.  Was told 18mm offset is too much strain on the ball joints? Looking to run either Toyo OC AT 3s or BFG Ko2 unsure of what size as well.  Would I need any spacers?



Any assistance would help me out.  Thanks.



I looked in this thread and got about 40 deep then just came here to post.

GETGONE Enthusiast

GETGONE

Posted
Posted (edited)
4 hours ago, Daniel Formichelli said:

Hello - This not a post of a setup just a potential setup.  Looking for some assistance so I do not have to return anything?

I have a 22 LTD RST Redline with 275/60/20 on it. I have the Eibach Pro Truck Lift System Stage 1 with aftermarket Control Arms. Wondering if I could get away with putting 20x9; 18mm Offset on it with clearance and without stressing the ball joints.  Was told 18mm offset is too much strain on the ball joints? Looking to run either Toyo OC AT 3s or BFG Ko2 unsure of what size as well.  Would I need any spacers?



Any assistance would help me out.  Thanks.



I looked in this thread and got about 40 deep then just came here to post.



Stock wheels are +24mm offset so going with a +18 offset is only 1/4"(6mm) difference. Whoever told you that crap doesn't know what they're talking about. I run 20x10's with a -12 offset and have to run a 6mm spacer to clear the caliper so it's technically a -18mm offset with 275/60/20 tires for my summer setup. In the winter I run the stock 20" Trail Boss wheels with 2" spacers and no issues.





Edited by GETGONE
  • Like 1
Daniel Formichelli Enthusiast

Daniel Formichelli

Posted
Posted

Thanks for the reply @GETGONE OK I kind of figured that coming from the source that told me. But I like to hear it from others that actually own a Silverado and have done it.  Cool so I shall continue with that setup.  Thanks.

bluemonstercali Enthusiast

bluemonstercali

Posted
Posted

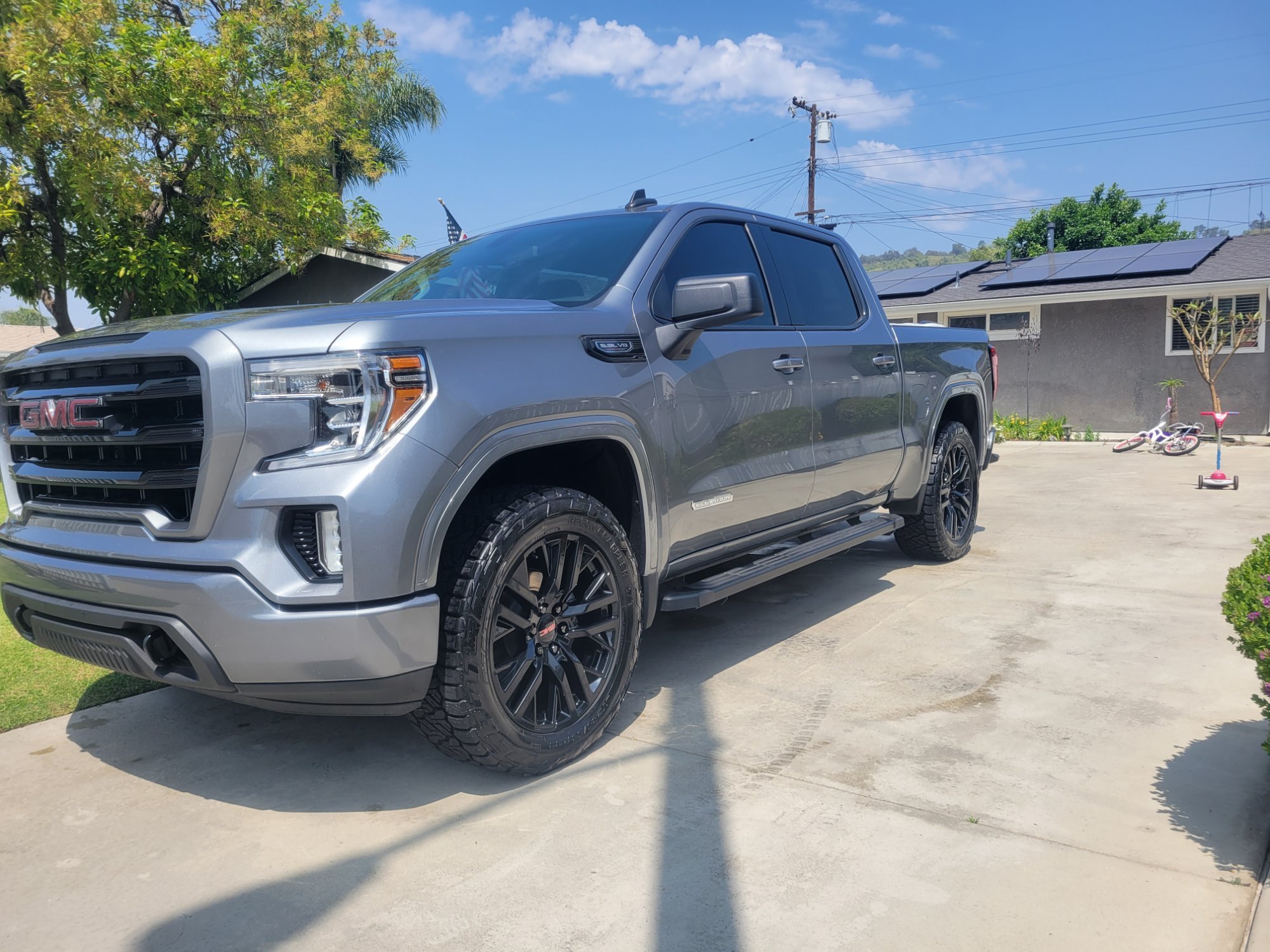

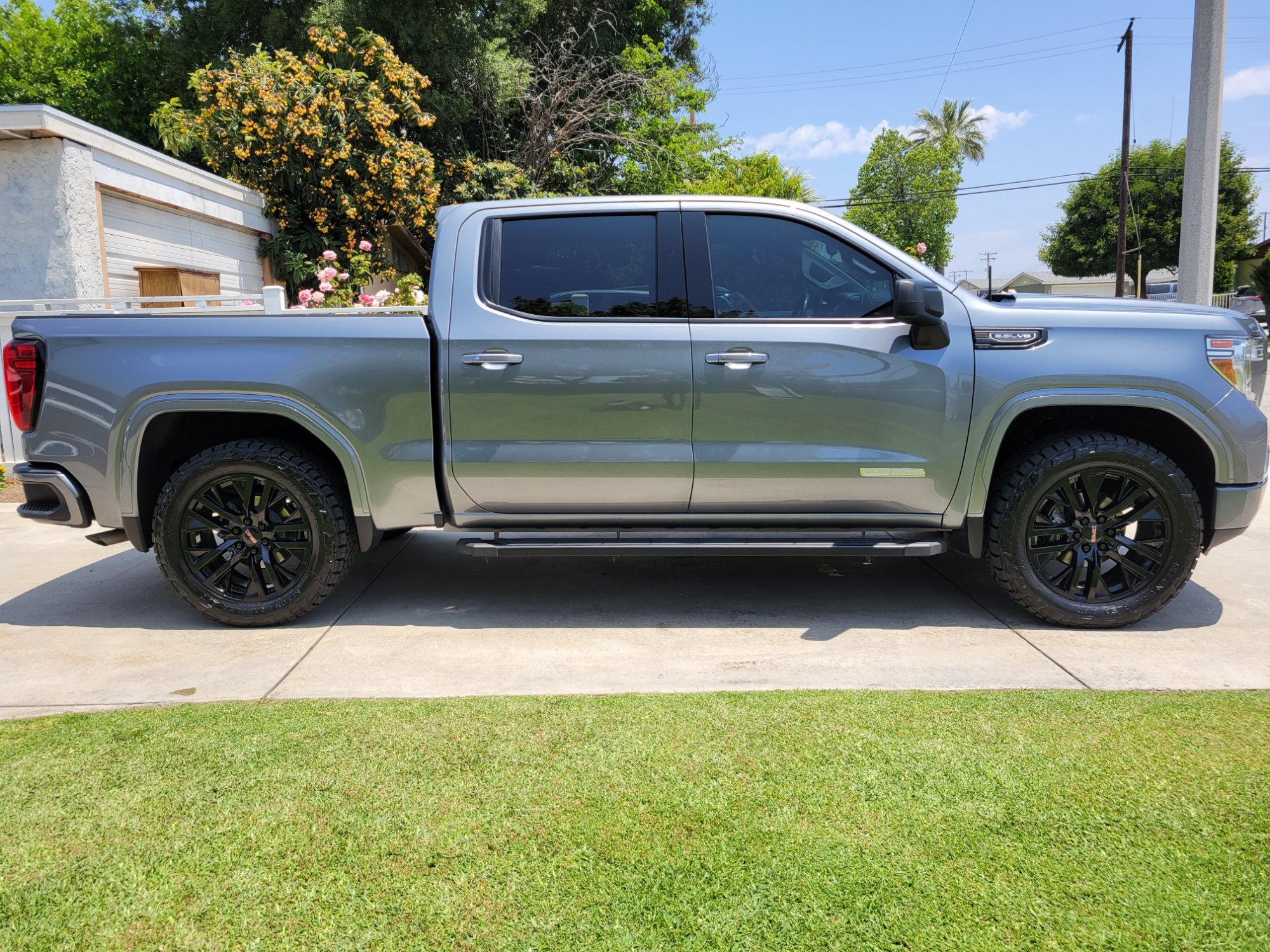

2021 Elevation. Bilstein 5100 all around and set the front to the max height which is 2.5" I believe. tires are 285/55r22 Nitto recon grapplers on OEM 22" rims. I removed the mudflap bracket and reinstalled the mudflap but I still have a very small amount of rubbing, Does anyone have any suggestions on how to get rid of that without going higher? removing the bracket and creating a hole to reuse one of the bracket bolts helped a lot.

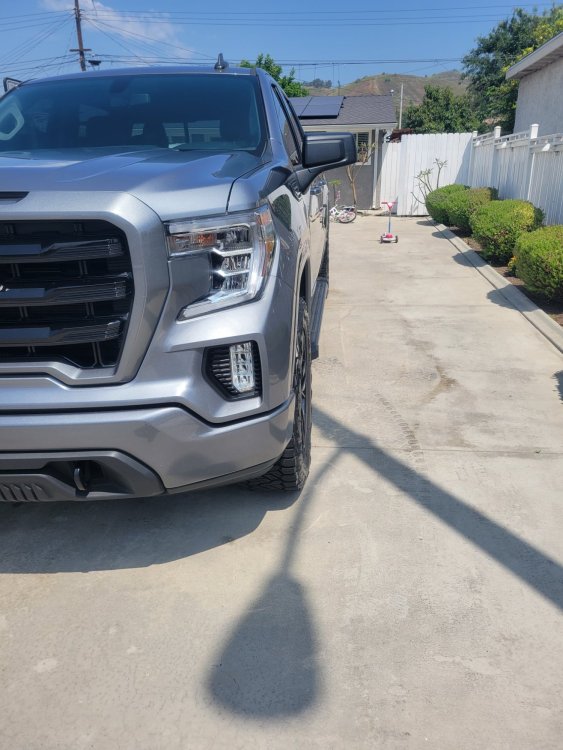

truck pic1..jpeg

truck pic1.jpeg

truck pic.jpeg

  • Like 1
Daly Senior Enthusiast

Daly

Posted
Posted (edited)

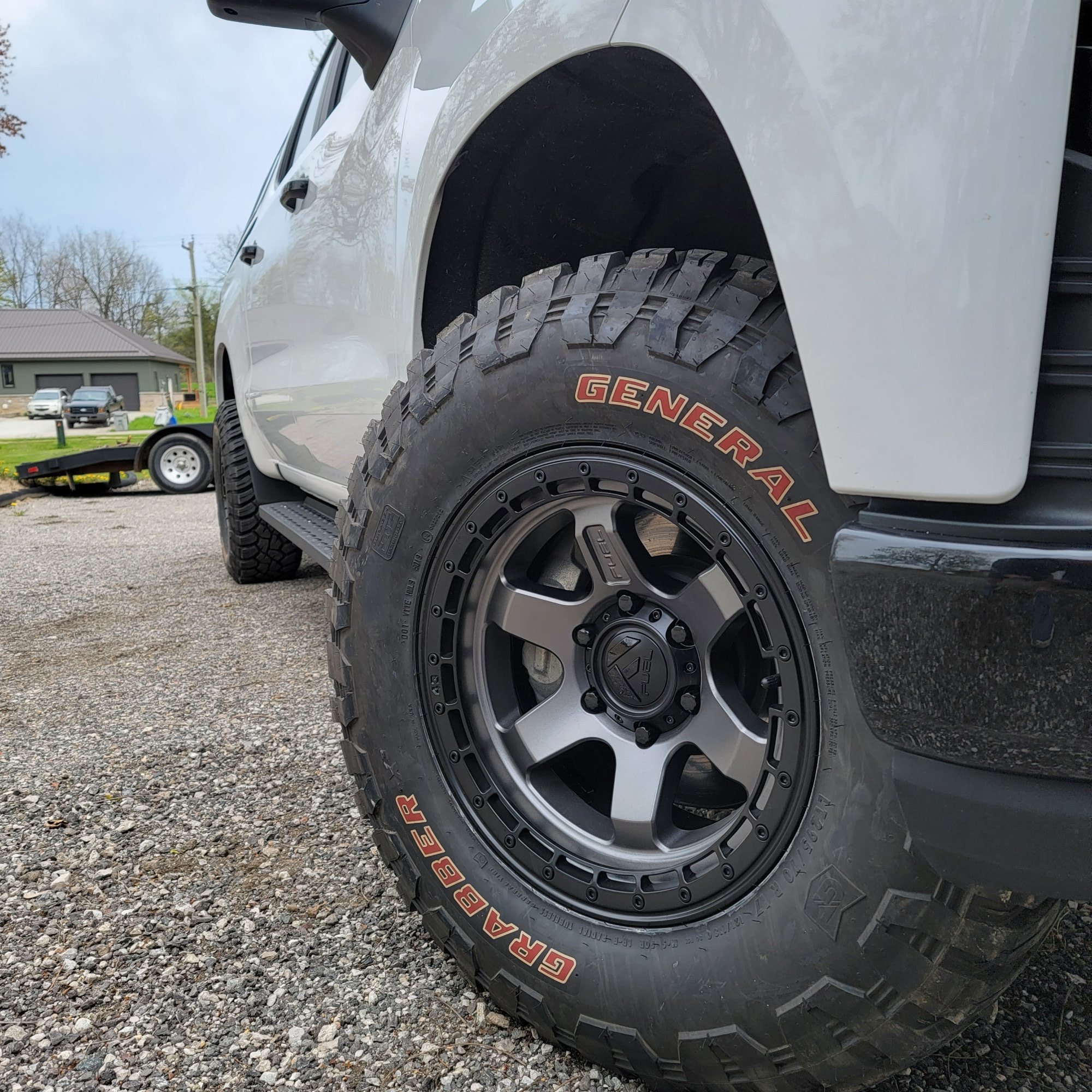

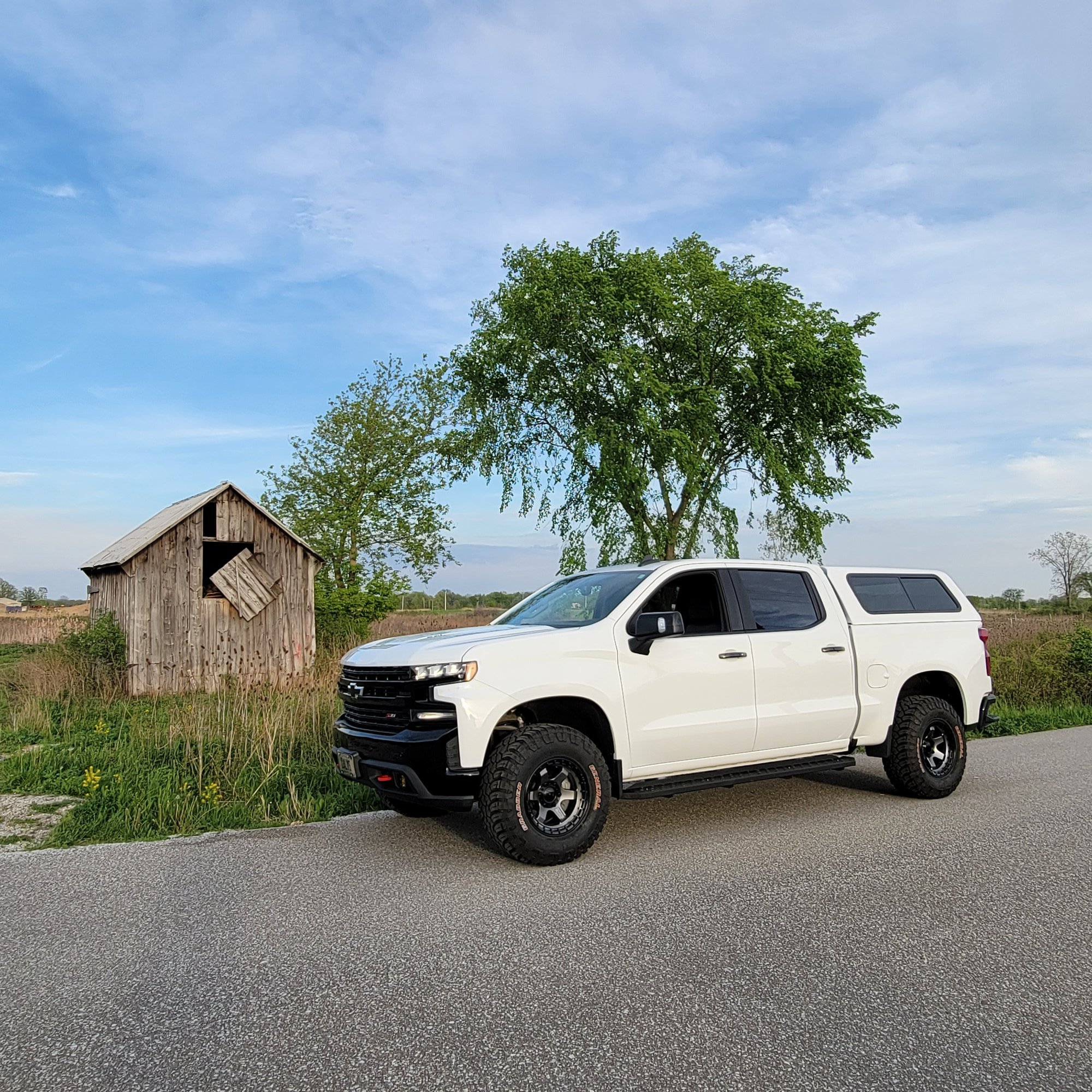

17x9-12mm Fuel Block

295/70r17 Grabber X3's

Stock Trail Boss suspension.

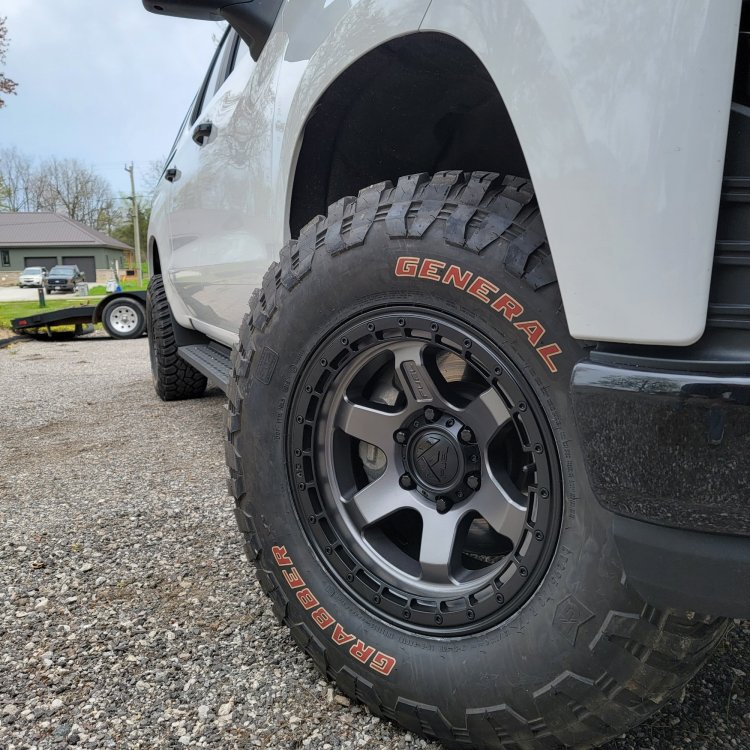

20230513_193225.thumb.jpg.bee0b54e717e15c5ba1eb70b0caa911d.jpg20230507_103827.thumb.jpg.23a4ac0b9c2c3199bb1ecfa3336cbcfe.jpg

Edited by Daly
  • Like 3
  • 2 weeks later...
s10dragracer888 Enthusiast

s10dragracer888

Posted
Posted (edited)

So, I’m new to the forum. Hello all. I’ve done quite a bit to this 4.3 Double Cab CTB 1500.






Here’s what I’ve done for wheels and tires on a factory height trail boss suspension, minus the rear blocks. NO WHEEL SPACERS. Very close on the wheel to caliper distance, though.






This also includes Bilstein 5100 B8 shocks and struts…regular Silverado shocks in the rear, trail boss struts in the front for suspension compatibility with rear block removal and smoother ride.



The Western Wheels, Edge

20” diameter, 12” width, -44mm offset, 110 mm hub (with hub centric rings)



Mickey Thompson Baja Boss A/T, 305/55R20 tires



If anyone wants to know what else I’ve done, I’ve got a laundry list of mods and explanations on how to install all of them, in detail.

Edited by s10dragracer888
Forgot a tidbit of information on suspension.
