Adding Rear camera Above Bed


Recommended Posts

3 minutes ago, SwiftVision said:

This thread was about a bed camera, not a rear view mirror camera.



So, is the bed camera plug and play?

Ummm perhaps you should read the contents of the thread instead of posting useless comments....



this thread is about the things needed to get the cam working, which.....wait for it.....involves a rear view mirror swap, as well as some extra cable, not just the rear camera!

  • Haha 2
Link to post
Share on other sites
  • Replies 264
  • Created
  • Last Reply

Top Posters In This Topic

Top Posters In This Topic

Popular Posts

K it works. Zero programming needed plug and play. When I have time to compile everything I’ll do a whole write up. Get your parts on order.

I don’t think either of you read what I’ve typed. Here is what you need: Spoiler assembly with camera (black) 84515287 Mirror 13532977 Coax cable 84335461 You do NOT need to buy the PN I ACCIDENTA

Mirror came in, waiting on the camera, should be here Monday. Powers up perfect with the plug that’s glued inside the headliner. I’ll post a full install with PN needed next week.

Posted Images

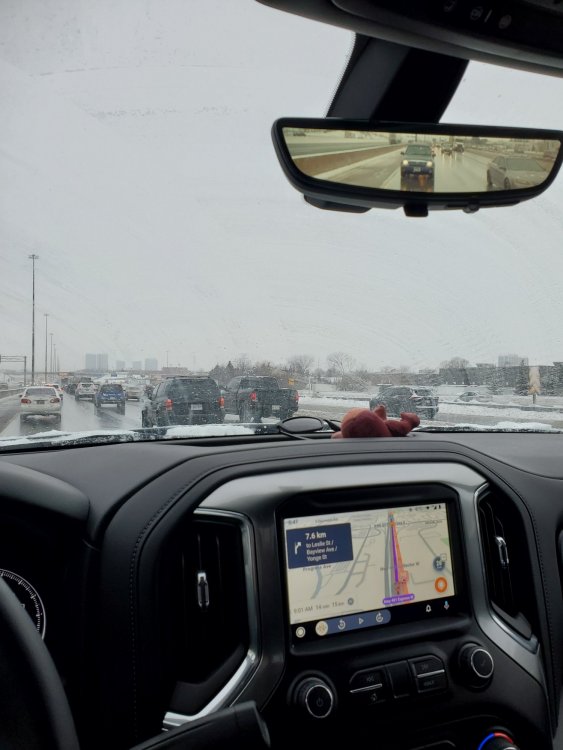

I finally completed this mod a couple months ago. I used the following parts. Thanks to the help of this forum.

P/N: 13536995 Mirror

P/N: 84487008 High Mount Lamp

P/N: 84335461 Cable

P/N: 84599550 Harness


  • Like 1
Link to post
Share on other sites
  • 2 weeks later...

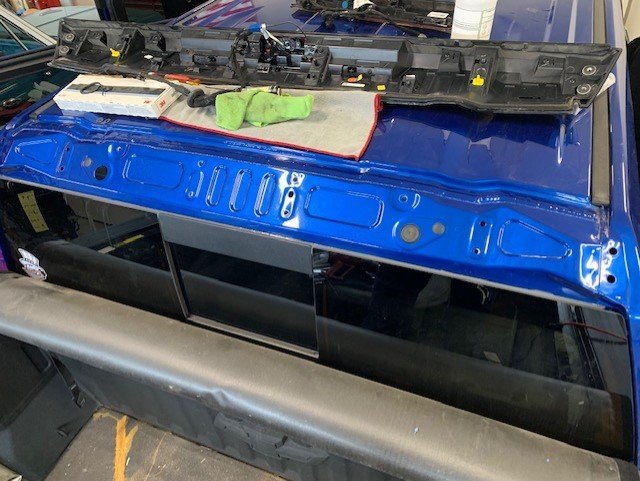

Ok so i just completed the install. Started on my lunch break but did not have the coax cable since it was out for delivery by amazon. Finished everything in the dark. I would say the hardest part is getting the dang headliner back on. That was the biggest pain in the ass!!! Second pain in the ass was getting the dome light screws back in!!!! And 3rd was getting the rear seatbelt caps back on after the headliner was installed!!!!



i also did NOT have any extra plug glued to the headliner for some reason, Anyone know why? I thought all cars come with it...?



i was able to use the original plug I had in my auto dim mirror prior and the camera works.... any thoughts on this?



i also used clear RV silicon on the inside nuts when screwing them back in as recommended by someone here.







Link to post
Share on other sites

Also, would love to know what the model number of the GEN 1 and GEN 2 mirros are if anyone has that. Assume the Gen 2 is the one that ends on 995, but how about Gen 1? Just want to know if mine is an old mirror or what since its a different part number

Link to post
Share on other sites
6 hours ago, Offroadman00 said:

i also did NOT have any extra plug glued to the headliner for some reason, Anyone know why? I thought all cars come with it...?



i was able to use the original plug I had in my auto dim mirror prior and the camera works.... any thoughts on this?

Offroadman, if you had the autodim already installed and working you had the "extra plug" that others talk about.

A lot of the trucks have the standard flip mirror, the ole manual style mirror.  For those instances the wire is tucked up in the headliner, glued to the headliner.

You are good.

  • Like 1
  • Thanks 1
Link to post
Share on other sites
  • 3 weeks later...
Posted (edited)

Will this setup work on the 2021 Silverado Texas

yes it will just finished installing it and works great



gmpartscenter.net

84335461

13536995

84487008

84791000



total with shipping was about 850.00

Edited by Cwmig
Misprint
Link to post
Share on other sites
  • 1 month later...

I just want to check about possible parts. I want to put this setup in a different vehicle so the high mount light is not necessary.  Is there a part number for just the camera?

Link to post
Share on other sites
39 minutes ago, Outvoted said:

I just want to check about possible parts. I want to put this setup in a different vehicle so the high mount light is not necessary.  Is there a part number for just the camera?

84486910 is the camera part number

and if you need a mirror, there are some very very nice video DRZ mirrors on ebay right now (i may be the seller).

Link to post
Share on other sites
On 4/30/2021 at 10:00 PM, Offroadman00 said:

Also, would love to know what the model number of the GEN 1 and GEN 2 mirros are if anyone has that. Assume the Gen 2 is the one that ends on 995, but how about Gen 1? Just want to know if mine is an old mirror or what since its a different part number

Not sure on specific part numbers but all Gen 2s will have 3 soft buttons at bottom right of mirror.

Link to post
Share on other sites
