L84 can I save it ?


Recommended Posts

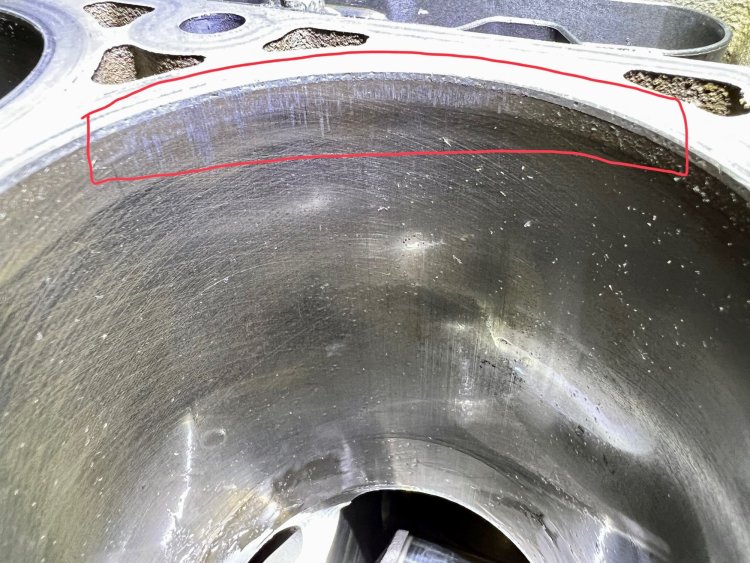

My l84 5.3 cracked some pistons now thinking of doing a light hone but wanted to know if it would even save the engine ? The scratches are pretty light my nail doesn’t get stuck but I do feel em. The pours on the other hand I’m not sure what could have caused those little things ?



Edited by Fredo1888
  • Like 1
Link to comment
Share on other sites

@swathdiverNot sure I had it on dyno pushing it and the boost cracked two pistons. They were still together and didn’t really shatter couldn’t even tell they were cracked until I pulled them out. Those little pours is what really has my thinking why they are there. Doesn’t have any rust

Edited by Fredo1888
  • Like 1
Link to comment
Share on other sites

I've seen way worse engines still working just fine.


Seems like you got the pistons really hot and they expanded a little bit too much, likely where the marks came from. Probably why they cracked.



The marks are above the top piston ring so on the new set of piston they won't do anything to them. I'd slap it back together and be a little more careful.

  • Like 1
Link to comment
Share on other sites

Crosshatch actually doesn't look bad and as mentioned above, the scrapes are above the top ring for the most part.  I would re-hone the cylinders, new rings, new pistons, and be a little more conservative with the tune next time.  Then again, since the motor is out and the short block is being worked on, I might would stroke it or punch it out a bit since its going to get machined any ways and your replacing the pistons regardless.

Link to comment
Share on other sites
