Wireless Charger in Center Console Lid

[pipdicker]

Moto, you make a great point....



I don't suppose anyone has the part number for the tray in the armrest? I am a little apprehensive on cutting, but if it's a low cost piece I can always replace it.

[pipdicker]

Made a bit of progress, but not finished.



I have zeroed in on the Nokia DT-900 wireless charging pad. It has 3 coils and a substantially greater range that the previous. Here is a pic of the unit:





I took that case apart to allow for this unit to fit under the armrest tray (also adds range).

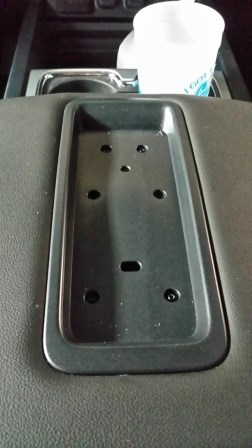

Here is the armrest tray with the mat removed. There are 6 star screws that need to be removed:





Here is the tray removed with the charger next to it:





The charger just fits in the void between the tray and the lid:





I was able to replace 4 of the 6 screws. It's a REALLY snug fit. You will need to apply light pressure to each corner to get the screws in....you can see the charger through the two center holes:

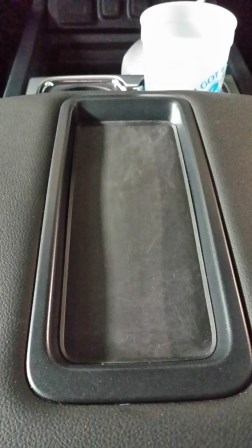

Here is a pic of the mat back in. There is a very slight hump in the tray with the charger underneath. Not perfect, but looks good:





Next step is connecting power....The best thing about this charger is it runs off of 12v. So, my plan is to drill a small hole in the lid underneath the tray and fish the cord down through the lid hinge. I will then splice the power cord and tap into the accessory power port on the rear of the center console. From what I understand this port is also switched, so no concern of power drain while truck is off. (It's worth noting that Nokia uses a proprietary barrel size on this charger cord so universal kits won't work).



My question to everyone is: Has anyone successfully removed this port without damaging the console? If so, any advice/instructions/warnings? Pics would be tremendously helpful.

[KUUG]

Where did you find the Nokia DT-900? At a local store or off the internet?



Also did you test it out with the tray and mat between the phone and charger already? no point in splicing wires yet if you don't have to

[pipdicker]

Here is the charger I ordered:



http://www.amazon.com/Nokia-DT-900-Wireless-Charging-Plate/dp/B00A3NCC5K/ref=sr_1_1?ie=UTF8&qid=1395770932&sr=8-1&keywords=dt-900



I haven't tested in the tray yet. I did perform several tests with stacks of plastic cards between the charger and the phone. I don't have a case on my phone, but was able to get a charge @ 10mm (thicker that the tray+mat) with no problem.

[MTB]

Keeping an eye on this topic as this is one of the best ideas I've seen in a while!

[Rock1500]

Here is the charger I ordered:



http://www.amazon.com/Nokia-DT-900-Wireless-Charging-Plate/dp/B00A3NCC5K/ref=sr_1_1?ie=UTF8&qid=1395770932&sr=8-1&keywords=dt-900



I haven't tested in the tray yet. I did perform several tests with stacks of plastic cards between the charger and the phone. I don't have a case on my phone, but was able to get a charge @ 10mm (thicker that the tray+mat) with no problem.

looks awesome and I look forward to how you connect it. I will like try something like this soon.

[fondupot]

Looks like you got some good progress. I may have missed this bit what phone do you have?



And what adapter are you going to be using on your phone to detect the wireless charging pad?



Keep up the good work!





Sent from my iPhone.

[MotoMedic]

I'll definitely be copying this mod in Sept if the iPhone 6 goes wireless (not-holding-my-breath)

[Full Lock]

should this charger work with any Qi compatible devices or just the Nokia?

The only one I found that 100% works with my droid mini has a 5mm distance rate.



*EDIT*

As per the questions asked on amazon this will work with any Qi enabled device.

[Rkparker]

I love this idea but by note fits perfectly and blends in so well that I have launched it into the back seat already by opening the console. I would have to add some type of holder or sleeve.

[pipdicker]

I have a Note 3. Which, as Rkparker pointed out, fits perfectly (although I have yet to launch it...lol). I wonder if magnets would help hold it in place?



The receiver pad I use was given to me, and until now had not checked it's max output. The pad I am using has a max output of 700ma, which explains the 640ma reading I get. I am ordering this pad (rated at 1000ma) to see if it works better:



http://www.amazon.com/gp/aw/d/B00FTULQJU/ref=mp_s_a_1_3?qid=1395803457&sr=8-3&pi=SY200_QL40



I have yet to get the auxiliary power port out of the console, and am now considering a fuse tap. Makes for a longer run, but if I'm unable to get the port out without damaging the console (and/or port) this might be the route I take.



Anyone have advice on how to get it out easily?

[pipdicker]

Tapatalk wasn't allowing me to post the link to the charging pad. Let's see if this works:



http://www.amazon.com/gp/aw/d/B00FTULQJU/ref=mp_s_a_1_3?qid=1395803457&sr=8-3&pi=SY200_QL40

[Rock1500]

Tapatalk wasn't allowing me to post the link to the charging pad. Let's see if this works:



Thats the receiving unit for the phone not the sending. What would think would happen of you double up the charging plates on your console. Ypu have the space there.

[pipdicker]

I've been able to remove back panel of console allowing access to power port. I'm out of t-taps, so can't finish until tomorrow, but all that is left is drilling hole in tray, running Nokia power cord through hinge area (to keep it clean), and tapping into power port leads. Location of screws to remove back panel is in rear storage area (remove rubber mat):





Back panel removed (pull up and out)... You can see leads I plan on tapping for power.





Sent from my SM-N900V using Tapatalk

[soltys]

Great idea Tex. The originator for when the rest of us follow you. When I do mine, I'll make a label or sticker to go under the tray "copy of TexaSLT product"
