2016 Silverado 1-2" Rear Lowering Shackles

Hugo Escobar · May 2, 2016

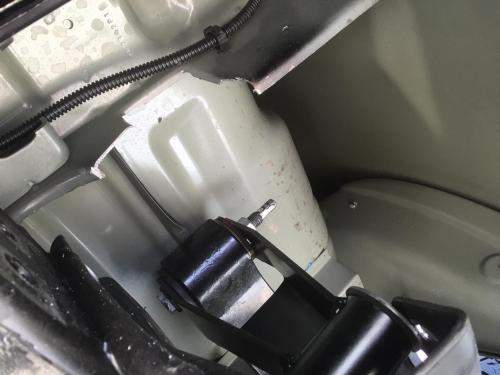

I installed the McGaughys 33037 Rear Lowering Shackles. One thing to note is that you will need to remove the tow hitch and bend a seam on the truck bed. To get the level look you will need 3' I installed 2' the truck still has a rake of 1'

jimbaeumel · May 3, 2016

Looks great. I had the same issue on my 2014 with the bed seam.

Husker_1911 · March 12, 2019

What was the issue with the hitch?

rah7777777 · March 12, 2019

I don't remember why, but I had to drop my hitch as well when I did it.

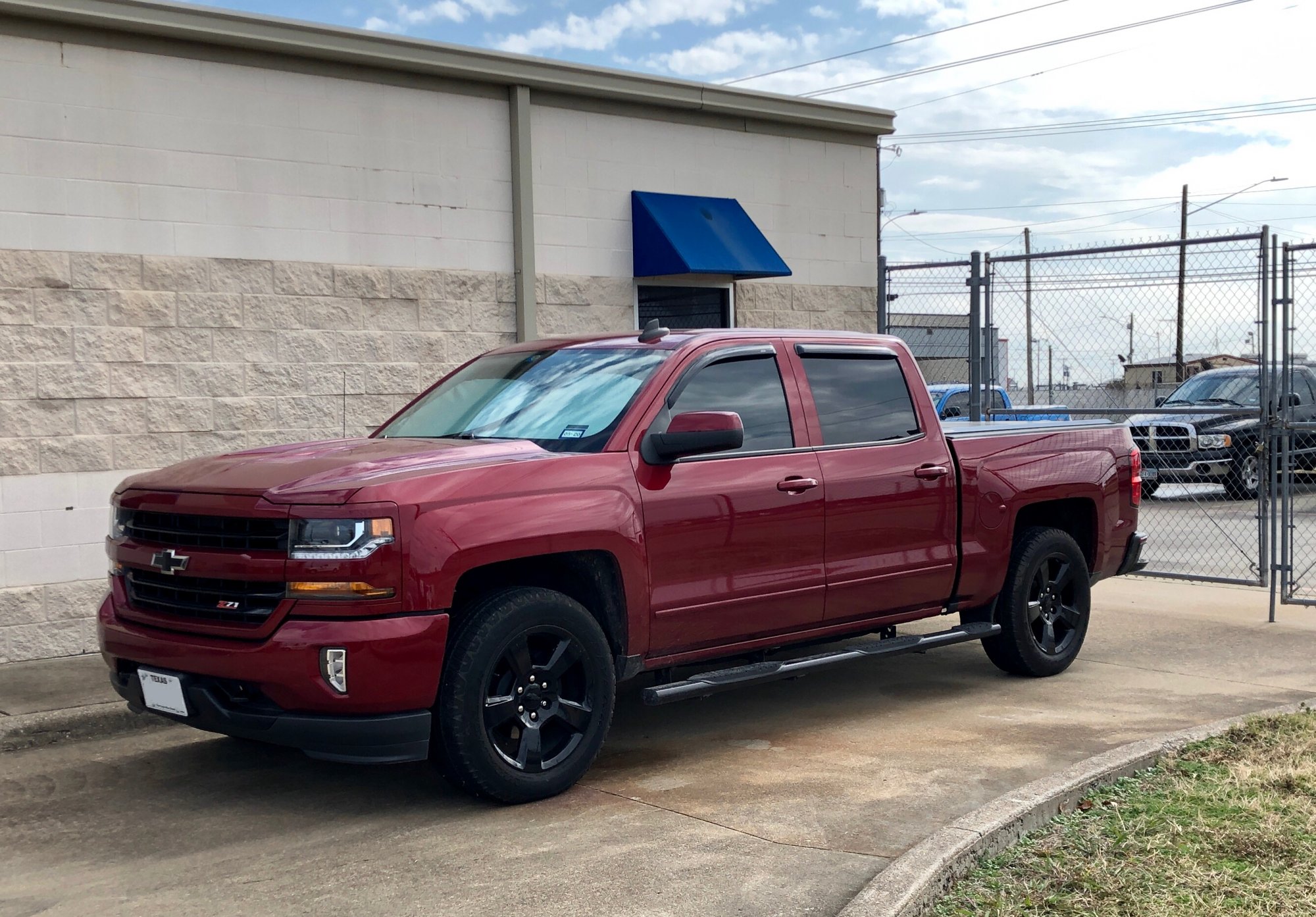

Not 100% level, but close enough where I am okay with it haha.

Also lowered my headlights afterwards.

Husker_1911 · March 13, 2019

4 hours ago, rah7777777 said:

I don't remember why, but I had to drop my hitch as well when I did it.

Not 100% level, but close enough where I am okay with it haha.

Also lowered my headlights afterwards.

Did the hitch go back on after install? Reading Belltech's instructions on their 5-6 flip kit, it went back on after everything else was done.

rah7777777 · March 13, 2019

Yes it went back on.

If I remember right it just had to be removed to get one of the bolts out of the shackle. Went back on when complete.

EpicLT · March 13, 2019

2 hours ago, rah7777777 said:

Yes it went back on.

If I remember right it just had to be removed to get one of the bolts out of the shackle. Went back on when complete.

Ok good. If the tow hitch was lost, no way my dad would do this. He was talking to me about lowering rear rather than raising front, but I know he wants the tow hitch to stay.

rah7777777 · March 13, 2019

We were close to buying a 28' camper and one of the things i'd want to confirm is the drop shackle was rated to handle the load of a good amount of bed weight and the towing weight. I'm sure it is, but I remember it not being as stout as the factory shackle I took out.

EpicLT · March 13, 2019

2 hours ago, rah7777777 said:

We were close to buying a 28' camper and one of the things i'd want to confirm is the drop shackle was rated to handle the load of a good amount of bed weight and the towing weight. I'm sure it is, but I remember it not being as stout as the factory shackle I took out.

Which ones did you get?
