OEM Off-Road Light Switch Install

TinkeringFox

By TinkeringFox
in Modifications & Accessories

 Share

Recommended Posts

Back in a Bowtie Enthusiast

Back in a Bowtie

Posted
Posted (edited)

ive decided to go another route with this.  So i have a switch for sale if anyone wants it.  blue light p/n: 2331721860281139

pm me if interested

Edited by 14tungstenLT
  • Replies 473
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

TinkeringFox
TinkeringFox

Have you seen the Michael J Fox Edition Sierra/Silverado rolling down the road? Looks like the Toyota from Back to the Future. Anyway there is a really cool headlight switch with the option for Off-Ro

pgamboa
pgamboa

For you guys with 2014/2015 or anyone else that this doesn’t work for (due to BCMs not being programmed to output these triggers), please be patient with us. We have an alternate method that allows

pgamboa
pgamboa

Ok folks, for anyone wanting this headlight switch harness, I have them ready made, and ready to ship.   $35 shipped anywhere in the US.   They are built with the same specs as shown in the vide

Posted Images

RACERX7775 Enthusiast

RACERX7775

Posted
Posted

After all that, you are gonna give up now? Lol. What "route" are you gonna take? If its the wiring of the relay, it looks intimidating, but truthfully, its easy. And once its done, you are gonna be like, wow, that was easy.

  • 3 weeks later...
Bernard Sarazin Enthusiast

Bernard Sarazin

Posted
Posted (edited)

I wish to do this to my 2500 hd

but would like to run it through  x50a

does any one have the full wiring drawing for this circuit

Edited by Bernard Sarazin
spelling
Bernard Sarazin Enthusiast

Bernard Sarazin

Posted
Posted
On 15/09/2018 at 2:52 PM, TinkeringFox said:

Have you seen the Michael J Fox Edition Sierra/Silverado rolling down the road? Looks like the Toyota from Back to the Future. Anyway there is a really cool headlight switch with the option for Off-Road lights. Apparently with a long push of the button the BCM will latch the signal and provide a constant positive signal for triggering a relay. It will also illuminate the icon on the switch as well as send a signal to the cluster illuminating an amber light icon next to the fog light icon or “ORL” in amber.



I successfully installed this in my wife’s ‘16 2500 Denali yesterday but from what I’ve read it’s the same for 1/2 tons, HDs, and Colorado/Canyon.



The BCM already has Programing for this from the factory but I’m not sure when (how early) it was started. I have a ‘15 3500 that I’ll try soon as well as a friend’s ‘17 2500 to do soon.



If the Programing hasn’t been done in my ‘15 I’ll still be able to get the switch to illuminate as well as latch a signal for positive or negative relay signaling using a latching relay.



There are several variants of this switch. Some have blue background for ‘17+Up model years and red for ‘16+earlier. Additionally some have the ORL switch without Fogs, and some have no surround backlighting.



Here is the video from yesterday’s install.....







......More videos to come for other uses like work lights, incorporating into the X50A, rear facing lights, non programmed trucks.....



Pgamboa has been very helpful in discussion about this as well as providing schematic-Thank You!



TinkeringFox Enthusiast

TinkeringFox

Posted
  • Author
Posted
1 hour ago, Bernard Sarazin said:



I wish to do this to my 2500 hd

but would like to run it through  x50a

does any one have the full wiring drawing for this circuit

The OEM drawings are for use with a relay provided with a harness that circumvents the X50A. The problem is that the X50A upfitter relays use a negative signal or “trigger” to energize. There is a way around this though. Is your truck a gasser or diesel?

Bernard Sarazin Enthusiast

Bernard Sarazin

Posted
Posted
26 minutes ago, TinkeringFox said:

The OEM drawings are for use with a relay provided with a harness that circumvents the X50A. The problem is that the X50A upfitter relays use a negative signal or “trigger” to energize. There is a way around this though. Is your truck a gasser or diesel?



TinkeringFox Enthusiast

TinkeringFox

Posted
  • Author
Posted
46 minutes ago, Bernard Sarazin said:

diesel and I have added the four upfitter auxiliary switches.

I would like to make it as close to own as possible

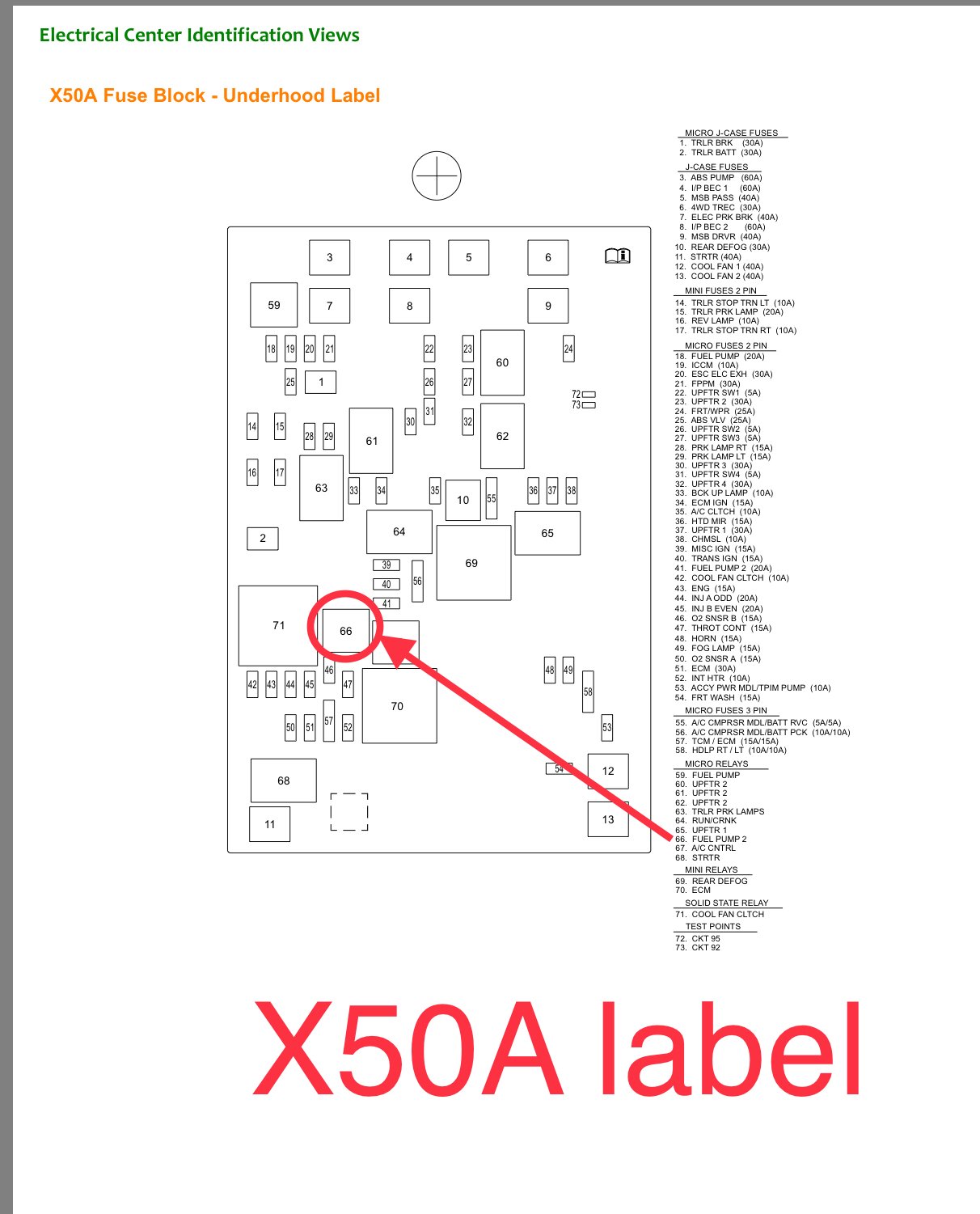

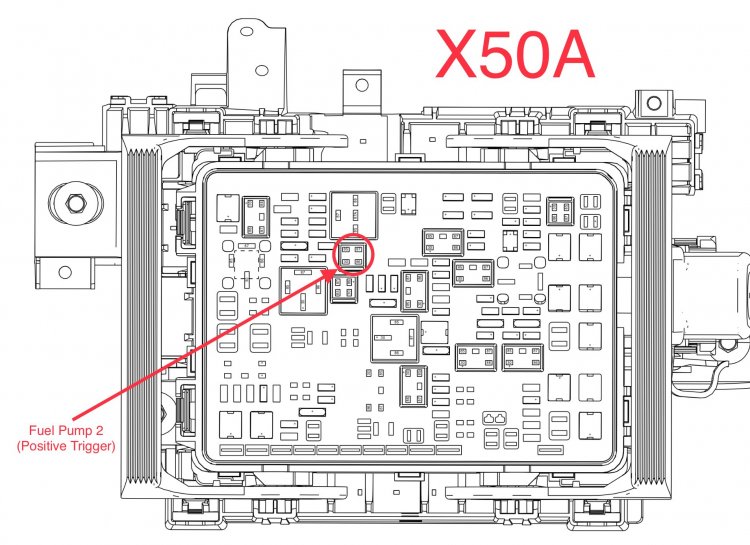

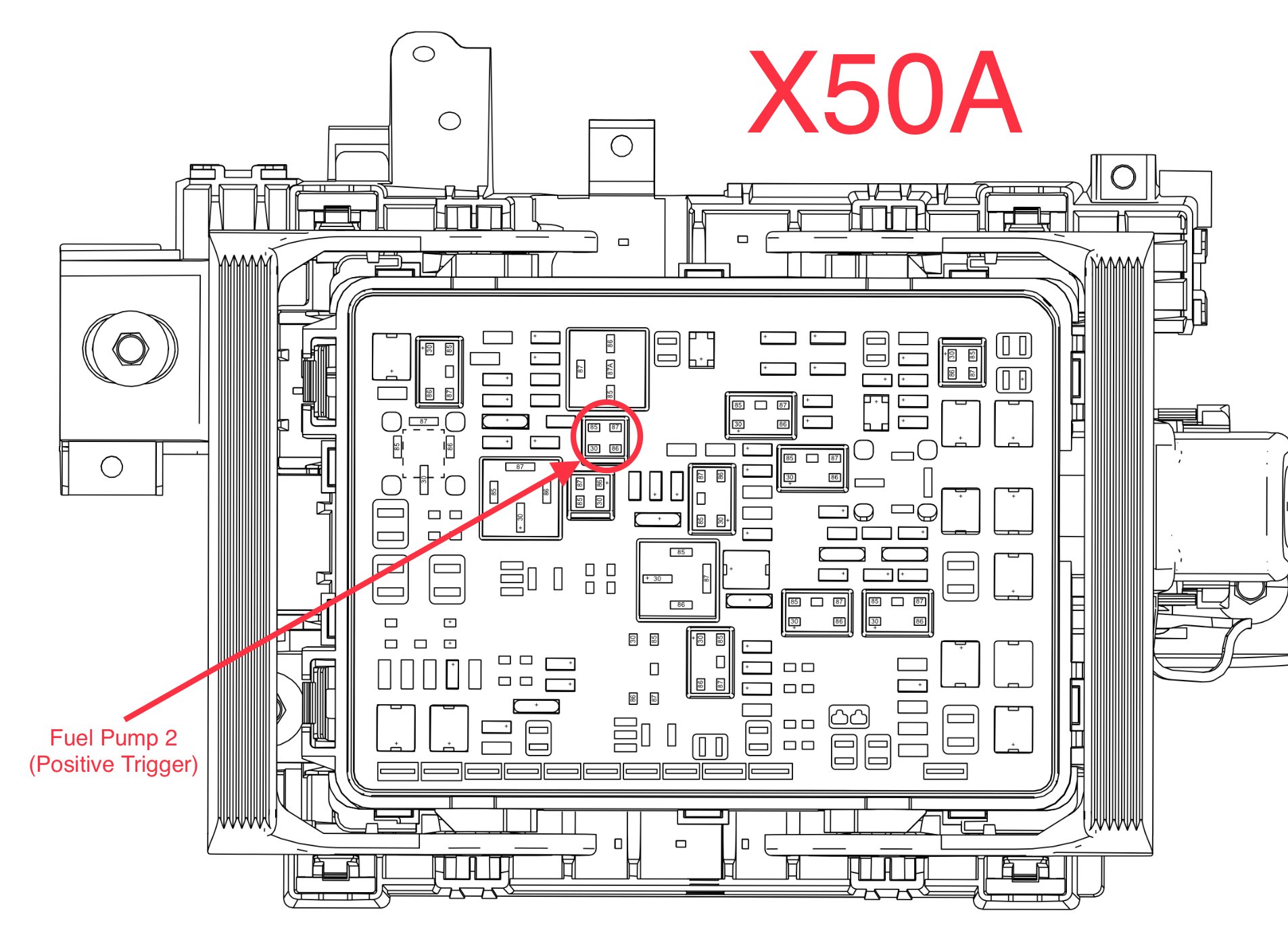

The reason I’m asking is that there is an unused  “fuel pump 2” relay in some vehicles. I believe this  relay uses a positive signal to energize. Check your fuse box for it. My wife’s ‘16 Duramax doesn’t have the relay or the pins to support it but my ‘17 Duramax does as well as my ‘15 6.0.



Bernard Sarazin Enthusiast

Bernard Sarazin

Posted
Posted
2 hours ago, TinkeringFox said:

The OEM drawings are for use with a relay provided with a harness that circumvents the X50A. The problem is that the X50A upfitter relays use a negative signal or “trigger” to energize. There is a way around this though. Is your truck a gasser or diesel?

could you not go through the bcm to the relay panel

TinkeringFox Enthusiast

TinkeringFox

Posted
  • Author
Posted
2 minutes ago, Bernard Sarazin said:

could you not go through the bcm to the relay panel

The power or signal wire already is coming from the BCM. Since it’s positive it won’t be able to trigger the X50A upfitter relays. You could feed it through the X61A junction block and then out to the X50A to keep the harness clean but it will still be a positive signal.

jaxsilverfox Enthusiast

jaxsilverfox

Posted
Posted (edited)

I’ve just installed the switch and wiring into my 2018 1500LT. Light bar come tomorrow and looking to have everything fully installed Friday so I’ll post photos. Working on a solution for the active front shutters as they make the behind the grill install a little more challenging.



Edited by jaxsilverfox
Addition of photo
  • Like 3
colonel00 Enthusiast

colonel00

Posted
Posted
On 12/19/2018 at 4:03 PM, jaxsilverfox said:

I’ve just installed the switch and wiring into my 2018 1500LT. Light bar come tomorrow and looking to have everything fully installed Friday so I’ll post photos. Working on a solution for the active front shutters as they make the behind the grill install a little more challenging.





Please do.  I haven't gotten a light bar yeat because of the active shutters.
