All lights 6 high/auto fog -DIY 2019 5.3 Silverado

Rado5.319
 Share

Recommended Posts

Rado5.319 New Member

Rado5.319

Posted
Posted

This diode installation allows all of the lights to remain on simultaneously when the high beams are activated on GM vehicles. The diode is super easy to install, you need $2 and 10 minutes. 9 of those minutes will be spent congratulating yourself.After diode placement your lights will function as follows:

  • In auto mode- whenever your lights come on automatically the fogs will be on also.
  • Low Beams & Fogs- Only Low Beams & Fogs will be on
  • High Beams- Low Beams, Fog Lights, & High Beams will all be on (normally by default)  The vehicle turns off the fogs when in high beam mode, but this diode solves that.
  • MAKE SURE THE SIDE OF THE DIODE WITHOUT THE STRIPE IS IN THE 10 PIN. The diode allows electricity to travel in only one direction.





  • Like 3
  • Thanks 1
DogMom Enthusiast

DogMom

Posted
Posted

This diode installation allows all of the lights to remain on simultaneously when the high beams are activated on GM vehicles. The diode is super easy to install, you need $2 and 10 minutes. 9 of those minutes will be spent congratulating yourself.After diode placement your lights will function as follows:

  • In auto mode- whenever your lights come on automatically the fogs will be on also.
  • Low Beams & Fogs- Only Low Beams & Fogs will be on
  • High Beams- Low Beams, Fog Lights, & High Beams will all be on (normally by default)  The vehicle turns off the fogs when in high beam mode, but this diode solves that.
  • MAKE SURE THE SIDE OF THE DIODE WITHOUT THE STRIPE IS IN THE 10 PIN. The diode allows electricity to travel in only one direction.
Thank you! TapaTalk gift for your sir!

"9 of those minutes will be spent congratulating yourself" [emoji23]

This information and added the humor is much appreciated.



Sent from my SM-G965U using Tapatalk

  • 3 weeks later...
Rocket3T Enthusiast

Rocket3T

Posted
Posted

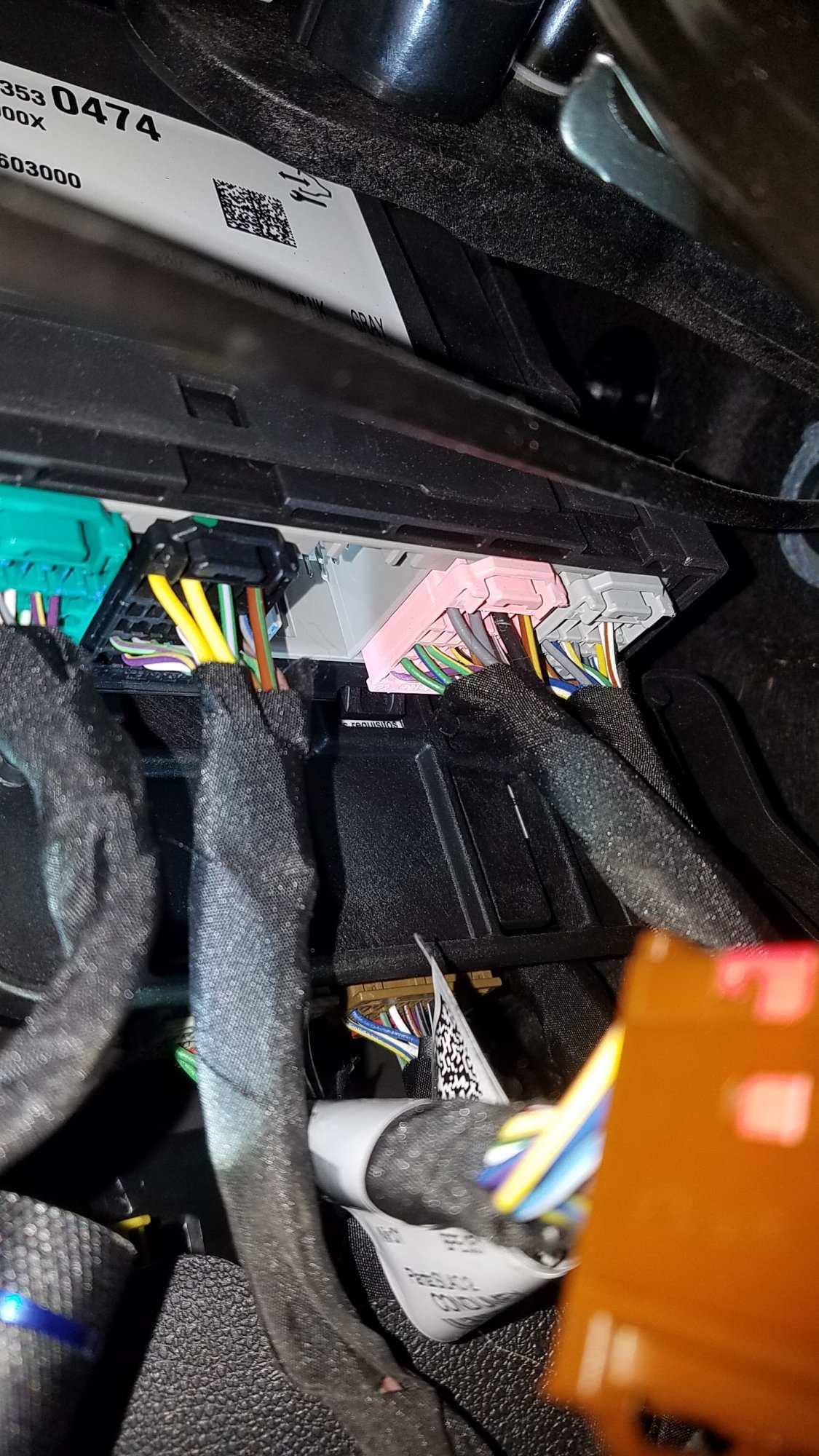

I would like to do this but my plug looks different.  I have 2019 new body style.  I am assuming this plug is under dash above your left foot. This is the plug in my truck.  Thanks for any help.



bdsilverado Enthusiast

bdsilverado

Posted
Posted

Simple option that allows all 6 headlight leds to stay lit with the fog.


Rocket3T Enthusiast

Rocket3T

Posted
Posted

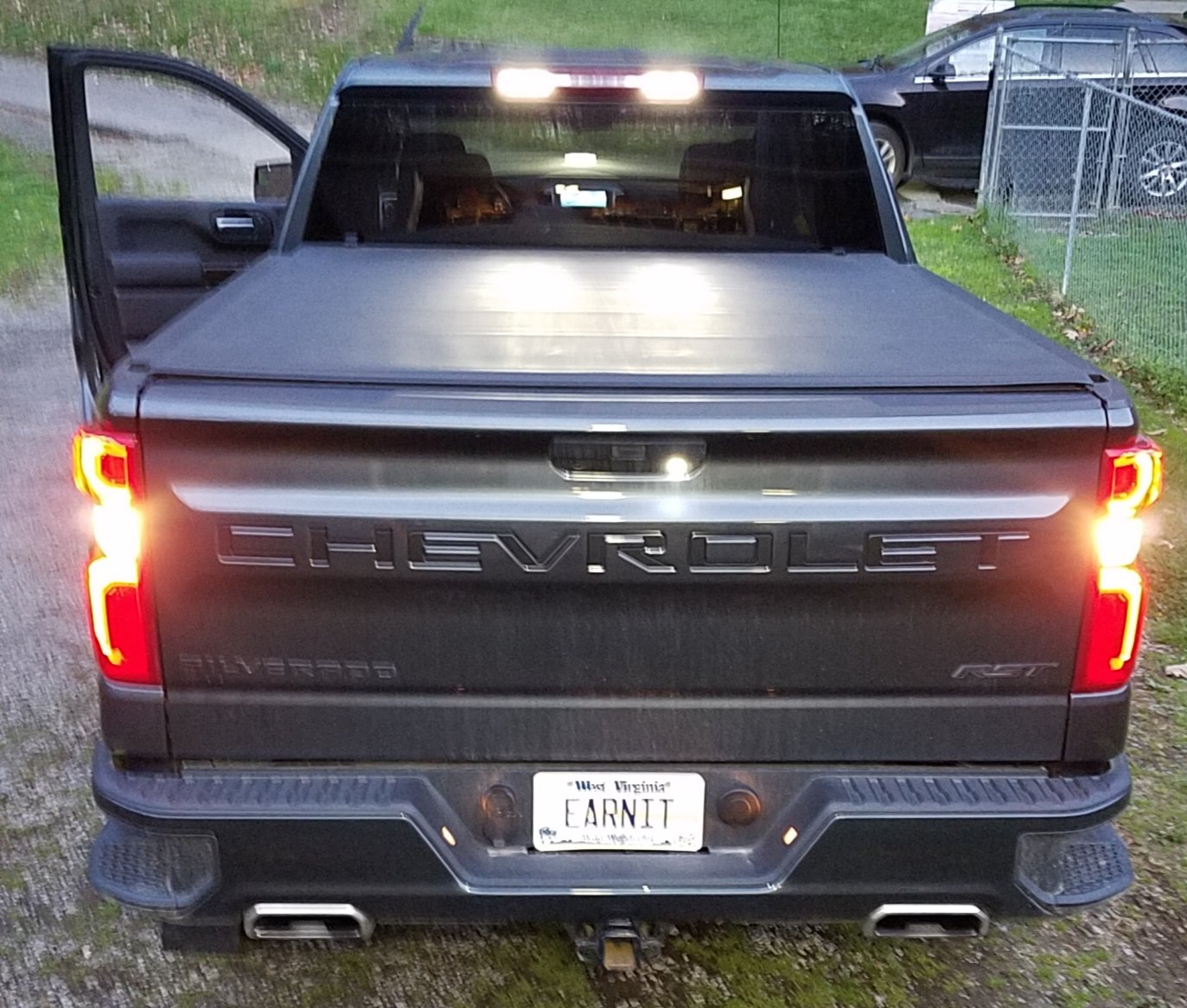

I finally figured it out after some research. I also did the diode mod for the cargo light on with the reverse lights. I like it.



  • Like 2
TRKLGND Enthusiast

TRKLGND

Posted
Posted
9 hours ago, Rocket3T said:

I finally figured it out after some research. I also did the diode mod for the cargo light on with the reverse lights. I like it.



Can you share what you found?  I'd like to do it myself.

  • Like 2
Rocket3T Enthusiast

Rocket3T

Posted
Posted

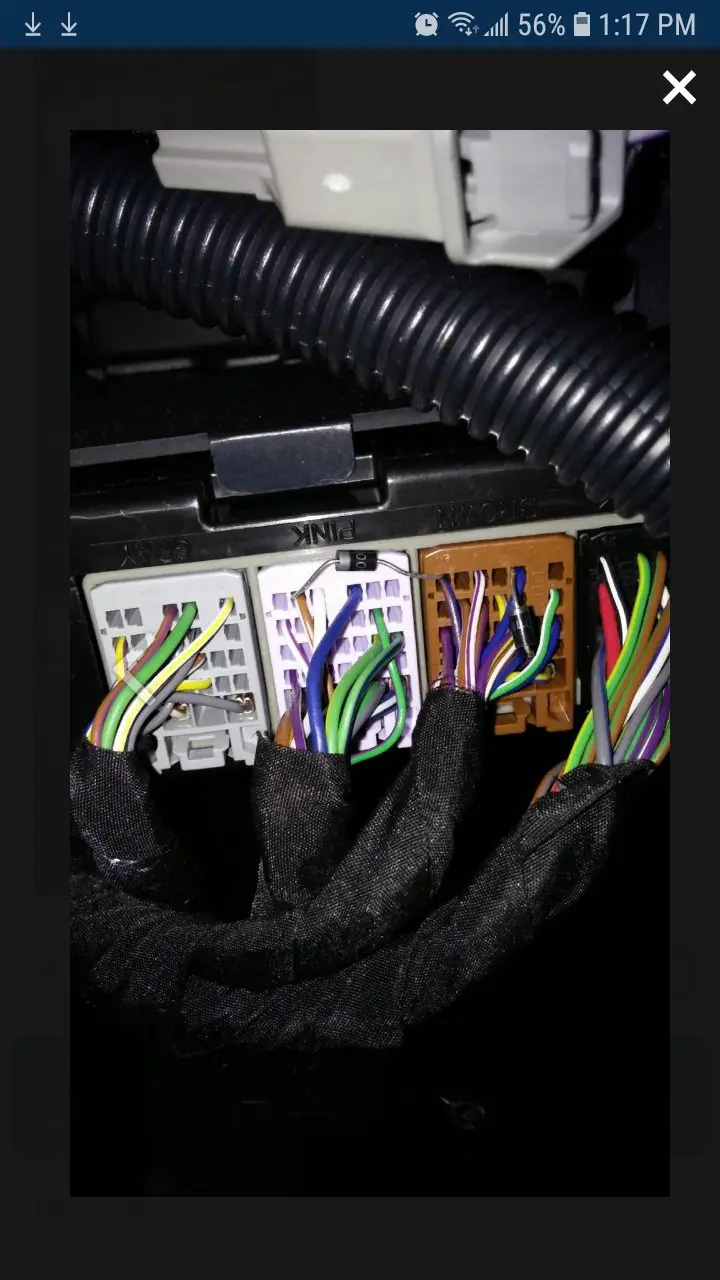

Im all new to this. I was looking at my plug wrong I didn't know that the 1st pic above was the plug with no wires. Looking for better pics of where to place the diode I came across an older post on the fourm from 2014 I believe posted by El Conqistador. Plug the diode in and then the cargo lights come on when you put it in reverse. I hope this helps.

Screenshot_20200409-131725_Samsung Internet.jpg

Screenshot_20200409-131737_Samsung Internet.jpg

  • Like 1
  • 2 weeks later...
Bratbowtie Enthusiast

Bratbowtie

Posted
Posted

Love both your mods, thanks for great info, 1 question? Does the auto dim still work , it wont with fog lights on, I kinda like that function but I like fog lights to remain on, thanks

  • 4 weeks later...
Chrisj4 Enthusiast

Chrisj4

Posted
Posted

So. I'm entirely clueless... Do i need to remove something or do I just shove this in the spots? (never done anything like this before)

Fltmech Enthusiast

Fltmech

Posted
Posted
On 4/8/2020 at 11:27 PM, Rocket3T said:

I finally figured it out after some research. I also did the diode mod for the cargo light on with the reverse lights. I like it.



If you don't mind, which pin #'s for the reverse and courtesy light mod?



Rocket3T Enthusiast

Rocket3T

Posted
Posted

I really dont known what pin # they are. In the above pic it is in the  top ledt corner of the brown plug jumped over to top row second from the left of the pink plug.

Gerstein1989 Enthusiast

Gerstein1989

Posted
Posted
On 4/8/2020 at 11:27 PM, Rocket3T said:

I finally figured it out after some research. I also did the diode mod for the cargo light on with the reverse lights. I like it.



Do you cargo lamps still function normal when in park

Chrisj4 Enthusiast

Chrisj4

Posted
Posted

I’m assuming these are the same for a custom. I had the fog lights put in by the dealer and for some reason I can’t get the diode to insert into pin #10 (the wire they installed with the fog light setup seems slightly thicker than the rest). This is the second night in a row I’ve spent around an hour trying to get this done... Any tips out there to help me out? ?‍♂️
