I put my radio bracket on the little compartment door where, traditionally, the ashtray would be on the lower part of the dash. It's 2 holes, if it bothered me enough later, I could just replace the door.

My coax is just routed up between the front and rear door, between the weather seals. If you zip tie it to the grab handle, and route it on the floor under the mats, it's not in the way and you don't really know it's there.

Sent from my SM-J810F using Tapatalk

Link to comment
Share on other sites

heres some pics of my VHF install.



the antenna is hard mounted to the front left fender. theres a company that makes a mount fro the new body style chevys.



i used adhesive velcro to attach the radio to the console wall and ran the power and antenna under the seat and along the door sill under the plastic trims.







Edited by J R
Link to comment
Share on other sites

heres some pics of my VHF install.

the antenna is hard mounted to the front left fender. theres a company that makes a mount fro the new body style chevys.

i used adhesive velcro to attach the radio to the console wall and ran the power and antenna under the seat and along the door sill under the plastic trims.


It’d be a lot cooler if you drilled the center of your roof! [emoji41]


Sent from my iPhone using Tapatalk Pro
  • Like 2
Link to comment
Share on other sites

17 minutes ago, Jav_eee said:


It’d be a lot cooler if you drilled the center of your roof! emoji41.png



I mount my antennas the same way, via the fender with an antenna bracket but I also do install a NMO antenna in the roof as well and keep it capped when I don't need 2 antennas.  Sometimes I run 2 rigs in my truck  (one is ham radio)

  • Like 1
Link to comment
Share on other sites

  • 7 months later...

On my 15, I ran the coax down one of the front stake holes (antenna was mounted on a stake hole mount plate), out the drain at the bottom, along the right hand long frame, up through a floor drain plug, under the carpet, and into my center console.

image.jpeg.5695d926e471938122aace0173ce9691.jpegpost-151133-0-47629800-1486237872_thumb.jpg



Going to do something similar to my 18, one of these weekends.


Link to comment
Share on other sites

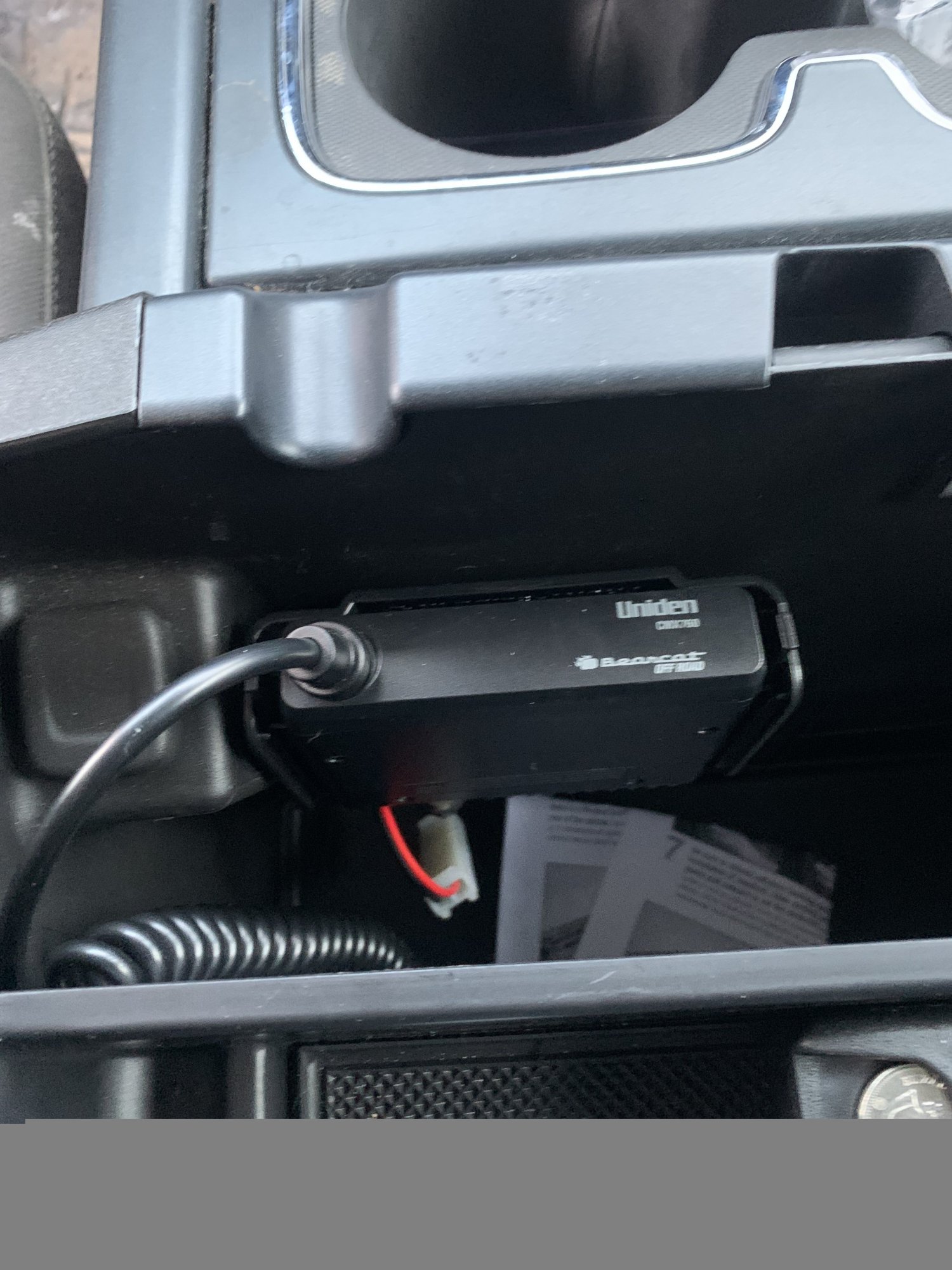

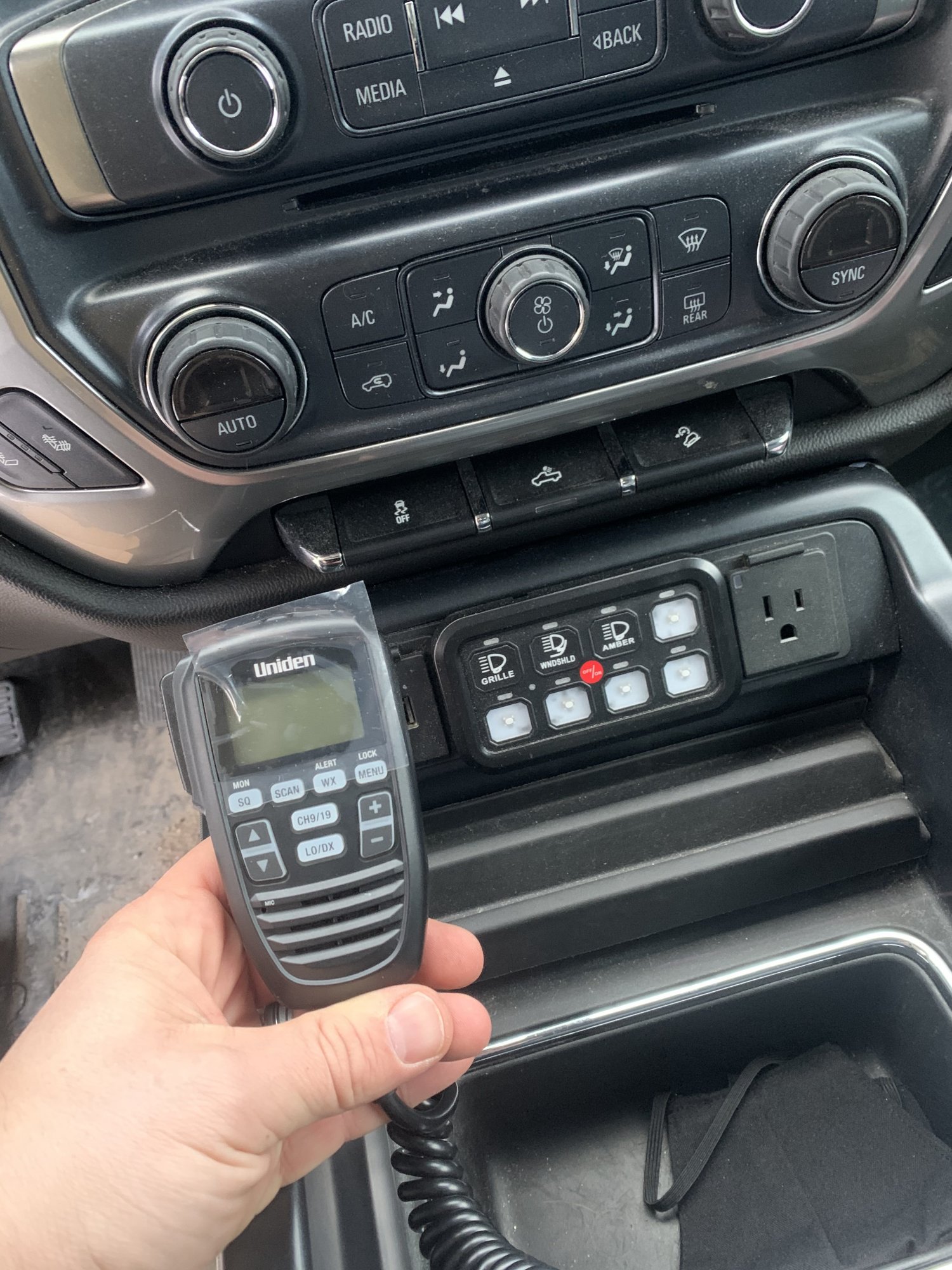

Added a Uniden Bearcat CMX 760 in the arm rest of my 2017 1500 True North Edition.  For the

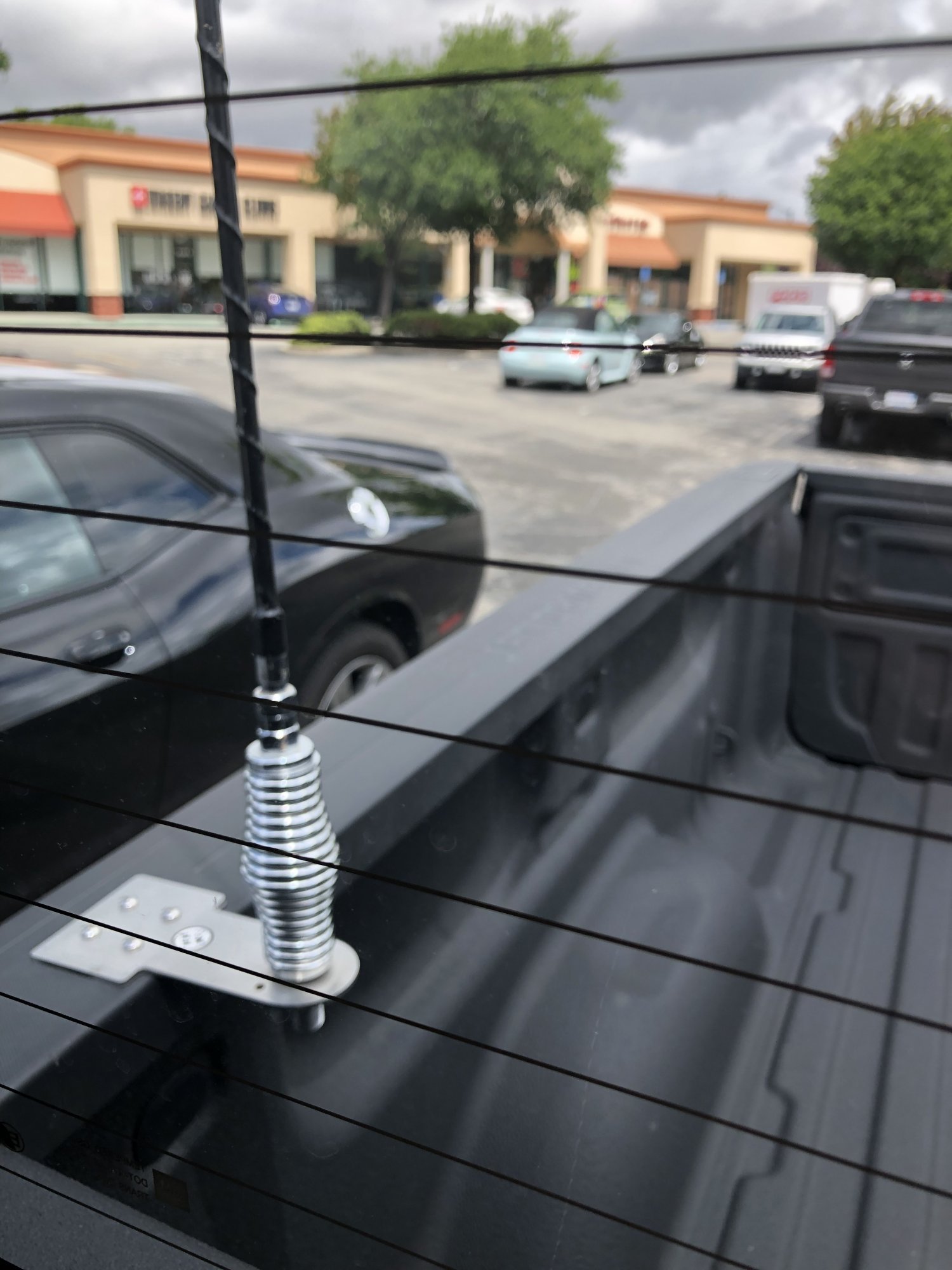

moment I am running a magnet mount on the roof of the truck, waiting for the rest of the pieces I need to attach a 2’ fire stick to my Magnum headache rack. Also shopping around for a small VHF/UHF radio that can fit right next to it






i did manage to run the wires and Coax without needing to cut a hole at the bottom of the center console( found a panel that you can lift up to run your wiring as needed
