LED Reverse/ Backup lights in rear bumper step cavity?

Andy Seibel

By Andy Seibel
in Modifications & Accessories

 Share

Recommended Posts

CustomChevyGuy Enthusiast

CustomChevyGuy

Posted
Posted
On 10/15/2019 at 7:27 AM, Beer Belly said:

Those are close to 4 inches.....is there 4 inches of flat space on the corner steps ?

They seem to fit rather flush where I intend to put them.  I haven't had a chance to get them put in yet. Time and weather have both been working against me lately. Hoping to get them put in by Thanksgiving at the latest.

  • Replies 197
  • Created
  • Last Reply

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

gmdog2
gmdog2

Hello, I just installed the Rigid Flush Mount Ignite Series. Provides a lot of light for the sides and the camera. Just thought I'd share with ya..Good luck.

tjn54321
tjn54321

I installed 1 led light in each bumper step. I drilled a hole in the center of the step toward the top. Right behind your hitch are a bunch of wires and plugs. I connected both wires to one of the w

gmdog2
gmdog2

Thank you for the nice comments everyone...much appreciated. I'll do my best to give you how I did it-   The lights I used are these- http://www.rigidindu...-lighting/20641   However, I just foun

Posted Images

Beer Belly Enthusiast

Beer Belly

Posted
Posted
19 hours ago, CustomChevyGuy said:

They seem to fit rather flush where I intend to put them.  I haven't had a chance to get them put in yet. Time and weather have both been working against me lately. Hoping to get them put in by Thanksgiving at the latest.

Looking forward to pictures of the finished product

  • 2 months later...
2500HDMitch Enthusiast

2500HDMitch

Posted
Posted

I know this thread is a little old. I finally recieved my Ignite lights yesterday. I want them controlled via the cargo switch from the Cab. And was wondering if this was an option.



Using a relay:



Post 87: connect positive from lights

Post 85: ground

Post 30: tap into running lights from tail light, fused (12v constant)

Post 86: grab power from the positive wire out of the bed light kit. That would act as the "switch"





wforrest08 Senior Enthusiast

wforrest08

Posted
Posted
13 hours ago, 2500HDMitch said:

I know this thread is a little old. I finally recieved my Ignite lights yesterday. I want them controlled via the cargo switch from the Cab. And was wondering if this was an option.



Using a relay:



Post 87: connect positive from lights

Post 85: ground

Post 30: tap into running lights from tail light, fused (12v constant)

Post 86: grab power from the positive wire out of the bed light kit. That would act as the "switch"






read though this thread. you can get power/ground under the bed by the spare tire. In fact you can wire them up just light in this post. Not sure why you think you need to tap running lights for? (unless you meant reverse light?) and shouldn’t need the relay since they are LEDs and don’t draw much amperage. I wired my Rigid sm-r back up light this way years ago with no problems.

2500HDMitch Enthusiast

2500HDMitch

Posted
Posted
20 hours ago, wforrest08 said:


read though this thread. you can get power/ground under the bed by the spare tire. In fact you can wire them up just light in this post. Not sure why you think you need to tap running lights for? (unless you meant reverse light?) and shouldn’t need the relay since they are LEDs and don’t draw much amperage. I wired my Rigid sm-r back up light this way years ago with no problems.

I've read through it a couple times. Dont I need the bedlight kit wires to get power from the cargo lamp switch?



And are you saying that since the lights only draw .85amp I dont need a fuse and relay?

wforrest08 Senior Enthusiast

wforrest08

Posted
Posted
43 minutes ago, 2500HDMitch said:

I've read through it a couple times. Dont I need the bedlight kit wires to get power from the cargo lamp switch?



And are you saying that since the lights only draw .85amp I dont need a fuse and relay?

I meant to add this thread to my post.

It will so you where and how to get your power and ground. It’s already fused but another inline fuse won’t hurt nothing if you’re worried about it. Shouldn’t need the relay since they are LED

  • 2 weeks later...
2500HDMitch Enthusiast

2500HDMitch

Posted
Posted

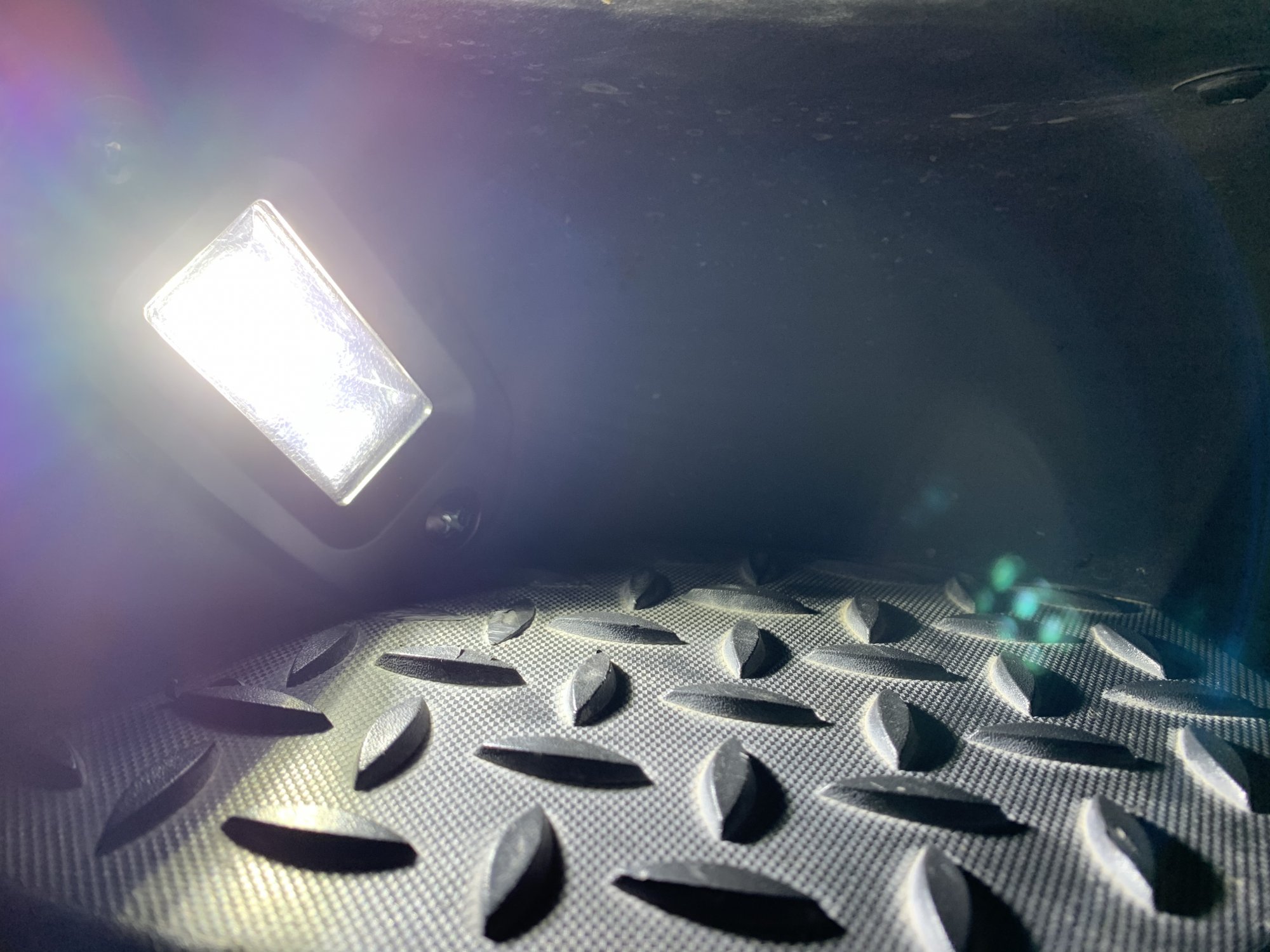

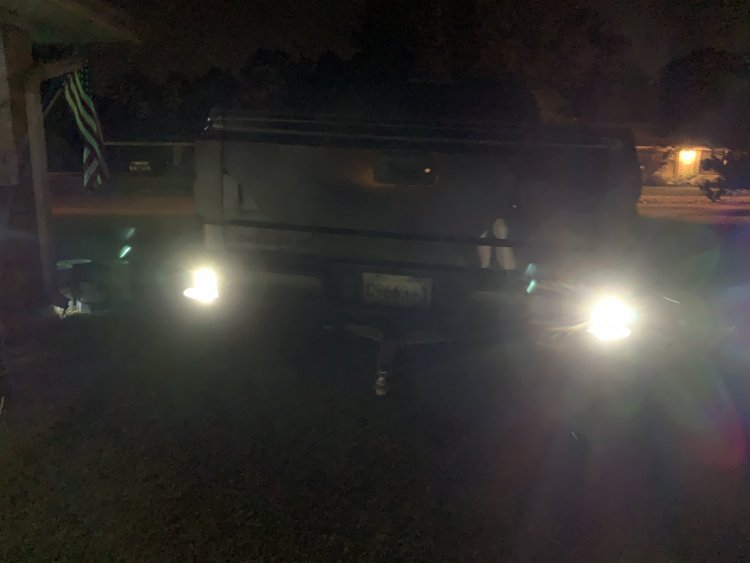

Got mine ok installed today. Temporarily wired to the backup lights on the trailer hitch. I'm waiting for GMPartsDirect to ship me my bedlight so they will be on a switch.



Anyways, super easy install. Used self tapping screws.

  • 3 weeks later...
REDOO2000 Enthusiast

REDOO2000

Posted
Posted

One of my rigid ignites just stopped working. They haven’t even been installed for a year and I might have used a dozen times for just backing up. I sent Rigid a email about warranty but I bought over a year ago. I hope they honor it. Anyone else have a problem??


Sent from my iPhone using Tapatalk

huntr1117 Enthusiast

huntr1117

Posted
Posted
One of my rigid ignites just stopped working. They haven’t even been installed for a year and I might have used a dozen times for just backing up. I sent Rigid a email about warranty but I bought over a year ago. I hope they honor it. Anyone else have a problem??


Sent from my iPhone using Tapatalk
Double check your wiring. Same thing happened to me. I emailed rigid and they sent me an rma # to send them back in. When I went to take them out I double checked my wiring. I must have forgotten how lazy I was when I installed them because I used butt connectors and was going to soder later. Turns out that one of my grounds was bad. Rewired everything with soder and heat shrink. They work great again.

Sent from my SM-G975U using Tapatalk

REDOO2000 Enthusiast

REDOO2000

Posted
Posted

Ok thanks
I’ll have to pop out the tail light and check
It’s still cold and don’t want to crack anything


Sent from my iPhone using Tapatalk

  • 7 months later...
  • 1 month later...
GN2018 Enthusiast

GN2018

Posted
Posted

This is a great thread.  Thanks for the information.  I order the LED bulbs for the backup lights and will swap them out as soon as they arrive.  I’m probably going to  spring for the Rigid lights in the step, but went to Amazon and they’re $144.  Should have got in on them when they were first posted.  They were running $123 then and some deals were still to be found.



If anyone who originally did this modification is still around, it would be great to get an update on your satisfaction with the mod and how the Rigids are holding up.
